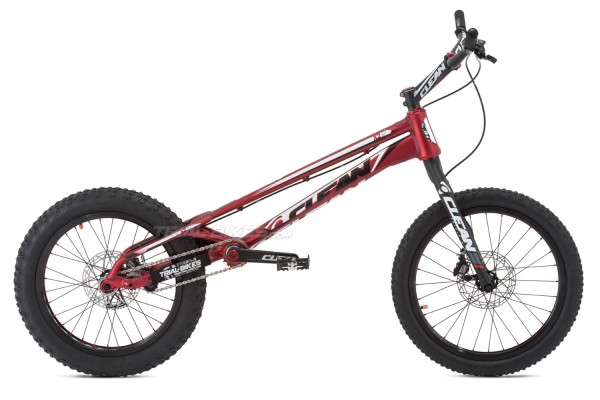

Clean X2 2017 20'' Bike Expand

Clean X2 2017 20'' Bike

CLEAN CLEAN

New

This product is no longer in stock

1 892,56€

Option .
 Hope Trial Zone / Hope Trial Zone

 Clean HS / Hope Tech3

Ask a question

The new Clean X2 20” bike is the insignia model of Clean’s 20” range. Now, the X2 frame has been updated and now features a hydro formed downtube, which provides extra stiffness and strength. Furthermore, it’s built with top quality Clean parts, like the asymmetric Press-Fit BB30 3P bottom bracket, 2-wheel sprung tensioner, tapered headset, etc.

It’s available in two different setup options:
           · Option 1: Hope Trial Zone front and rear disc brakes (Disc/Disc).
           · Option 2: Clean T13 front rim brake and Hope Trial Zone rear disc brake (HS/Disc).
Check the following list to see the components of each setup option.

Frame and fork
- Frame: Clean X2 20”, made from 6061-T6 + 7075-T6 aluminium alloys, with Post Mount disc brake mounts
- Forks: Clean X2 20” tapered 1 1/8” – 1.5”, made from 7005-T6 aluminium alloy, with Post Mount disc brake mounts or 4-bolt rim brake mounts (depending on brakes choice).

Wheels
- Front hub: Clean X2 28 spoke holes, with or without rotor mounts (depending on brakes choice), 100mm spacing, anodized black
- Rear hub: Clean X2 32 spoke holes, with rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Clean X2 integrated, with two 11T jockey wheels made of plastic, black
- Front rim: Clean X2 20”, single wall, 34mm wide, 28 spoke holes, anodized black
- Rear rim: Clean X2 19”, single wall, 48mm wide, 32 spoke holes, anodized black
- Spokes: 1.8mm spokes, black
- Rim tape: Clean, grey
- Front inner tube: Maxxis Extra Light
- Rear inner tube: Maxxis Extra Light
- Front tyre: Monty Pro Race 20”x2.00”
- Rear tyre: Monty Pro Race 19”x2.60”

Brakes
- Front brake: Hope Trial Zone Post Mount or Clean T13 (depending on brakes choice)
- Rear brake: Hope Trial Zone Post Mount

- Rotors: Clean RS, 160mm (front), 162.5mm (rear)
- Disc protector: Clean

- Rim brake pads: Clean X2
- Brake clamps: Clean X2 Washerless

Drivetrain
- Crankset: Clean X2 3-piece set, with Press Fit BB30 30mm diameter BB axle, CNC machined. 160mm long cranks, for Cassette Shimano-type freewheel, available in black with Clean silver graphics
- Freewheel: Clean X2 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, red
- Chain: KMC X9L, silver
- Rear sprocket: Clean 12T Screw-on, made from 7075-T6 aluminium alloy, anodized black
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black
- Bashplate: Clean Light 2-piece mini-bashplate, anodized red

Steering
- Headset: Clean Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red
- Stem: Clean 145mm x 25º, 31.8mm Oversized handlebar diameter, black with silver Clean graphics
- Grips: Clean foam, black
- Handlebar: Clean 7075 103mm, 31.8mm Oversized handlebar diameter, black finish with white and red Clean graphics

Geometry:
- Wheelbase: 1005mm
- Chainstay length: 350mm
- Bottom bracket rise: +87mm
- Head angle: 72º

Weight
- To be confirmed

Additional information:
This bike is available for reserve. The list of components may change. Any change on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.

Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com.

SIZE 20"
FRONT BRAKE Disc
FRONT BRAKE HS
REAR BRAKE Disc
