Jitsie Varial 26'' 2022 Bike Expand

Jitsie Varial 26'' 2022 Bike

JITSIE JITSIE

537815

New

This product is no longer in stock

1 074,38€

Ask a question

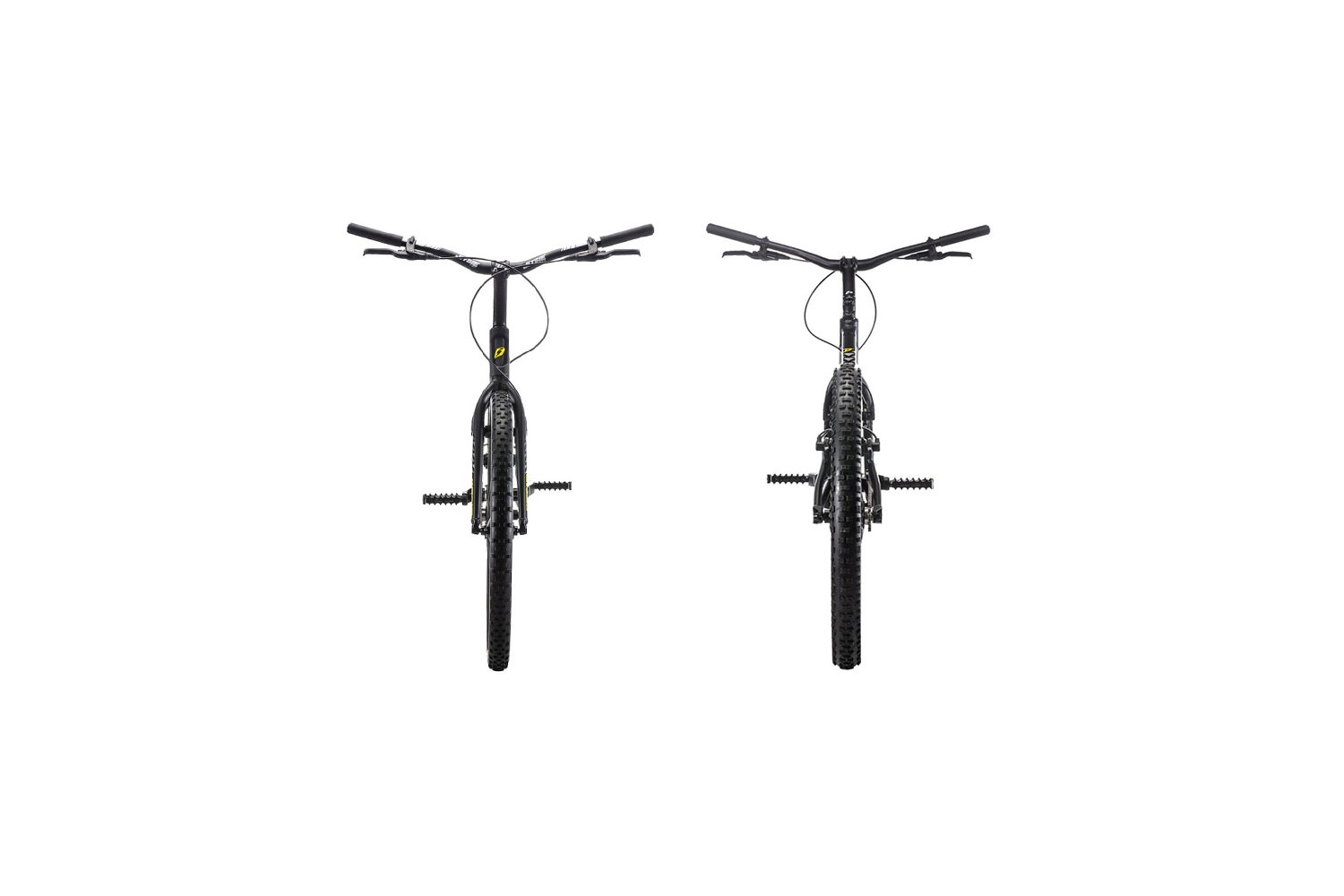

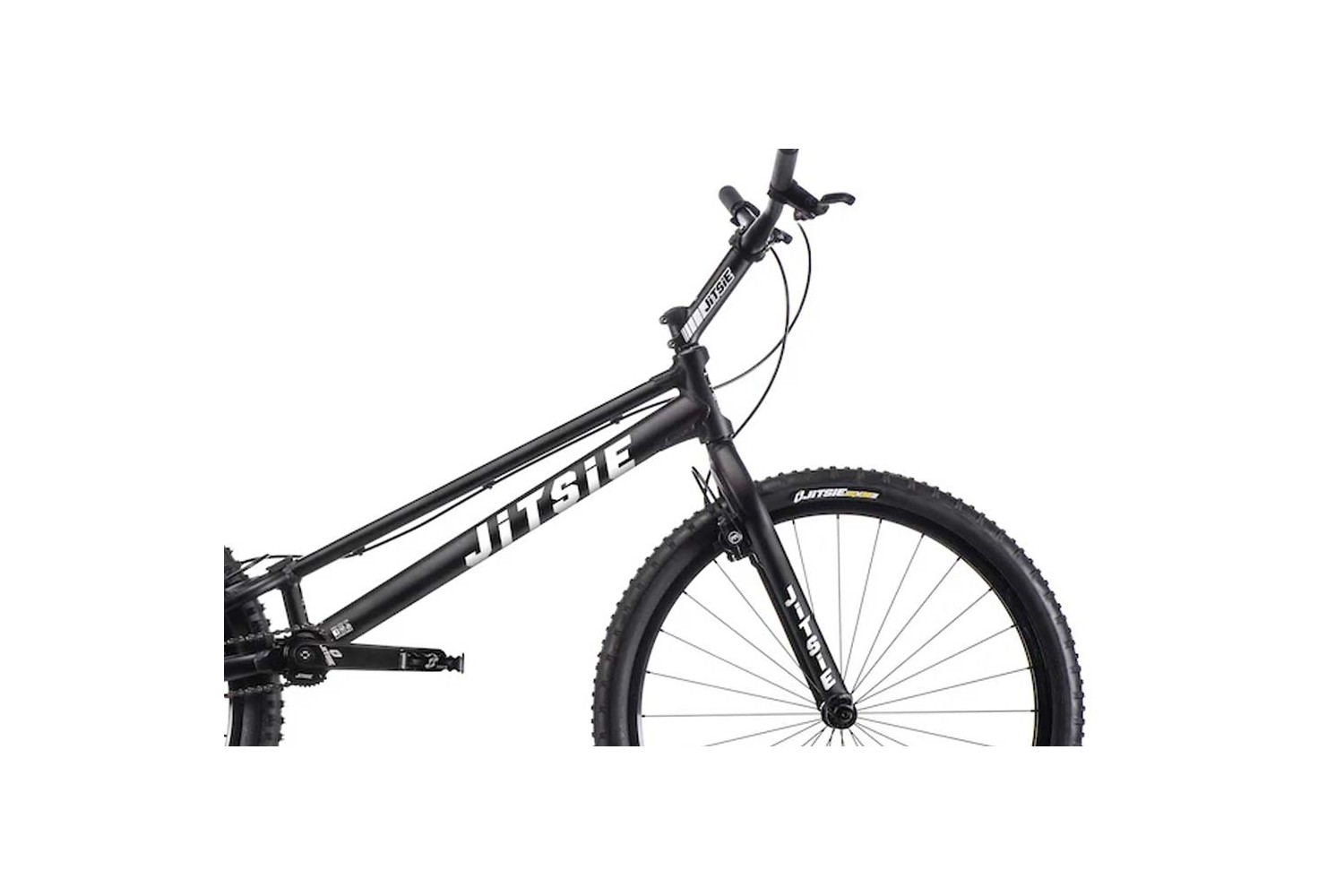

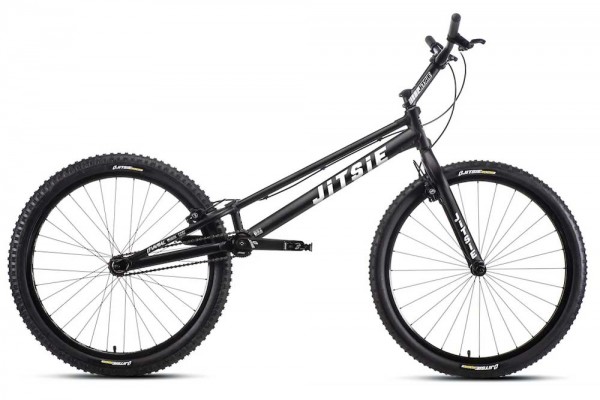

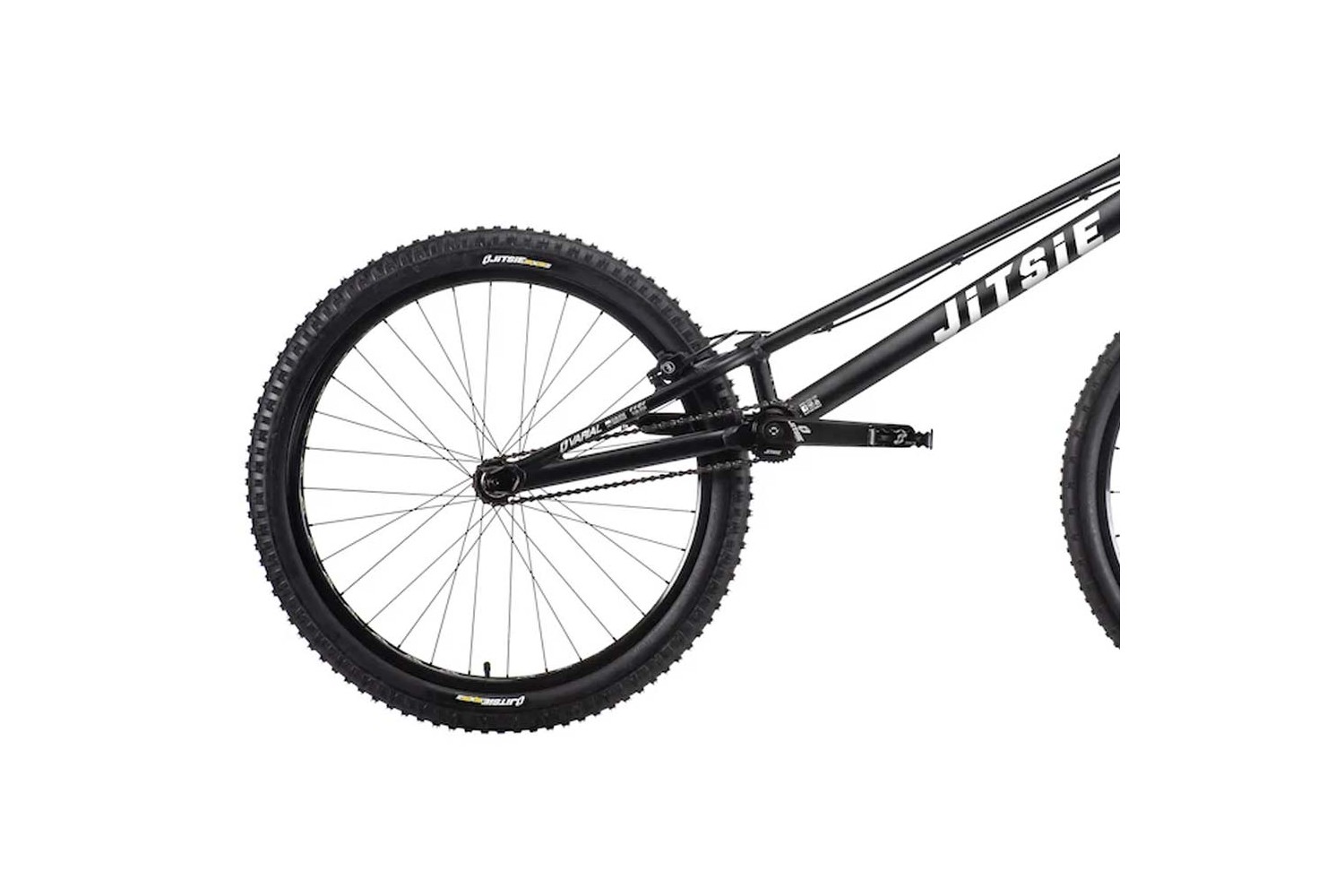

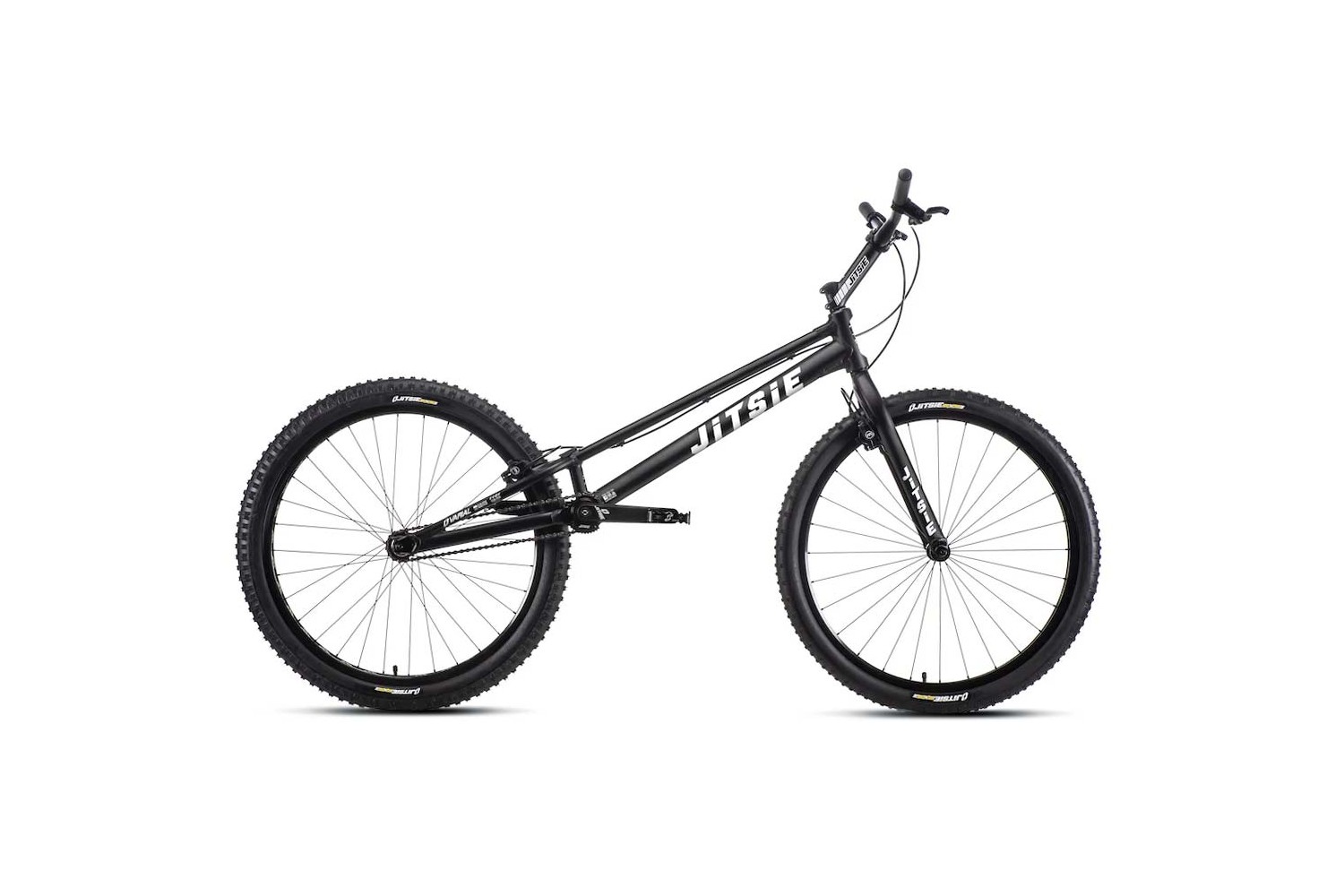

Jitsie Varial 26'' 2022 Trials Bike

The Jitsie Varial 26’’ 1085 mm trials bike keeps the successful main design that made it one of the most popular 26’’ trials bikes, with high quality parts and a very competitive price.

  • Jitsie Varial 26’’ 1085mm trials bike.
  • This is the HS/HS version, built with front and rear Magura HS22 hydraulic rim brakes.
  • High quality parts: Jitsie 108.9 18-teeth freewheel, 170mm forged cranks, Magura hydraulic disc brakes, 150mm x 35º forged stem, aluminium pedals, etc.

Frame and fork
- Frame: Jitsie Varial 26” 1085mm, made from 6061-T6 aluminium alloy, with 4-bolt rim brake mounts, in black with yellow/black/grey Jitsie adhesives
- Forks: Jitsie Varial 400mm, with 4-bolt rim brake mounts, in black with yellow/black/grey Jitsie adhesives

Wheels
- Front hub: Jitsie ST 100HS 28 spoke holes, without rotor mounts, 100mm spacing, anodized black
- Rear hub: Jitsie ST 116HS 32 spoke holes, without rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Jitsie aluminium/steel snail cams
- Front rim: Jitsie 26”, single wall, 32mm wide, 28 spoke holes, anodized black
- Rear rim: Jitsie 26”, single wall, 48mm wide, 32 spoke holes, anodized black
- Spokes: Jitsie 1.8mm, made of steel, black
- Rim tape: Jitsie Ultralight, silver
- Front inner tube: Jitsie Light 0.9mm 26”
- Rear inner tube: Jitsie Light 0.9mm 26”
- Front tyre: Jitsie Reverz 26”x2.00”
- Rear tyre: Jitsie Reverz 26”x2.50”

Brakes
- Front brake: Magura HS22
- Rear brake: Magura HS22

- Brake pads: Magura
- Brake clamps: Magura

Drivetrain
- Cranks: Jitsie ISIS 7075, 170mm long, black with white Jitsie graphics
- Bottom bracket: Jitsie ISIS, 128mm axle
- Freewheel: Jitsie 108.9 18T, with 108 engagement points, 9 pawls and 18 teeth, silver
- Chain: KMC Z1eHX, silver
- Rear sprocket: Jitsie 15T Screw-on, made of steel, silver
- Pedals: Aluminium caged pedals
- Bashplate: Jitsie bashring, anodized black

Steering
- Headset: Jitsie 1 1/8” internal headset, with sealed bearings, 5mm aluminium spacer, anodized black
- Stem: Jitsie 150mm x 35º, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics
- Grips: Jitsie foam, black
- Handlebar: Jitsie 7075, 730mm long, 90mm rise, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics

Geometry (based on Jitsie Varial fork 400mm and +35mm offset)

(1) Wheelbase: 1085 mm
-----------------------------------------------
(2) Rear End: 380 mm
-----------------------------------------------
(3) Bottom Bracket Height: +70 mm.
-----------------------------------------------
(4) Head Angle: 71.5°.
-----------------------------------------------
Geometrias en bicicletas de Trial

Weight
- 8.62Kg (including pedals)

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com .

SIZE 26"
WEIGHT 8.300
FRONT BRAKE HS
REAR BRAKE HS
