Onza Genesis 20'' Bike Expand

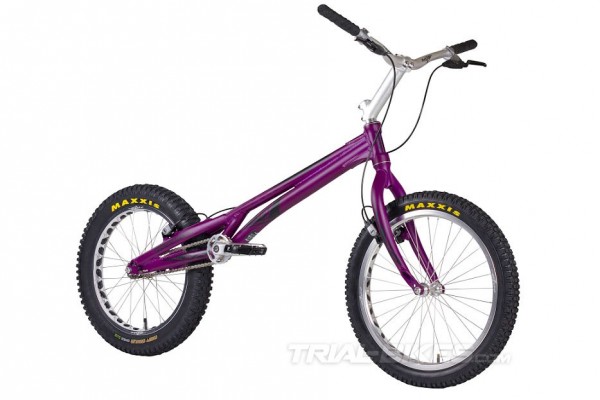

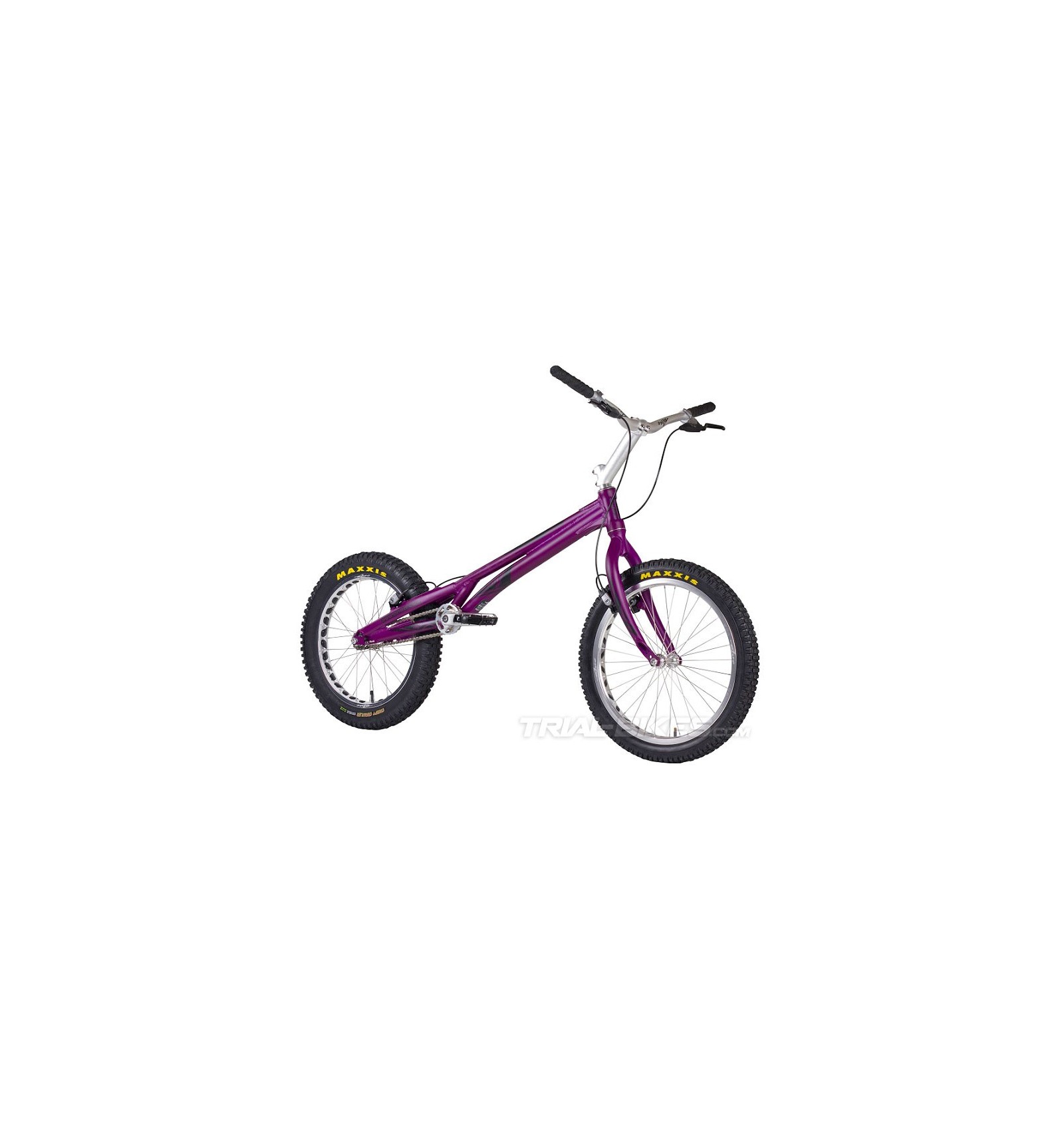

Onza Genesis 20'' Bike

ONZA ONZA

536670

New

New, it’s the Onza Genesis 20” bike. Assembled with purely aftermarket competition spec parts and developed for over 2 years by some of the best talents in the UK including world champion Jack Carthy. The frame features a high bb and super stiff built in brake booster to give you optimum brake performance.

More details

This product is no longer in stock

1 066,12€

Ask a question

New, it’s the Onza Genesis 20” bike. Assembled with purely aftermarket competition spec parts and developed for over 2 years by some of the best talents in the UK including world champion Jack Carthy. The frame features a high bb and super stiff built in brake booster to give you optimum brake performance.

Frame and forks
- Frame: Onza Genesis  20” Al6061 U6 ultralight, matt purple
- Forks: Onza Genesis  Light HS33 only, matt purple

Wheels
- Front hub: Onza Diamond 32H non-disc, in shiny silver finish.
- Rear hub: Onza Diamond 32H non-disc 116mm, in shiny silver finish.
- Chain tensioner: Integrated tensioner system: 2 bolts push the wheel backwards from each side of the frame, to get the ideal chain tension.
- Front rim: Onza Diamond 32H single wall, in shiny silver finish.
- Rear rim: Onza Diamond 32H 47mm single wall, in shiny silver finish.
- Spokes: Onza Inox, silver
- Rim tape: Onza, black
- Front inner tube: Maxxis
- Rear inner tube: Maxxis
- Front tyre: Maxxis Creepy Crawler 20’’
- Rear tyre: Maxxis Creepy Crawler 19’’

Brakes
- Front brake: Magura Hs33 2011
- Rear brake: Magura Hs33 2011
- Brake clamps: Tensile Exclusive, black
- Brake pads: Magura Trial

Drivetrain
- Cranks: Onza Pro ISIS 160mm, silver
- Freewheel: Tensile 60-Click 18T
- Chain: Onza Trial
- Rear sprocket: Onza Screw-On, silver
- Pedals: Onza Platform Alu, black
- Bottom bracket: Onza Diamond ISIS
- Bashring: Onza Pro Uci bashring, silver

Steering
- Headset: Onza internal 1 1/8”, silver
- Stem: Onza Diamond forged, 165mm, 31,8mm, silver
- Grips: Onza rubber, black
- Handlebar: Onza Diamond 720mm, silver

Geometry:
- Wheelbase: 1000mm
- Chainstay length: 350mm
- Bottom bracket rise: +80mm
- Head angle: 72º

Finishes available
- Frame and forks feature a matt purple finish
- Black Onza graphics

Weight
- 8,90kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com.


WEIGHT 8.900
FRONT BRAKE HS
REAR BRAKE HS
