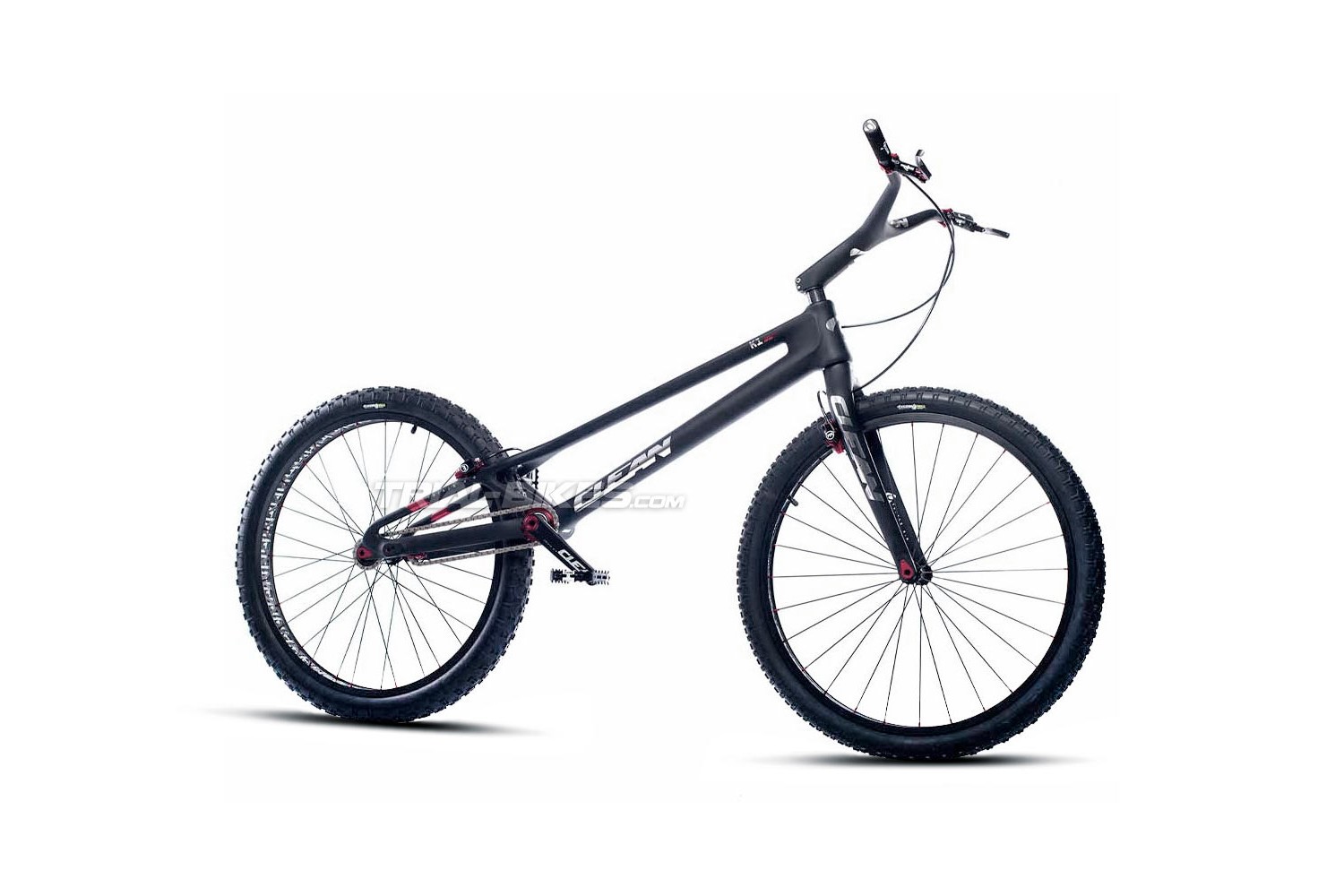

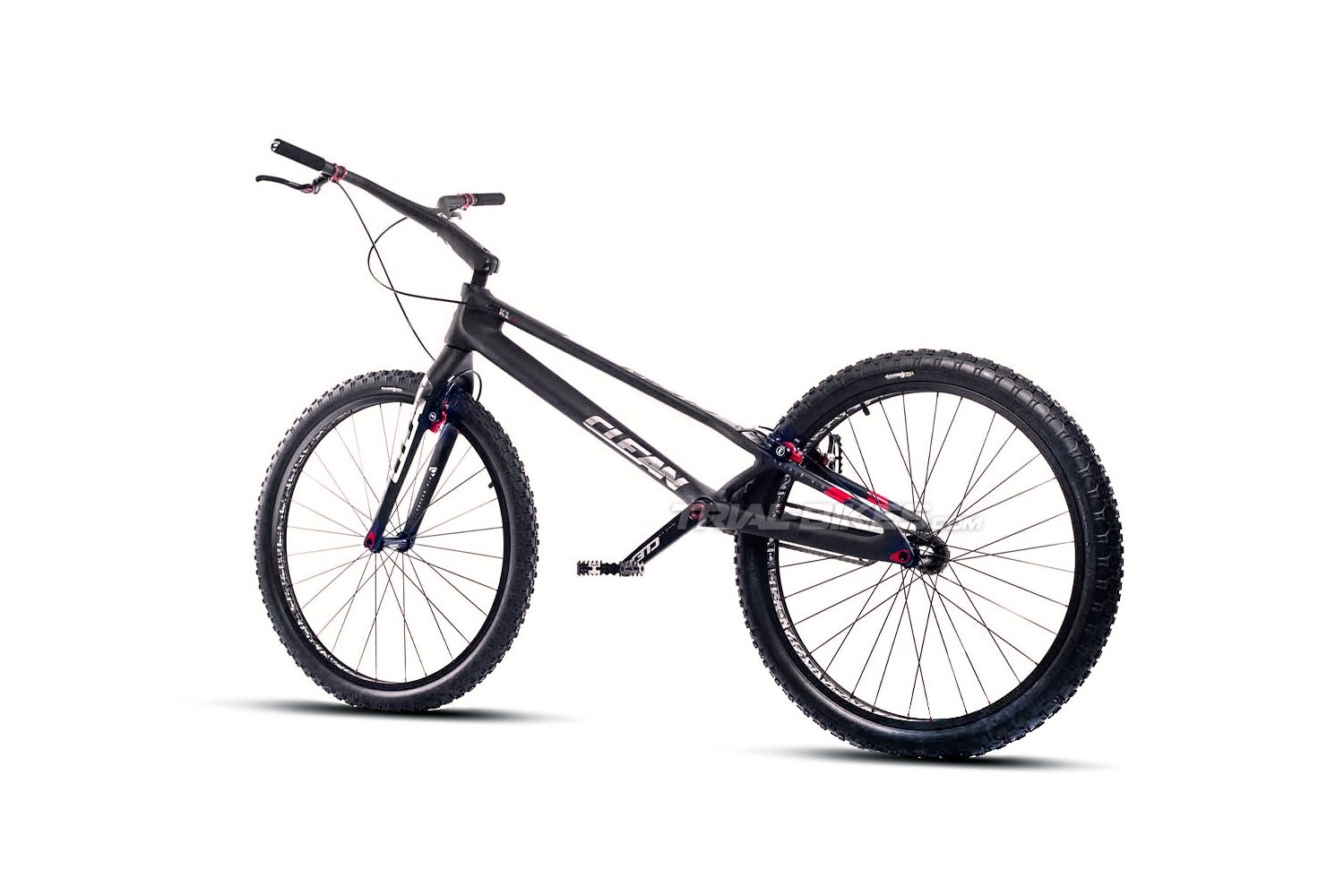

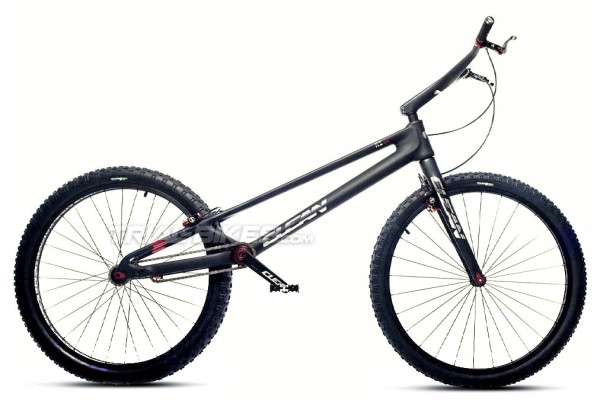

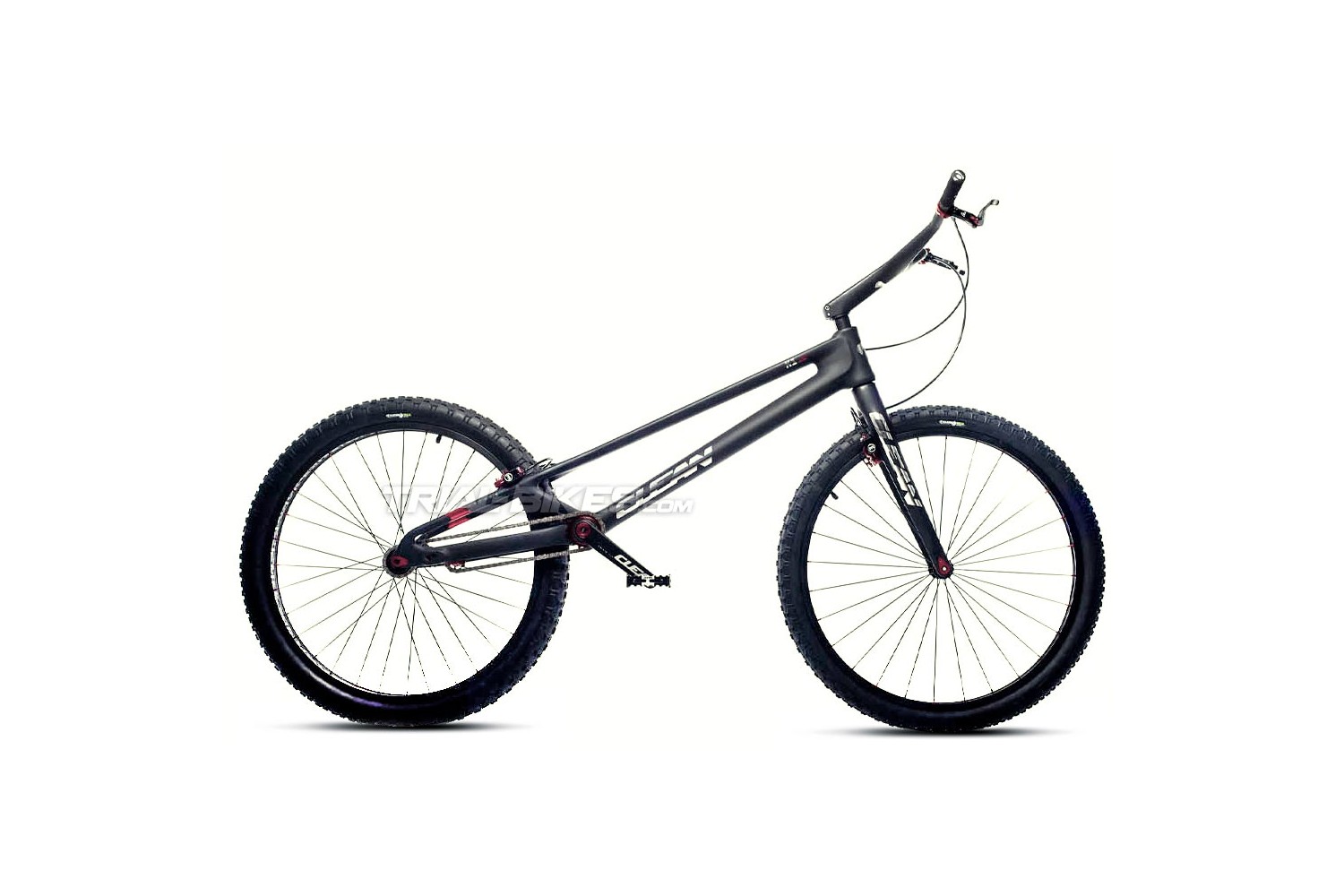

Clean K1 WC Edition 26" Trials Bike

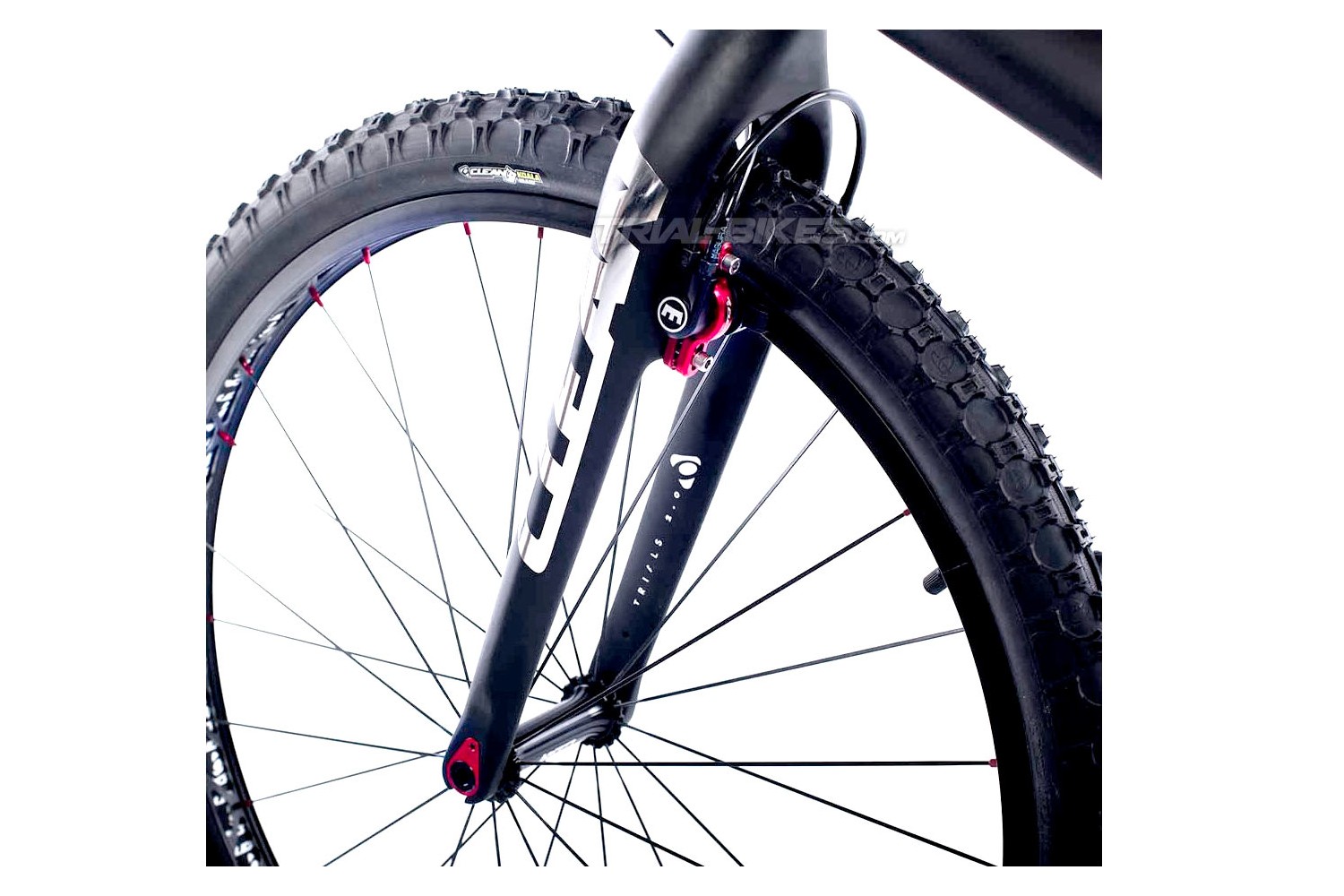

Frame and fork
- Frame: Clean K1 26”, made of high-modulus carbon fibre, tapered 1 1/8” – 1.5”, with 4-bolt rim brake mounts and 12K carbon finish
- Forks: Clean K1 26”, made of high-modulus carbon fibre, tapered 1 1/8” – 1.5”, with 4-bolt rim brake mounts and 12K carbon finish

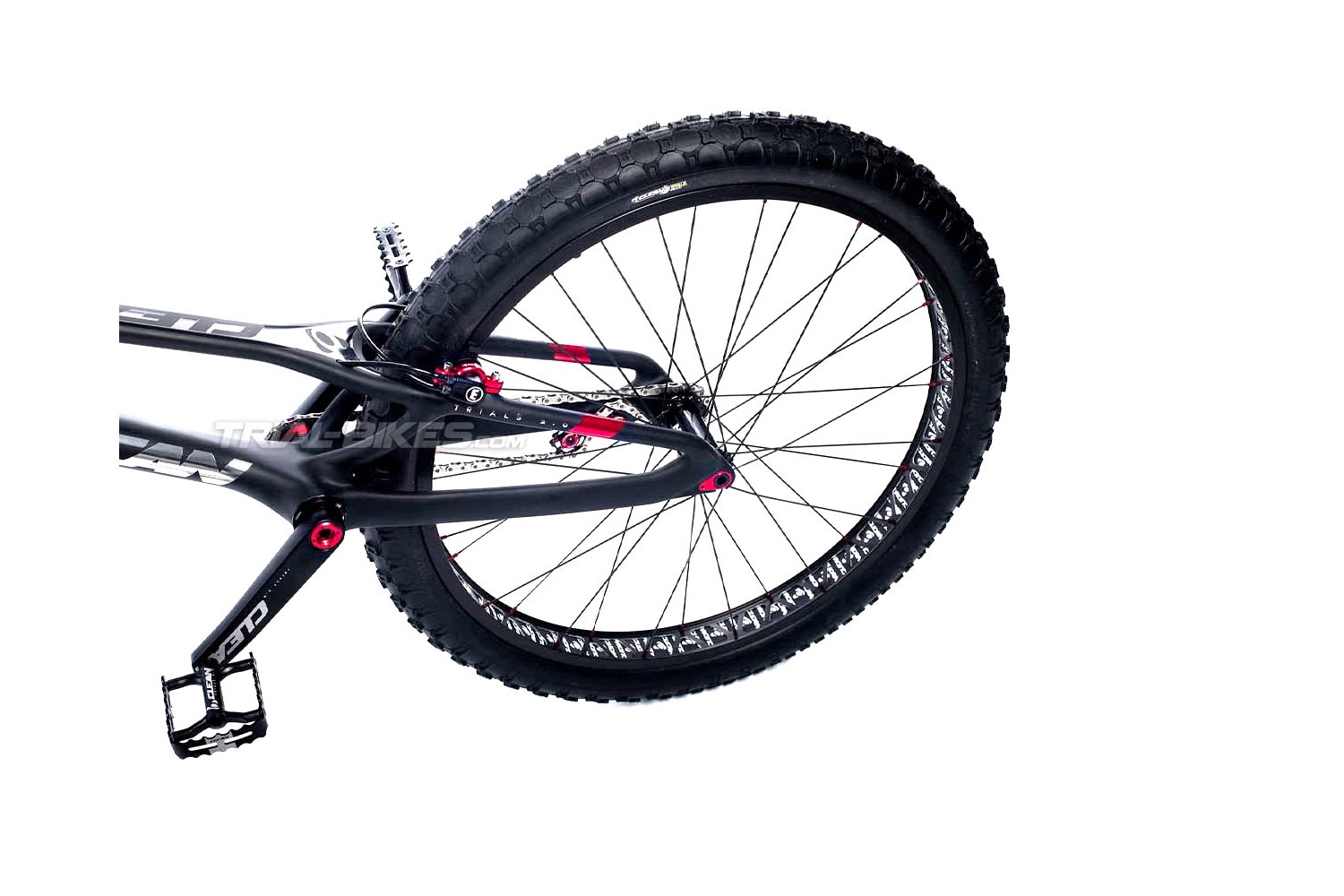

Wheels
- Front hub: Clean X3, 12 mm through-axle, 28 spoke holes, without rotor mounts, 104 mm spacing, anodized black
- Rear hub: Clean X3, 12 mm through-axle, 32 spoke holes, without rotor mounts, 120 mm spacing, anodized black
- Chain tensioner: Clean X2 integrated, with two 10T aluminium jockey wheels
- Front rim: Clean Trials PRO 26”, single wall, 34 mm wide, 28 spoke holes, anodized black
- Rear rim: Clean Trials PRO 26”, single wall, 49 mm wide, 32 spoke holes, anodized black
- Spokes: Aero Ultra light spokes, black
- Rim tape: Clean
- Front inner tube: Maxxis Extra Light
- Rear inner tube: Maxxis Extra Light
- Front tyre: Clean Koala, 26" x 2.0"
- Rear tyre: Clean Koala, 26" x 2.5"

Brakes
- Front brake: Clean 2022 Rim Brakes
- Rear brake: Clean 2022 Rim Brakes

- Rim brake pads: Clean X2, black
- Brake clamps: Clean X2 Washerless

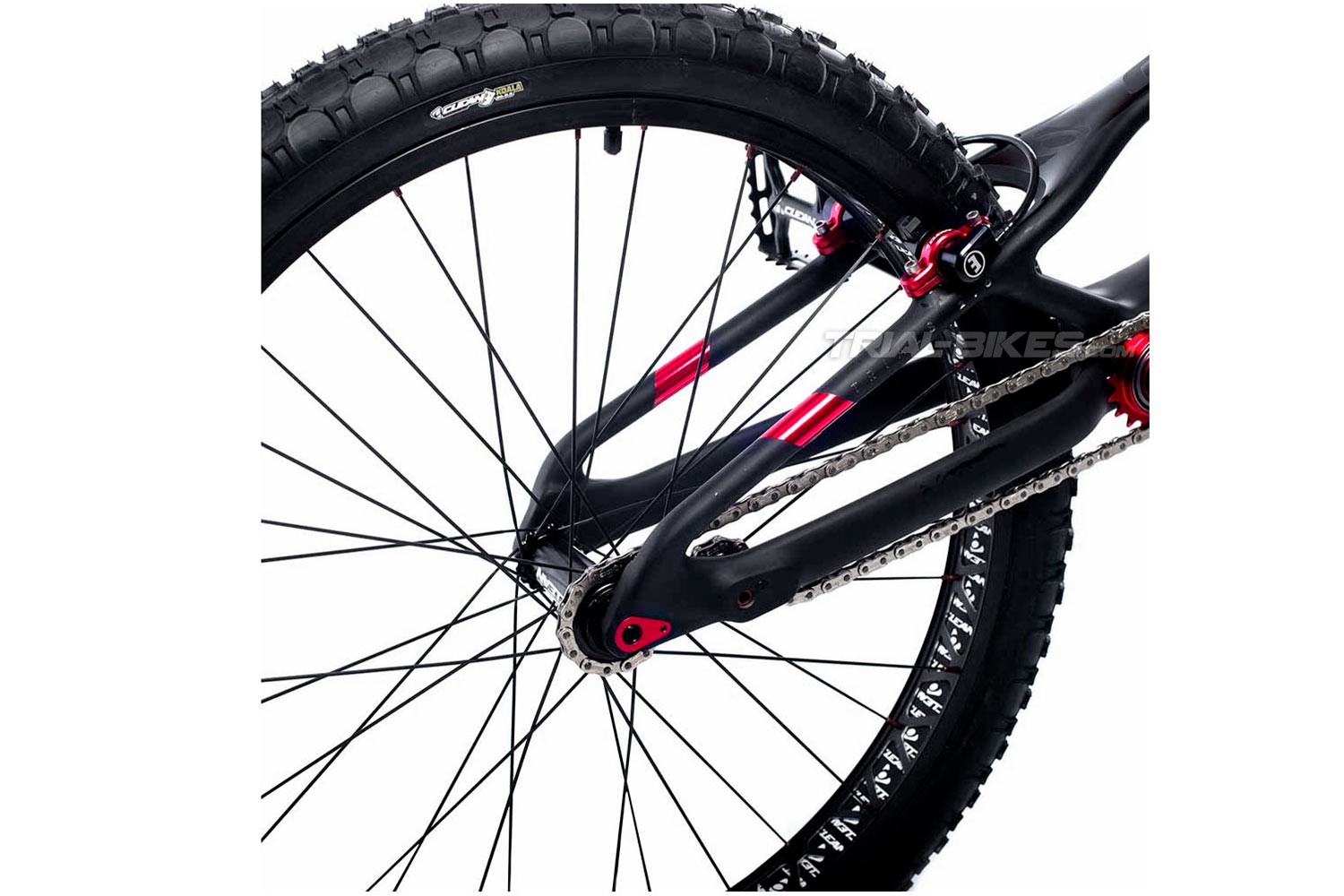

Drivetrain
- Crankset: Clean X2 3-piece set, with Press Fit BB30 30 mm diameter BB axle, CNC machine, new adjustment system, 165 mm long cranks, for Cassette Shimano HG-type freewheel
- Freewheel: Clean X2 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, red
- Chain: KMC Z1 EHX Narrow, silver
- Rear sprocket: Clean 15T Shimano HG splined, made of 7075-T6 aluminium alloy, anodized black
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black
- Bashring: Clean Ring, anodized red

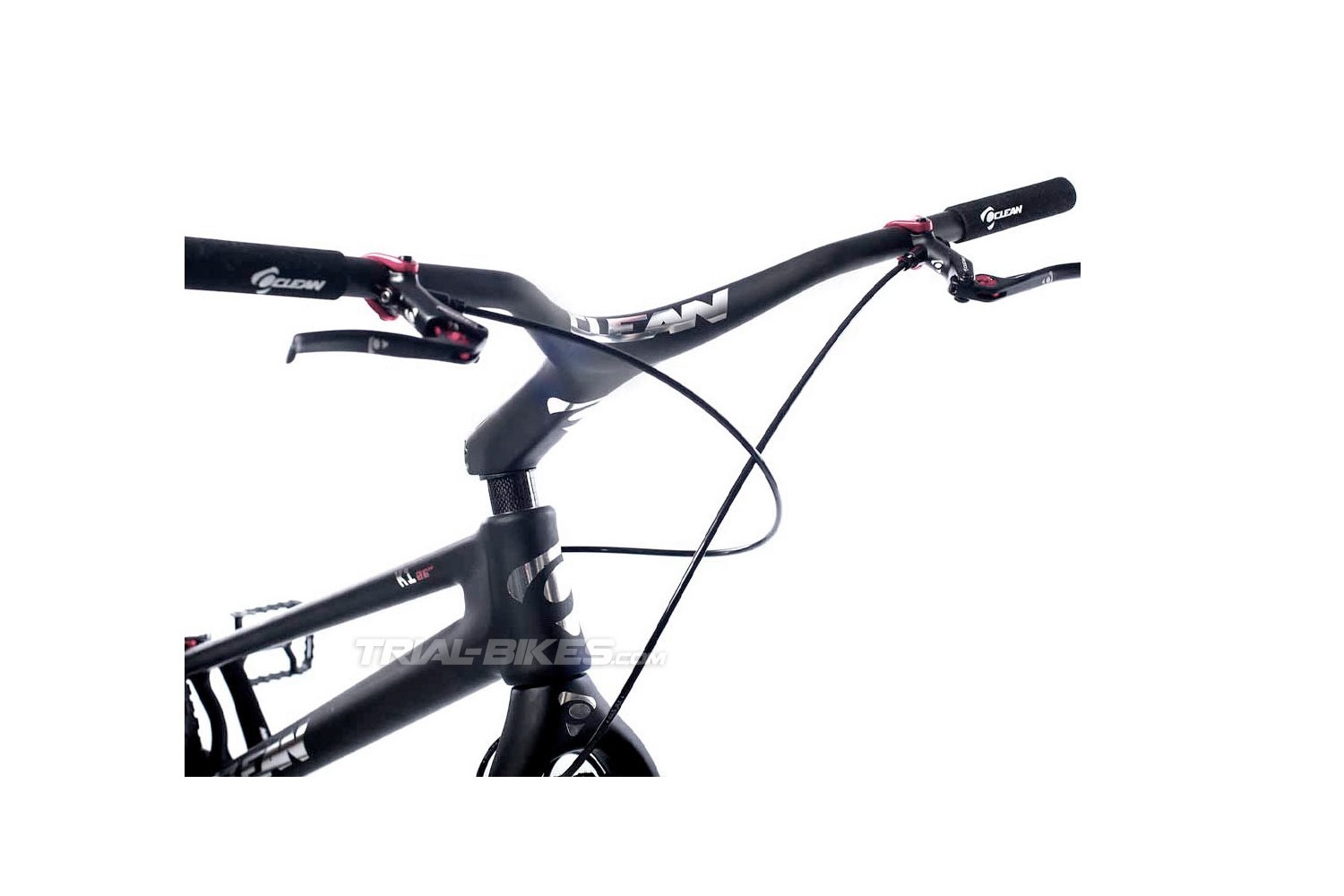

Steering
- Headset: Clean Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red
- Stem and Handlebar: Combo carbon fibre, 720 mm long, black finish with 12K carbon top layer
- Grips: Clean foam, black

Geometry

(1) Wheelbase: 1090 mm
-----------------------------------------------
(2) Rear End: 380 mm
-----------------------------------------------
(3) Bottom Bracket Height: +67 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube: 670 mm
-----------------------------------------------
(6) Reach: 509 mm
-----------------------------------------------
(7) Stack: 421 mm
-----------------------------------------------
Geometrias en bicicletas de Trial

Weight
- 7.90 Kg

Additional information:
The list of components may change. Any change on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.

Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com.

FRONT BRAKE HS
REAR BRAKE HS
