Reduced price! B1K3 Ekinox 20'' Frame Expand

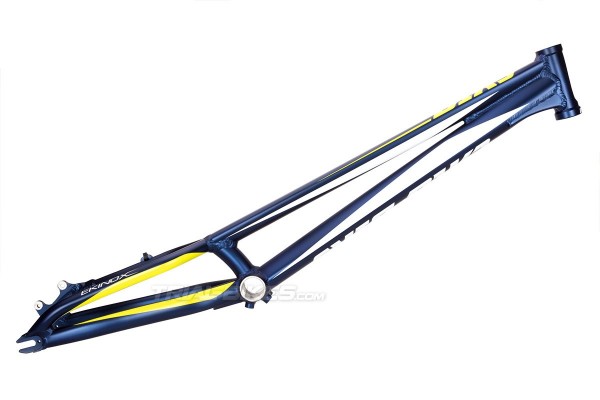

B1K3 Ekinox 20'' Frame

B1K3 B1K3

New

Description and materials

More details

This product is no longer in stock

  • HS
  • IS Disc

214,88€

264,46€

-49,59€

Versión .
 HS

 IS Disc

Ask a question

Description and materials
- New B1k3 Ekinox 20” 2014 frame, the first frame of this newly created French brand for 2014 as the little sister of Ozonys.
- Made from a high quality 7005 T6 aluminum alloy, as in many top-quality frames.
- Its clever design means it keeps the weight down (only weighs 1.37Kg) with a simple, classic design, reinforced at key areas and with outstanding, unique graphics.

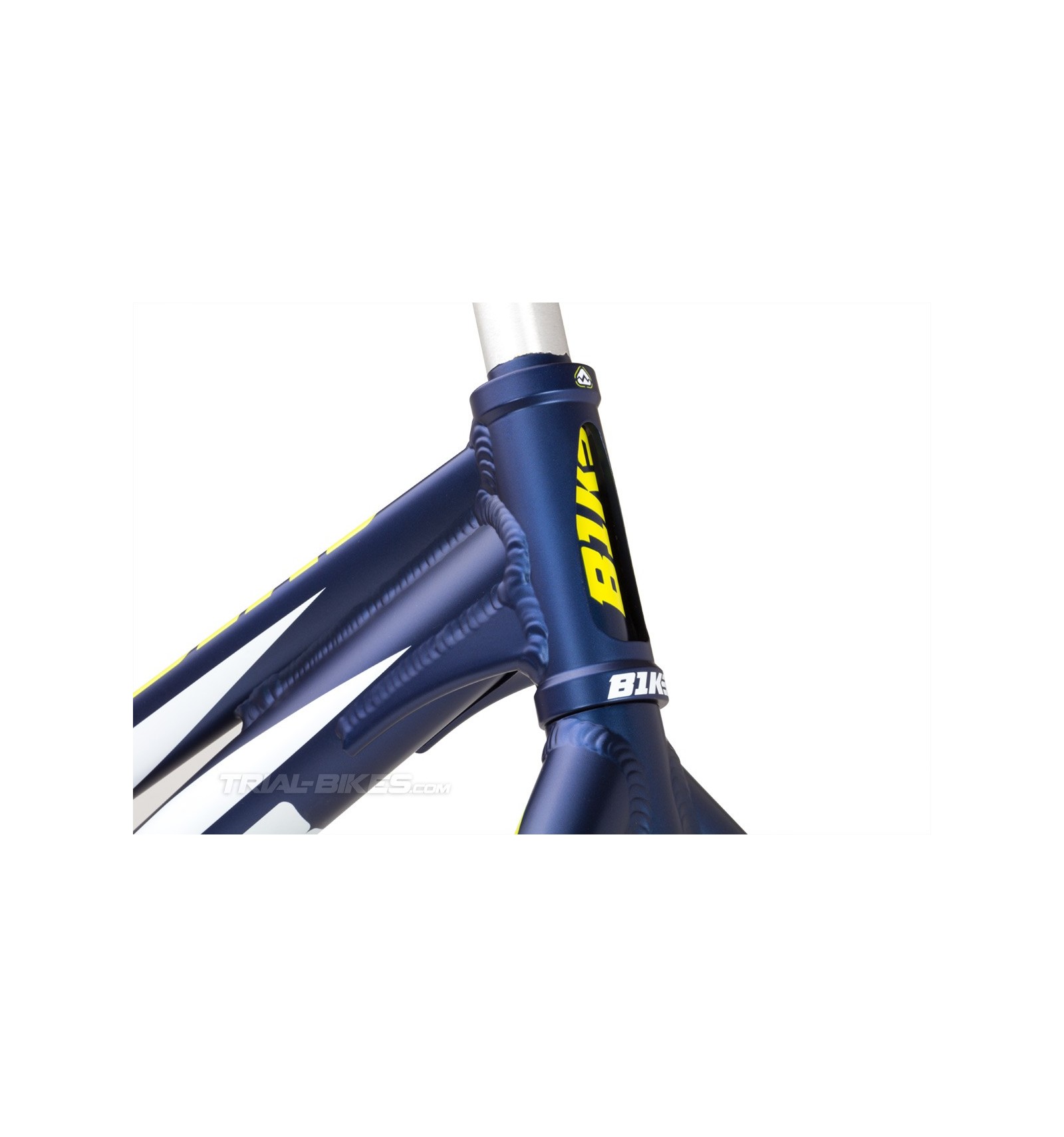

- The head tube is gusseted to the top and down tubes to increase its strength.
- 115mm head tube (for external headsets), with a large hole to help save weight.

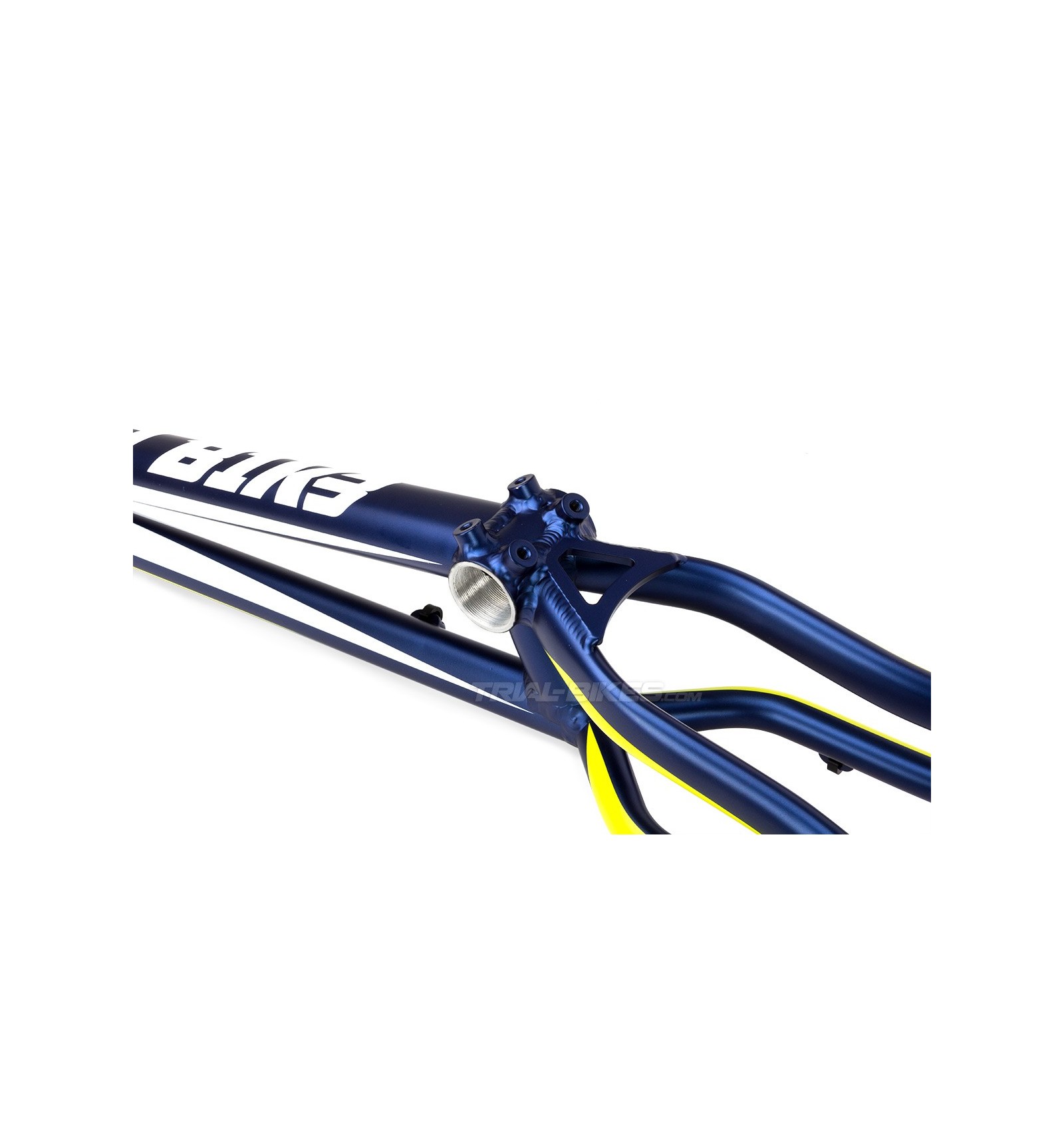

- 68mm bottom bracket shell, suitable for all 122.5mm and 128mm bottom brackets.

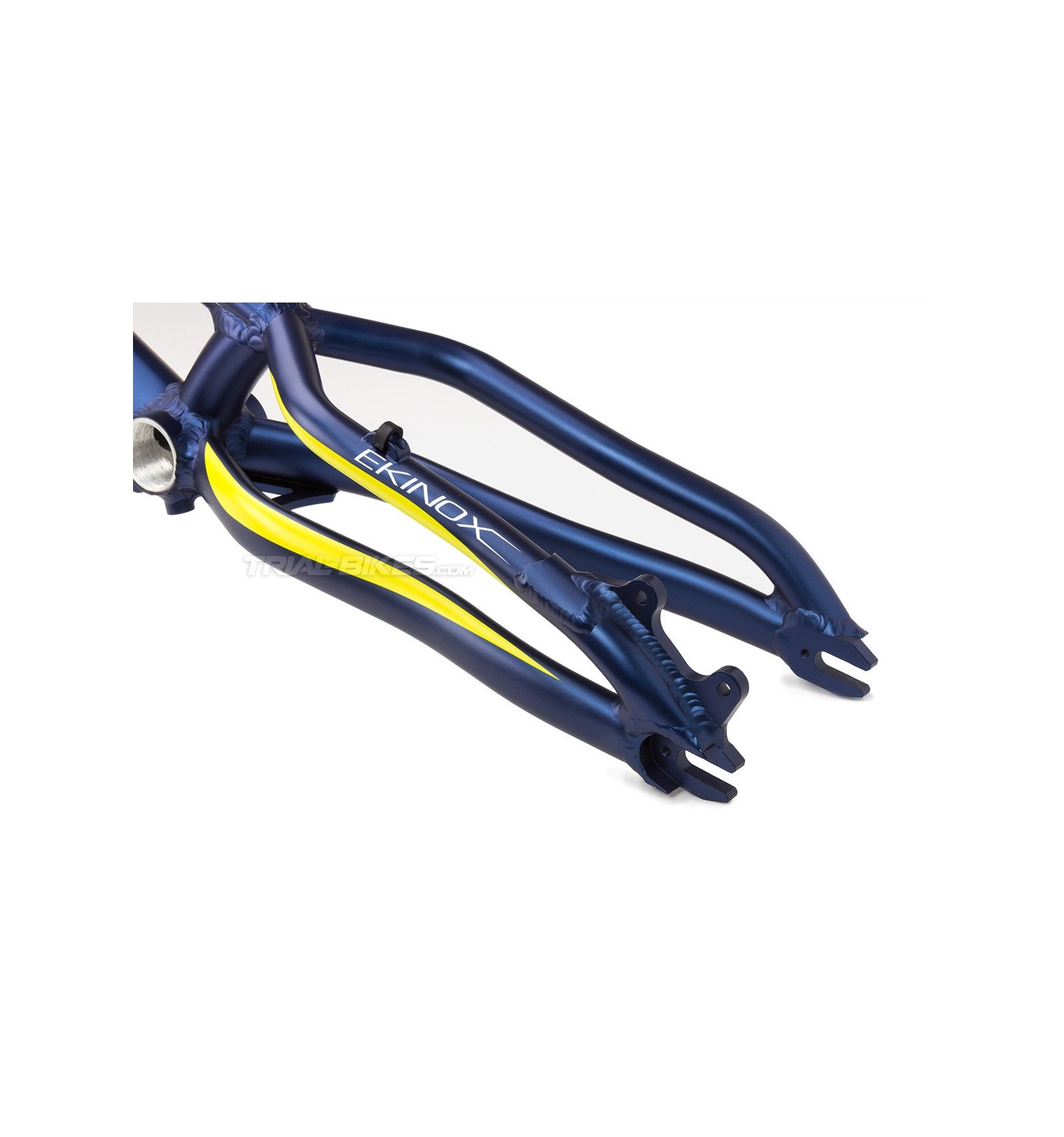

- CNC machined dropouts, designed to use snail cams.
- Designed for 116mm rear hubs (including the 2x 3mm snail cams).
- Designed to use with a more compact, simple mini-4 bolt bashplate (not supplied with the frame), suitable for the Bonz bashplate (available here).
- Two versions available:  4-bolt mounts or IS disc mounts.
- The 4-bolt version features a built-in brake booster to improve brake performance and frame rigidity, drilled to save weight.
- IS (international Standard) disc mount in the disc version, reinforced and redesigned, improving overall strength.
- High quality matt blue finish, with white and yellow B1k3 Ekinox graphics.

Geometry
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 115mm

- Wheelbase: 1000mm
- Chainstay Length: 350mm
- BB Rise: 75mm
- Head Angle: 72º

Finishes
- High quality matt blue finish.
- White and yellow B1k3 Ekinox graphics.

Weight
-1372g (disc version) and 1412g (4-bolt)

Additional information
This frame comes with 12 months warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com


WEIGHT 1.372
BRAKE MOUNTS IS Disc
TYPE OF HEADSET Standard 1 1/8"
