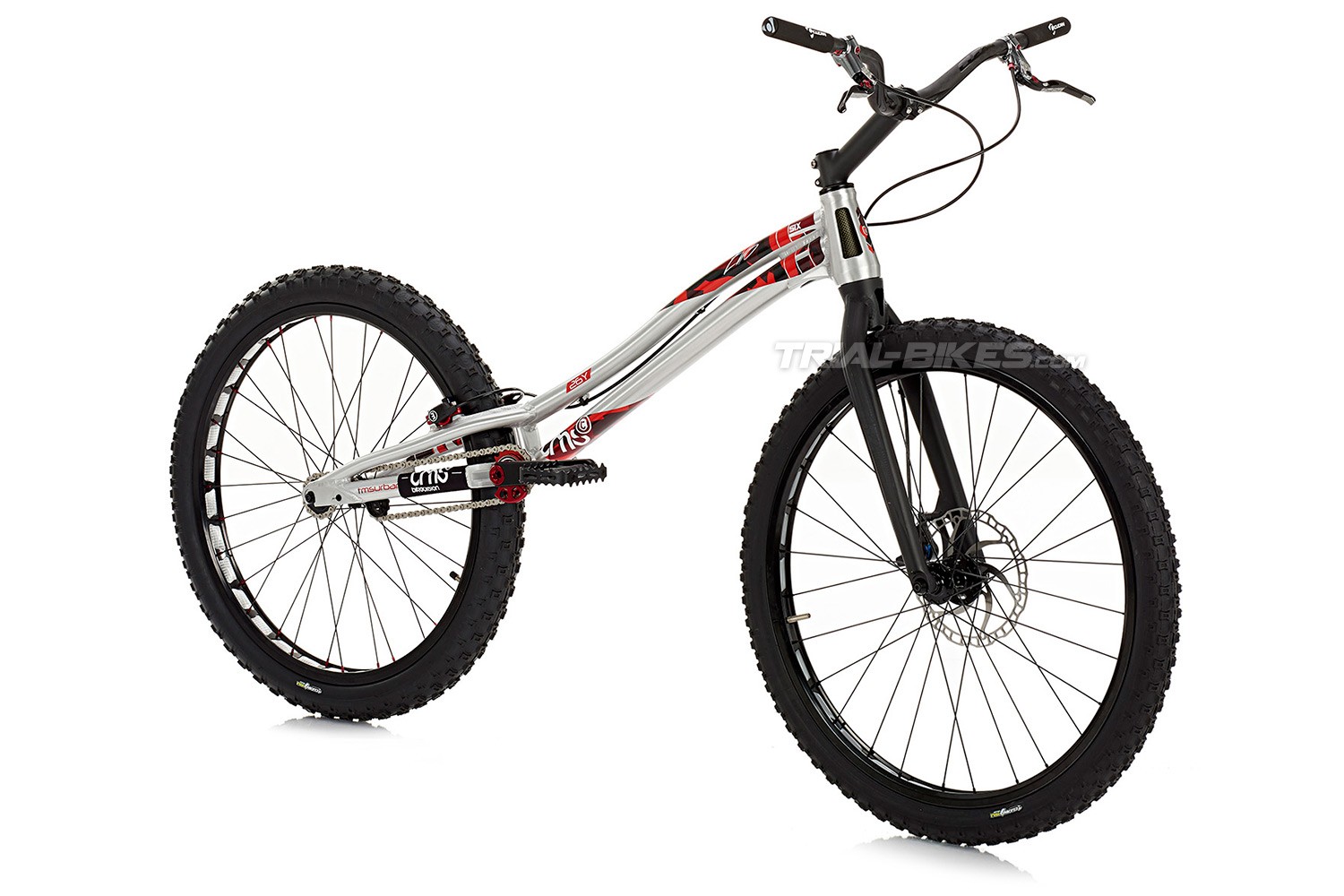

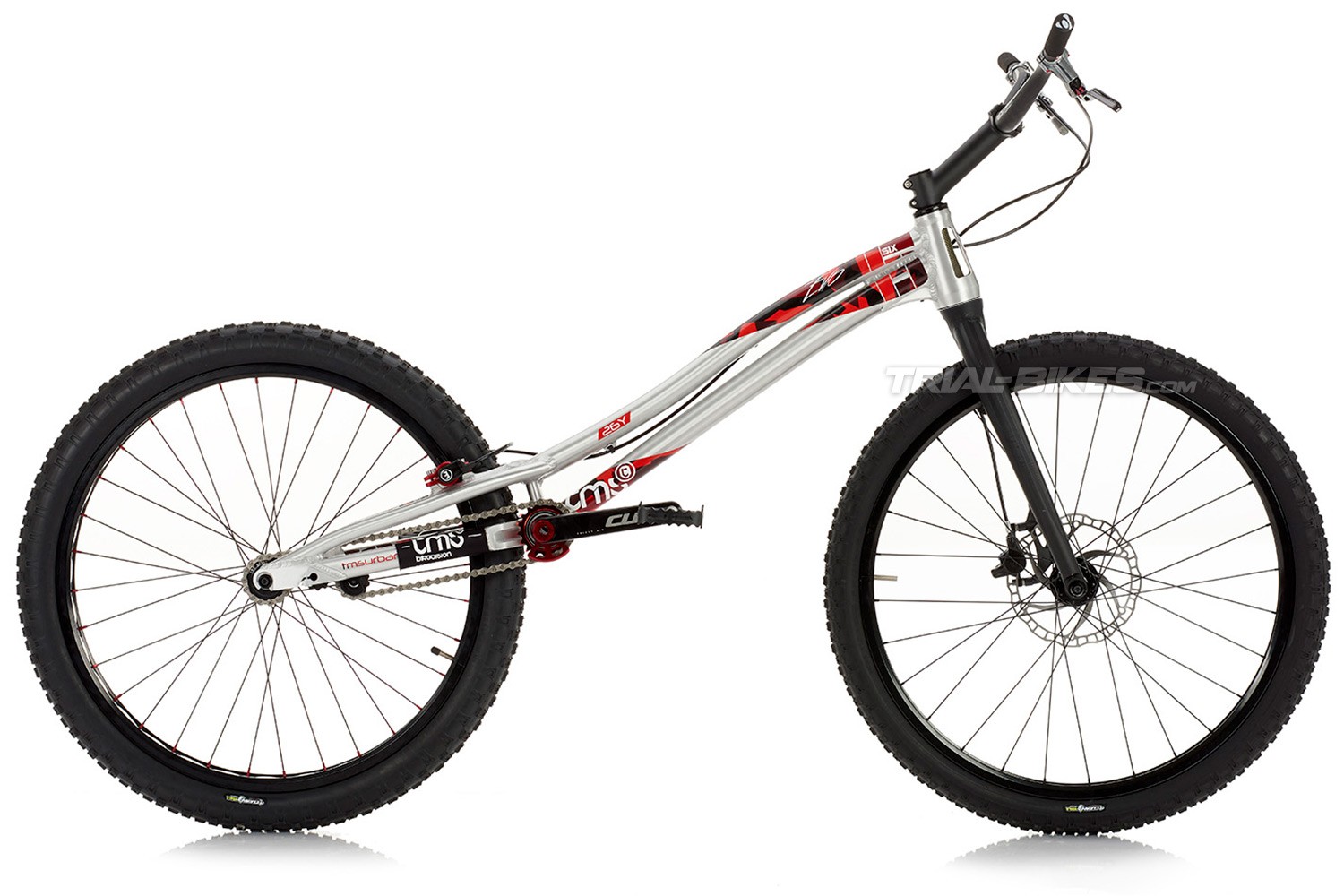

TMS EVO6 26Y 26" Bike Silver

TMS EVO6 26Y 26" Bike Silver

• Option 1: Magura HS33 || Magura HS33
• Option 2: Hashtagg H2O || Hashtagg H2O
• Option 3: Magura HS33 || Magura Mt2 Disco
• Option 4: R: Hope Tech 3 || F: Hashtagg H2O

Check the following list to see the components of each setup option.

Frame and fork

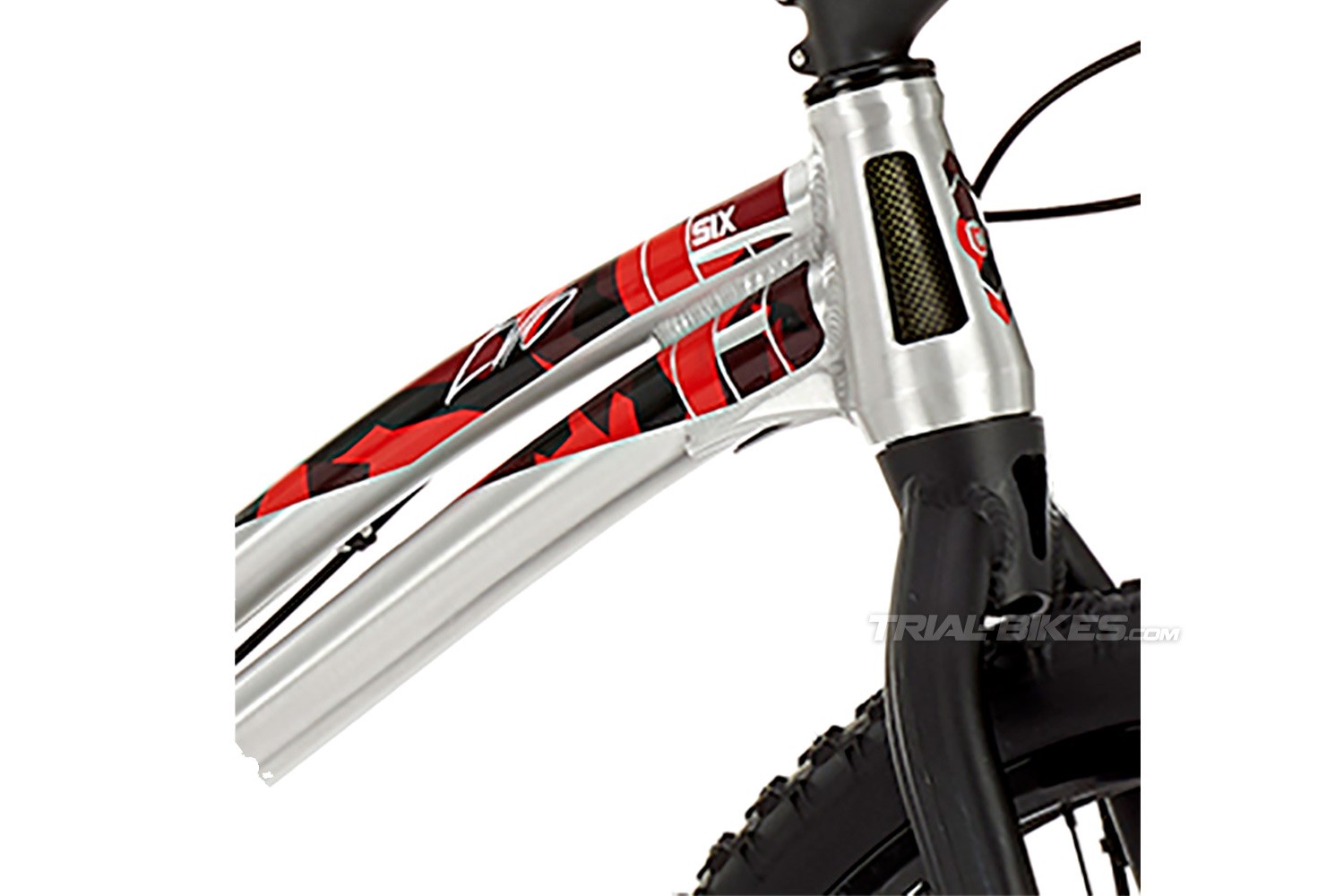

- Frame: TMS Evo6 26Y 26”, made from 6065-T6 aluminium alloys, with 4-bolt rim brake mounts.
- Forks: Clean X2 26” X2 tapered 1 1/8” – 1.5”, made from aluminium, with 4-bolt rim brake mounts (depending on brakes choice).

Wheels
- Front hub: Clean X1 28 spoke holes, 100mm spacing, anodized black.

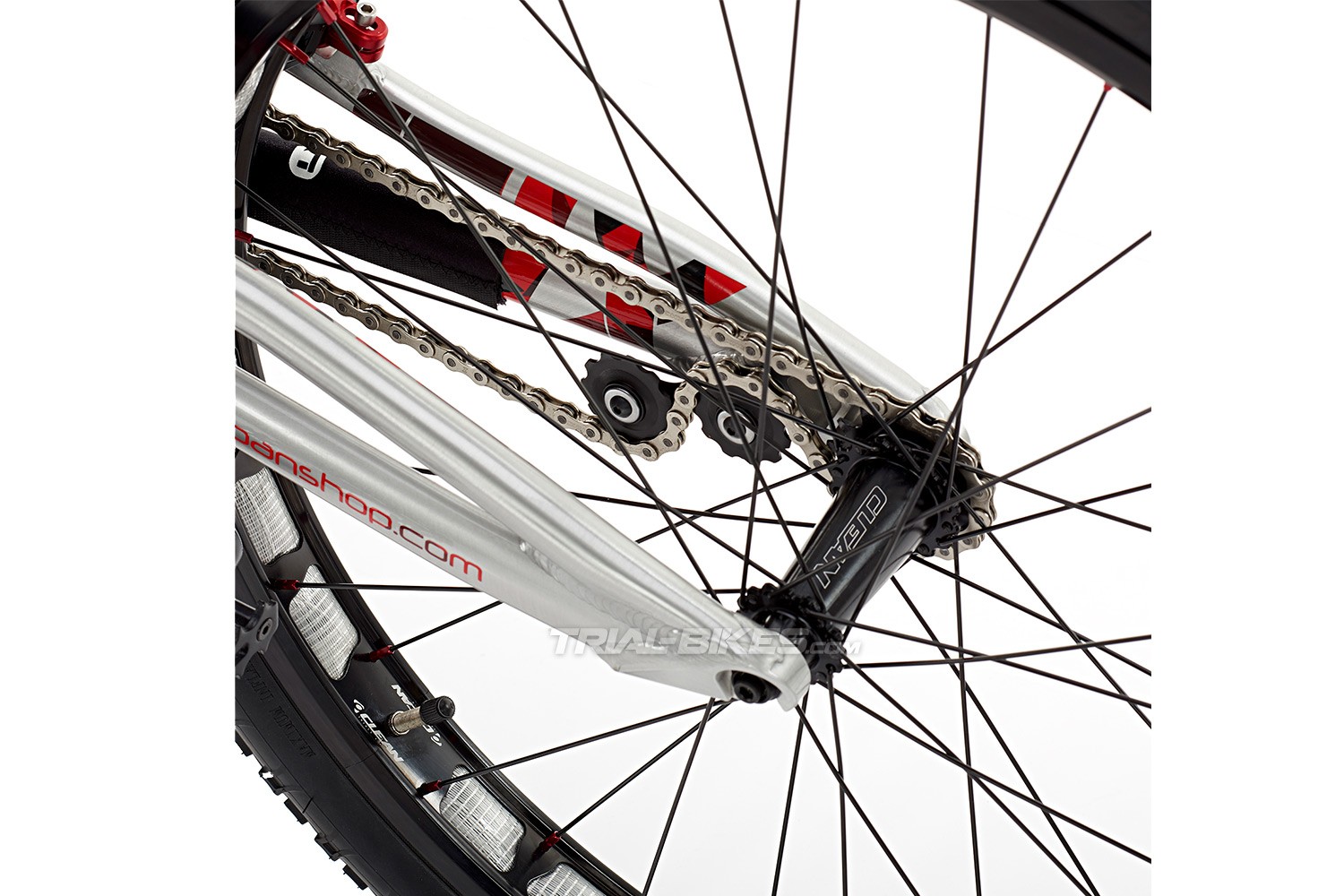

- Rear hub: Clean X2 32 spoke holes, 116mm spacing, anodized black.
- Chain tensioner: Clean X2 integrated, with two 12T jockey wheels made of plastic, black.
- Front rim: Clean X2 High Profile 26”, single wall, 31mm wide, 28 spoke holes, anodized black.
- Rear rim: Clean X2 High Profile 26”, single wall, 49mm wide, 32 spoke holes, anodized black.
- Spokes: Stainless lightweight spokes, black.
- Rim tape: Clean, grey.
- Front inner tube: Maxxis.
- Rear inner tube: Maxxis.
- Front tyre: Clean Koala V2 26”x2.00”.
- Rear tyre: Clean Koala V2 26”x2.60”.

Brakes

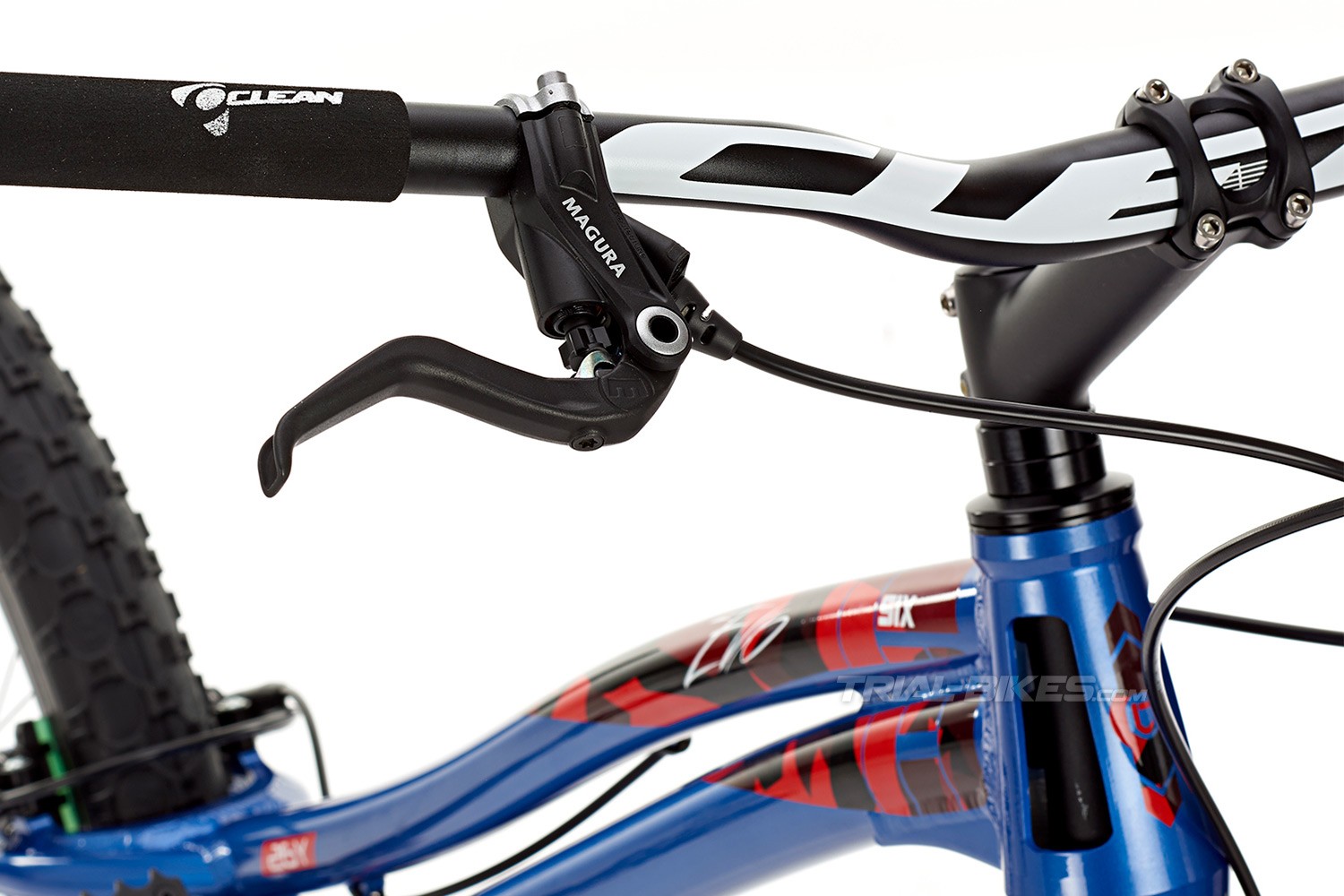

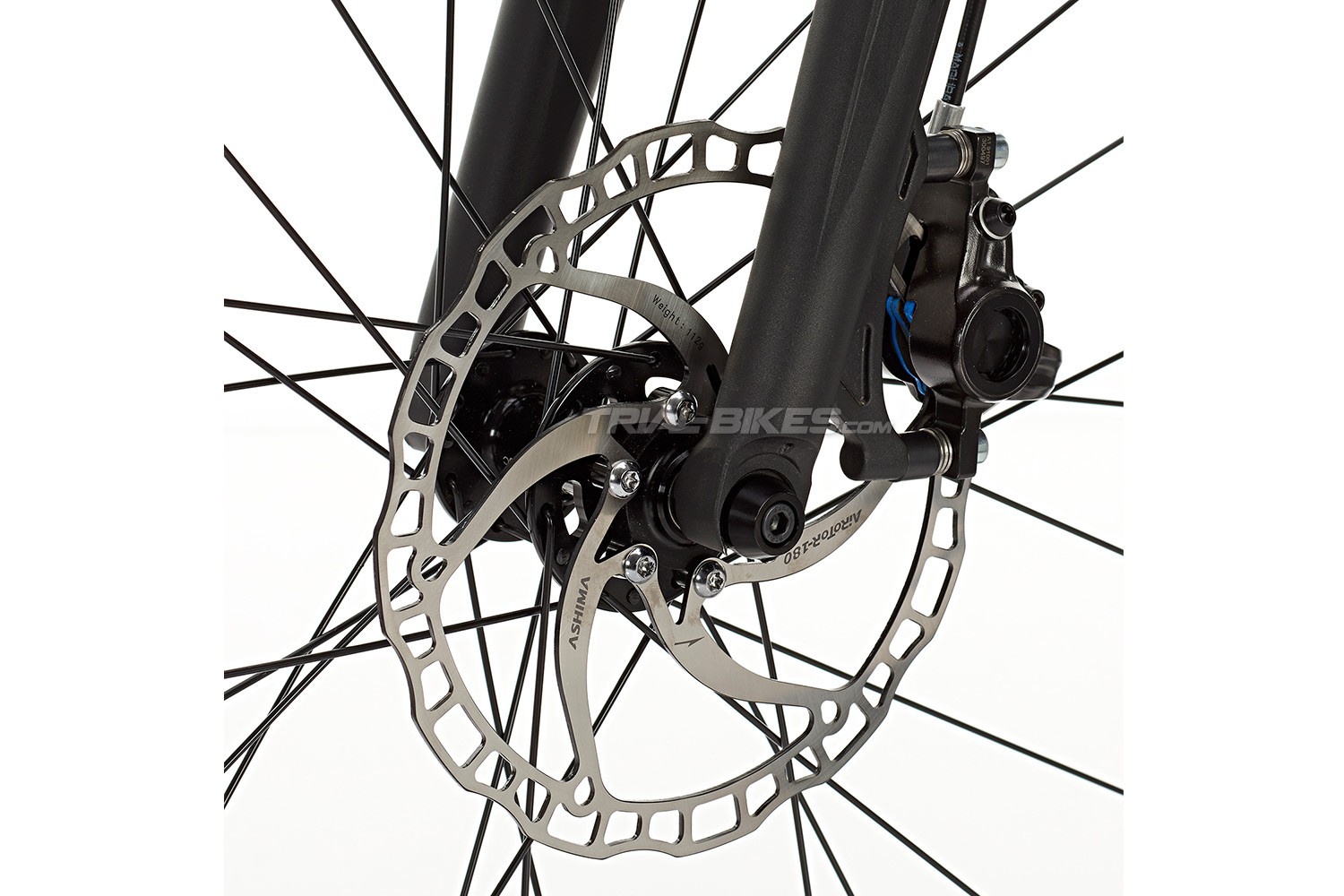

- Front brake: Magura HS33, Hashtagg H20 rim brake, Magura Mt2 disc brake or Hope Tech 3 160mm disc brake.
- Rear brake: Magura HS33 or Hashtagg H20 rim brake.

- Rim brake pads: TMS.
- Brake clamps: Clean X2 Washerless.

Drivetrain
- Crankset: Clean X1 CNC, ISIS, 170mm.
- Freewheel: Clean X2 108.9 18T, with 108.9 engagement points, 9 pawls and 18 teeth.
- Chain: KMC, silver.
- Rear sprocket: Clean 15T Screw-on.
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black.
- Bashplate: TMS Ring, anodized red.

Steering
- Headset: TMS Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized black.
- Stem: Clean 145mm x 25º, 31.8mm Oversized handlebar diameter.
- Grips: TMS foam, black.
- Handlebar: Clean X2 103mm Alloy, 730mm long, 31.8mm Oversized handlebar diameter, black finish with white Clean graphics.

Geometry:
- Wheelbase: 1077mm
- Chainstay length: 377mm
- Bottom bracket rise: +67.1mm
- Head angle: 72º

Weight
- 8.5kg

Additional information:
The list of components may change. Any changes on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.

Some pictures may not match the item described, so please read the description carefully.

Important: Dispatch time for this bike might be delayed up to 5 days: it is partially set up at our workshop, so the customer will only have to install the front wheel and setup the headset.

If you have any doubts, please contact us on info@trial-bikes.com.
