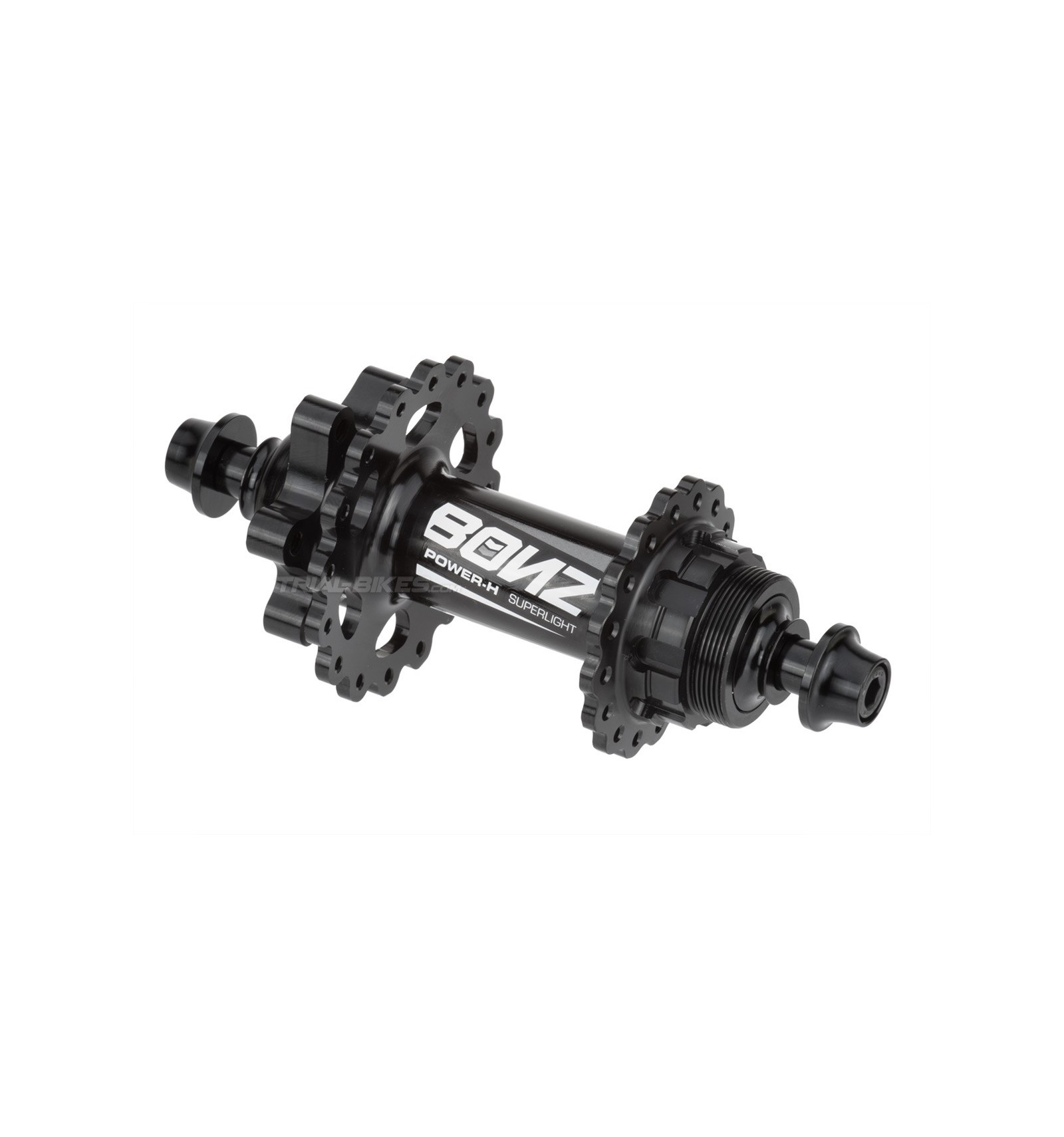

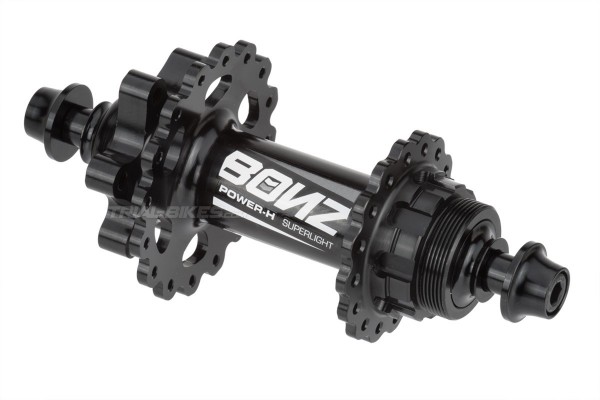

Bonz Power-H Disc 32H 116mm Rear Hub Expand

Bonz Power-H Disc 32H 116mm Rear Hub

BONZ BONZ

537669

New

Description and materials

More details

This product is no longer in stock

99,17€

Ask a question

Description and materials
- New Bonz Power-H SuperLight Disc 116mm rear hub, manufactured by French bike trials brand Bonz.
- Developed and tested for the last few months by Ozonys team riders Dominik Oswald, Theau Cortes and Noah Cardona.
- New minimalistic design manages to save even more weight, while still keeping a high strength to guarantee its durability.
- Both the axle and shell are CNC machined from high quality 7075-T6 aluminium alloy, which ensures extraordinary mechanical properties.
- Uses a hollow 10mm-diameter axle, with M6 internal thread and 116mm length.

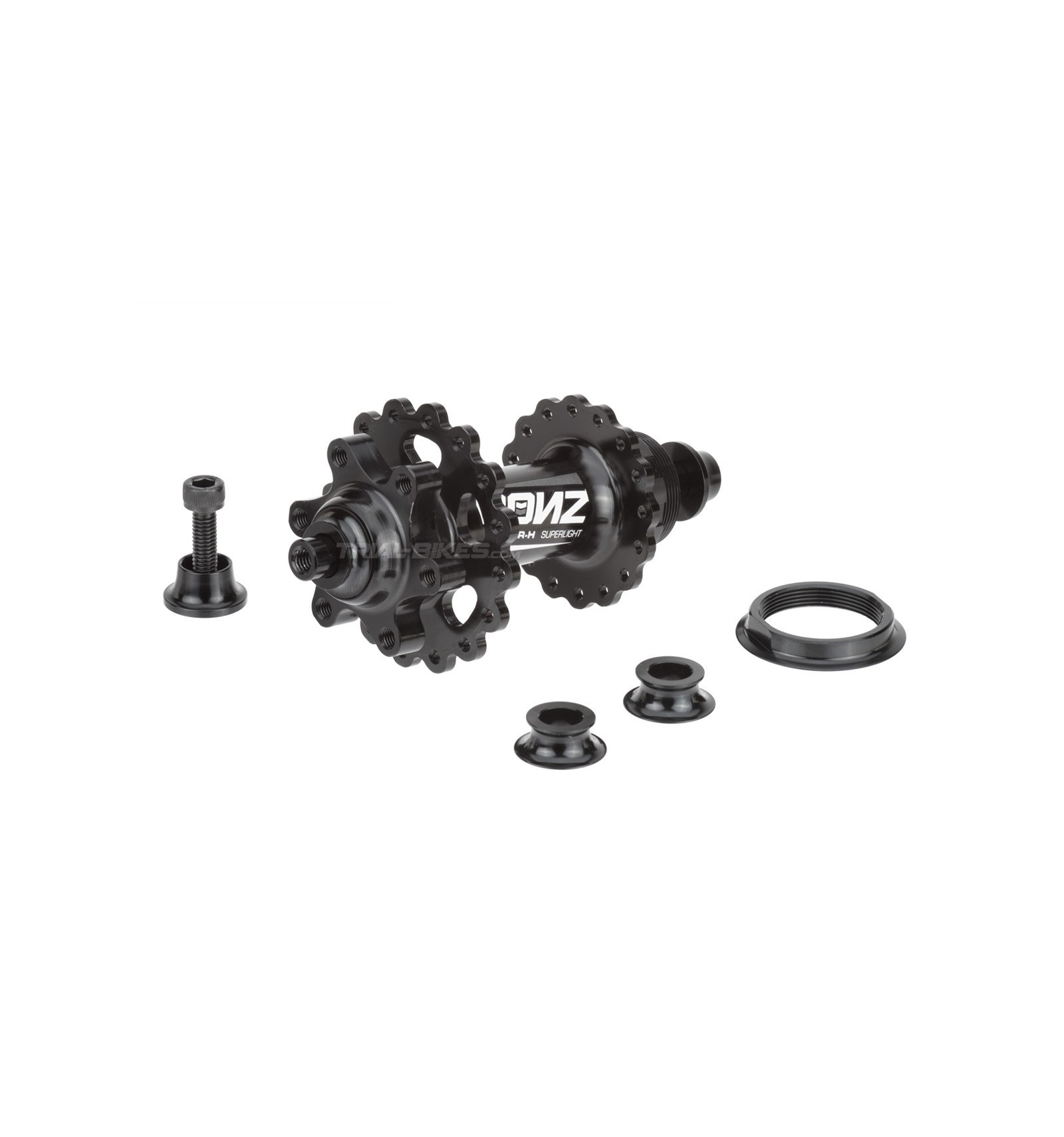

- This hub is supplied with 2 pairs of spacers (6mm and 9mm), so:
           · By installing the 6mm spacers, the hub spacing is 110mm, which is the ideal spacing for those frames designed to use 3mm snail cam chain tensioners, adding up to the 116mm spacing required.
           · By installing the 9mm spacers, the hub spacing is 116mm, which is the ideal spacing for those frames that have integrated chain tensioners (the spacing is already 116mm).
- The spacers come with an O-ring on the inner side.
- Features Shimano Standard splines for the freewheel/sprocket, which eases considerably installation and removal. With this system, the freewheel/sprocket is installed and removed by hand, and it’s kept in place with a threaded aluminium cap that can be tightened with a 32mm spanner.
- 32 spoke holes, compatible with most rear rims designed for bike trials.
- High quality replaceable sealed bearings ensure a smooth, reliable, durable running.
- Standard IS 6-bolt disc rotor fitting.
- Includes M6x25mm steel bolts and serrated conical washers.
- Gloss black finish, with white and grey laser etched Bonz Power-H SuperLight graphics.

Compatibility
- Compatible with those frames that have 116mm spacing between the inner side of the dropouts.
- Compatible with rims that have 32 spoke holes.
- Compatible with those disc brake rotors with standard IS 6-bolt fitting.
- Only compatible with freewheels/sprockets with Standard Shimano splines.
- Bearings reference: 6900-2RS.

Dimensions
- Axle length: 116mm
- Axle diameter: 10mm

- Spacers width: 6mm or 9mm
- Number of spoke holes: 32 (32H)
- M6x25mm Allen bolts

Finishes
- Gloss black finish, with white and grey laser etched Bonz Power-H SuperLight graphics.

Weight
- Only 136.25g!! (with 6mm spacers), +21.02g of bolts and washers


WEIGHT0.136
COLORBlack
SPOKE HOLES32 spokes
BRAKE MOUNTSDisc
