Breath Yes 20D (With Basplate and Headset) Expand

Breath Yes 20D (With Basplate and Headset)

BREATH BREATH

New

Description and materials

More details

329,75€

Color .

 Blue


 Black


 Silver

Ask a question

Description and materials
- New Breath YES 20D, the second update of the popular Yes model from Asian manufacturer Breath for the 2015 season.
- Tested and developed for the last few months by Breath team rider Zhaoxuan Zhao.
- Based on last season’s successful Breath Yes frame, now with several updates and new finishes.

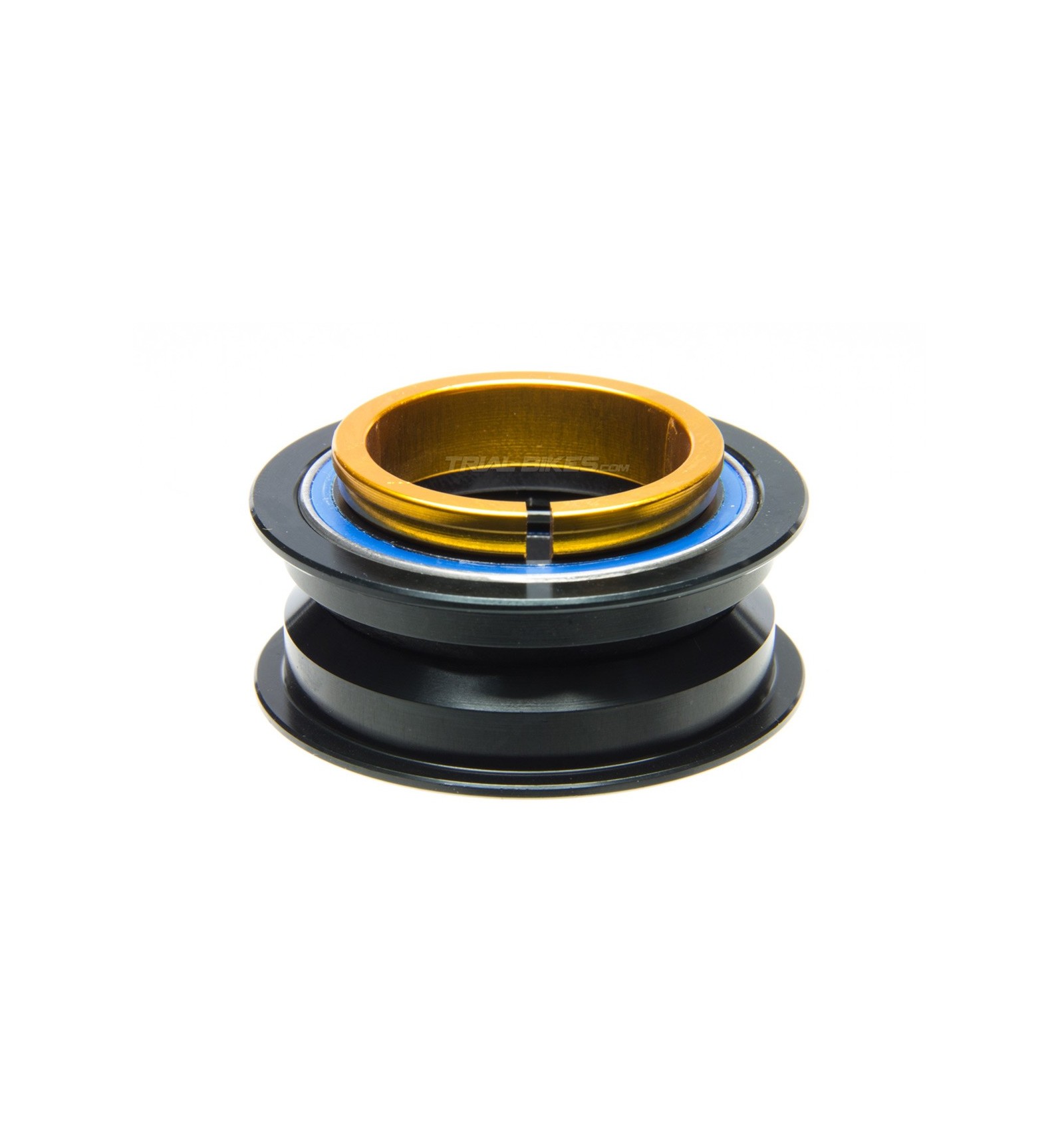

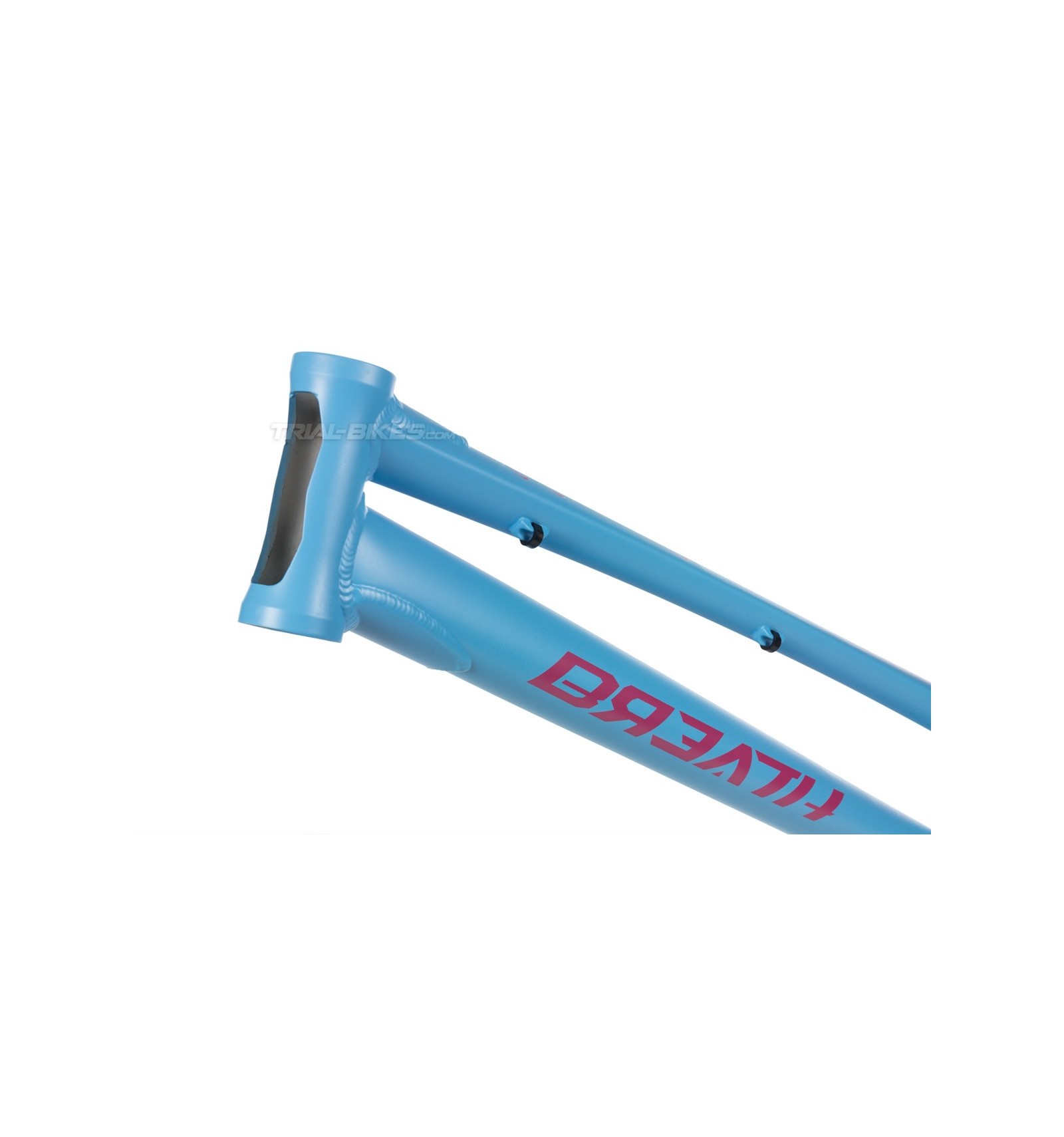

- Features a newly designed 128mm head tube, with a CNC-machined window that helps save unnecessary weight, for using with an internal headset (supplied with the frame).
- The head tube is gusseted to the top and down tubes to increase its strength.

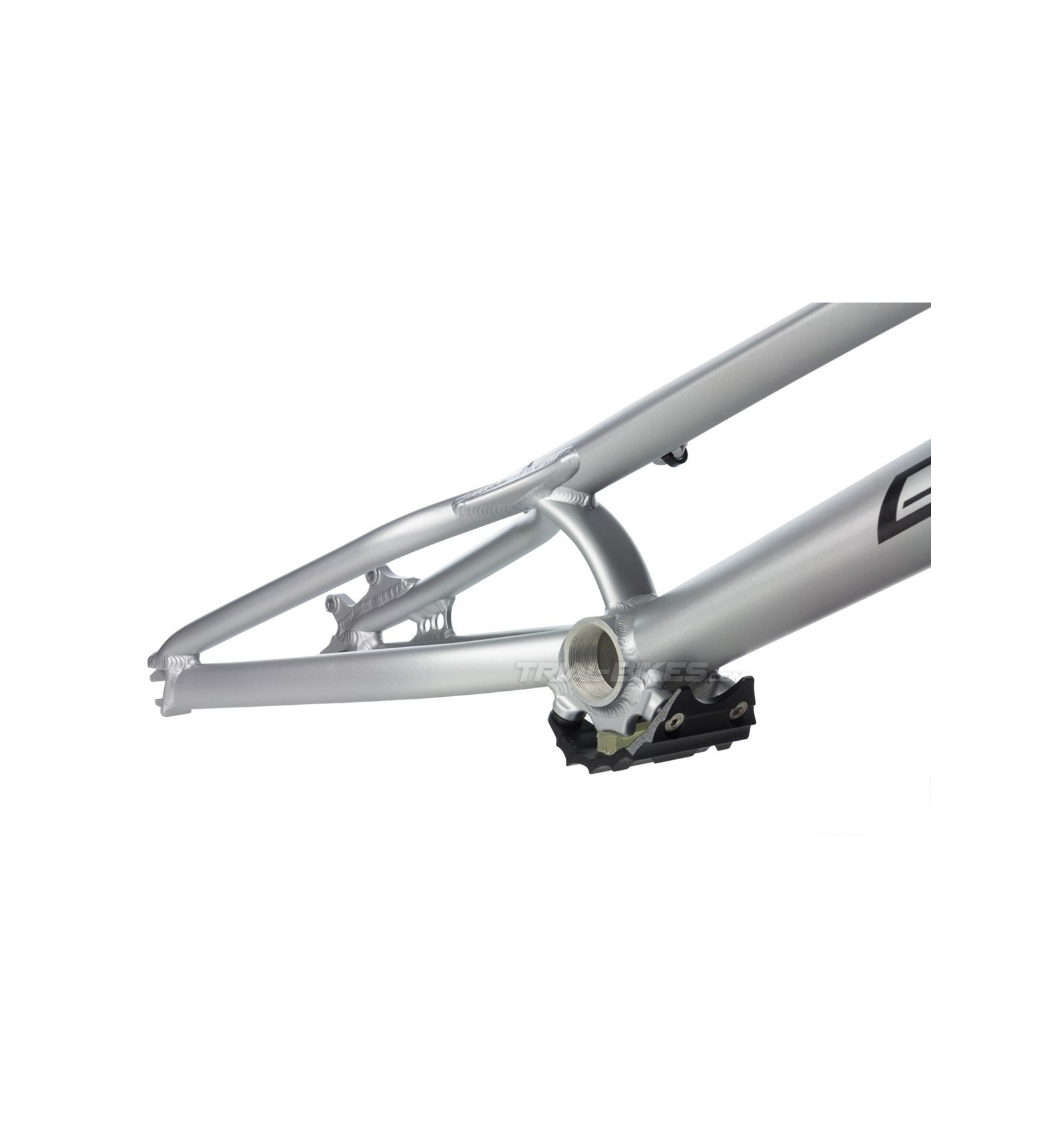

- Supplied with a 4-bolt mini-bash plate in anodized black finish, simpler and more compact (also available at our website here).

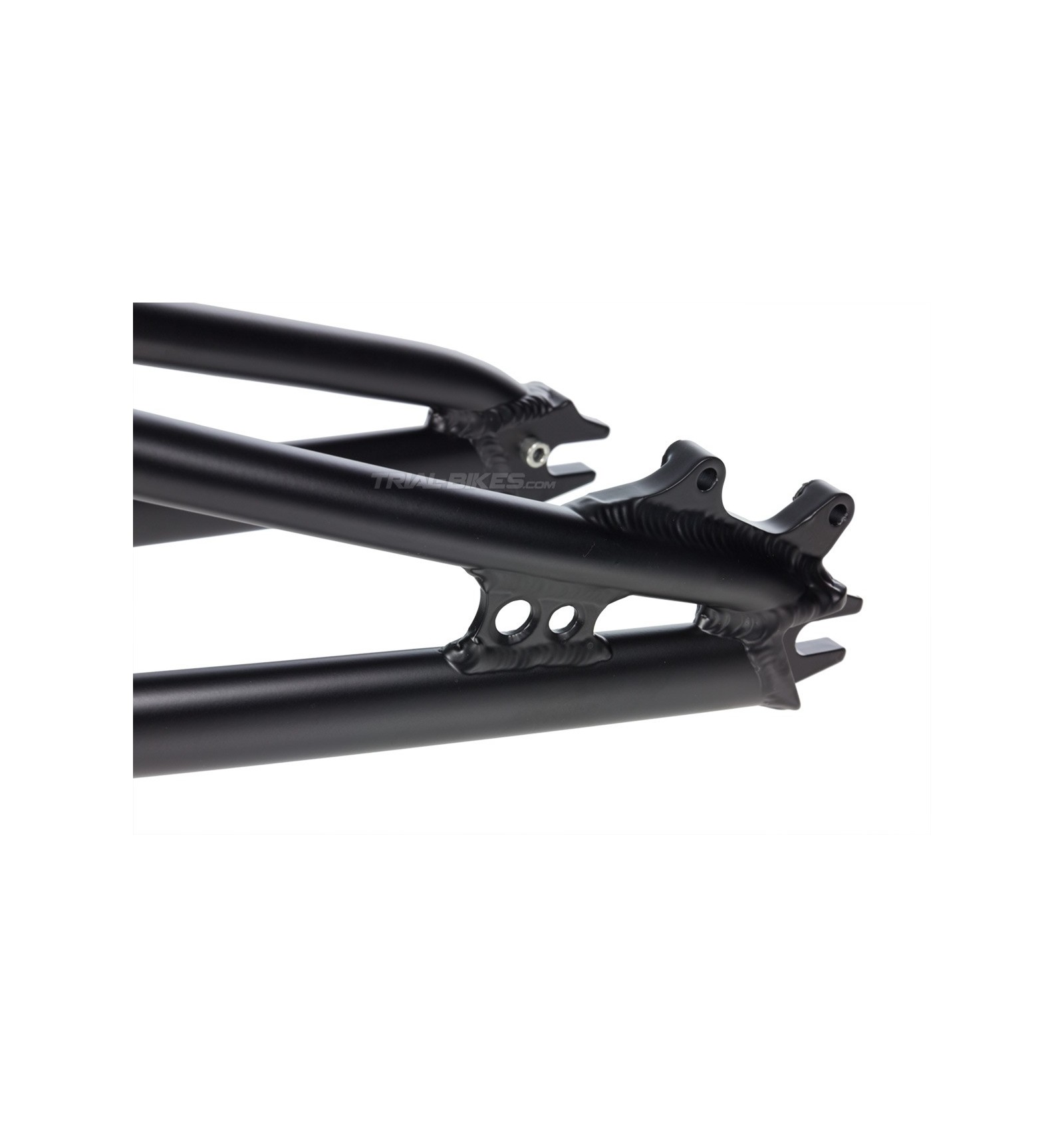

- Features IS (International Standard) disc brake mounts, with a large weld to help spread stress.
- CNC-machined dropouts, spaced at 116mm, for using with 3mm-thick snail cams.
- The left stays are joined together with a little gusset for increased stiffness.
- Three finishes available: sky blue, silver and black, with cool Breath Yes 20D graphics.

Geometry
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 128mm

- Wheelbase: 1005mm
- Chainstay Length: 350mm
- BB Rise: +90mm
- Head Angle: 72º

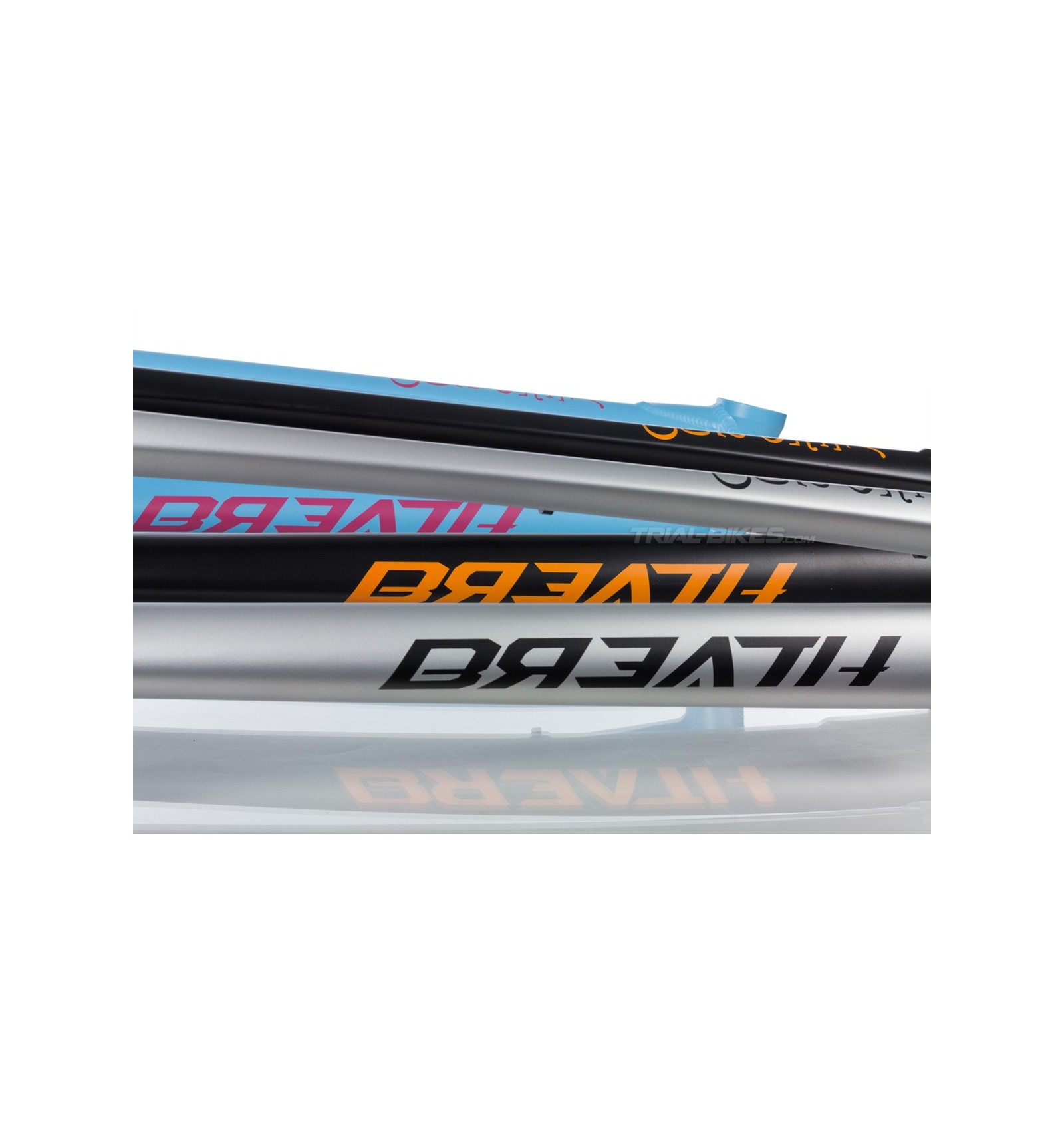

Finishes

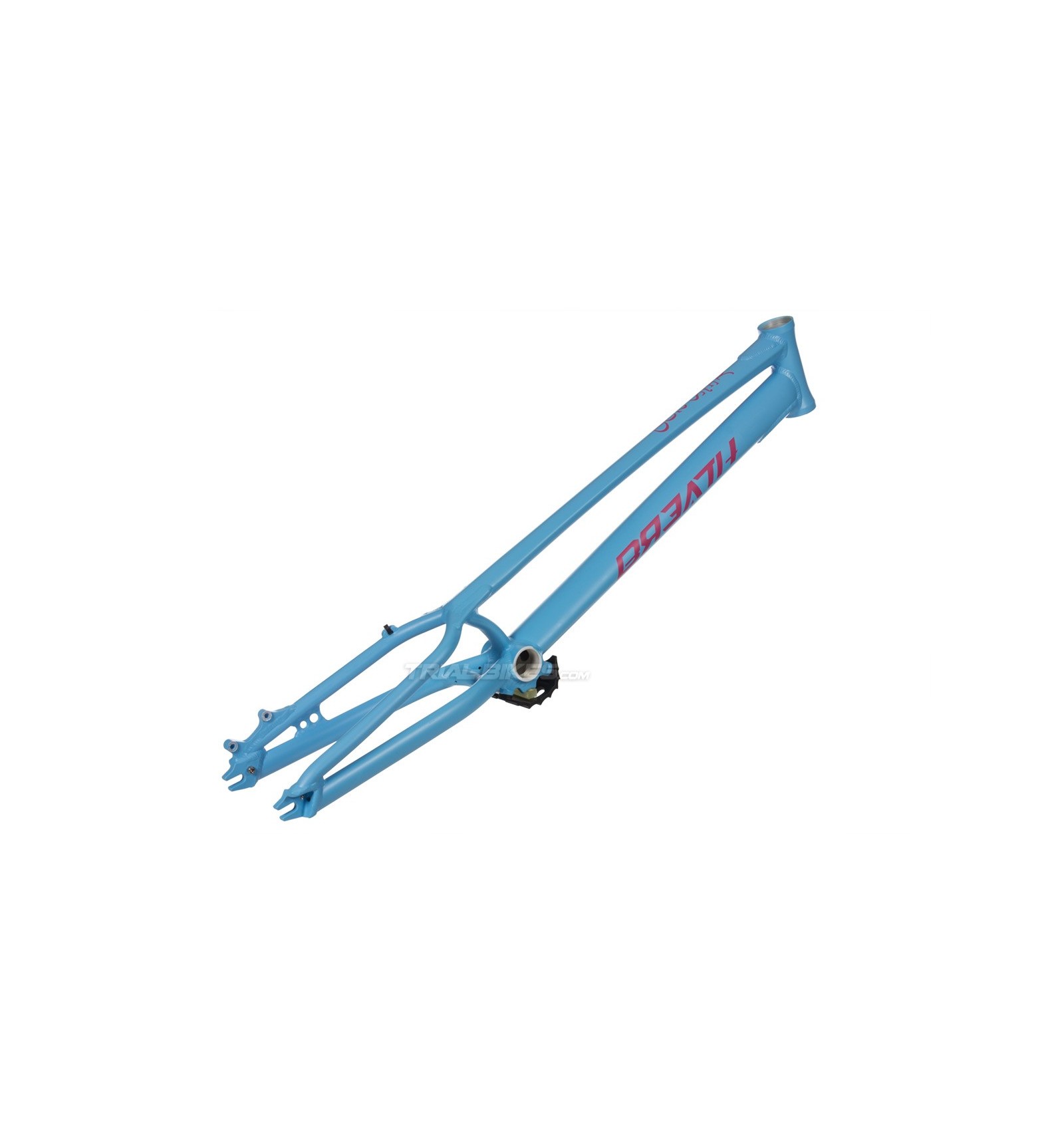

- Sky blue, with fuchsia Breath Yes 20D graphics.

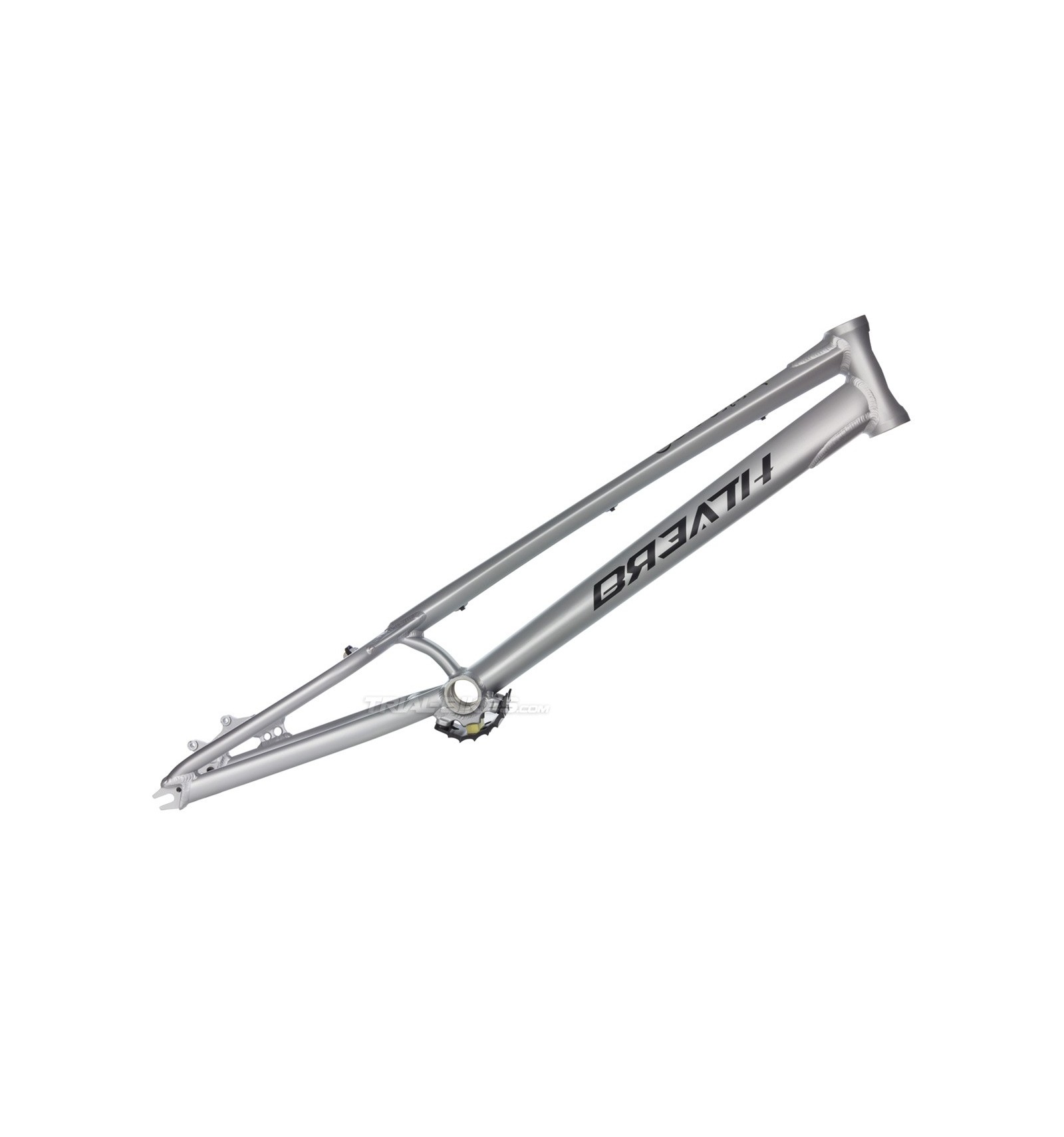

- Silver, with black Breath Yes 20D graphics.

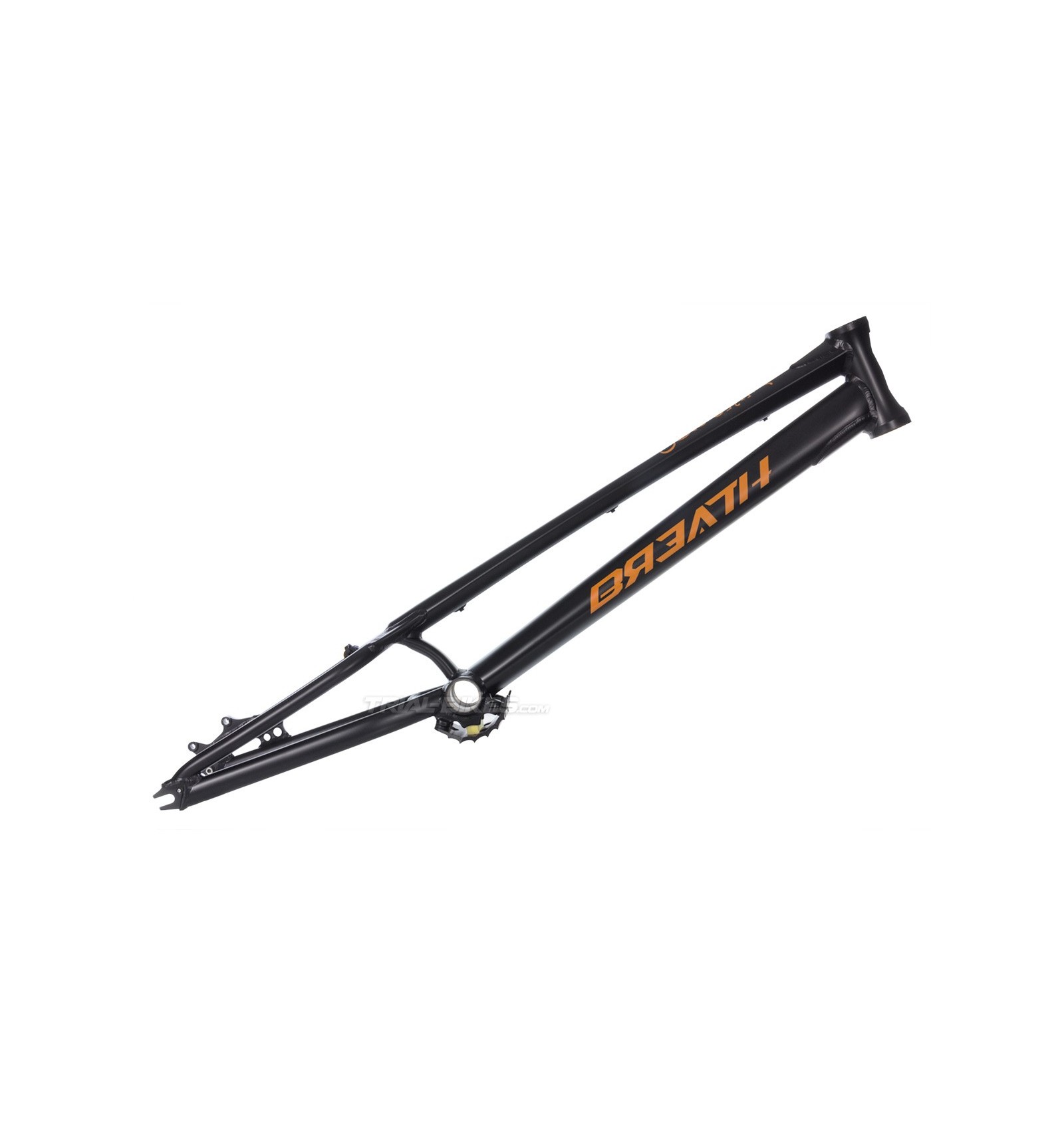

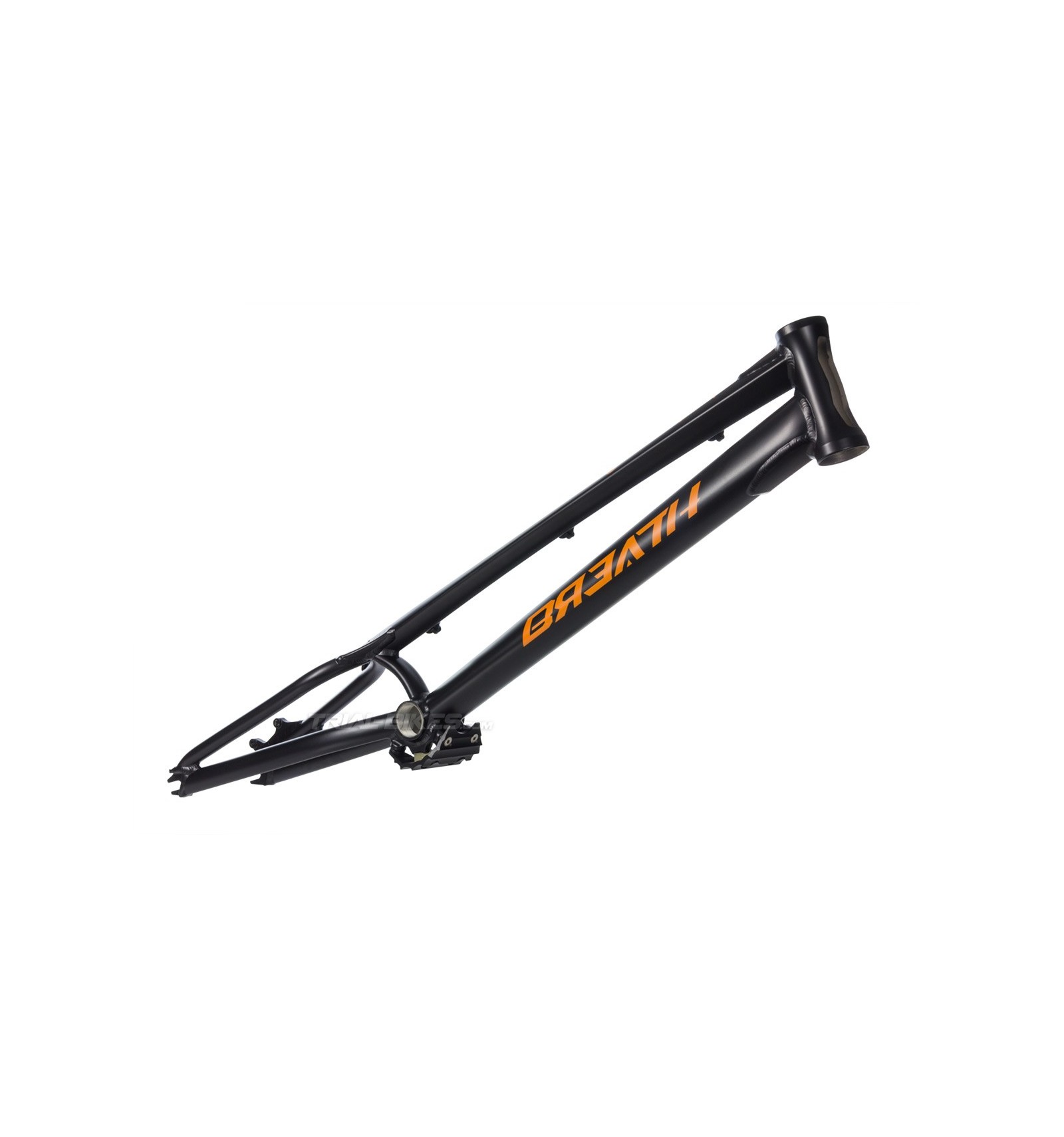

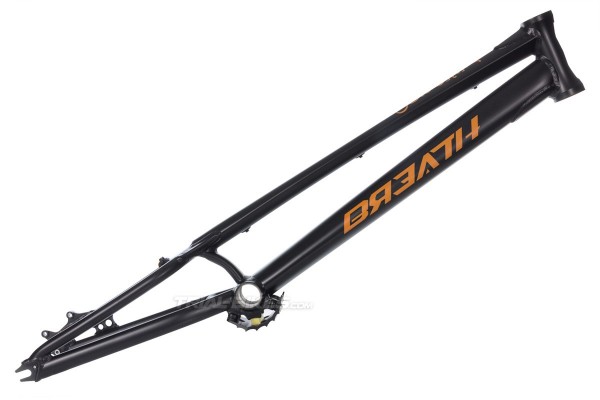

- Black, with orange Breath Yes 20D graphics.

Weight
- 1,558kg + 113g ( bashplate, bolts and rubber), + 61.6g (headset)

Additional information
This frame comes with a 6-month warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com


WEIGHT1.558
BRAKE MOUNTSIS Disc
TYPE OF HEADSETStandard 1 1/8"
