Breeth Titanium SL Pedals

Breeth Titanium SL Pedals

Description and materials

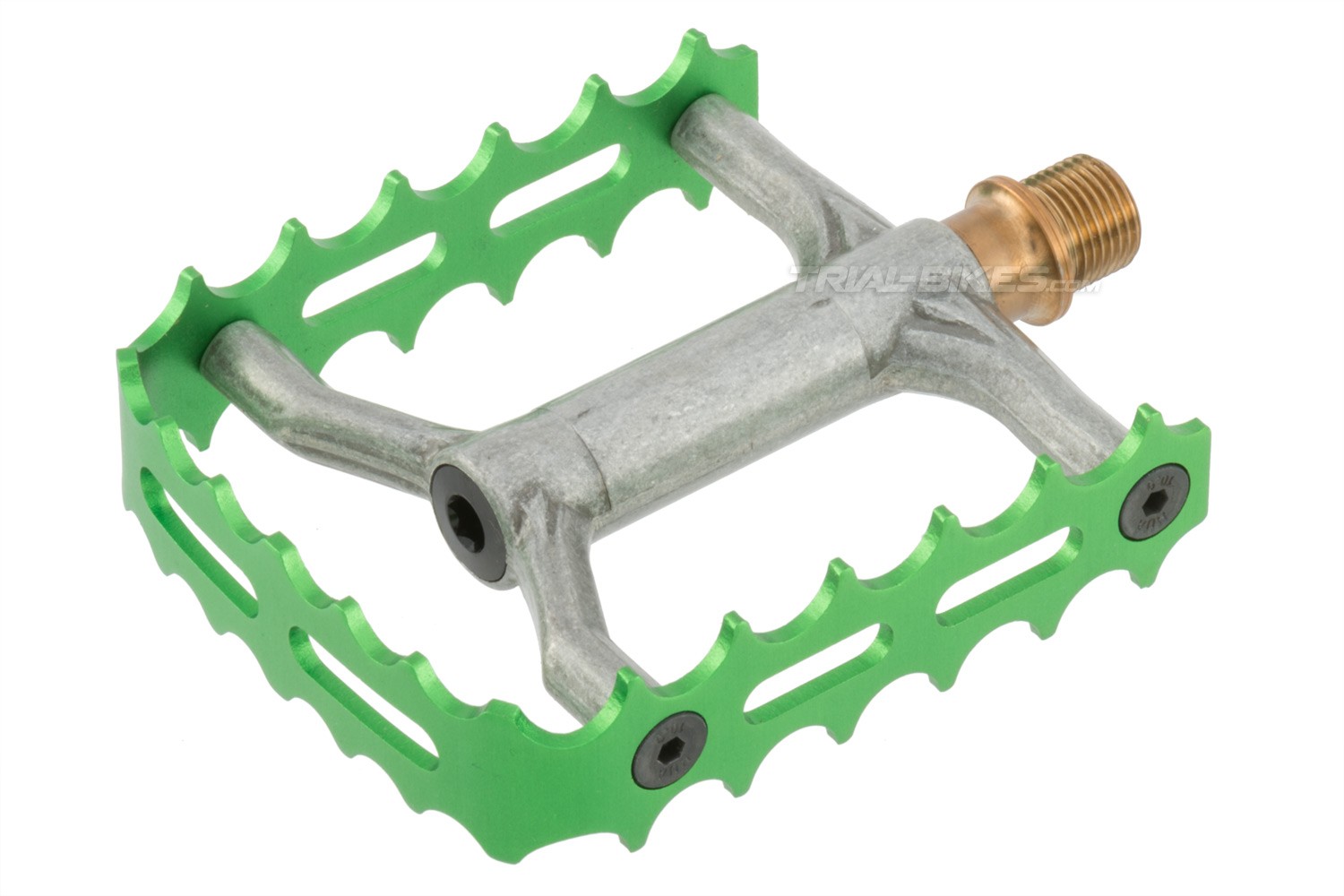

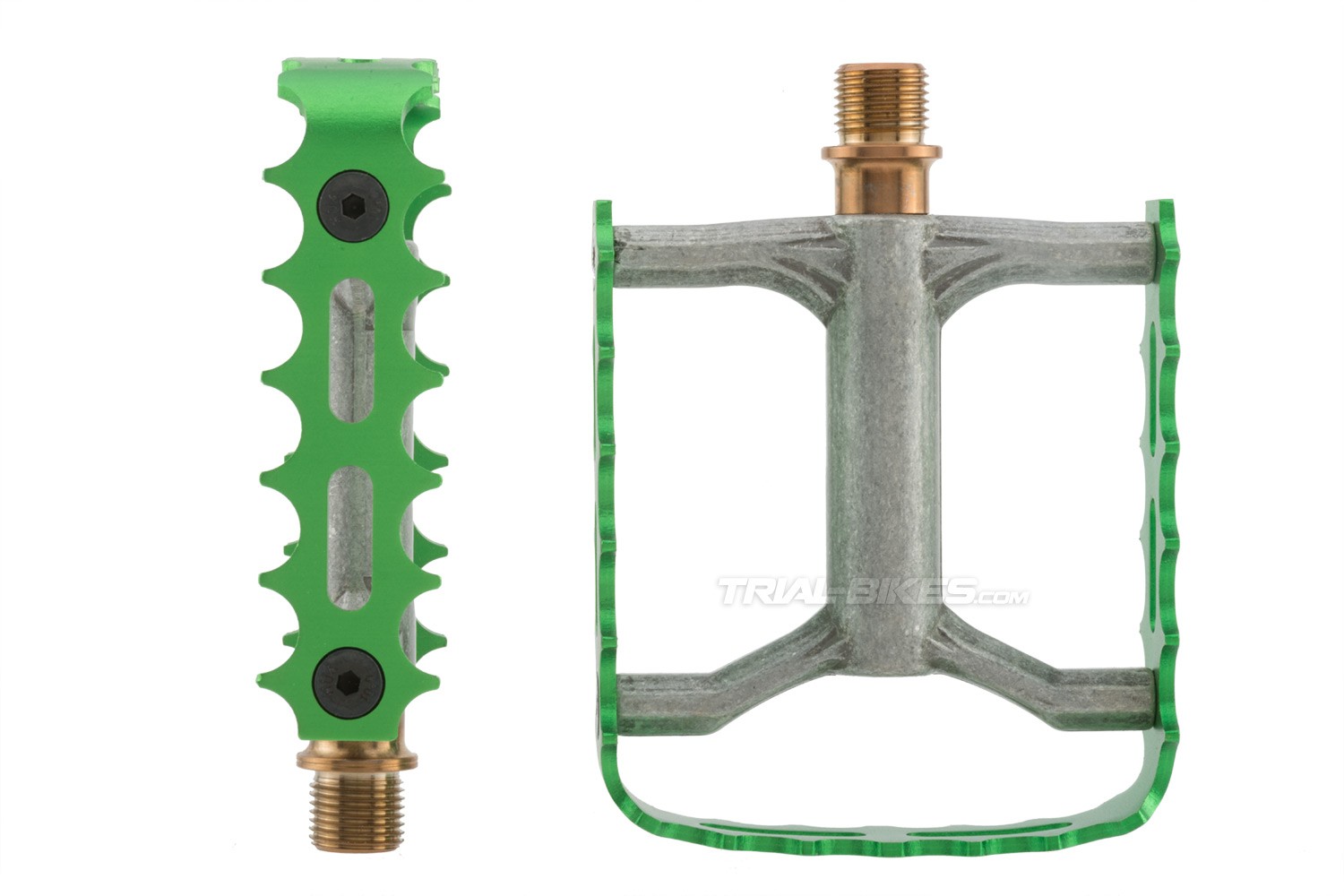

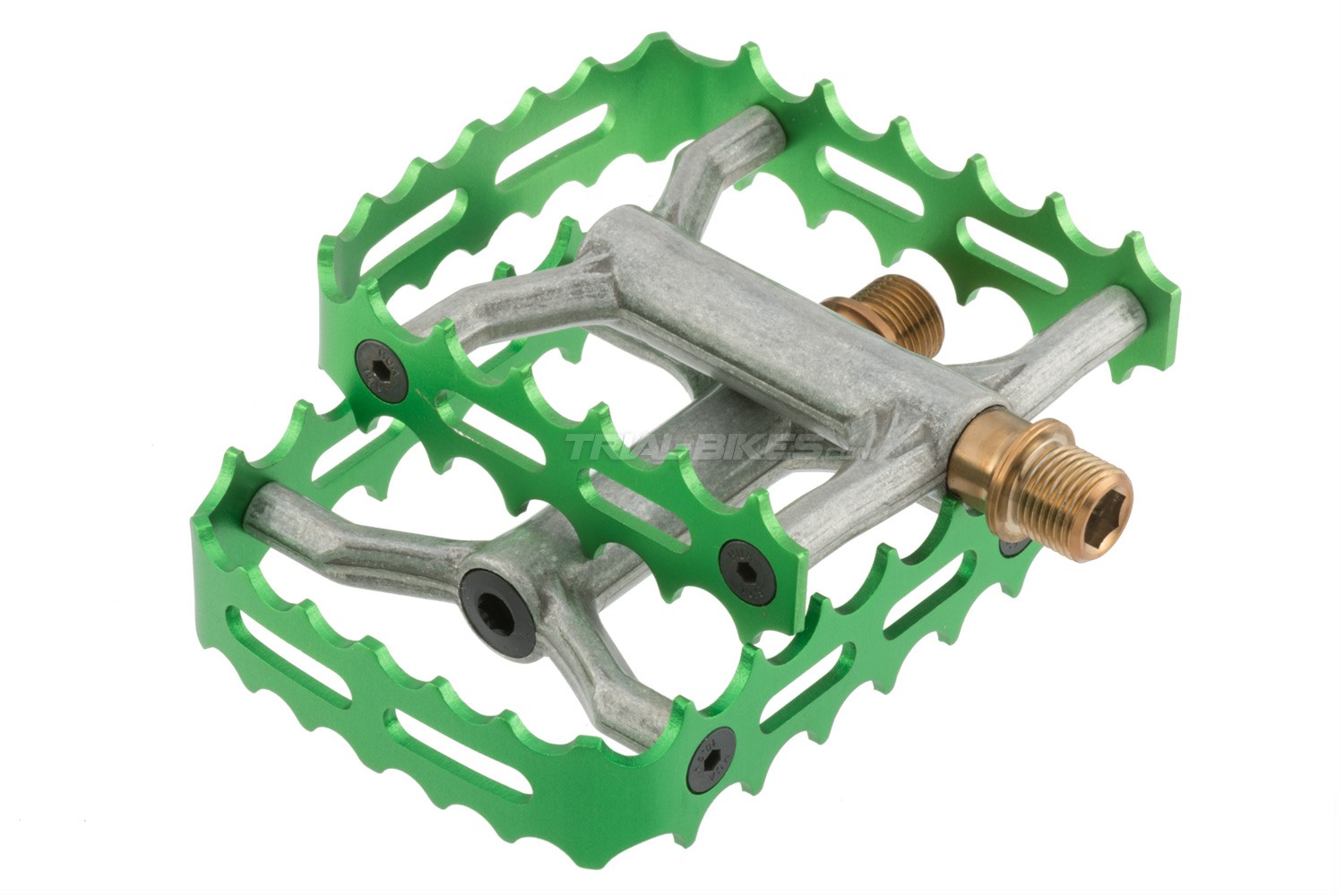

- New, ultra-light Breeth Titanium SL single-caged pedals, with titanium axle, from the Asian bike trials brand Breeth.
- Developed and tested by Breeth trials team rider Zhao Xuan.
- These trials pedals have been specially designed for bike trials, and use an ultra-light Ti-6Al-4V titanium axle, whereas the cage and body are made of 7075-T6 aluminium to ensure high strength with the lowest weight.
- Low-profile, 2.5mm thick single cage, with 2 holes on each edge (6 in total) to remove any excess material.
- The teeth on the outer edge have a lower profile to increase foot range of movement while riding.
- Forged aluminium body, with built-in supports to optimize stiffness and strength.
- Sealed bearings ensure top durability and smooth rotation by keeping dirt out.
- Standard 9/16” thread, compatible with most trials cranks.
- These pedals can be easily fitted to the cranks, just using a 6mm Allen key.
- They use 4 M5 x 5mm steel bolts, with a 3mm Allen countersunk head.

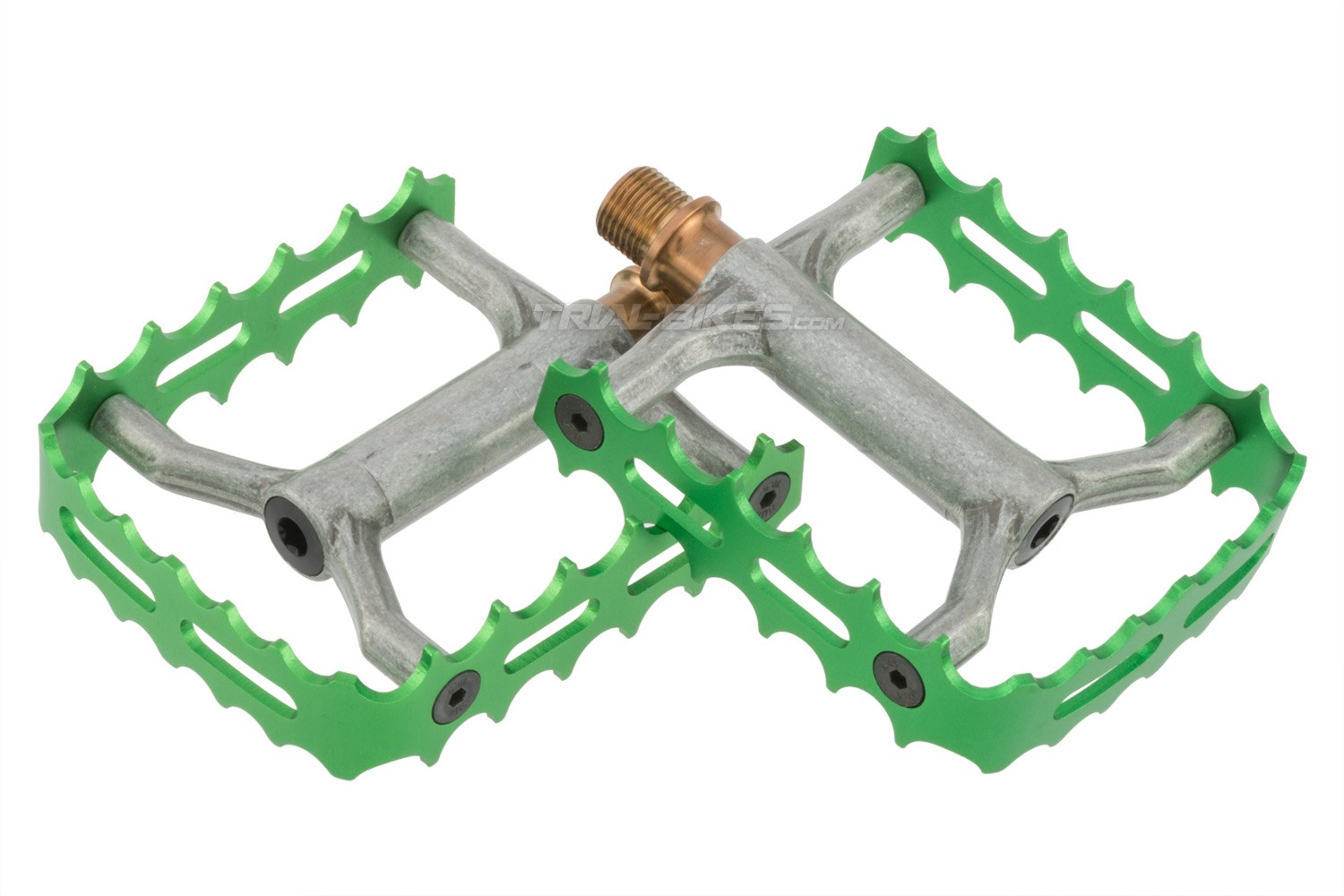

- Sold as a pair.

Compatible with:
- Cranks with 9/16” thread.
- Other pedal cages with 67mm spacing between bolts.

Cage Dimensions
- Length: 95mm
- Width: 85mm
- Depth: 26mm
- Thickness: 2.5mm
- Distance between bolts: 67mm

Colours
- Anodized green cage, anodized gold titanium axle and raw silver aluminium body.

Weight
- 210.10g, the lightest bike trials pedals in the world (March 2018)!

Additional Information
When fitting the pedals to the cranks, please bear in mind both pedals tighten towards the front of the bike.
