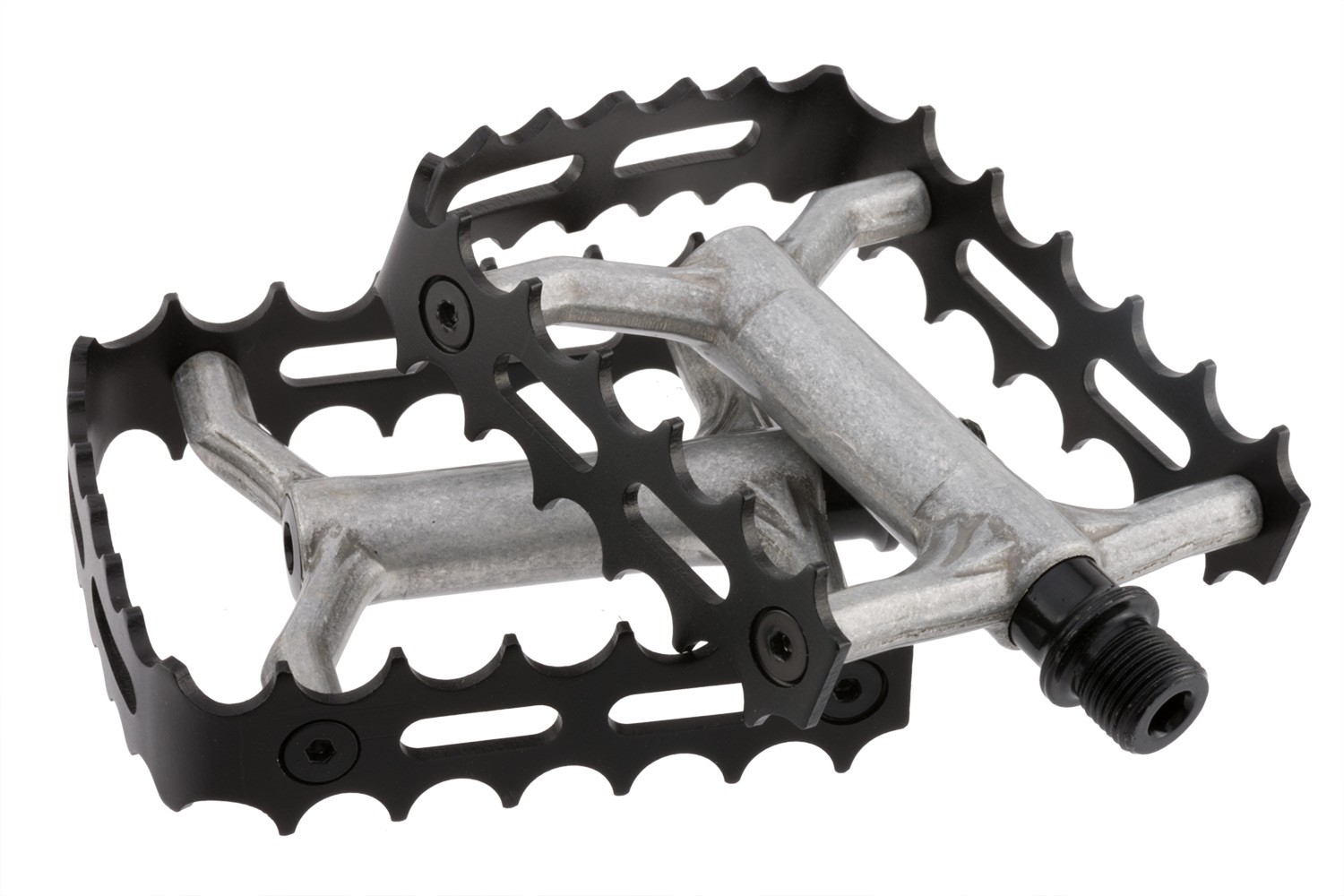

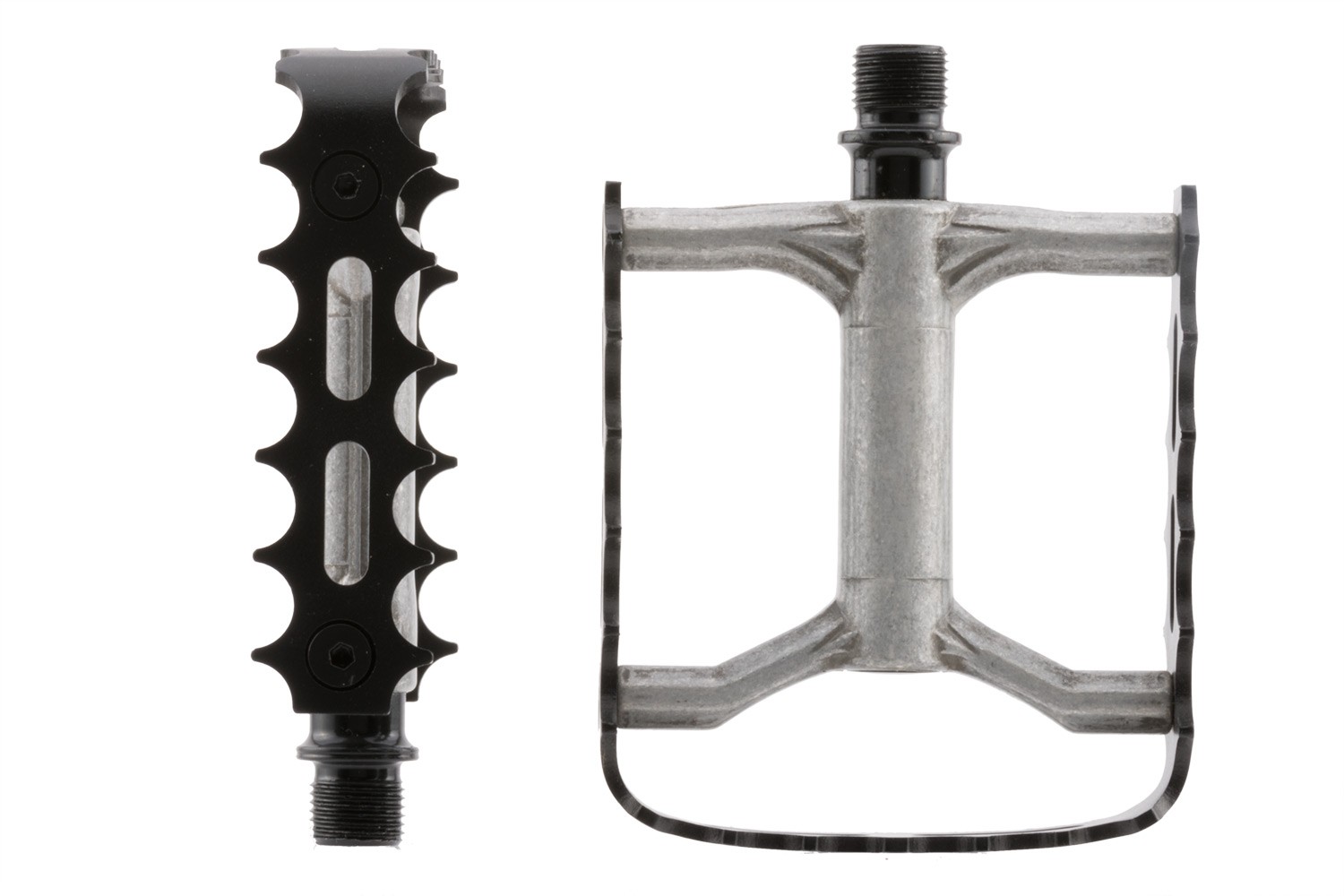

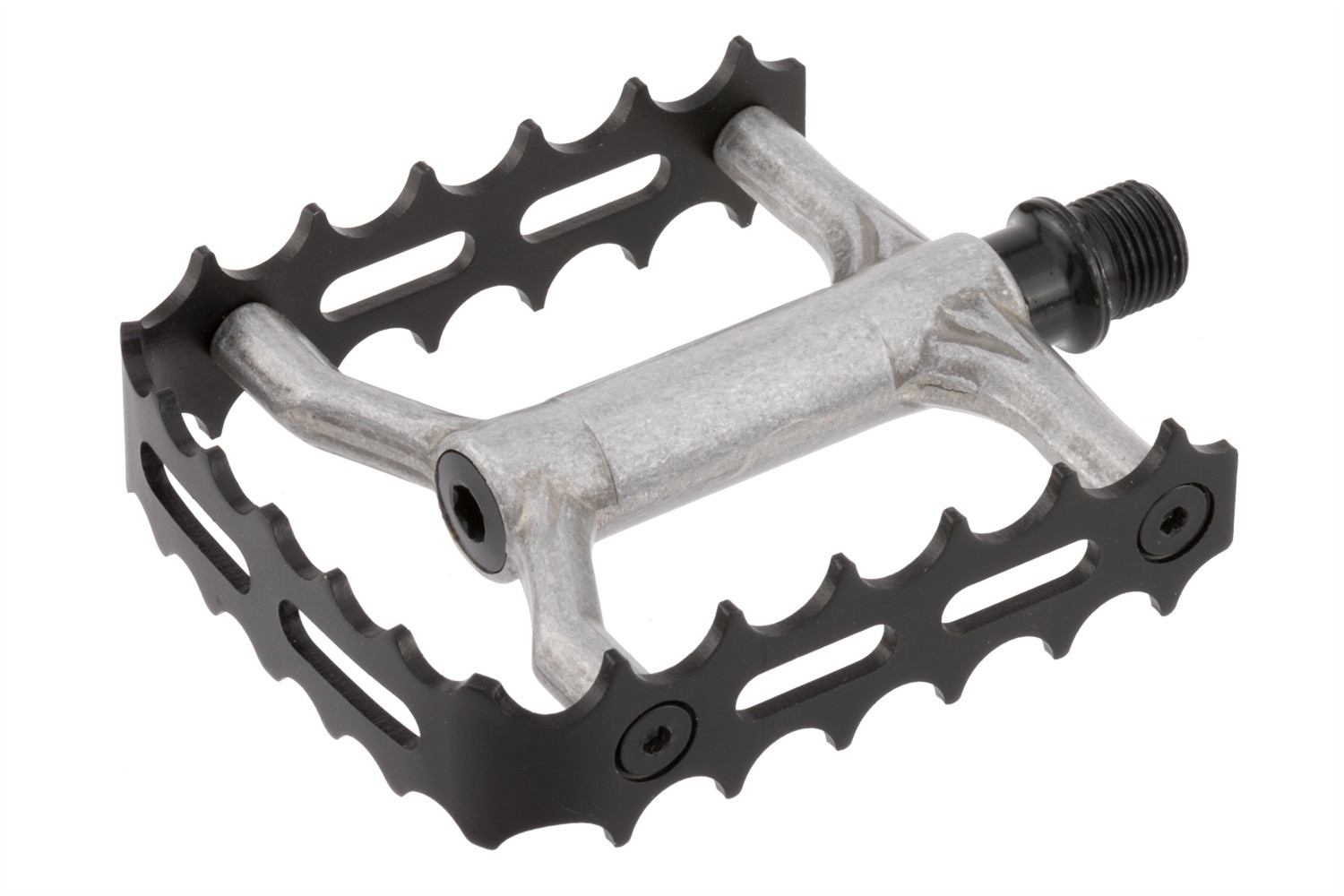

Breeth Trials Pedals

Description and materials
- New, ultra-light Breeth Trials single-caged pedals from the Asian bike trials brand Breeth.
- Developed and tested by Breeth trials team rider Zhao Xuan.
- These trials pedals have been specially designed for bike trials, and use a super strong steel axle, whereas the cage and body are made of 7075-T6 aluminium to ensure high strength with the lowest weight.
- Low-profile, 2.5mm thick single cage, with 2 holes on each edge (6 in total) to remove any excess material.
- The teeth on the outer edge have a lower profile to increase foot range of movement while riding.
- Forged aluminium body, with built-in supports to optimize stiffness and strength.
- Sealed bearings ensure top durability and smooth rotation by keeping dirt out.
- Standard 9/16” thread, compatible with most trials cranks.
- These pedals can be easily fitted to the cranks, just using a 6mm Allen key.
- They use 4 M5 x 5mm steel bolts, with a 3mm Allen countersunk head.
- Sold as a pair.

Compatible with:
- Cranks with 9/16” thread.
- Other pedal cages with 67mm spacing between bolts.

Cage Dimensions
- Length: 95mm
- Width: 85mm
- Depth: 26mm
- Thickness: 2.5mm
- Distance between bolts: 67mm

Colours
- Anodized black cage, black steel axle and raw silver aluminium body.

Weight
- 262.82g

Additional Information
When fitting the pedals to the cranks, please bear in mind both pedals tighten towards the front of the bike.
