Chorrillas RR-M Pedals

Chorrillas RR-M Pedals

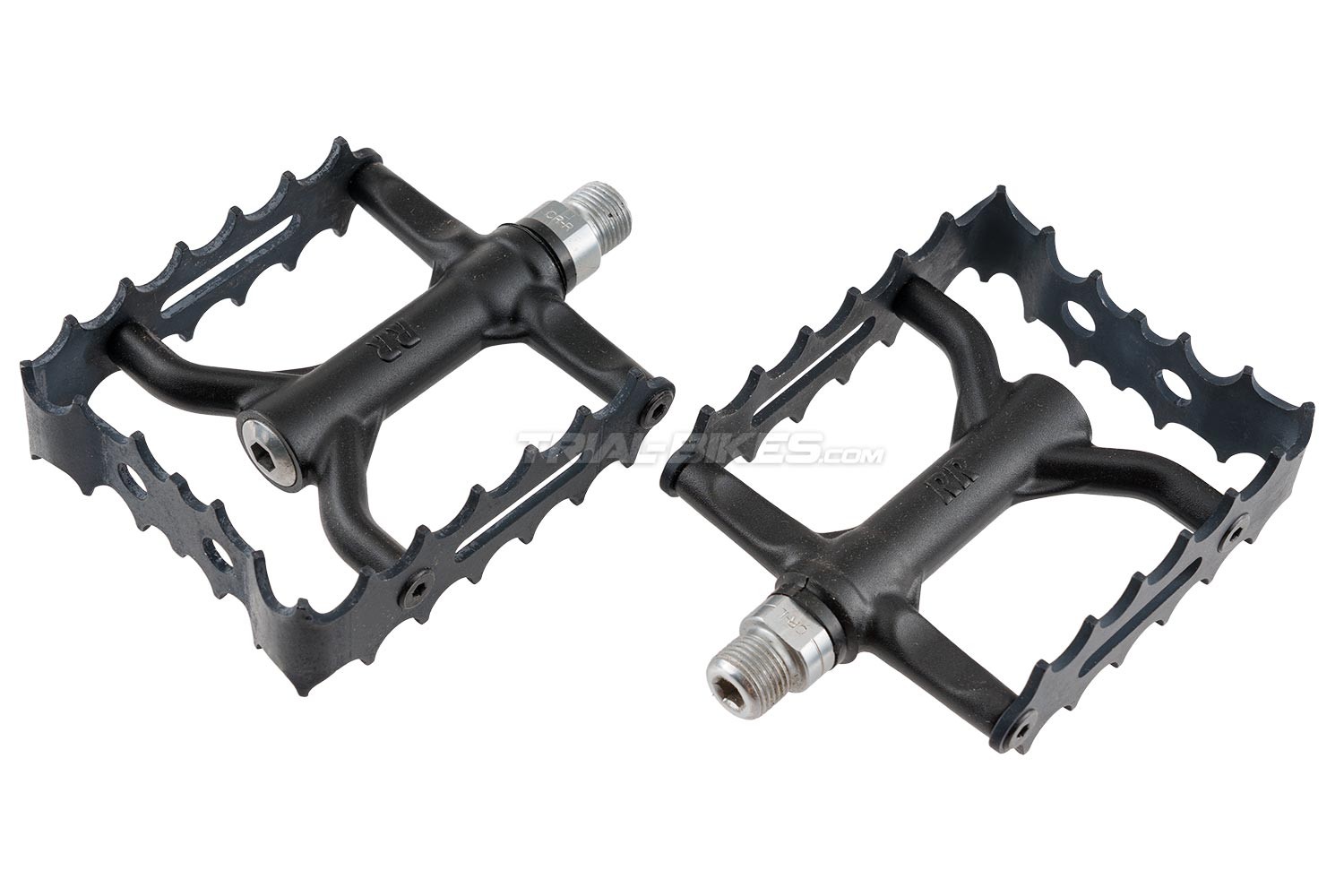

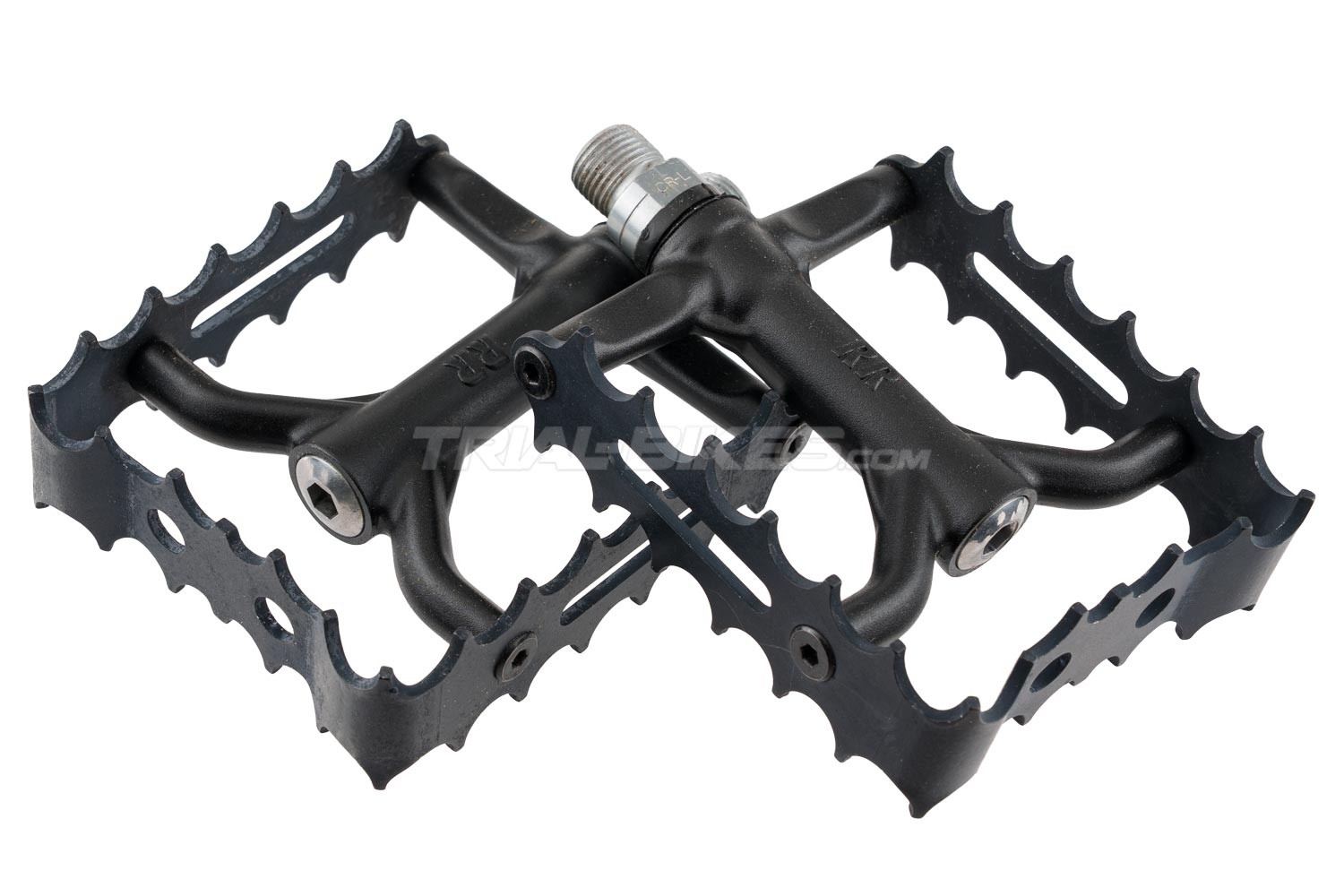

The Chorrillas RR-M pedals are specifically designed for Trials bikes and combine the well-known Chorrillas RR pedal body with a newly designed aluminium cage, featuring a distinctive “M”-shaped outer profile inspired by the classic Monty pedals widely used in trials for many years.

- Cage with an “M”-shaped outer design inspired by classic Monty pedals, with a wide toothed surface to provide a secure and stable foot platform.
- Steel axle, compatible with 15 mm open-end spanners or 6 mm Allen keys for installation.
- 2.5 mm thick 7075-T6 aluminium cage, designed for impact resistance and lightened through different machining processes.
- One-piece forged aluminium body with structural reinforcements to provide good strength while keeping weight low.
- Sealed bearings for smooth rotation and improved protection against dirt and moisture.
- Rubber seal positioned between the axle and pedal body to help prevent dust, mud and other contaminants from entering the pedal.
- Each pedal features 4 M5 x 7 mm steel bolts with a biconical head, for a 3 mm Allen key.
- Standard 9/16” pedal thread, commonly used on trials bike cranks.
- Installation using either a 6 mm Allen key or 15 mm open-end spanner.
- Sold as a pair.

Compatible with
- Cranks with a 9/16” pedal thread.
- Chorrillas replacement cages with 64 mm bolt spacing.

Cage dimensions
- Approximate length at the central outer section: 94 mm.
- Width: approximately 92.5 mm, reaching around 95 mm measured across the outermost points.
- Thickness: 2.5 mm.
- Bolt spacing: 64 mm.
- Minimum tooth height: approximately 16.5 mm.
- Maximum tooth height: approximately 27 mm.

Finish
- Black

Weight

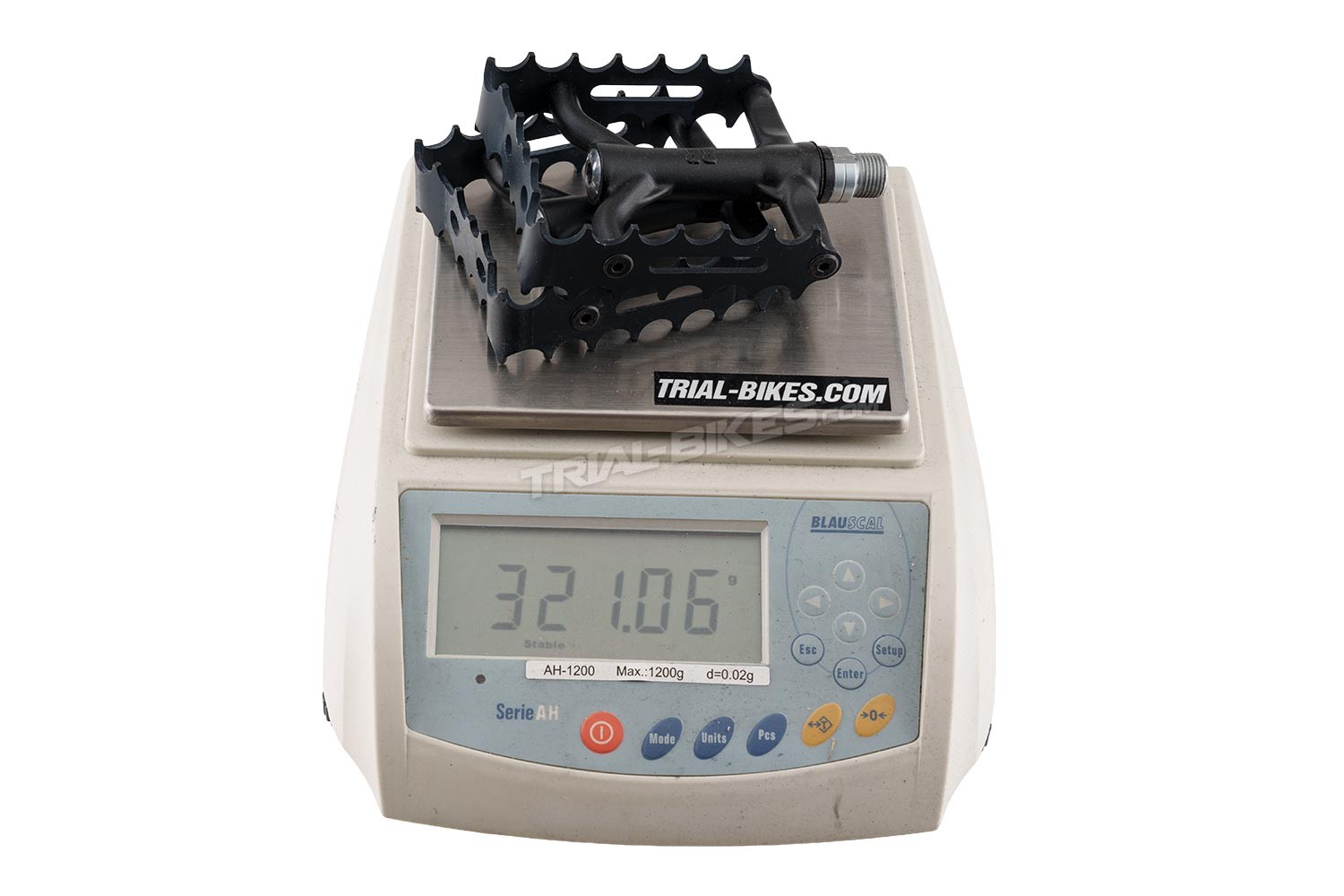

- 321 g (pair).

Additional information
For installation, both pedals must be threaded towards the front of the bicycle.

Each pedal is marked with the letters R and L to indicate its position (R: right pedal, L: left pedal).
