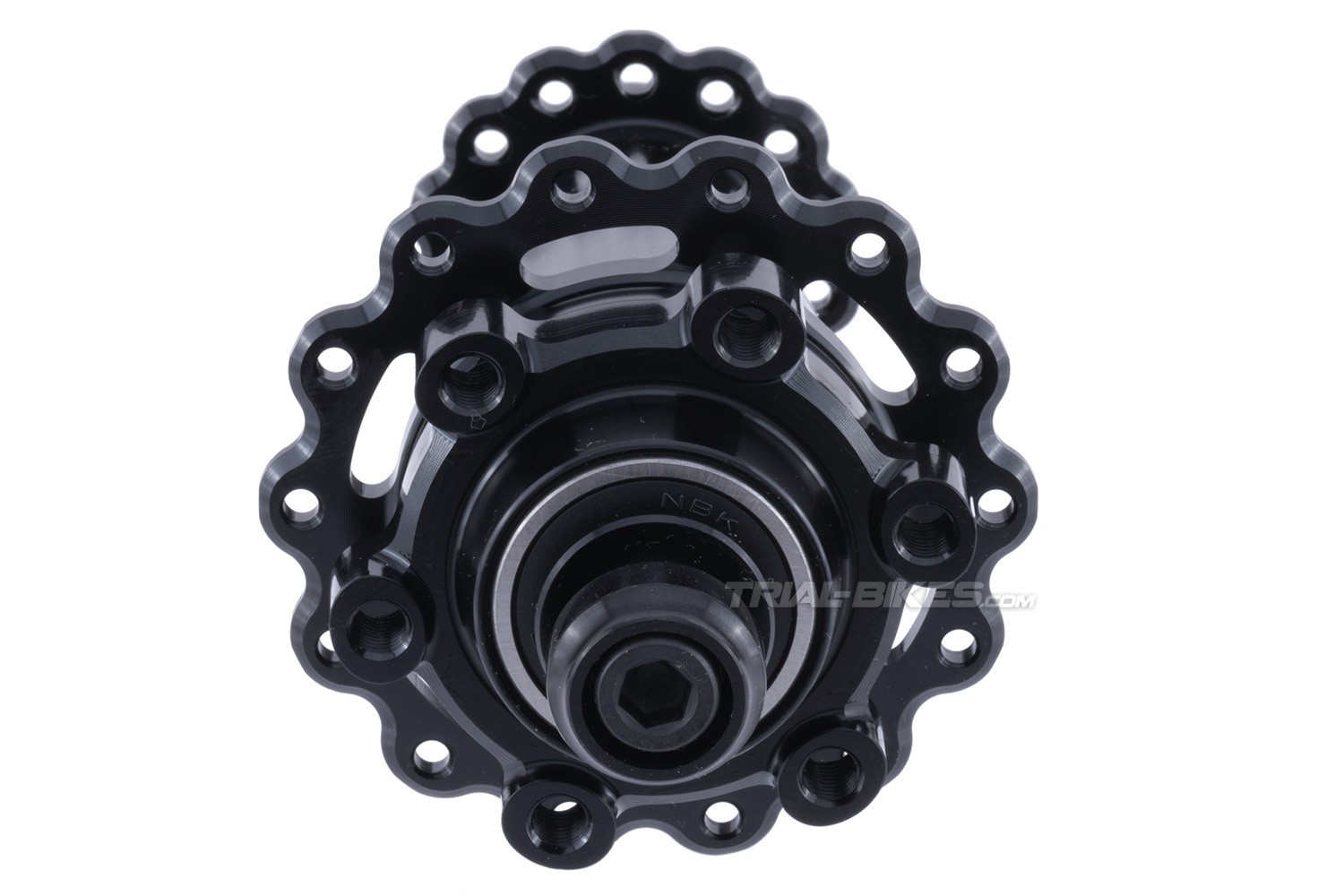

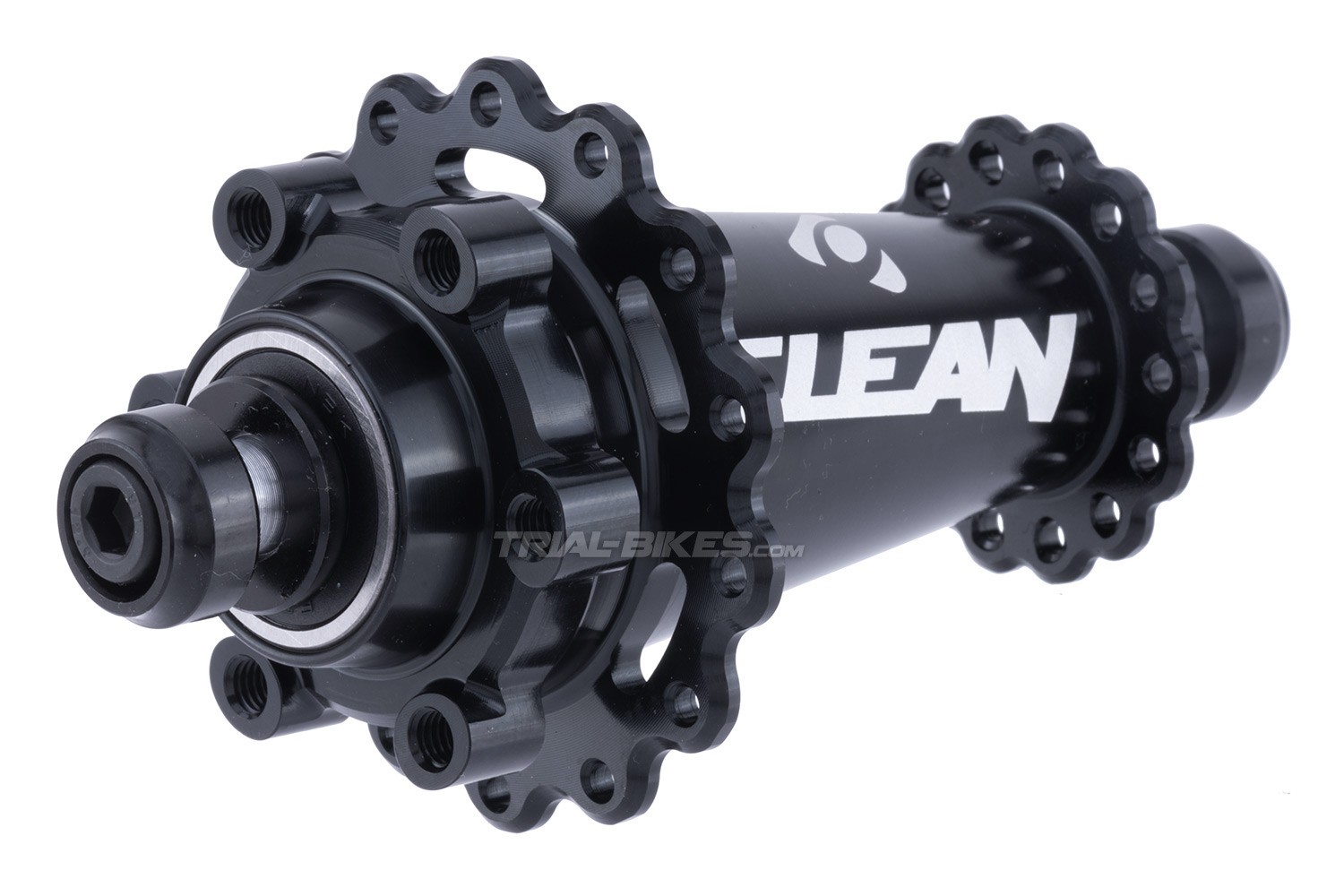

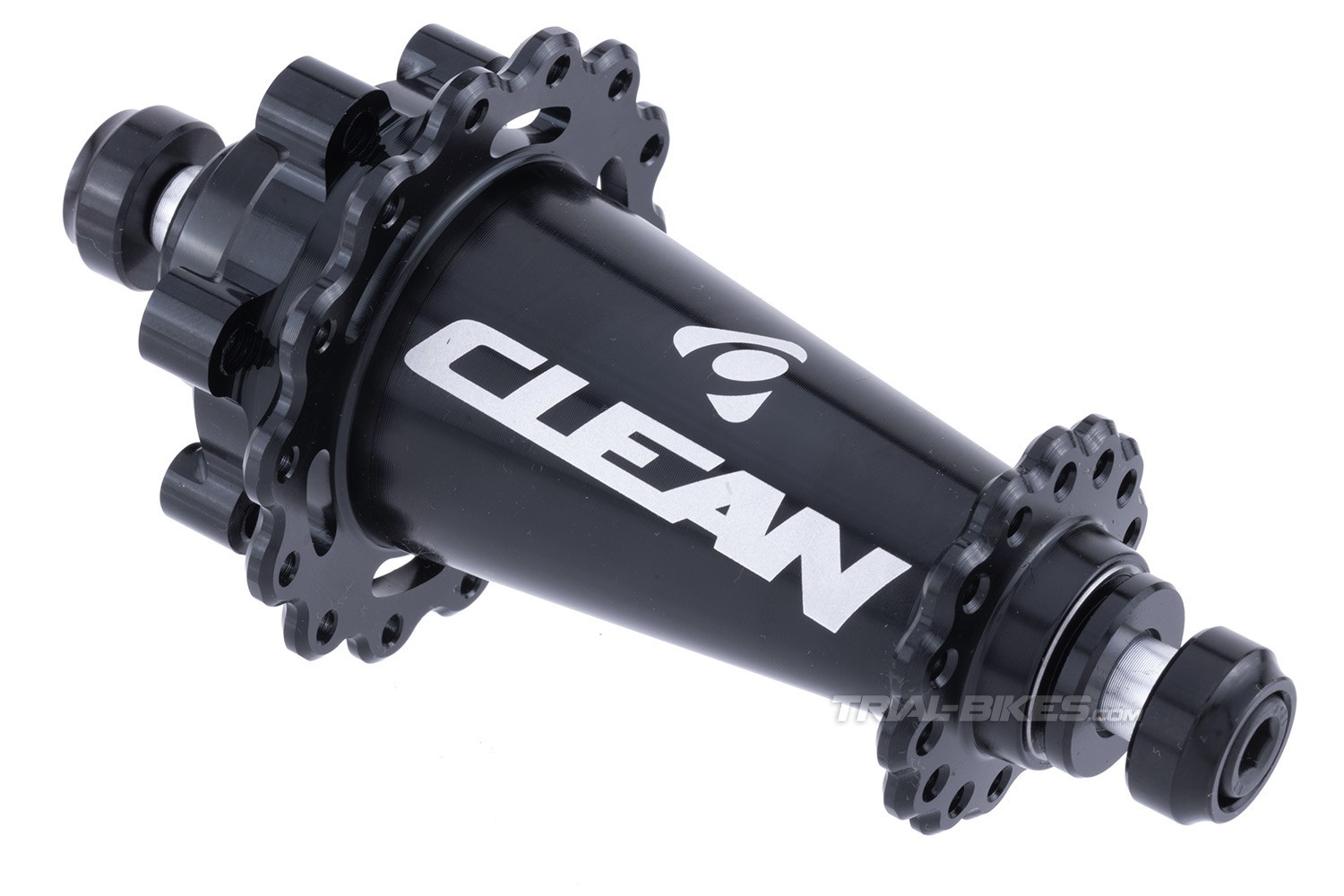

Clean X2 Disc 28H Front Hub

Clean X2 Disc 28H Front Hub Expand

Clean X2 Disc 28H Front Hub

CLEAN CLEAN

CL0460

New

Description and materials

More details

81,82€

Ask a question

Description and materials
- New high quality Clean X2 disc hub manufactured by Spanish brand Clean, owned by UCI World Champion Abel Mustieles.
- Developed and tested for the last few months by Clean team riders Sebas Ruiz, Joacin Nymann and Abel Mustieles himself!
- Exclusive Clean design, with a tapered hub shell that reduces its diameter from the disc side to the opposite to remove some unnecessary weight.
- Both the axle and shell are CNC machined from high quality 7075-T6 aluminium alloy, which ensures outstanding mechanical properties.
- Uses a hollow 10mm-diameter axle, with M6 internal thread and 100mm width, therefore it’s compatible with most forks available.
- 28 spoke holes, compatible with most front rims designed for bike trials.
- High quality replaceable sealed bearings ensure a smooth, reliable, durable running.
- Standard IS 6-bolt disc rotor fitting, with a minimalistic design that removes unnecessary material around the bolts holes.
- Includes M6x25mm steel bolts and serrated conical washers.
- Uses 4mm spacers on each side of the shell.
- Gloss black finish, with white laser etched Clean graphics.

Compatibility
- Compatible with those forks that have 100mm spacing between the inner side of the dropouts.
- Compatible with rims that have 28 spoke holes.
- Compatible with those disc brake rotors with standard IS 6-bolt fitting.
- Note: the bearings in this hub are NBK 6800-2RS (non-disc side) and 6000-2RS (disc side).

Dimensions
- Axle length: 100mm
- Axle diameter: 10mm

- Spacers width: 4mm
- Number of spoke holes: 28 (28H)
- M6x25mm Allen bolts

Finishes
- Gloss black finish, with white laser etched Clean graphics.

Weight
- Only 103.94g!! (+17.66g of M6x25mm bolts and washers)


WEIGHT 0.103
COLOR Black
SPOKE HOLES 28 spokes
BRAKE MOUNTS Disc
