Comas Disc 28H Front Hub Expand

Comas Disc 28H Front Hub

COMAS COMAS

538183

New

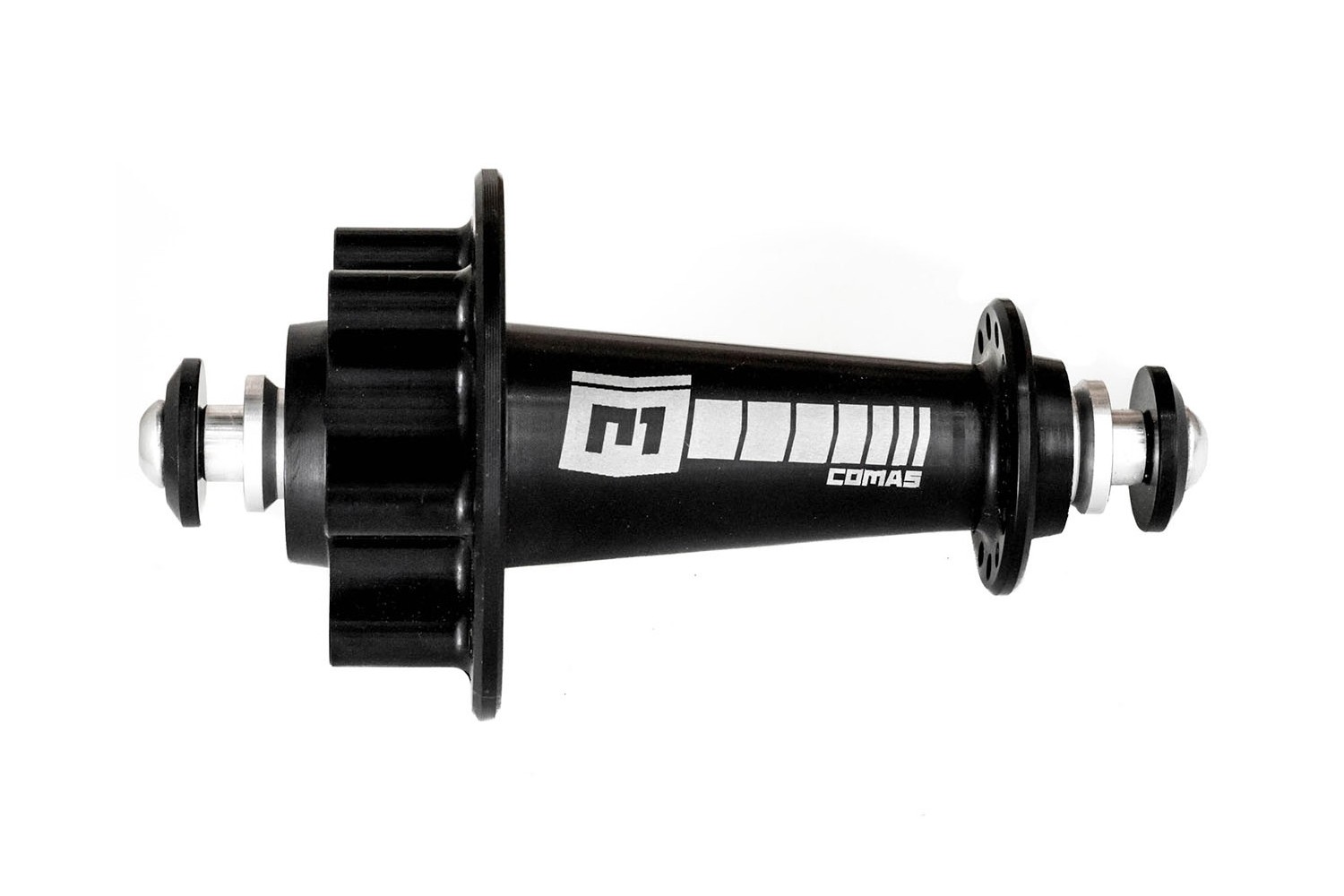

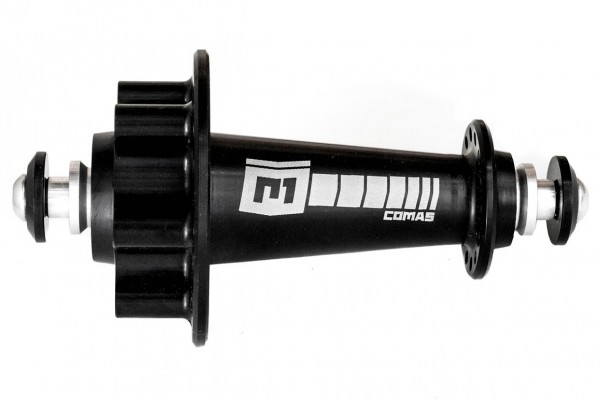

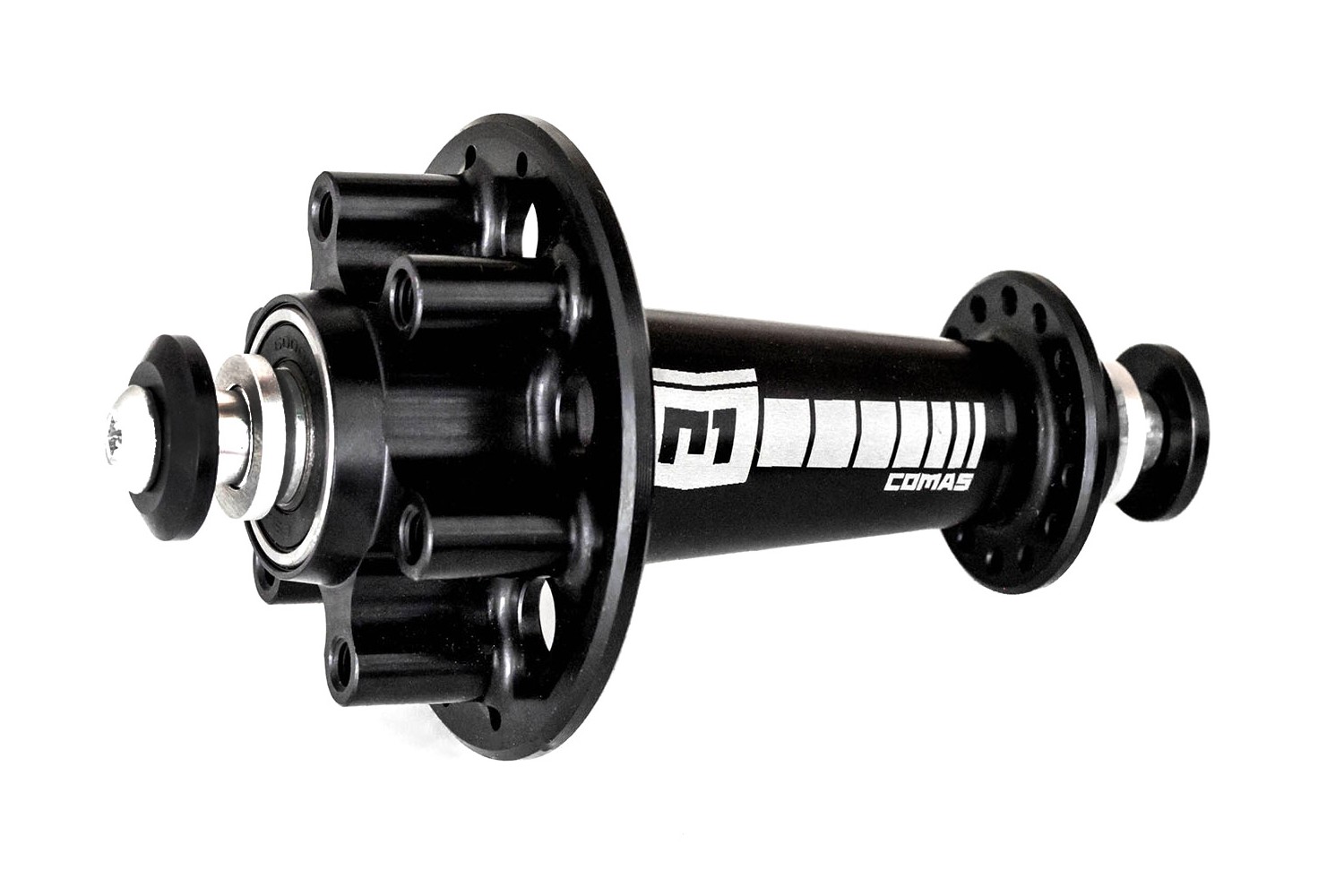

Ultralight Comas Disc front hub, with a tapered, CNC-machined shell that removes any excess material.

More details

Warning: Last items in stock!

70,25€

Ask a question

Comas Disc 28H Front Hub

Description and materials
- New ultralight Comas Disc front hub, specially developed for trials bikes.
- Used and developed by Comas trials team riders.
- Hollow axle, machined to remove any unnecessary material.
- The axle and shell are CNC machined from 7075-T6 and 6082-T6 aluminium alloy respectively, to ensure exceptional mechanical properties.
- Leaning flanges ease spoke installation, and their robust design helps resist braking stress.
- High-quality, replaceable sealed bearings ensure a smooth spin and long lifespan.

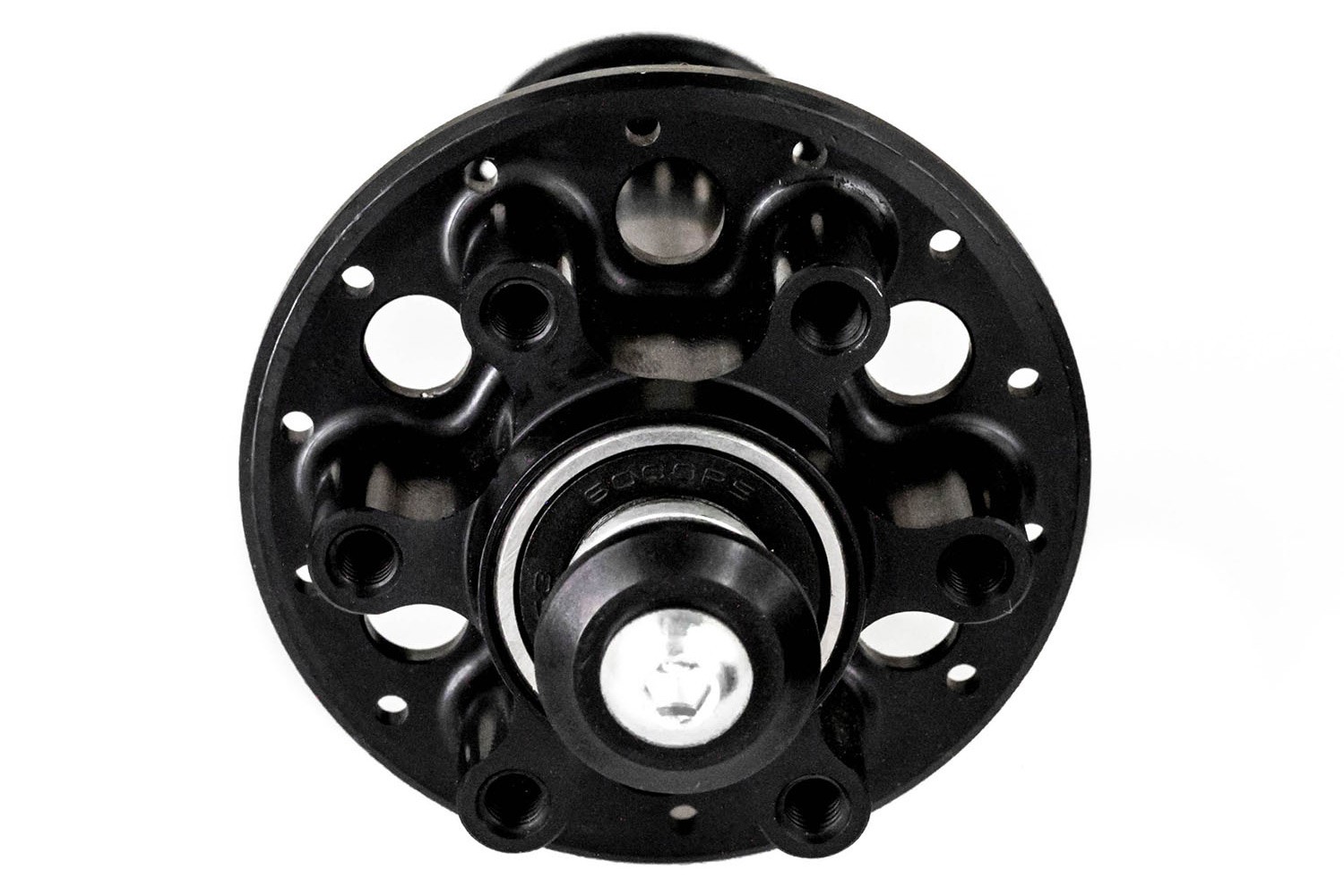

- Standard 6-bolt ISO rotor fitting.
- 28 spoke holes (28H), with Ø2.5mm diameter.
- Uses 5mm spacers to each side of the hub shell.
- Supplied with M6x25mm axle bolts and washers.

Compatibility
- Forks designed for a 10mm axle and 100mm spacing (most trials forks)
- Rims with 28 spoke holes (28H).
- Disc brake rotors with 6-bolt fittings.
- Bearings reference: 6000RS and 6800RS

Dimensions
- Axle spacing: 100mm
- Axle diameter: Ø10mm
- Spacer thickness: 5mm

- Number of spoke holes: 28 (28H)
- Spoke hole diameter: Ø2.5mm
- Flange diameter: Ø64mm and Ø35mm

Colour
- Anodized black hub shell, with white Comas graphics.
- Silver axle and hub ends.

Weight
- 104g (+ bolts and washers at 16g)

COLORBlack
SPOKE HOLES28 spokes
BRAKE MOUNTSDisc
