Comas Disc Protector Expand

Comas Disc Protector

COMAS COMAS

538166

New

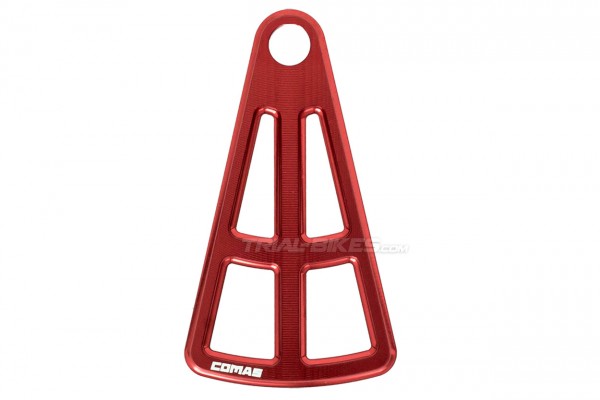

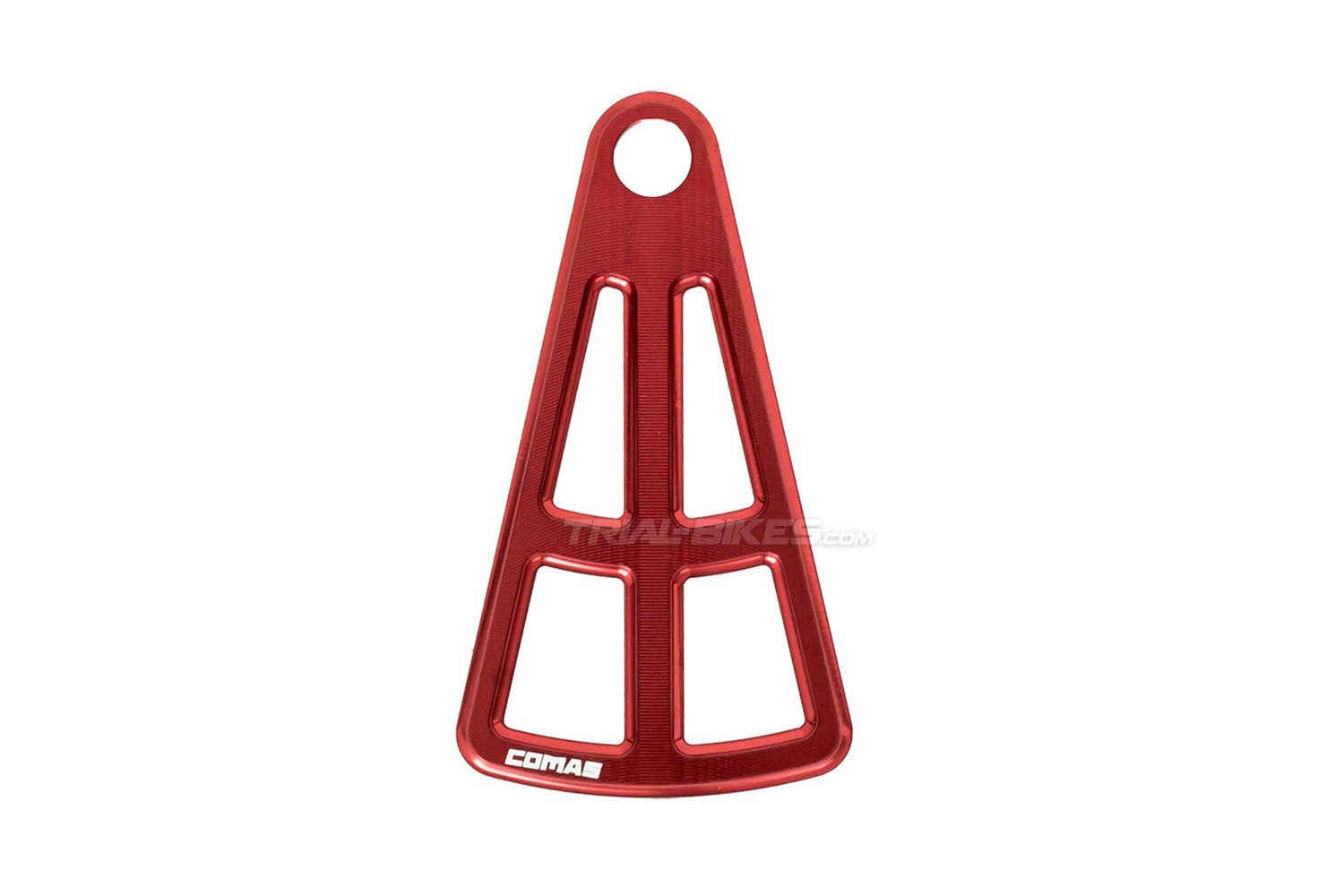

Comas disc protector, developed by Eloi Palau. Protects the rotor from being hit and damaged against an obstacle.

More details

This product is no longer in stock

12,81€

Ask a question

Comas Disc Protector

Description and materials
- Disc protector manufactured by trials brand Comas, owned by Biketrials World Champion Dani Comas.
- Tested and developed for months by Comas team rider Eloi Palau.
- The protector prevents the rotor from being hit when riding.
- CNC machined from high-quality, ultra-light 7075-T6 aluminium.
- Features a central nerve that multiplies impact resistance.
- Ultra light, neat 3.8mm thick design, for 10mm diameter axles.
- Provides protection for rotors up to 160mm diameter.

Installation guide
1. Remove the rear wheel.
2. Measure the total thickness of the hub spacer.
3. Replace the hub spacer with the protector and add some washers (as many as needed) between hub and protector so that the total thickness is the same as before.
4. Install your wheel back.

- Please note: the disc-side hub spacer must be shortened 3.8mm, which is the thickness of the Jitsie disc protector. Also, you can remove the disc-side hub spacer and then insert a 2-3mm washer so that the total thickness is the same as before.

Dimensions
- Length: 85mm (from axle hole to end)
- Thickness: 3.8mm

Colour
- Anodized red, with white laser etched Comas logo.

Weight
- 20g

Important note: Some hubs have a thinner spacer than the 3.8mm-thick protector. Therefore, if the protector was to be inserted between frame and hub, the protector is not suitable for these hubs. However, if it was to be inserted outside the frame, the protector might suit, so please contact us to ensure it will work fine.
