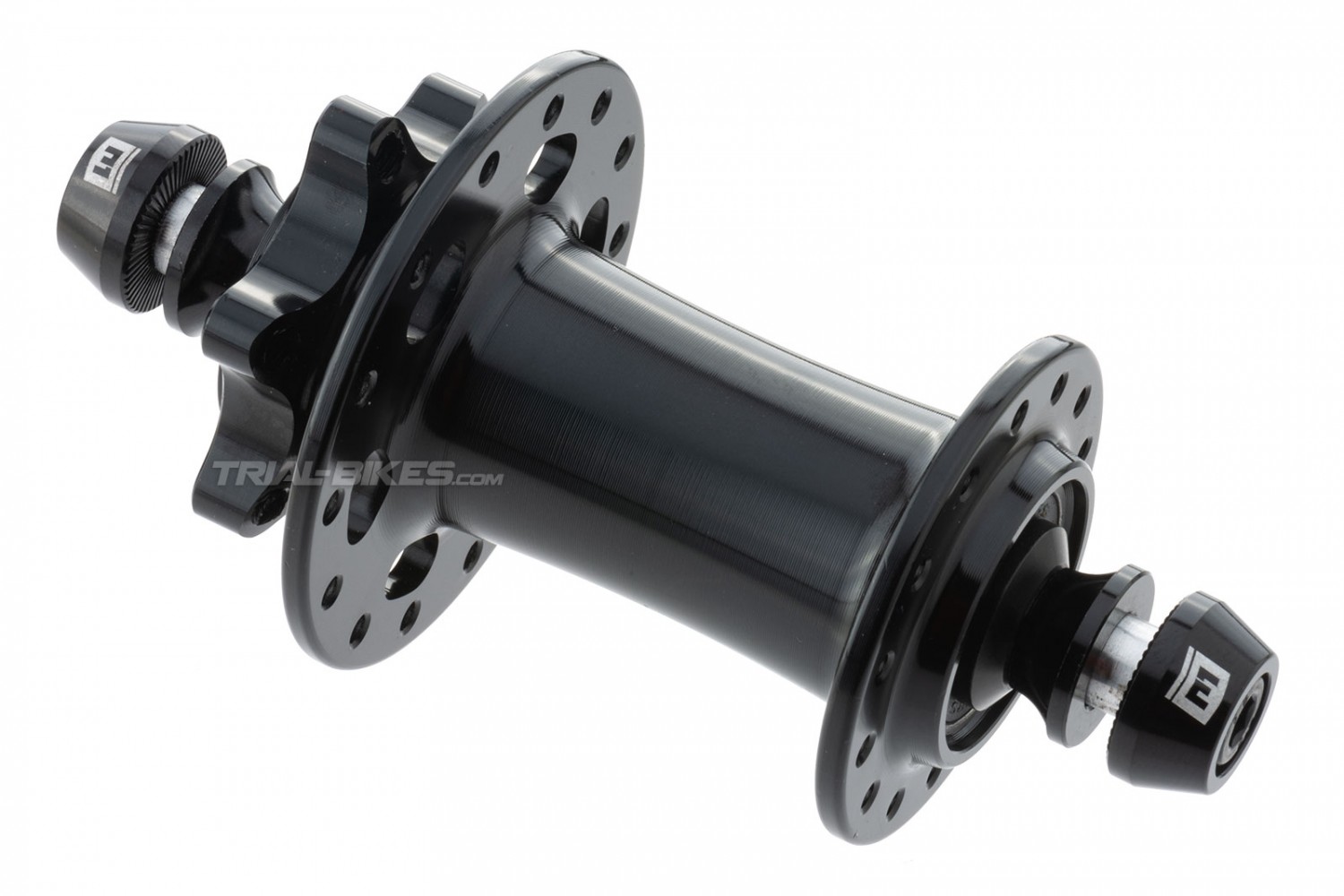

Comas Entry Front Disc Hub

  • Great value for money Comas Entry front disc hub, for open dropout forks.
  • Also compatible with 12mm through axles (available separately) to fit a through-axle fork.


Description and materials
- Comas Entry front disc hub, made by moto trials and bike trials specialist Comas.
- The Entry range features the best value for money Comas products, offering great performance without compromising reliability, at the best price.
- Axle with 100mm spacing, 10mm diameter at the ends, compatible with standard open-dropout forks.
- The centre of the axle is 12mm diameter, for extra strength and durability.
- This also allows you to run a 12mm through axle (available separately) to fit a fork with through axle.
- The hub shell is made from high quality CNC machined 6061-T6 aluminium alloy.
- The axle is made of CNC-machined 7075-T6 aluminium alloy with inner M6 thread.
- High-quality, durable ASSESS 6001RS sealed bearings, replaceable on both sides.
- International Standard IS 6-bolt disc brake mount.
- 28 spoke holes so it fits most front rims for bike trials.
- Comes with two M6x25mm steel bolts, with official Comas serrated axle washers.

Dimensions

- Fork dropouts spacing: 100mm
- Axle diameter (fork dropouts): 10mm
- Axle diameter (centre): 12mm
- Spoke holes: 28 (28H)
- Spacer thickness: 8mm + 4mm (disc side), 8mm + 4mm (non-disc side).
- Flanges diameter: 58mm (disc side), 44mm (non-disc side).

Colours

- Anodized black, without graphics on the hub shell.
- White laser etched Comas logos on the axle bolt washers, in white.

Weight

- 199.18g (+ M6x25mm screws and washers at 24.52g)

COLOR Black
SPOKE HOLES 28 spokes
BRAKE MOUNTS Disc
