Bicicleta Comas R1 26" Expand

Comas R1 26” Bike

COMAS COMAS

538368

New

The Comas R1 26" 2019 trials bike using the best Comas parts, ultra-light and high quality: Comas tapered fork, Comas high-rise handlebar, Comas sealed hubs and multiple CNC machined parts.

More details

Warning: Last items in stock!

1 061,98€

Ask a question

Comas R1 26” 2019 Trials Bike

The Comas R1 26" 2019 trials bike using the best Comas parts, ultra-light and high quality: Comas tapered fork, Comas high-rise handlebar, Comas sealed hubs and multiple CNC machined parts.

Frame and fork
- Frame: Comas R1 26” 2019, made from 6082-T6 aluminium alloy, with optimized curvatures and thickness, integrated BB tube, CNC dropouts, 4-bolt rim brake mounts
- Forks: Comas 26” tapered 1 1/8” – 1.5”, made of 6082-T6 aluminium alloy, with optimized curvatures, CNC steerer tube, CNC dropouts, 4-bolt rim brake mounts

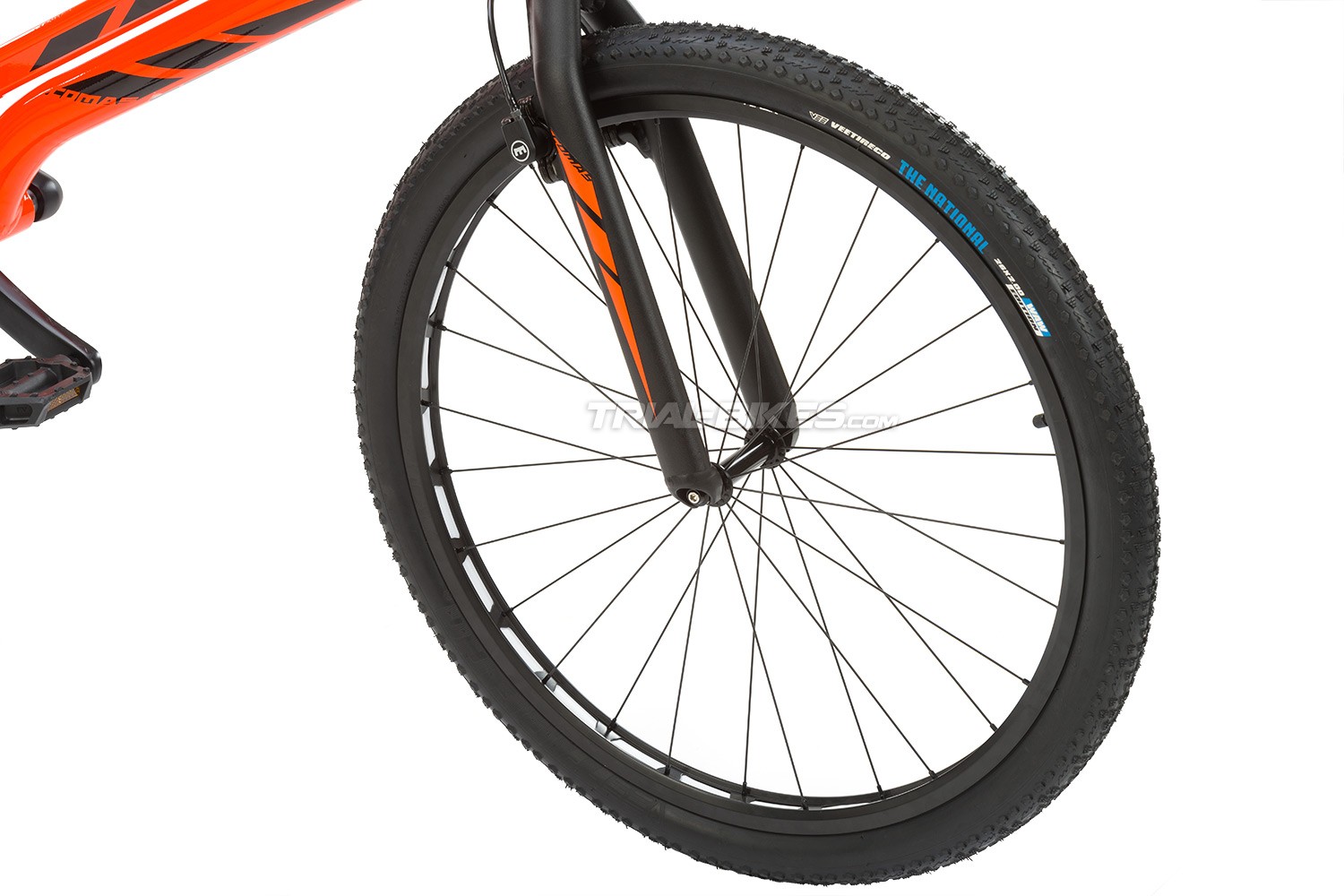

Wheels
- Front hub: Comas Ultralight HS, 28 spoke holes, without rotor mounts, 100mm spacing, 9mm axle
- Rear hub: Comas Ultralight HS, 32 spoke holes, without rotor mounts, 116mm spacing, 10mm axle
- Chain tensioner: Comas snail cams 7075-T6, 49 positions
- Front rim: Comas 26”, single wall, 32mm wide, 28 spoke holes
- Rear rim: Comas 26”, single wall, 47mm wide, 32 spoke holes
- Spokes: Comas Ultralight 1.8mm spokes, black
- Rim tape: Comas, grey
- Front tyre: Vee Rubber Waw Edition 26”x2.00”
- Rear tyre: Vee Rubber Waw Edition 26”x2.50”

Brakes
- Front brake: Magura HS11
- Rear brake: Magura HS11

- Brake clamps: Comas 7005-T6, symmetrical design with laser etched grooves

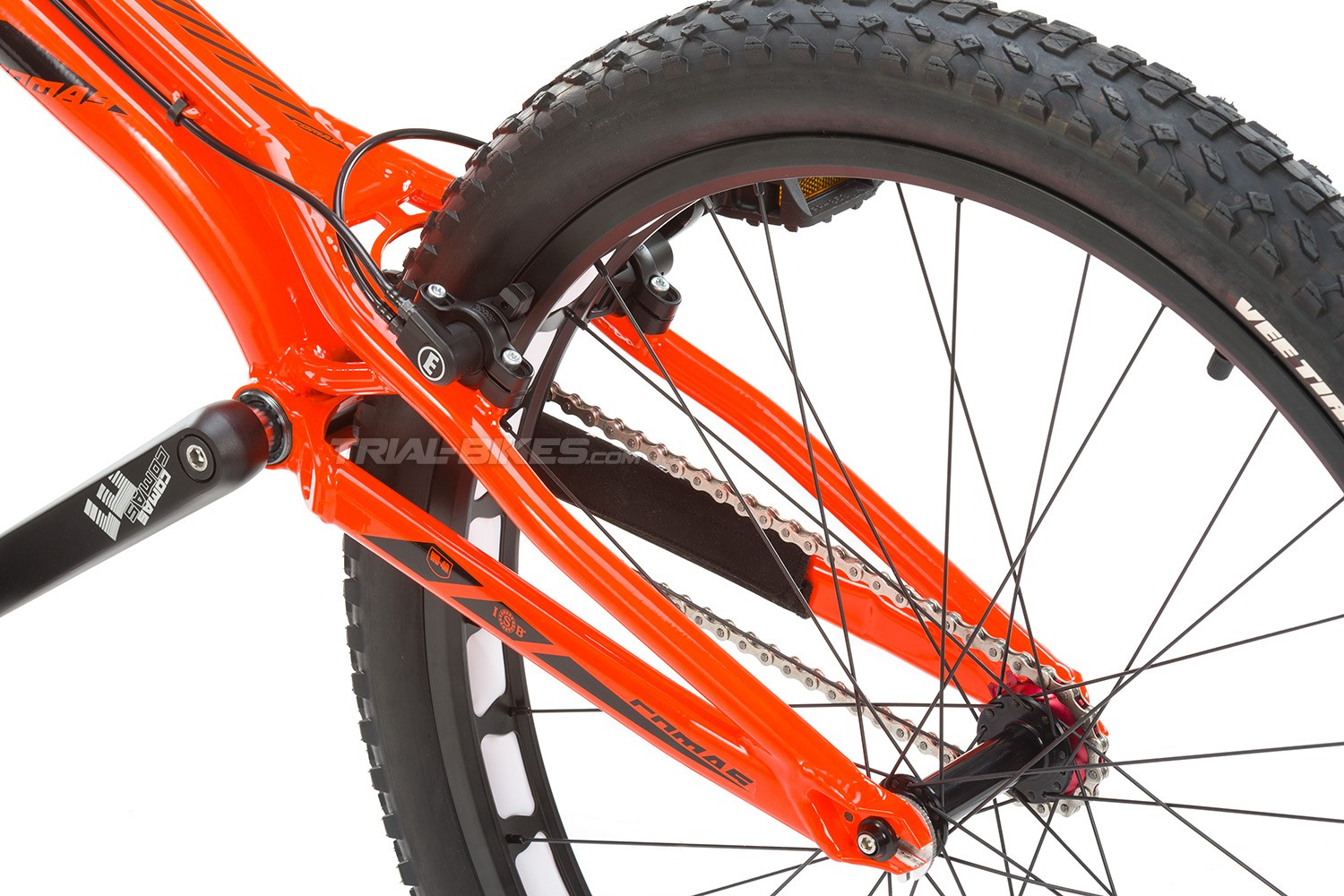

Drivetrain
- Cranks: Comas ISIS 170mm, offset 33mm, for screw-on freewheel
- Bottom bracket: Comas ISIS 128mm
- Freewheel: Comas 108.9 18T, with 108 engagement points, 9 pawls and 18 teeth, red
- Chain: YBN s20, 1/2x3/32”
- Rear sprocket: Comas 15T Screw-on, made from 7075-T6 aluminium alloy, 12mm wide
- Pedals: Comas single cage, made from 7075-T6 aluminium alloy
- Bashring: Comas ultralight bashring

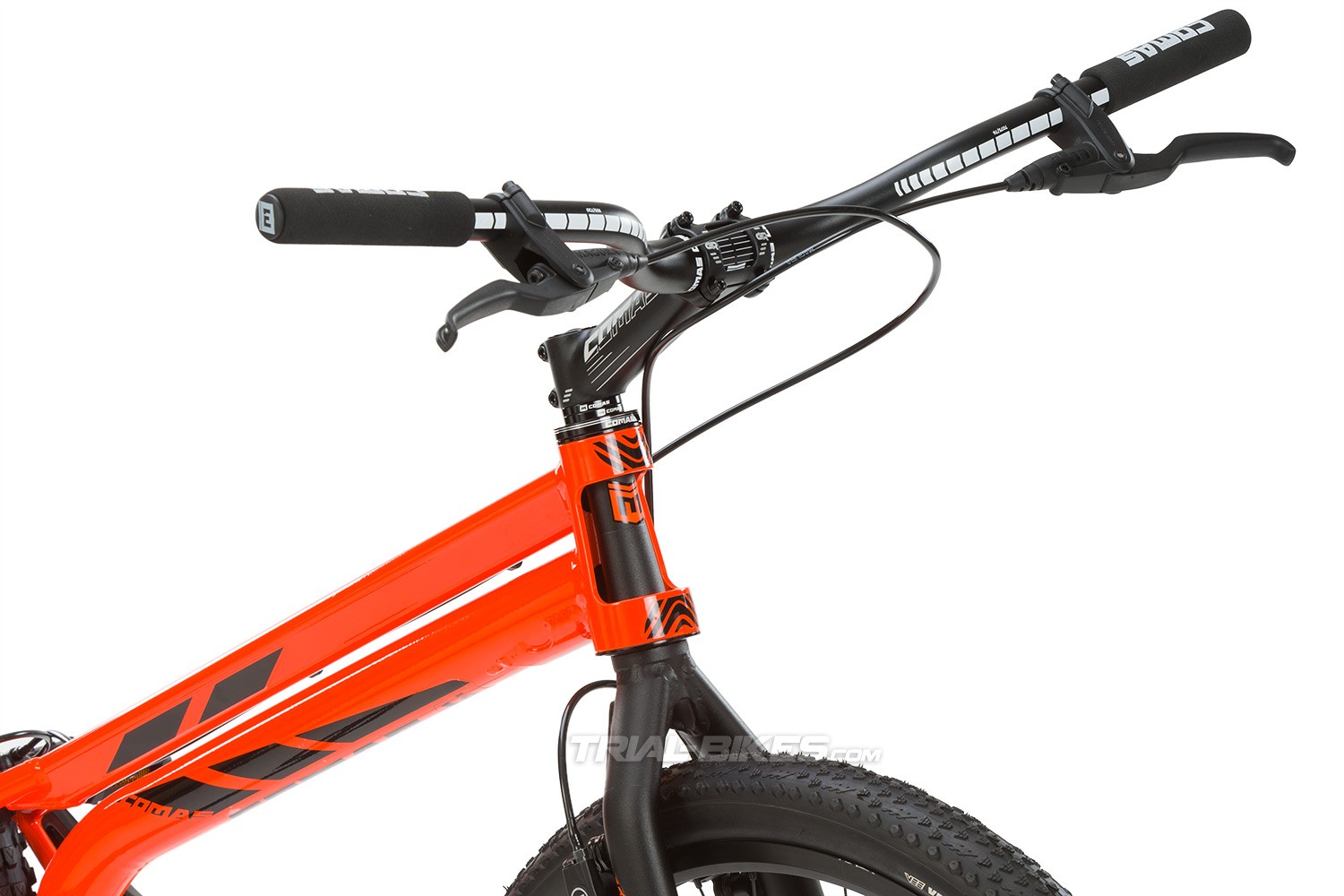

Steering
- Headset: Comas Internal Tapered 1 1/8”-1.5”, sealed bearings
- Stem: Comas 140mm x 20º, 31.8mm Oversized handlebar diameter, black with silver Comas graphics
- Grips: Comas foam 4mm, black
- Handlebar: Comas 7075 high rise, 105mm rise, 31.8mm Oversized handlebar diameter

Geometry:
- Wheelbase: 1088mm
- Chainstay length: 380mm
- Bottom bracket rise: +70mm
- Head angle: 72º

Weight
- 8,880Kg

Additional information:
The list of components may change. Any changes on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.

Some pictures may not match the item described, so please read the description carefully.

Dispatch time for this bike might be delayed up to 5 days: it is partially set up at our workshop, so the customer will only have to install the front wheel and setup the headset.

If you have any doubts, please contact to info@trial-bikes.com.
