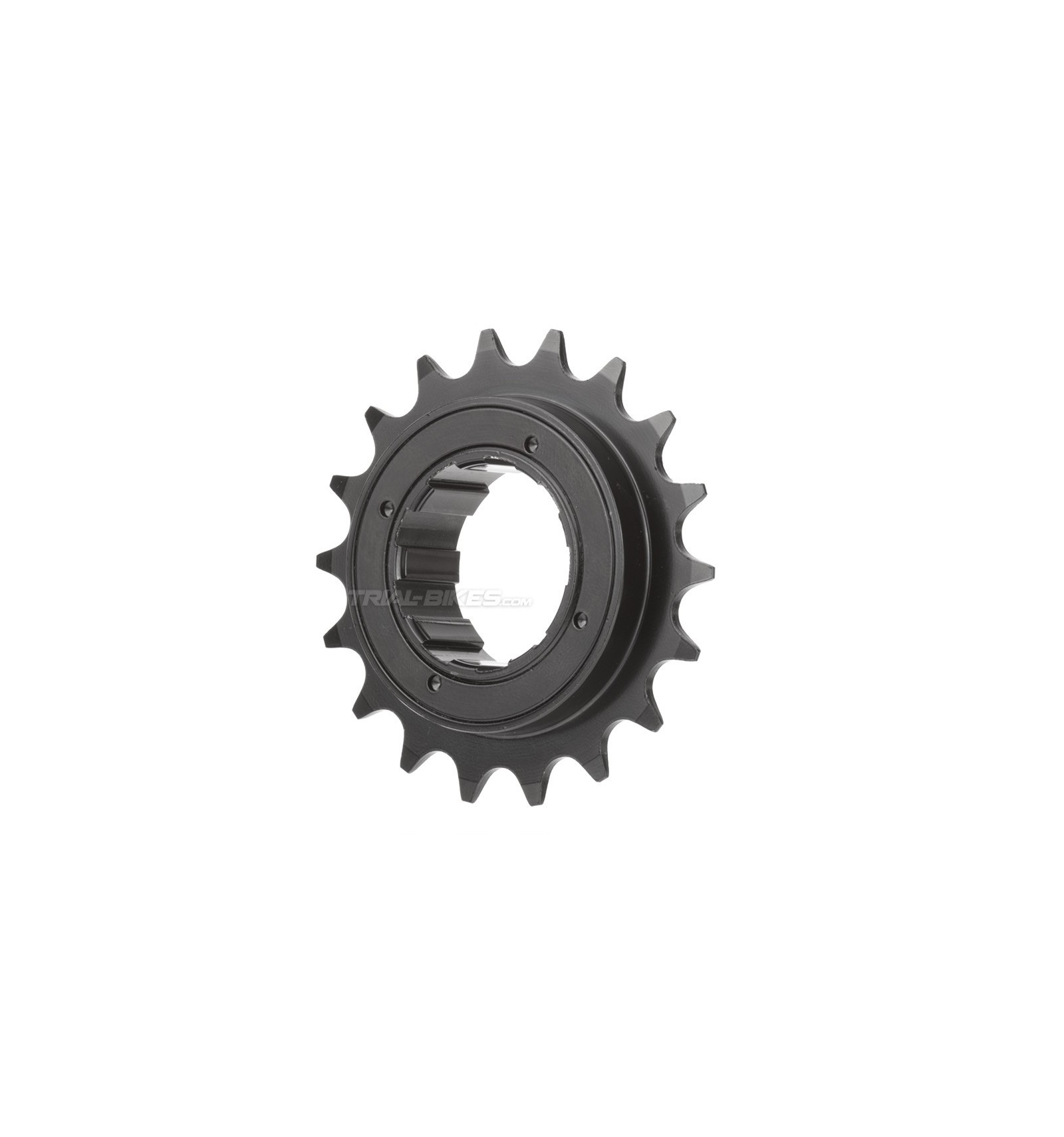

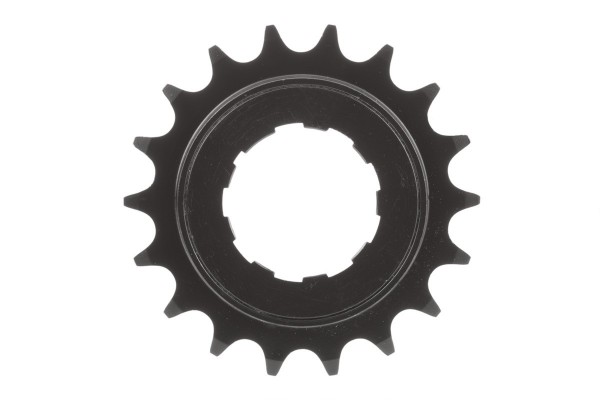

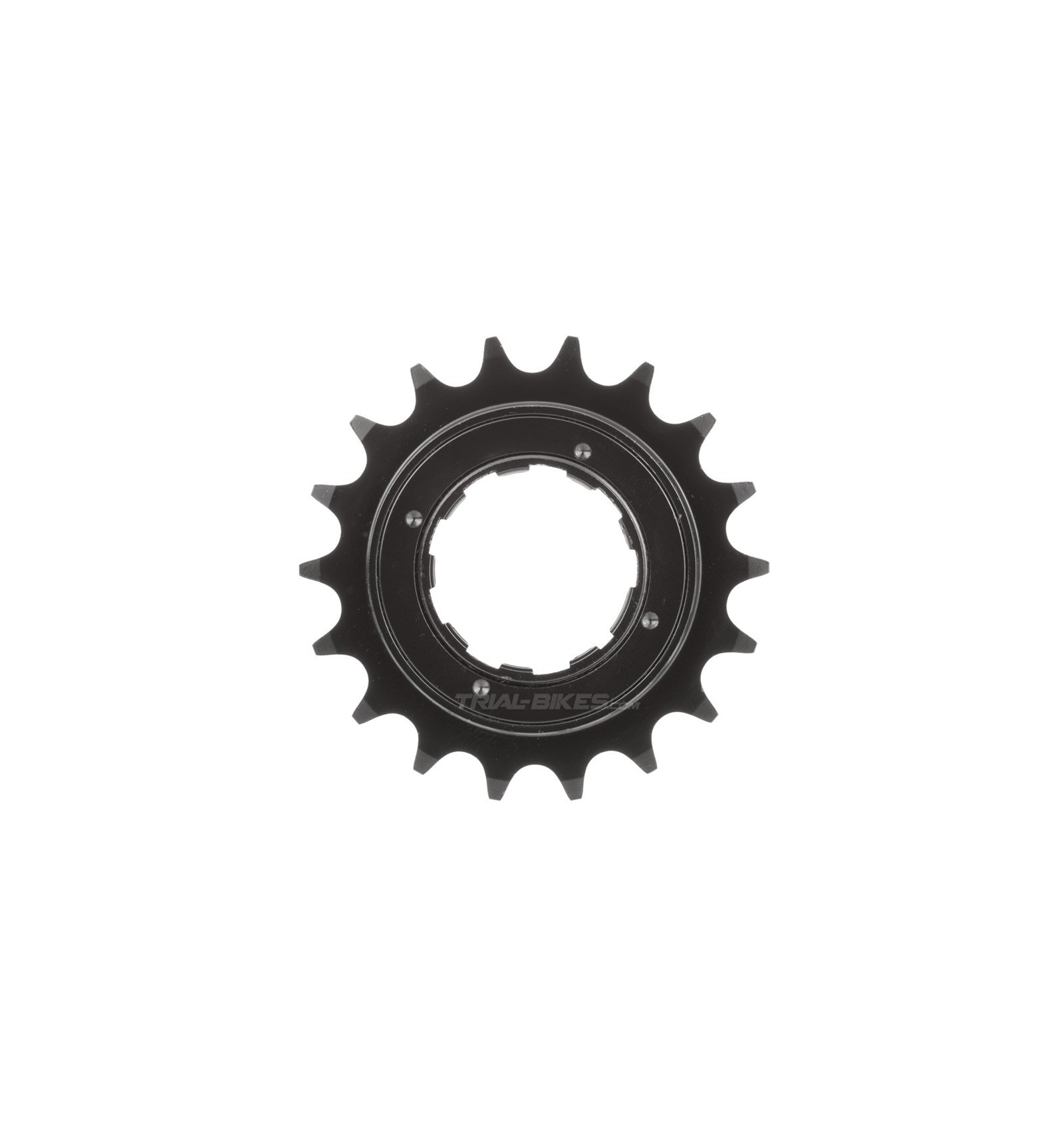

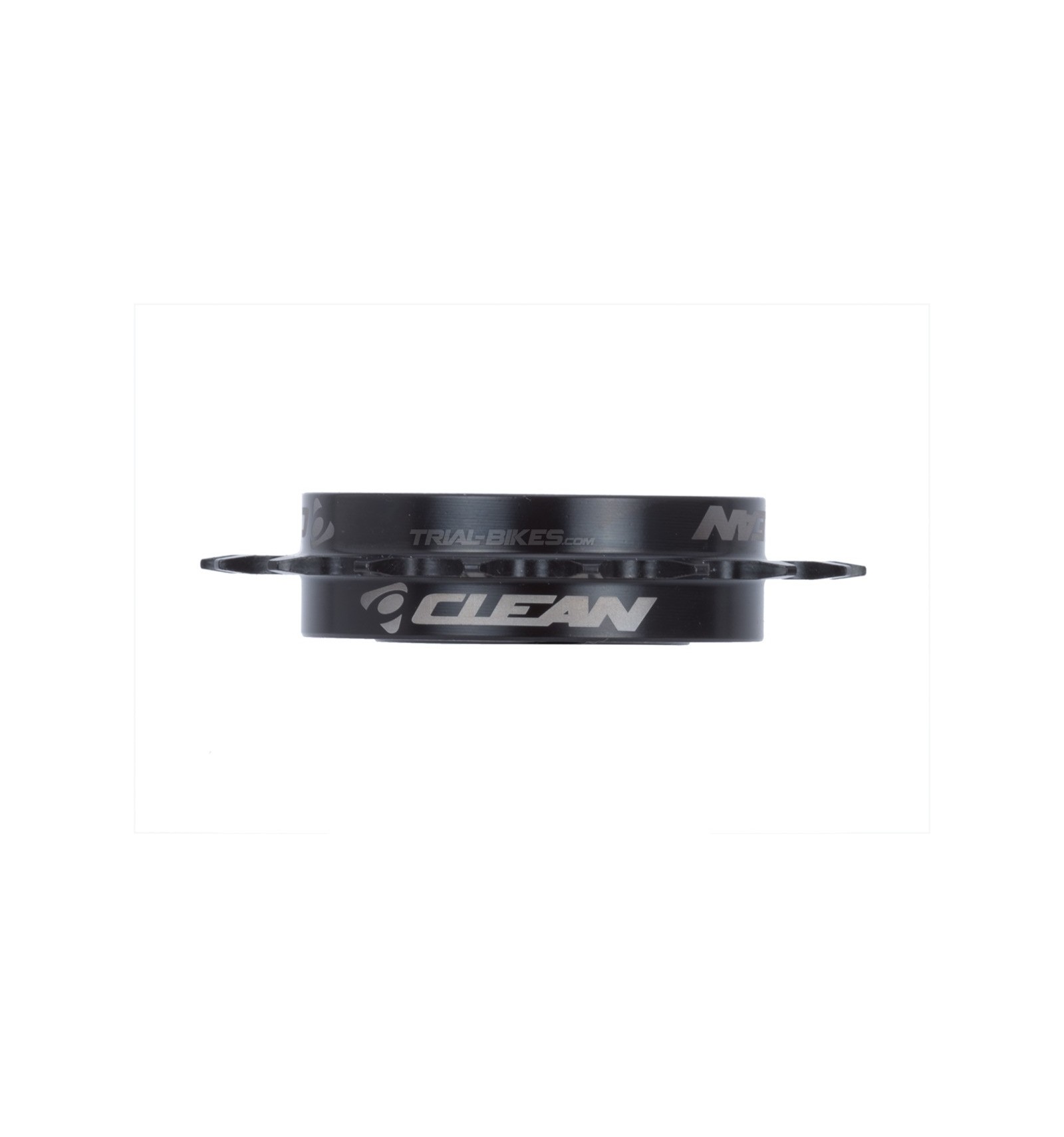

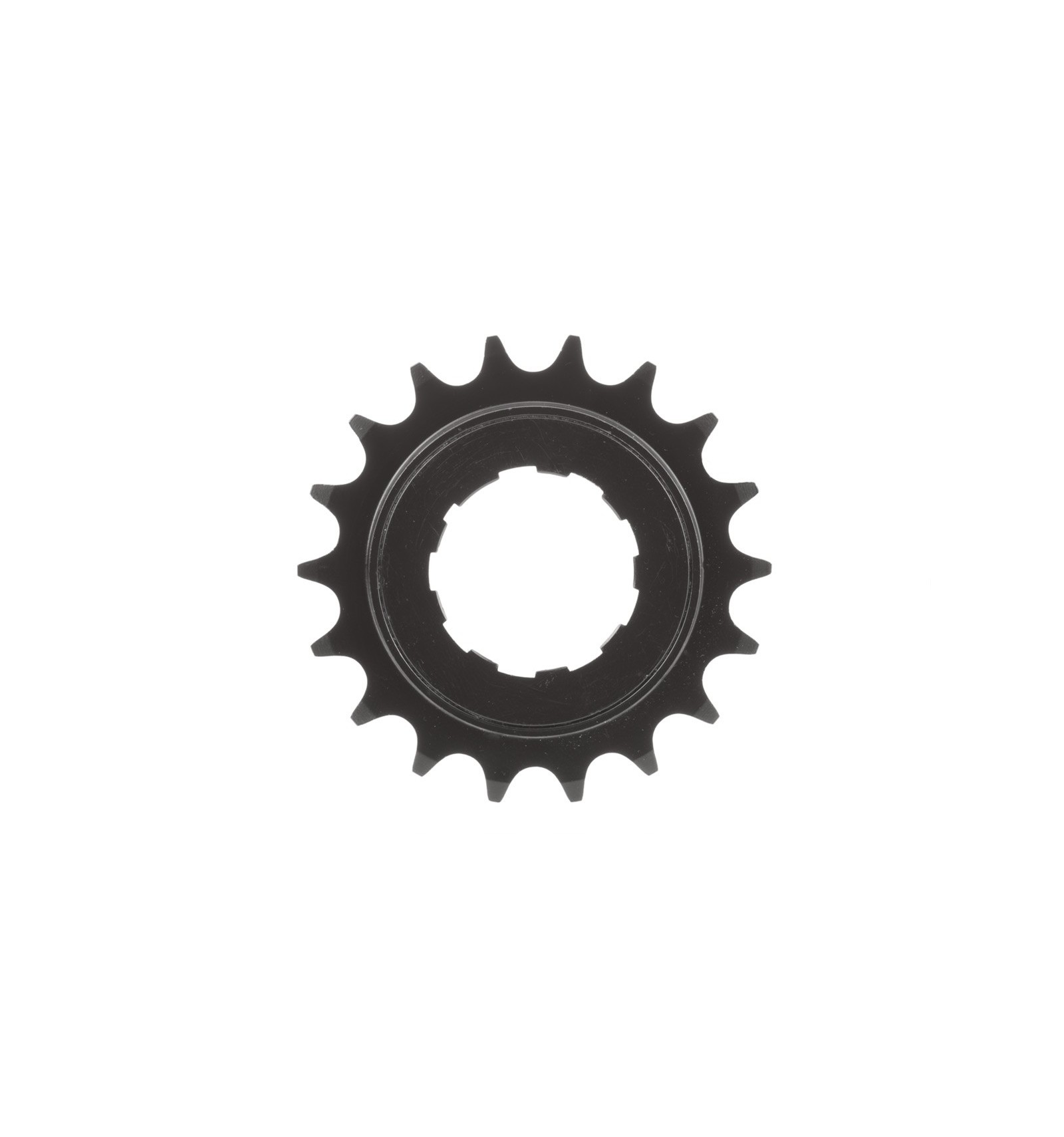

Crewkerz 108.9 Cassette Freewheel

Crewkerz 108.9 Cassette Freewheel

Crewkerz 108.9 cassette-type freewheel designed for trials bikes, offering fast engagement and high durability. Its 108 engagement points and hardened steel construction ensure reliable performance under the demanding conditions of biketrial.

Description and materials
- Crewkerz 108.9 cassette-type freewheel.
- This sprocket is a Cassette type, meaning it is not threaded onto the crank but instead press-fits into the splines of the hub base.
- The splines are the standard Shimano Splined HG type, a very popular system used for decades in MTB and compatible with Crewkerz AS30, Clean X2, Bonz cranks and any crankset using this interface.
- Cog and body made from high-strength treated steel, ensuring maximum resistance to wear and potential impacts.
- Features 9 high-strength treated steel pawls arranged in 3 groups of 36 teeth, providing a total of 108 engagement points per revolution.
- High-quality sealed bearing that prevents dirt from entering the internal mechanism of the freewheel.
- Standard 4-point removal system.
- Oversized springs designed to ensure greater reliability and durability.

Compatibility
- This freewheel can only be installed on cranksets / bottom brackets that feature standard Shimano Splined HG splines at the base of the freewheel, such as the Crewkerz AS30 bottom bracket, Clean X2, Bonz BB24 cranks and similar systems.
- Compatible with 1/8” and 3/32” chains.

Dimensions
- Available in 18 tooth version (18T).
- Equipped with 9 pawls and 108 engagement points (108.9).
- Tooth width: 2.2mm
- Total width: 17.5mm

Finish
- Available in black colour, without logo.

Weight
- 189.44g

Additional information
- It is recommended to perform a short break-in period by riding smoothly for a few hours before starting trial riding, in order to remove excess grease from the internal mechanism and ensure proper seating of the pawls.
- This process can be accelerated by spraying a small amount of oil into the slot between the centre of the freewheel and the teeth.
- If the freewheel is used for trial without first allowing the pawls to seat properly, it may not function correctly and can skip, damaging the slot and the pawl mechanism.
- Freewheel failure caused by improper use will directly void the warranty.
