Crewkerz Jealousy Tapered 26" Fork

CREWKERZ CREWKERZ

New

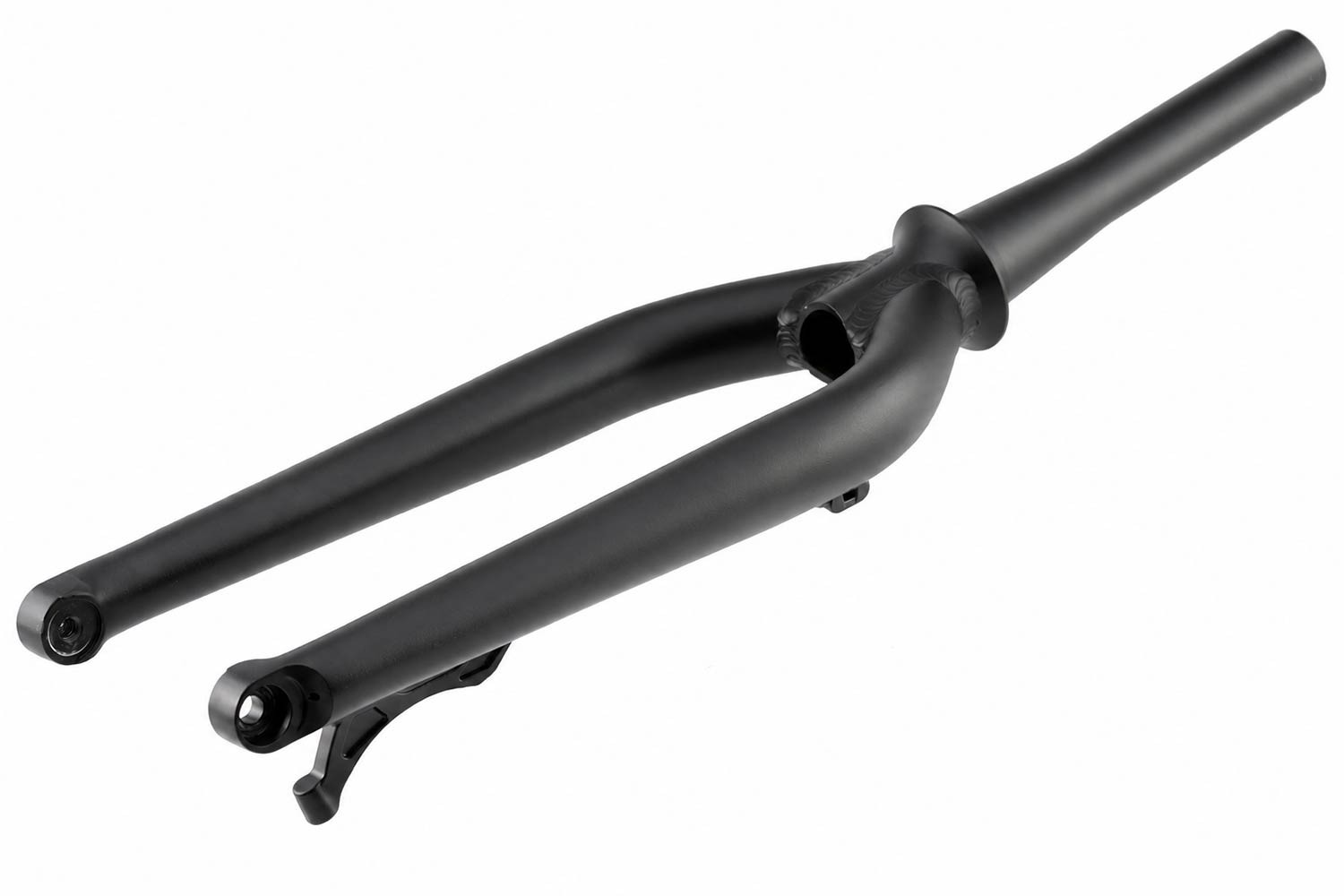

Crewkerz Jealousy Tapered 26” high-end trials fork. This fork is a pioneer in introducing the front thru-axle, apart from using state-of-the-art manufacturing technology to achieve the best performance: this is the most advanced aluminium trials fork in the world!

More details

Warning: Last items in stock!

  • HS

164,46€

Versión / Color .

 Black
 HS

Ask a question

Description and materials
- High-end Crewkerz Jealousy Tapered 26” bike trials fork, developed with state-of-the-art technology.
- 100% exclusive design by Crewkerz, featuring closed dropouts to fit a 9mm diameter thru-axle.
- Made of high-strength, lightweight 6061-T6 aluminium alloy.
- Tapered, 4mm-thick steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom.
- Robust construction, with the steerer tube machined in one piece to optimize stiffness.
- The steerer tube features a 45º integrated crown race recess, so there is no need to install one.
- Two versions available:
- With 4-bolt rim brake mounts.
- The 4-bolt version has the brake mounts integrated in a brake booster on the back of the legs, which helps dissipate stress and prevents cracking.
- Closed dropouts spaced at 100mm, designed for a 9mm diameter thru-axle.
- Sold singly (star nut already installed).

Compatible with:
- Frames with tapered 1 1/8” – 1.5” head tube.
- Front hubs with 9mm diameter thru-axle and 100mm spacing.
- 21mm star nut.

- Note: in case you’d like to install this fork on a frame with 1 1/8” head tube, an adaptor must be used.

Dimensions
- Length: 405mm
- Offset: +30mm
- Steerer tube length: 190mm

- 4-bolt mounts spacing: 95mm

Colour
- Anodized black, with white, red and black Crewkerz graphics.

Weight
- 922.30

MATERIALAluminium
BRAKE MOUNTSHS
STEERER TUBETapered 1 1/8” - 1.5”
