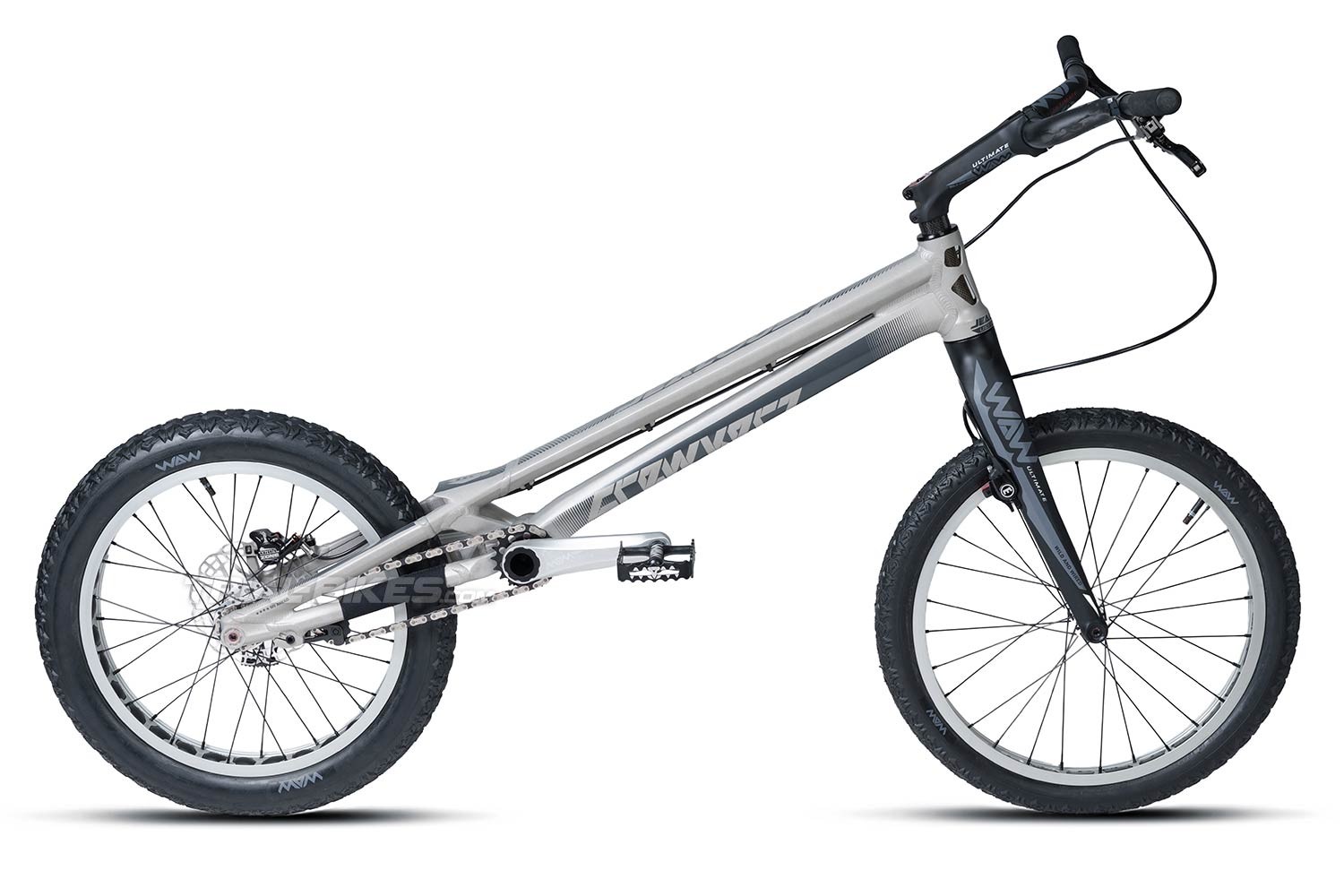

Crewkerz NextGen 20" Bike 1005mm 2025

Crewkerz NextGen 20" Trials Bike 1005mm 2025

In the following list, you can see the components of this bike:

Frame and Fork

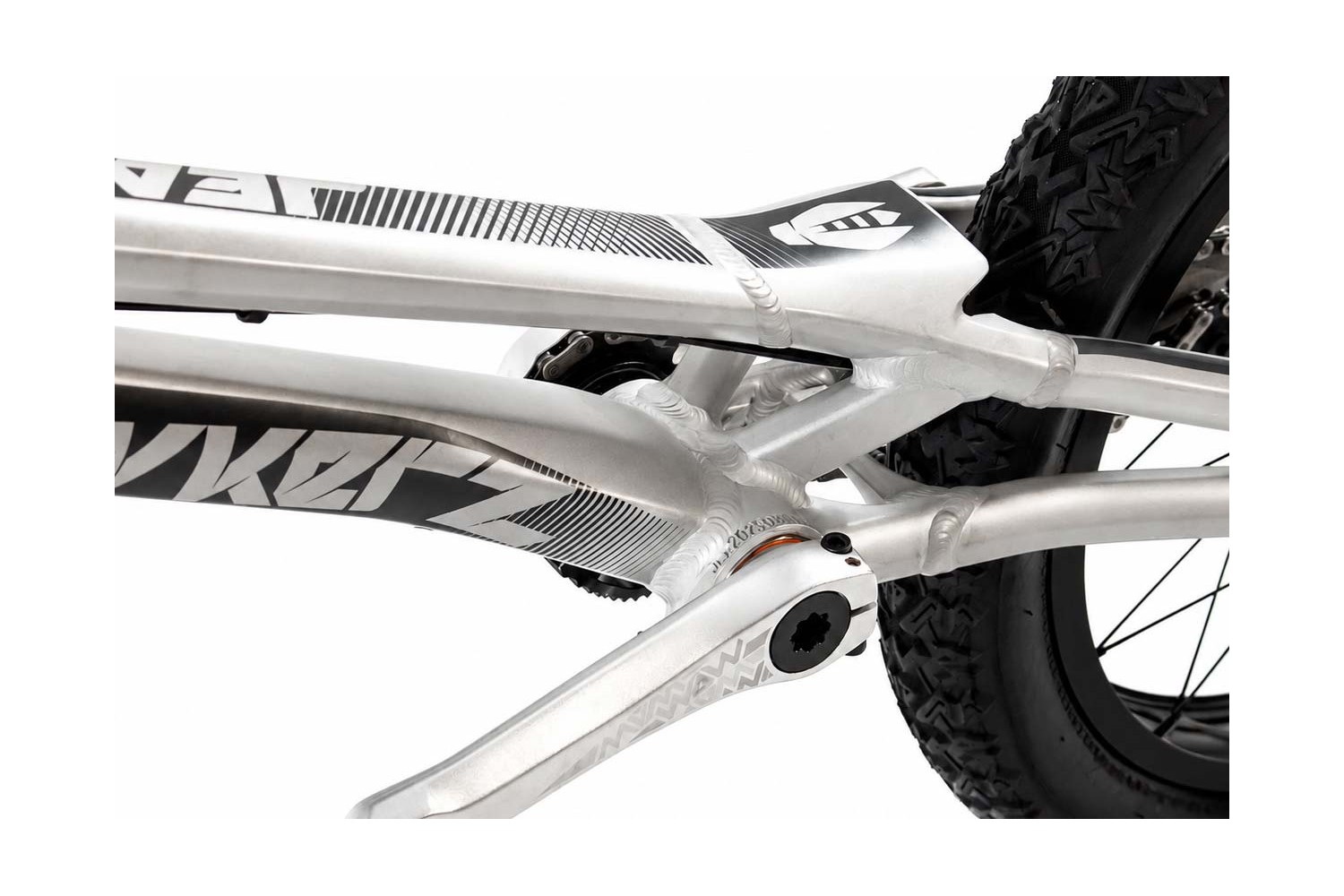

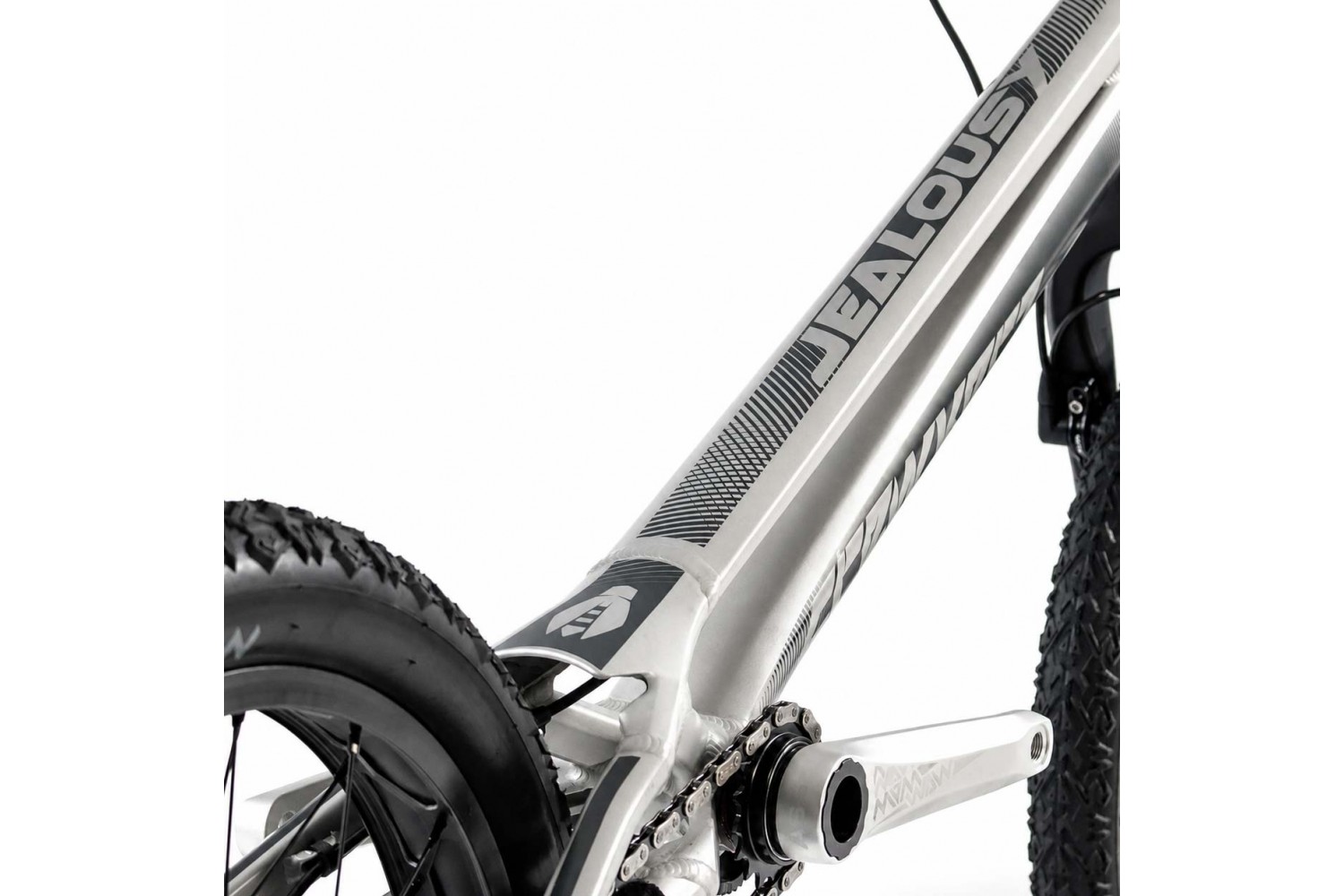

• Frame: Crewkerz NextGen 20”, made from 6066-T6 aluminium, with tapered 1 1/8” – 1.5” head tube.
• Fork: Crewkerz Carbon 20”, tapered 1 1/8” – 1.5”.

Wheels

• Front hub: Crewkerz WAW 2025 Disc, 100 mm, 28 spokes, 9 mm thru-axle.

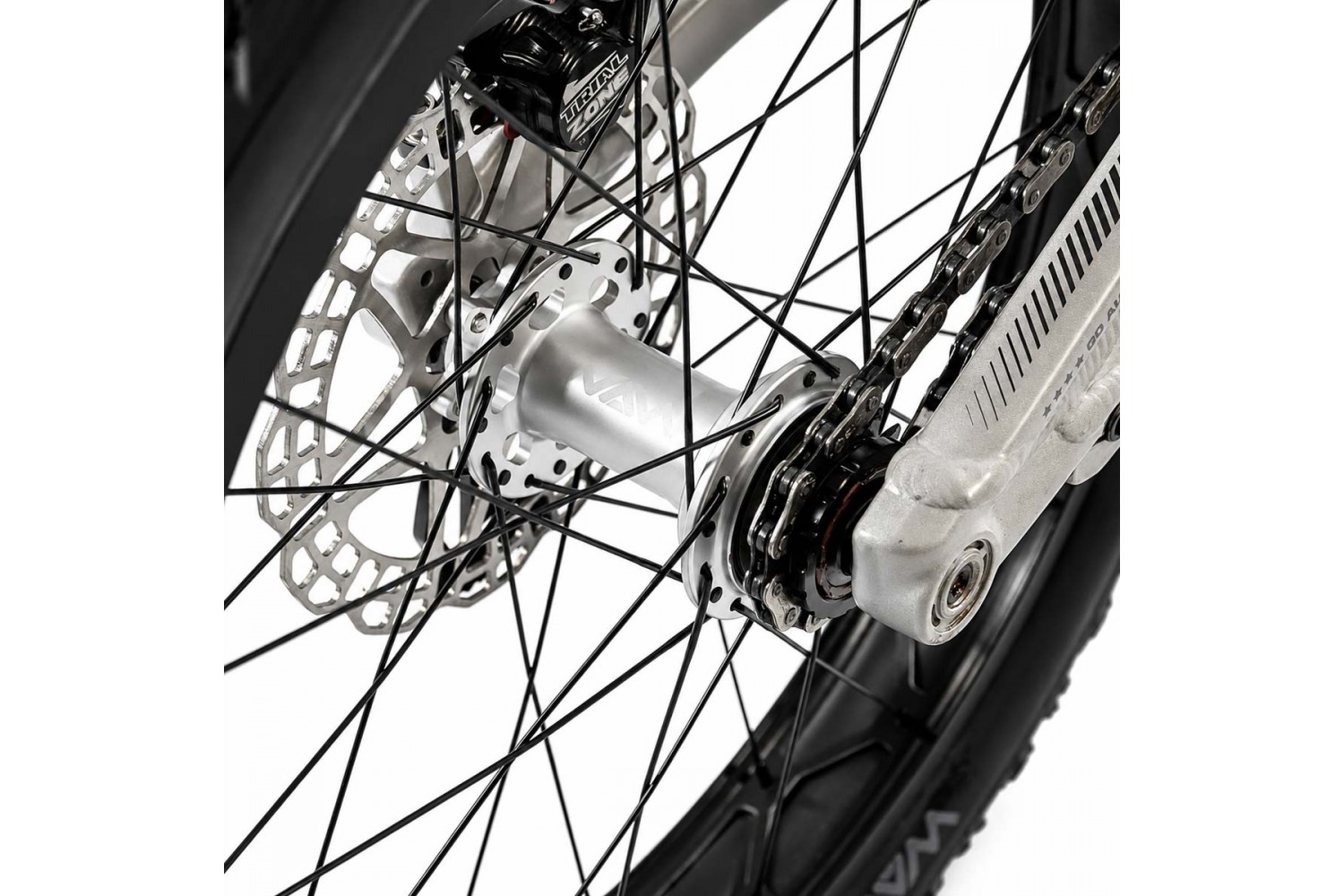

• Rear hub: Crewkerz WAW 2025 Freehub Disc, 135 mm, 32 spokes, 12 mm thru-axle.
• Chain tensioner: Crewkerz carbon, with two 9-tooth jockey wheels.
• Front rim: Hashtagg 20”, 28 holes, silver.
• Rear rim: Hashtagg 19”, 32 holes, silver.
• Spokes: Crewkerz 2.0/1.6/2.0 mm.
• Nipples: Aluminium, black.
• Rim tape: Crewkerz, black.
• Front tube: Crewkerz 20”.
• Rear tube: Crewkerz 20”.
• Front tyre: Crewkerz WAW 20” x 2.00”.
• Rear tyre: Crewkerz WAW 19” x 2.60”.

Brakes

• Front brake: Trialtech Sport lever with Magura HS33 slaves, or Hope Tech 4 Trial Zone Post Mount, black (depending on build option).
• Rear brake: Hope Tech 4 Trial Zone Post Mount, black.
• Brake rotors: Hope Trial V2 160 mm.

Drivetrain

• Crankset: Crewkerz WAW 2-piece kit, AS30 BB, CNC-machined 7075-T6 aluminium. 160 mm cranks for Shimano HG-type cassette sprocket, black.
• Freewheel: Crewkerz splined sprocket, 18T.
• Chain: KMC Z1eHX, black.
• Sprocket: Crewkerz 12T splined, steel.
• Pedals: Crewkerz WAW Mono-Cage, 7075-T6.
• Bashring: Crewkerz WAW, black.

Steering

• Headset: Crewkerz Integrated Tapered 1 1/8” – 1.5”, black finish.
• Stem: Crewkerz WAW, 155 mm length, 20° rise.
• Top cap: Crewkerz WAW, red anodised.
• Grips: TrialBikes extra-thin foam, black.

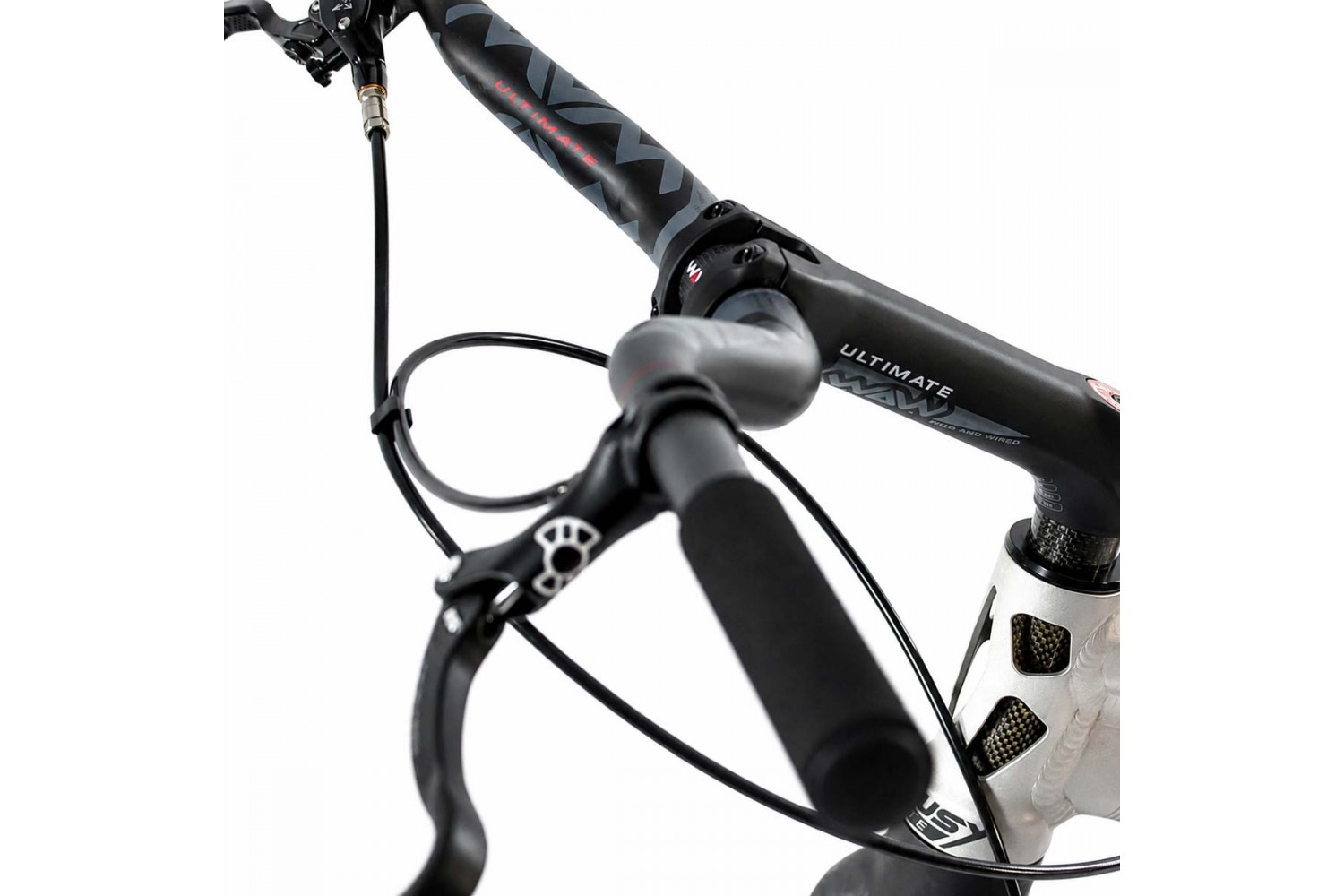

• Handlebar: Crewkerz Ultimate Carbon, 108 mm rise, 720 mm width.




Geometry

(1) Wheelbase: 1005 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +85 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube: 605 mm
-----------------------------------------------
(6) Reach: 481 mm
-----------------------------------------------
(7) Stack: 370 mm
-----------------------------------------------

Weight
- 8.120 Kg (Hs/disc), verified by Trialbikes!

Additional information:
The parts listed may be subject to change. Any changes on the setup will be notified to the customer before delivering the bike, and the replacement part will be of the same or superior quality to the one listed above.

Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.

If you have any doubts, please contact to info@trial-bikes.com .
