Czar Ion Kids 20" Bike Expand

Czar Ion Kids 20" Bike

CZAR CZAR

538046

New

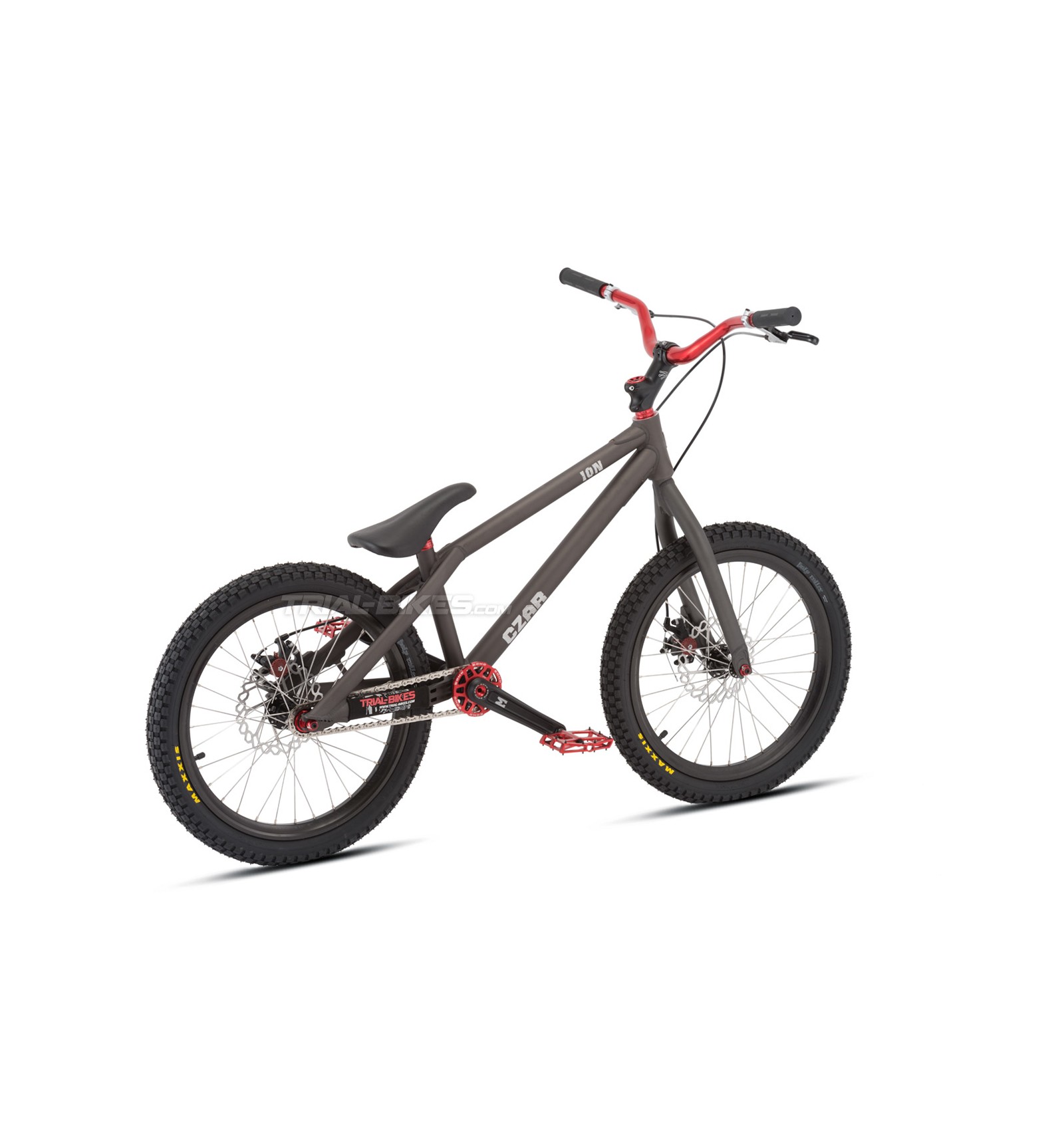

The new Czar Ion Kids 20” sets the benchmark for kid Street trials bikes! Featuring the popular Avid BB5 disc brakes, this 20” bike combines the great features of the 24” and 26” Street bikes, with the agility and lightness of a 20” bike. In addition, its geo is ideal for any young riders between 1.20m (4ft) and 1.55m (5ft) tall!

More details

This product is no longer in stock

657,02€

Ask a question

The new Czar Ion Kids 20” sets the benchmark for kid Street trials bikes! Featuring the popular Avid BB5 disc brakes, this 20” bike combines the great features of the 24” and 26” Street bikes, with the agility and lightness of a 20” bike. In addition, its geo is ideal for any young riders between 1.20m (4ft) and 1.55m (5ft) tall!

Frame and Forks
- Frame: Czar Ion 20”, aluminium alloy, with IS disc brake mounts, anodized dark grey
- Forks: Echo urban 20”, aluminium alloy, with IS disc brake mounts, anodized dark grey

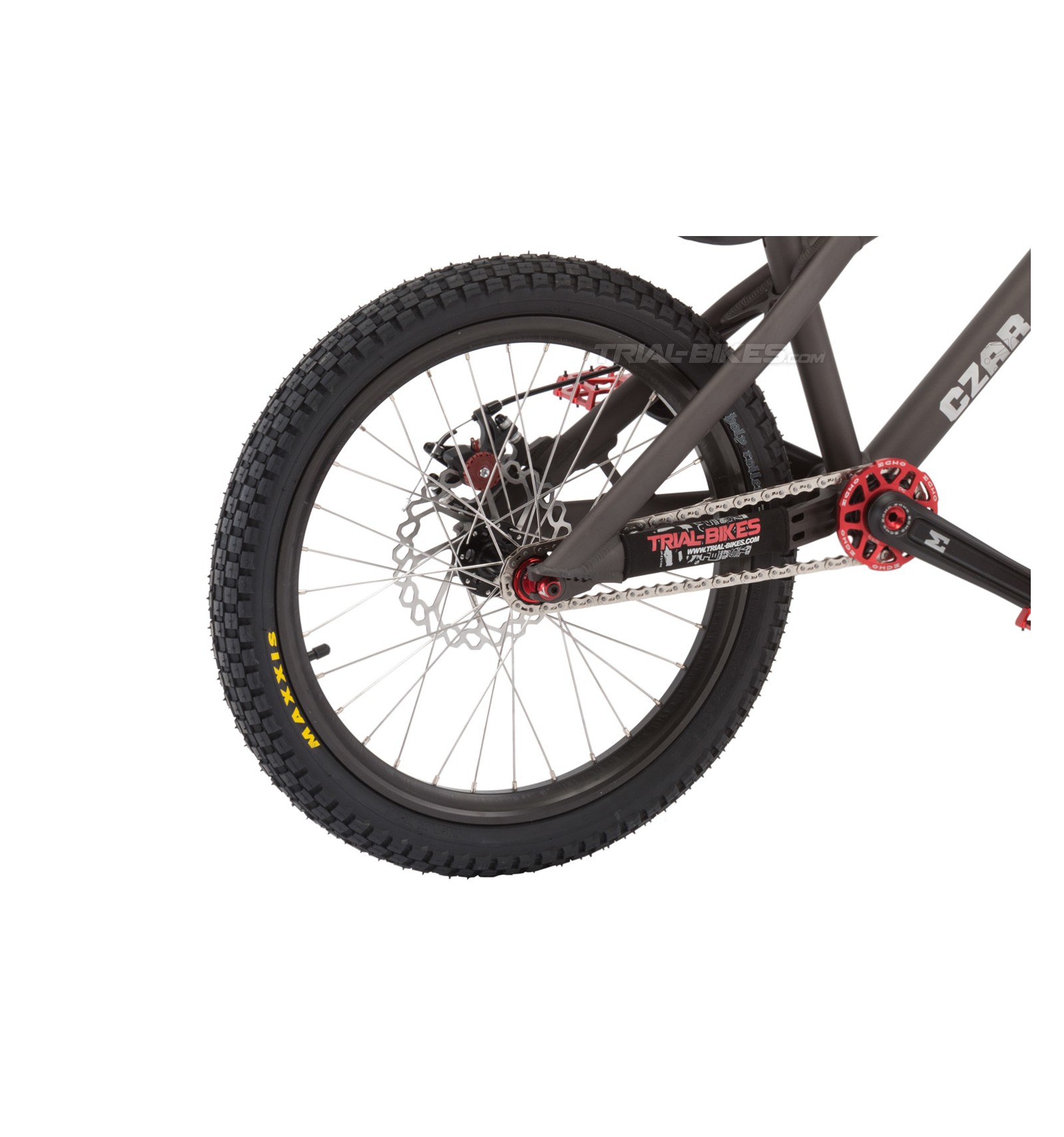

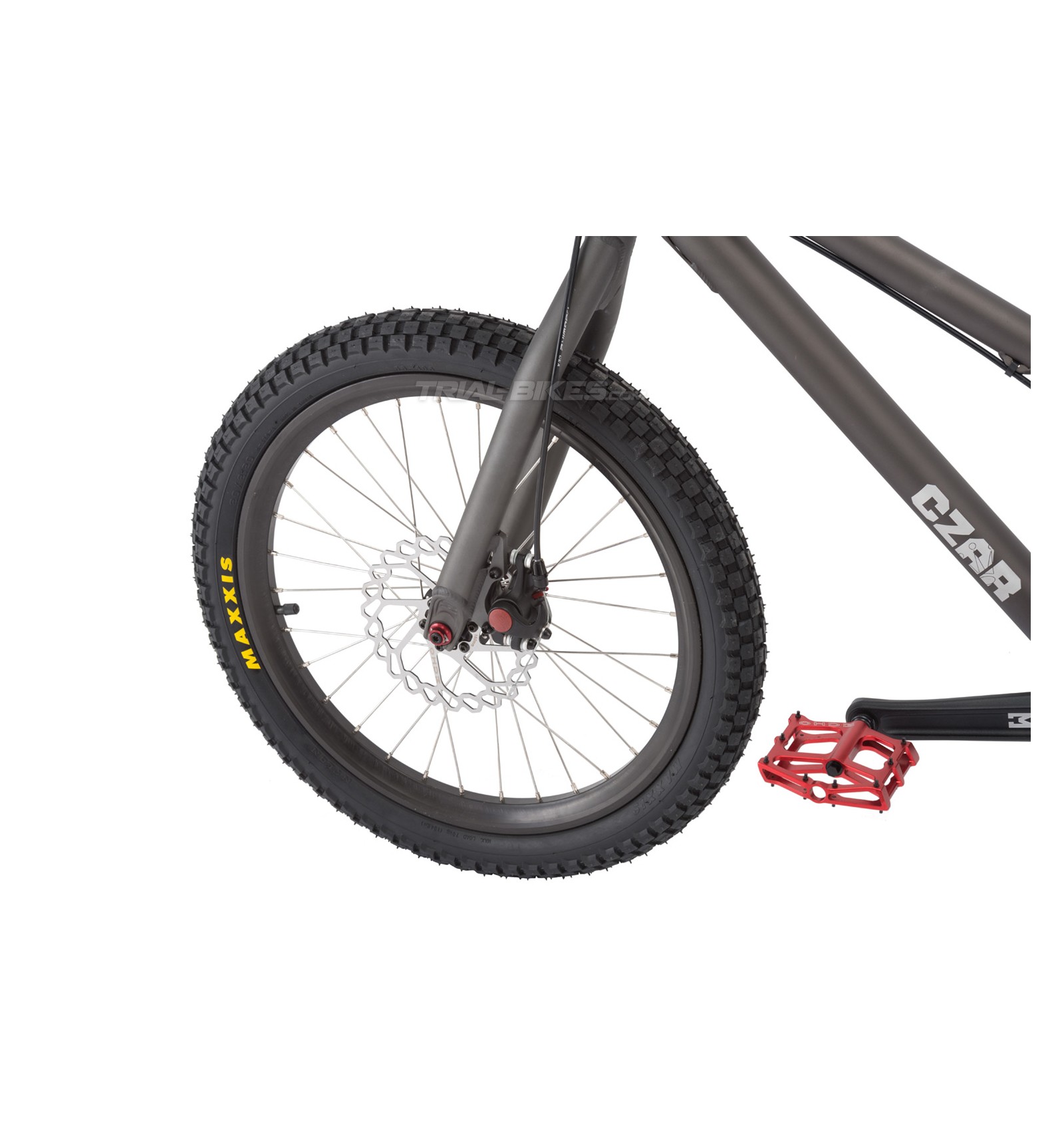

Wheels
- Front hub: Echo TR Disc 32H, 100mm spacing, anodized black
- Rear hub: Echo TR Disc 32H, 135mm spacing, anodized black
- Chain tensioner: Echo Integrated
- Front rim: Czar Street 20” 33mm, anodized black
- Rear rim: Czar Street 20” 33mm, anodized black
- Spokes: Echo, silver
- Inner tube (front): Echo
- Inner tube (rear): Echo
- Front tyre: Maxxis Holy Roller 20” x 2.20”
- Rear tyre: Maxxis Holy Roller 20” x 2.20”

Brakes
- Front brake: Avid FR5 lever, Avid BB5 caliper, 160mm rotor
- Rear brake: Avid FR5 lever, Avid BB5 caliper, 160mm rotor

Drivetrain
- Cranks: Echo TR Splined, ISIS drive, anodized black
- Freewheel: Echo TR Splined, 108.9 18T, black
- Chain: YBN Mask 700S2, silver
- Sprocket: Echo 12T Splined, made of steel, black
- Pedals: Echo TR Platform, anodized red
- Bottom bracket: Echo Urban ISIS
- Bashring: Echo Urban, anodized red
- Seat: Czar Street

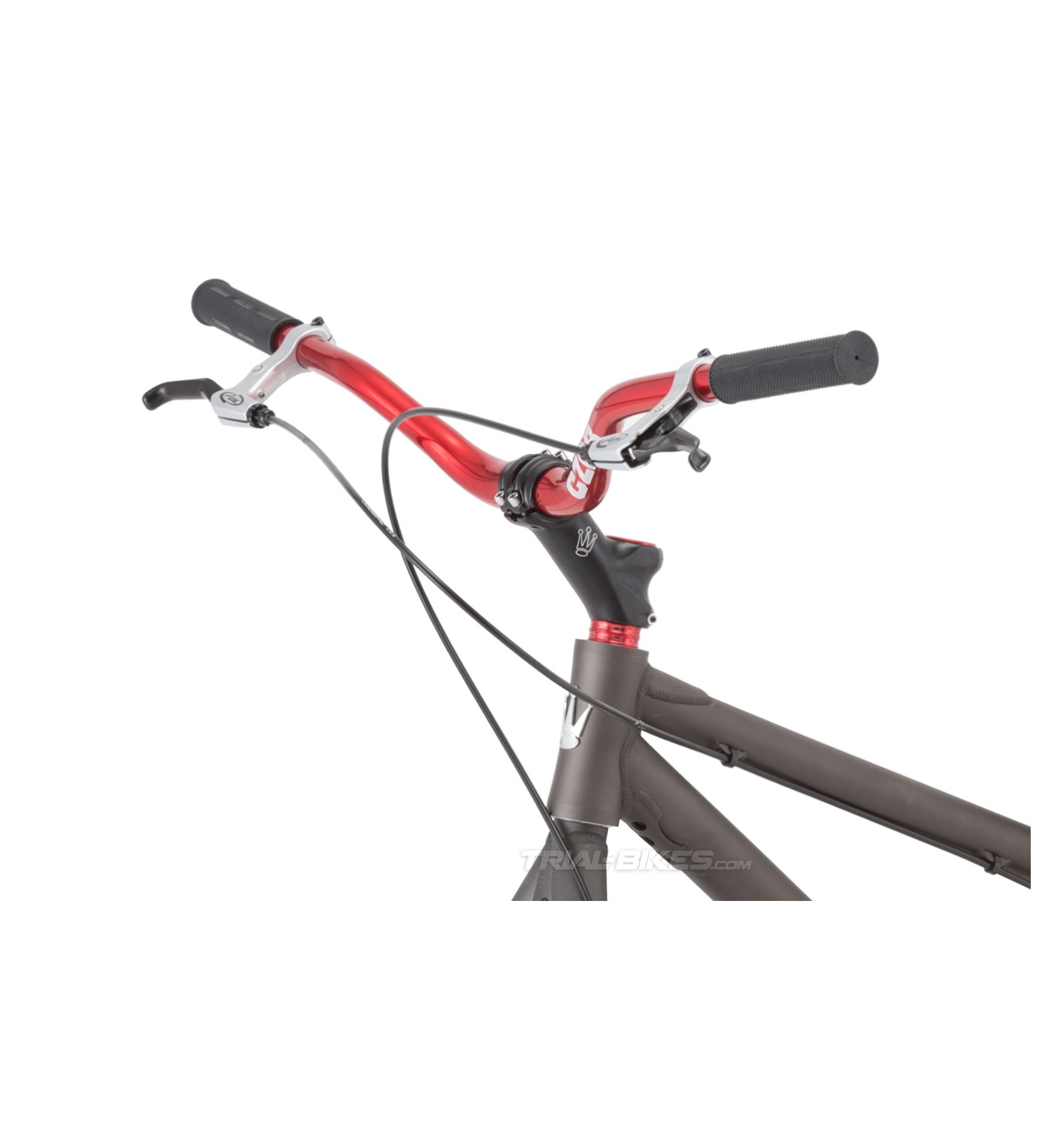

Steering
- Headset: Echo Integrated 1 1/8”, without cups, anodized red
- Stem: Czar 7075-T6 Street, 85mm x 35º, anodized black
- Grips: Echo rubber, black
- Handlebars: Czar 7075-T6 High Rise, 740mm long, anodized red

Geometry
- Wheelbase: 840mm
- Chainstay: 310mm
- BB Height: +25mm
- Head Angle: 73˚

Weight
- 8.94Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.

SIZE 20"
RIDER HEIGHT 140cm-160cm
RIDER HEIGHT 120cm-140cm
FRONT BRAKE Disc
REAR BRAKE Disc
