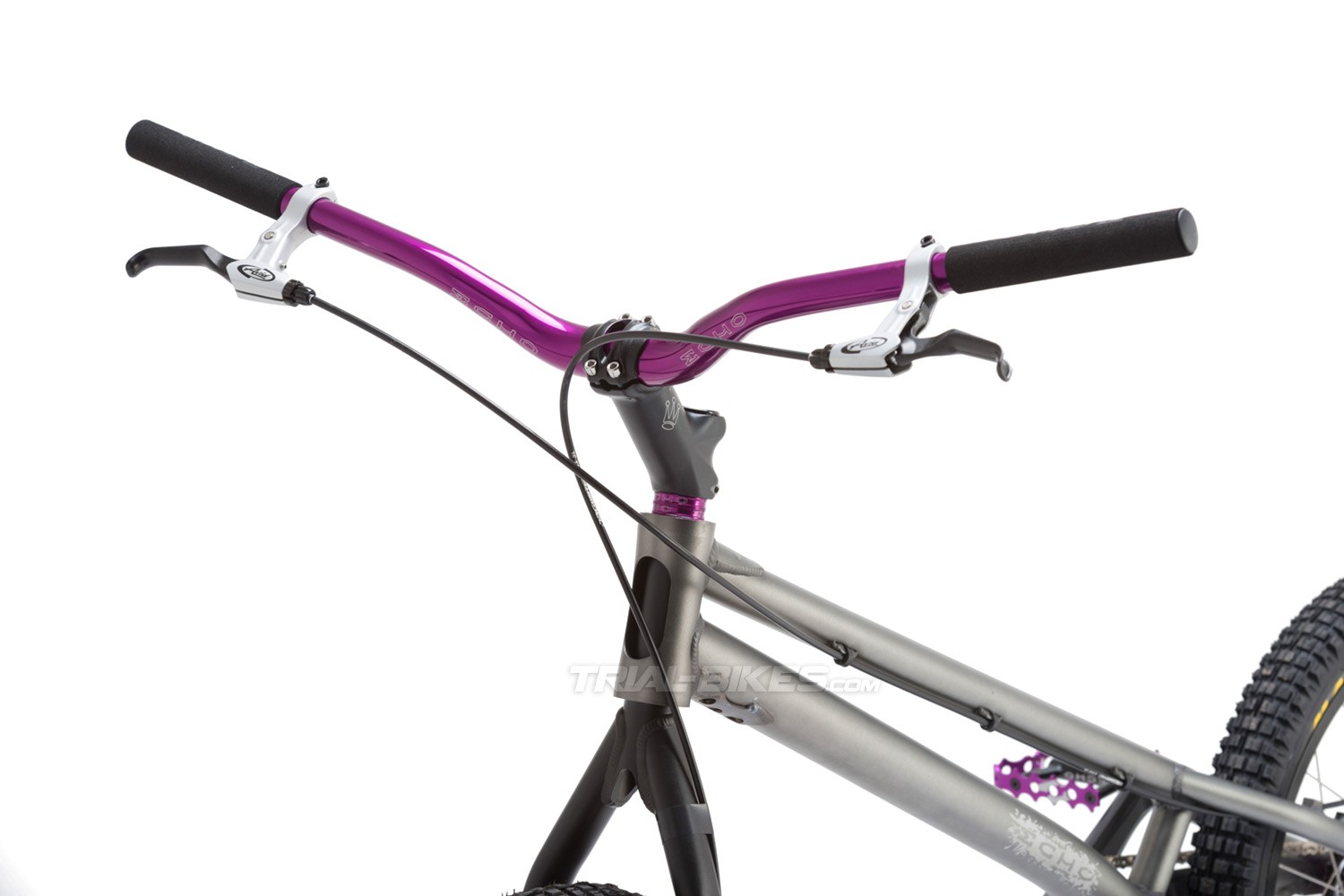

Echo Kids 20” Limited Edition Bike

The new Echo Kids 20 bike is now exclusively available at TrialBikes in a limited edition, featuring the latest updates with special purple Echo components!

The perfect bike for riders up to 1.60m (5.25 ft), thanks to its geometry and top-quality, ultralight components: Echo SL fork, single-wall rims, 108.9 freewheel, Avid disc brakes And this is built around a new, improved frame, with a curved down tube and 2-piece mini-bashplate. Superb!

Frame and fork
- Frame: Echo Kids 20, made from 6061-T6 aluminium alloy, with IS disc brake and 4-bolt rim brake mounts
- Forks: Echo SL 20, made of aluminium, with IS disc brake mounts

Wheels
- Front hub: Echo 32 spoke holes, with rotor mounts, 100mm spacing, anodized black
- Rear hub: Echo 32 spoke holes, with rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Echo integrated
- Front rim: Echo SL 20, single wall, 38mm wide, 32 spoke holes, anodized black
- Rear rim: Echo SL 20, single wall, 38mm wide, 32 spoke holes, anodized black
- Spokes: Echo, silver
- Rim tape: Echo, white
- Front inner tube: Echo
- Rear inner tube: Echo
- Front tyre: Maxxis Creepy Crawler 20x2.0
- Rear tyre: Maxxis Creepy Crawler 20x2.0

Brakes
- Front brake: Avid FR5/BB5 Disc
- Rear brake: Avid FR5/BB5 Disc
- Rotors: Echo 160mm

Drivetrain
- Cranks: Echo TR 6061-T6 CNC, 160mm, ISIS, anodized black
- Bottom Bracket: Echo Spanish, 124mm long, ISIS
- Freewheel: Echo TR Splined 108.9 18T, black
- Chain:Ybn Mask 700S2 1/2x1/8, silver
- Rear sprocket: Echo 13T splined
- Pedals: Echo TR single cage, anodized purple
- Bashplate: Echo 2-piece mini-bashplate, anodized black

Steering
- Headset: Echo Internal 1 1/8, with sealed bearings, anodized purple
- Stem: Czar 90mm x 40º, 31.8mm Oversized handlebar diameter, anodized black
- Grips: Echo foam, black
- Handlebar: Echo 7075-T6, 740mm long, 31.8mm Oversized handlebar diameter, anodized purple

Geometry:
- Wheelbase: 965mm
- Chainstay length: 345mm
- Bottom bracket rise: +65mm
- Head angle: 73.5º

Weight
- 7.9kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is delivered partially set-up inside the box. The customer will only have to install the front wheel and stem.
Please get in touch if you have any further doubts regarding this bike, at info@trial-bikes.com .
