Echo SL Mini Bashplate Expand

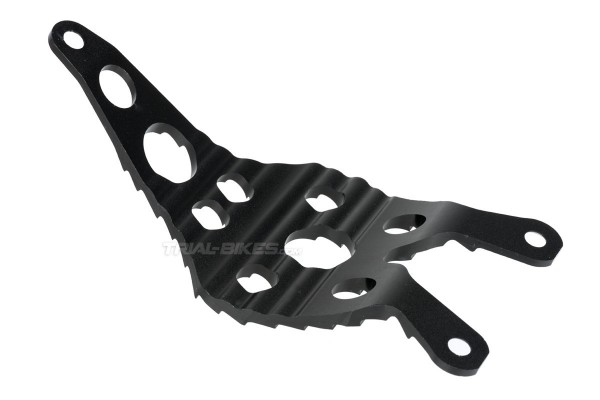

Echo SL Mini Bashplate

ECHO ECHO

New

Description and materials

More details

33,06€

Color .

 Black

Ask a question

Description and materials
- New Echo SL bash plate, designed to prevent the frame, chain and freewheel from  being hit when riding.
- New, minimalist design is much lighter and more compact than previous editions.
- Only suitable for the Echo frames from 2012 onwards, not suitable for other frames.
- Ideal to replace the bash plate supplied with the new Echo Lite and Lite SL frames (from 2012 onwards). Won’t suit other frames.
- Made from high quality CNC 6061 T6 aluminium.
- 9 different-sized holes help reduce some weight.
- Serrated cutouts ensure a perfect grip on all obstacles.
- Includes 3 high quality titanium bolts, as well as 3 nylon spacers (for the bolts) and a rubber block.

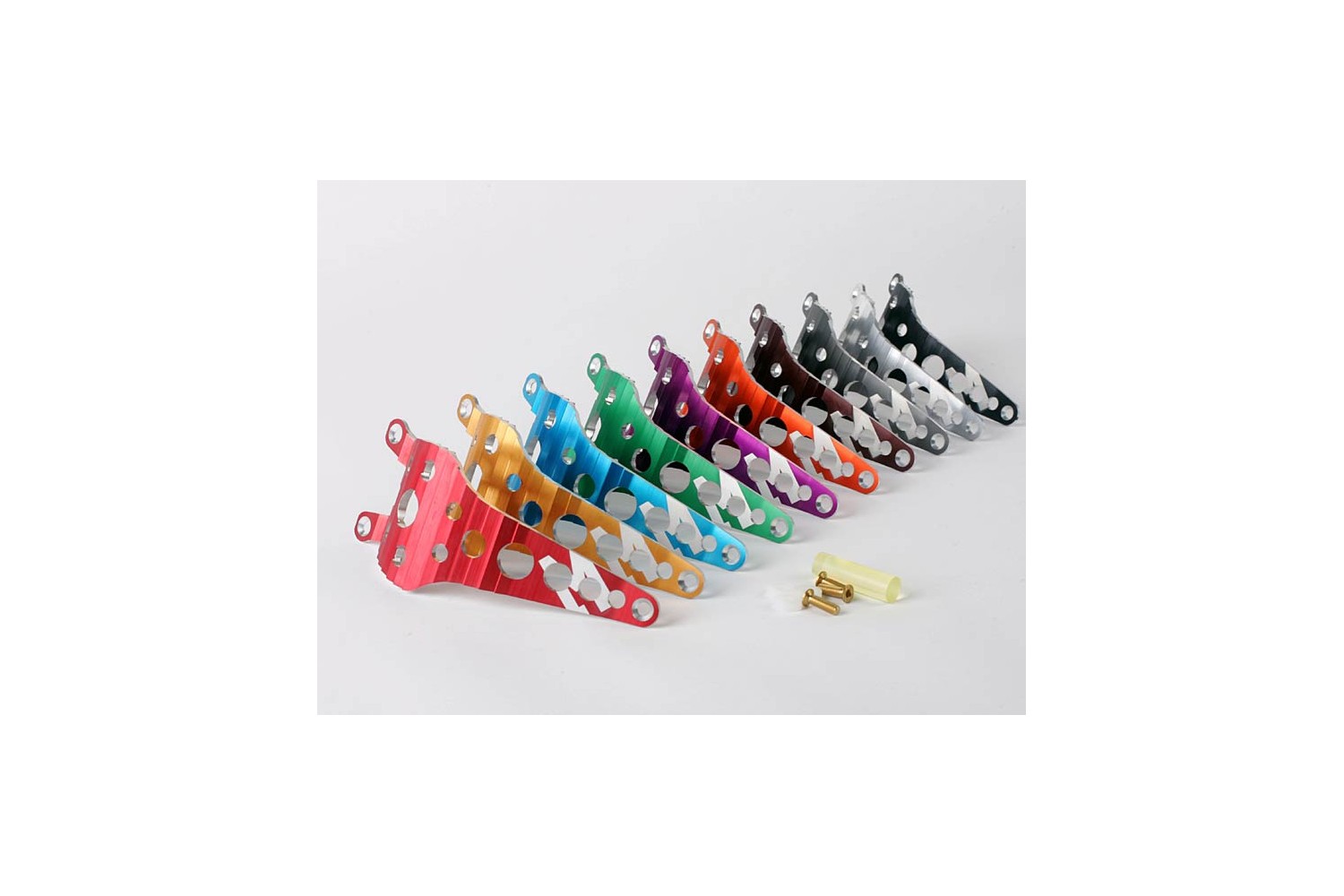

- Available in anodized black, silver or red, with a white laser etched Echo logo.

Dimensions
- Length: 153mm (from the top bolt to a bottom one).
- Width: 76.2mm (widest central area)
- Thickness: 5mm

Finishes
- Anodized red, black or silver
- White laser etched Echo logo.

Weight
- 68.7g (+ bolts, washers and rubber block at 18.8g)

Additional information
To make sure this bash plate suits your frame, you can measure the distance between the top bolt hole and one of the bottom bolts holes, if that distance is 153mm, then this bash plate will suit.
