Echo SL Stem (with CNC top cap) Expand

Echo SL Stem (with CNC top cap)

ECHO ECHO

New

Description and materials

More details

This product is no longer in stock

57,02€

Fill in the quantity for the Length / Rise .
 28º  30º
 130mm


 158mm


Ask a question

Description and materials

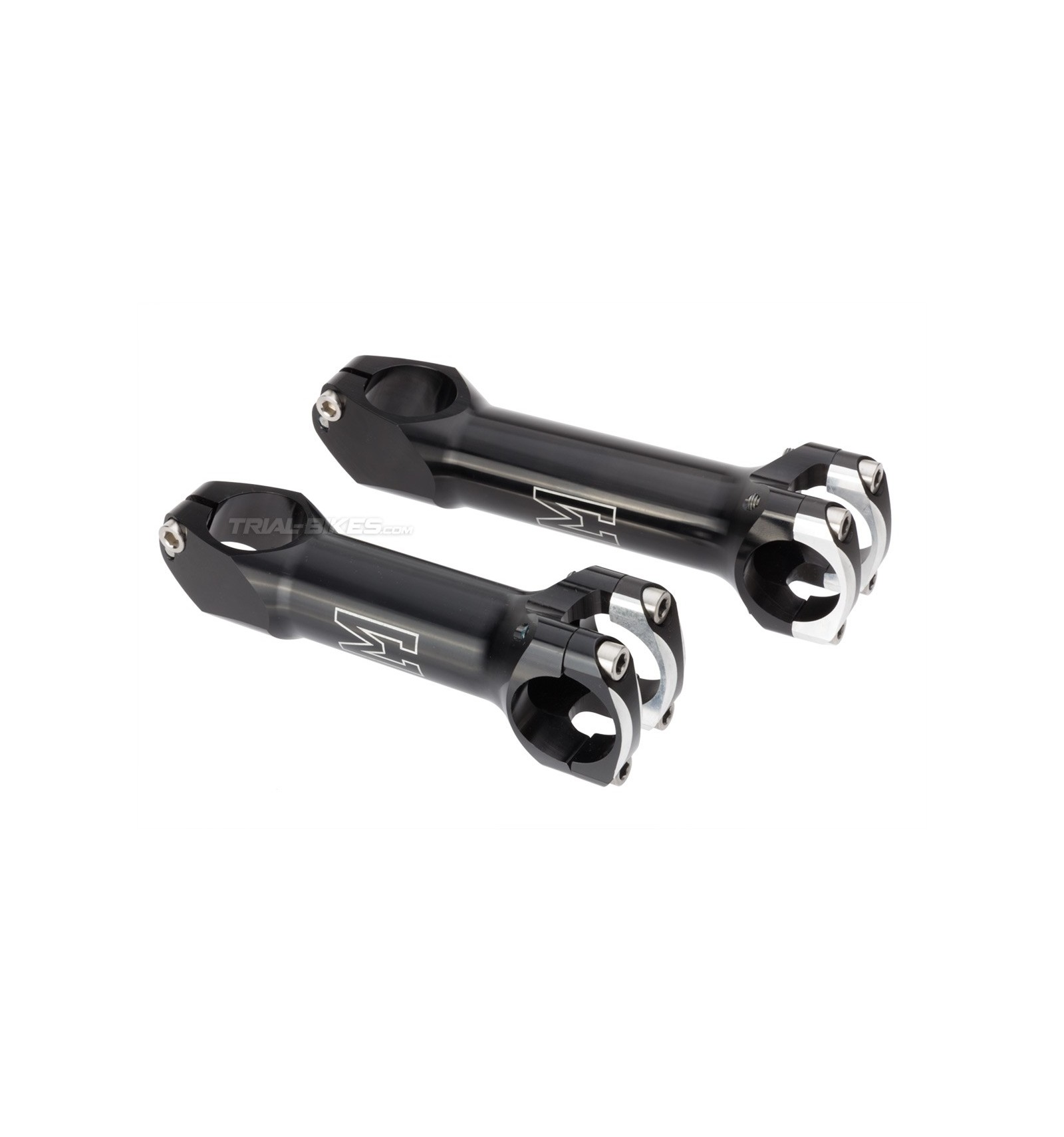

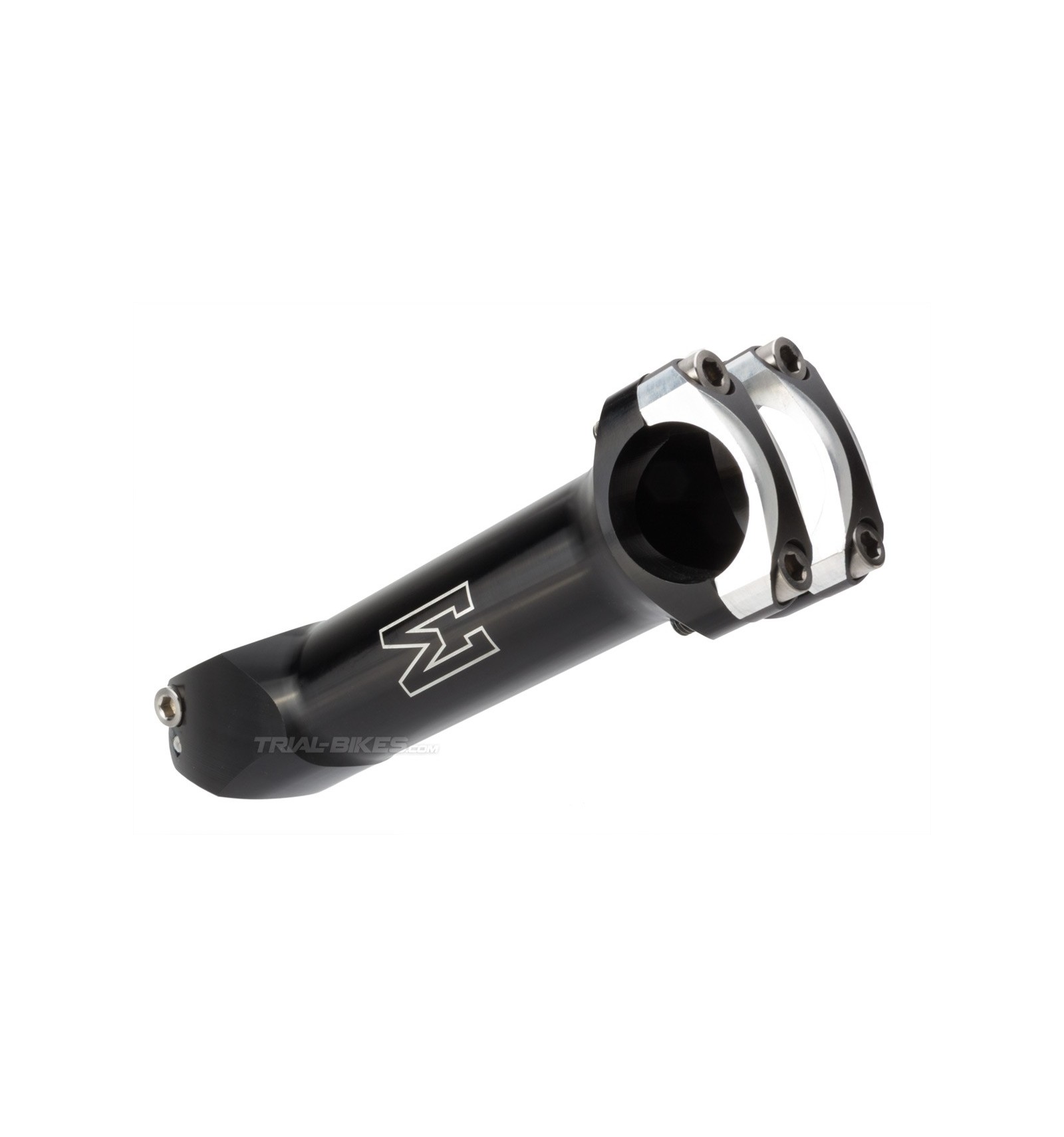

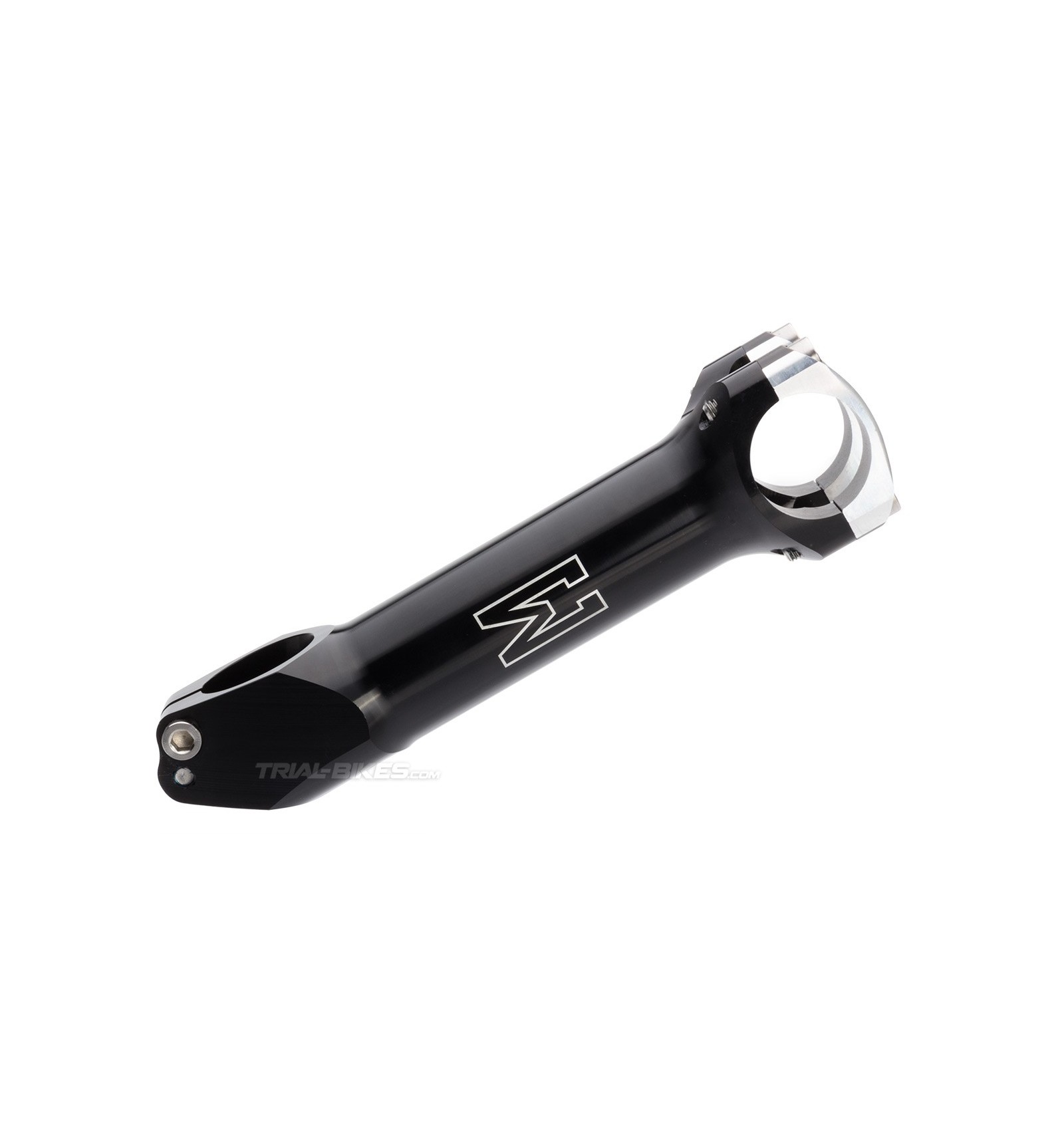

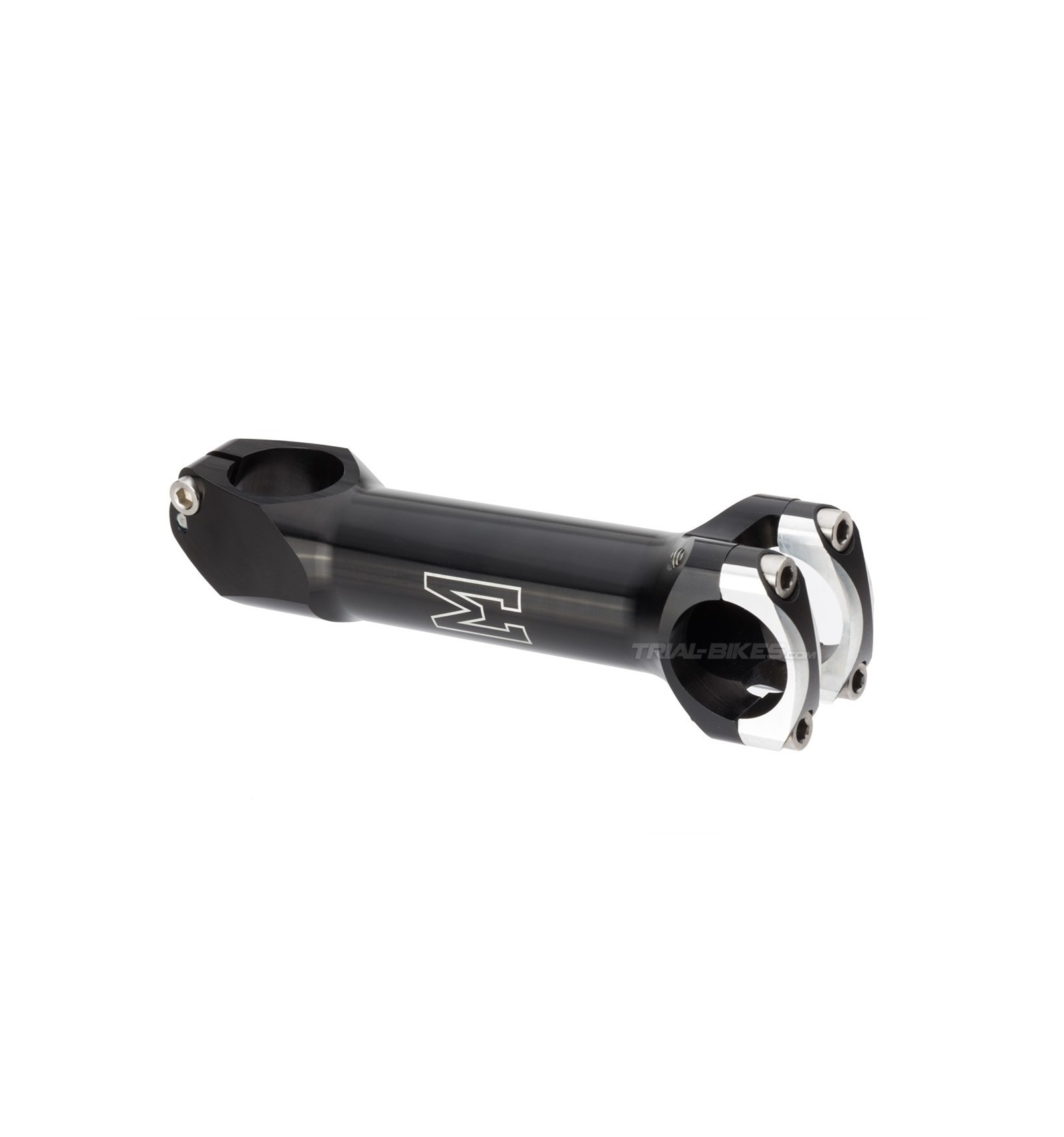

- New Echo SL 2015 stem, the top-of-the-range model from Asian manufacturer Echo.
- Exclusive Echo SL design, CNC machined from a single piece of high quality 7075-T6 aluminium alloy.
- Features a sloping steerer clamp to give extra clearance (38mm tall at the rear and 24mm at the front for the 130mmx28º version, and 40mm tall at the rear and 27mm at the front for the 158mmx30º version), which helps prevent knee injuries.
- The handlebar clamp is split into two individual pieces, which eases considerably the bar installation/removal and also helps save weight.
- Includes all 6 necessary bolts (2x M6x20mm and 4x M6x25mm), made from high quality titanium.
- Suitable for most Ø31.8mm Oversized handlebars.

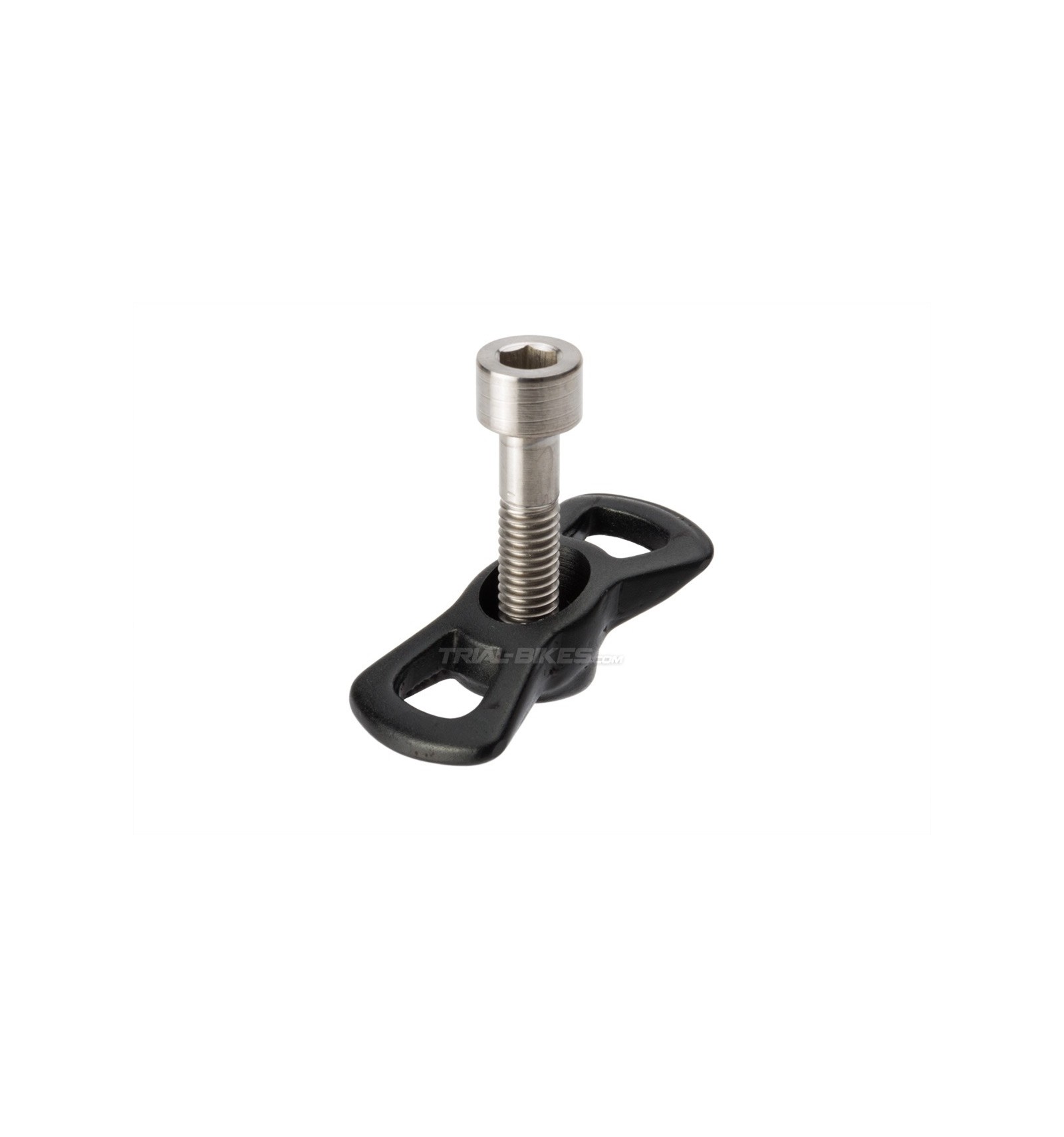

- Supplied with a CNC-machined top cap.
- 2 different sizes available: 130mm x 28º and 158mm x 30º.
- Available in anodized black only, with grey laser etched Echo logo.

Length
- 2 different sizes available: 130mm x 28º and 158mm x 30º.
- Handlebar diameter: Ø 31.8mm (Oversized)

Finishes
- Available in anodized black only, with grey laser etched Echo logo

Weight
- 206g (130mm x 28º), 238g (158mm x 30º), +CNC top cap and bolt at 9g.

WEIGHT 0.206
COLOR Black
LENGTH 120mm - 160mm
RISE 25º - 30º
