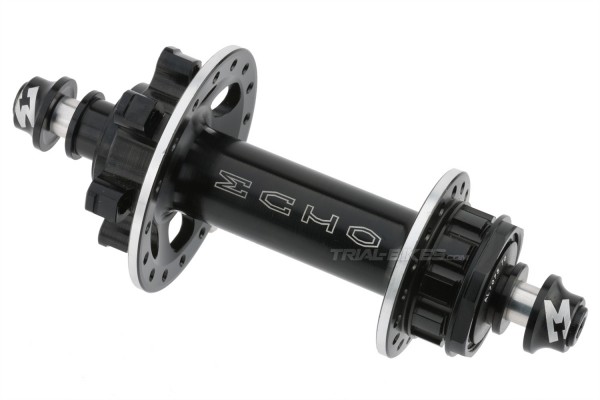

Echo Splined Rear Disc Hub




New Echo Disc Splined bike trials rear hub. Build and upgrade your rear trials wheel with this light, reliable splined hub from Echo, for 32 spokes rims.

More details


Ask a question

Echo Splined Rear Disc Hub

Description and materials
- High quality splined rear disc hub manufactured by renowned brand Echo.
- Both the axle and shell are CNC machined from ultra-light 7075-T6 aluminium alloy.
- 10mm diameter hollow axle, with M6 inner thread and 116mm spacing.
- 116mm spacing, designed for frames with integrated chain tensioner (like Echo frames) or those with sprung tensioner, like Clean, Ozonys
- 11mm spacer on the disc side and 6mm spacer on the drive side to add up to 116mm spacing.
- Also compatible with frames with 3mm-thick snail cams, by replacing the disc-side spacer for an 8mm one and the drive-side spacer for a 3mm one.
- Echo’s own splined interface eases sprocket installation/removal. The sprocket is installed/removed by hand, and is kept in place with an aluminium threaded lockring that can be tightened with a 34mm spanner.
- 32 spoke holes, compatible with most rear rims for bike trials.
- High quality replaceable sealed bearings ensure a smooth, reliable, durable running.
- Standard IS 6-bolt disc rotor fitting.
- Includes steel bolts and serrated conical washers.

Compatible with:
- Frames with 116mm dropout spacing.
- Rims with 32 spoke holes.
- Rotors with standard IS 6-bolt fitting.
- Only compatible with freewheels/sprockets with Echo splines.
- Bearings reference: 6000-2RS.

- Axle spacing: 116mm
- Axle diameter: 10mm

- Spacers width: 11mm (disc side) and 6mm (drive side)
- Number of spoke holes: 32 (32H)

- Gloss black finish, with white laser etched Echo graphics.

- 168g, +21g of bolts and washers

SPOKE HOLES32 spokes
