Echo TR 2015 Rear Disc Hub 135mm Expand

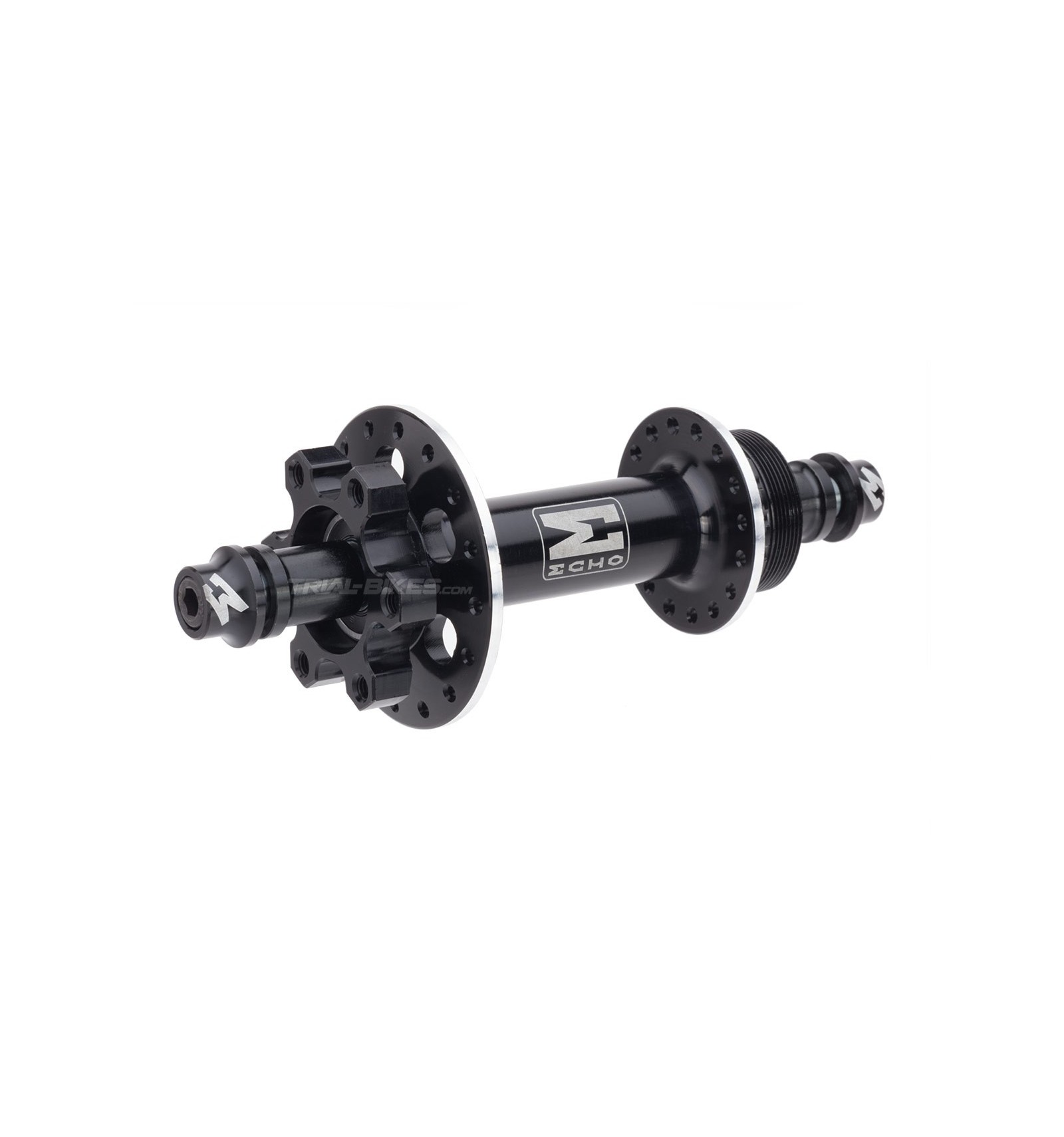

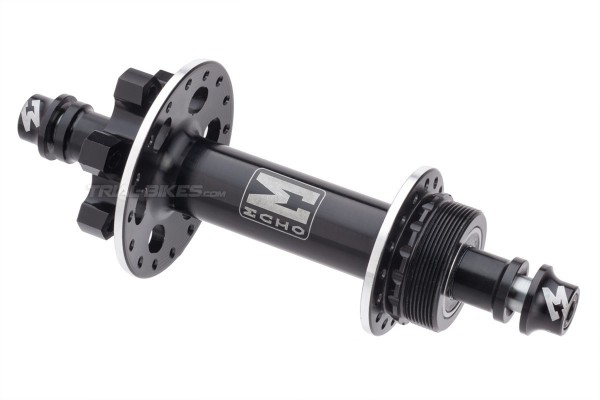

Echo TR 2015 Rear Disc Hub 135mm

ECHO ECHO

537402

New

Description and materials

More details

This product is no longer in stock

54,55€

Ask a question

Description and materials
- New high quality  Echo TR  rear disc hub.
- Hub shell is mechanized from 2014 aluminium.
- Ø 10mm, 135mm long Aluminium 7075-T6 axle, suitable for the new Zoo! and Echo frames, which feature an integrated chain tensioner.
- 6-Bolt IS (International Standard) bolt mounts.
- Sealed bearings keep out all the mud and water, and offer a smooth running.
- Standard 1,37 "x 24 tpi thread, suitable for screw-on sprockets.
- M6x25mm Bolts and washers included.
- 32 holes only.
- Sprocket and snail cams not included.
- Note: the spacing on this hub is 135mm instead of the usual 129mm. This is due to Echo frames having an integrated tensioner and not needing 3mm snail cams.
- Suitable for other frames by shortening 3mm each spacer in order to use 3mm snail cams.
- Available en black.

Sizes
- Length: 135mm spacing
- 32 holes

Finishes

- Anodised black
- Grey laser etched Echo logo

Weight
- 234g (+ bolts and washers at 21g).

Additional information
Make sure your rim has 32 holes to fit this hub. If you have any questions, contact us.

WEIGHT0.234
COLORBlack
BRAKE MOUNTSDisc
