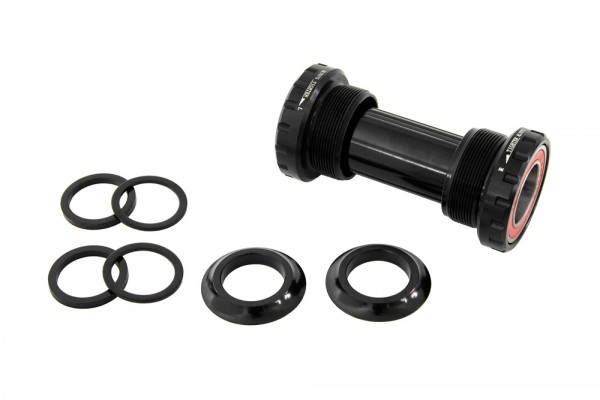

Inspired Arcade 22 mm Bottom Bracket

Inspired Arcade 22 mm Bottom Bracket

- Inspired Arcade external Euro BB for 68 mm shell frames.
- Designed for 2 or 3 piece BMX style cranks with 22 mm axles.
- Made from high-quality 7075 aluminum cups and sealed bearings.
- Standard thread of 1.37x24T.
- Ideal replacement for the Inspired Arcade V2 crankset kit.
- Frame fitting with external BB tools for Shimano Hollowtech 2.

Includes
- x2 Cups.
- x1 71 mm Central spacer.
- x2 1.5 mm Steel spacers.
- x2 3 mm Steel spacers.
- x2 5.5 mm External spacers.

Compatible with
- Arcade V2 Cranksets
- Frames with a 68 mm bottom bracket shell.
- Not compatible with Arcade V1 cranks, as they require a 19 mm bottom bracket axle.

Dimensions
- Ø 22 x Ø 44 x 15 mm.
- Cup thread: 1.37”x 24 tpi.
- Cup thickness: 15 mm.
- Inner diameter: Ø 22 mm
- Bearing reference: 6904-2RS (Ø 37x22x10 mm).

Finish
- Black.

Weight
- 150.44 g.
