Jitsie JIS (Square taper) 7075 Cranks Expand

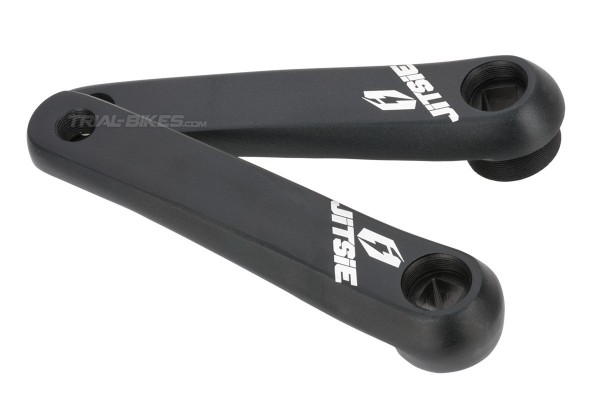

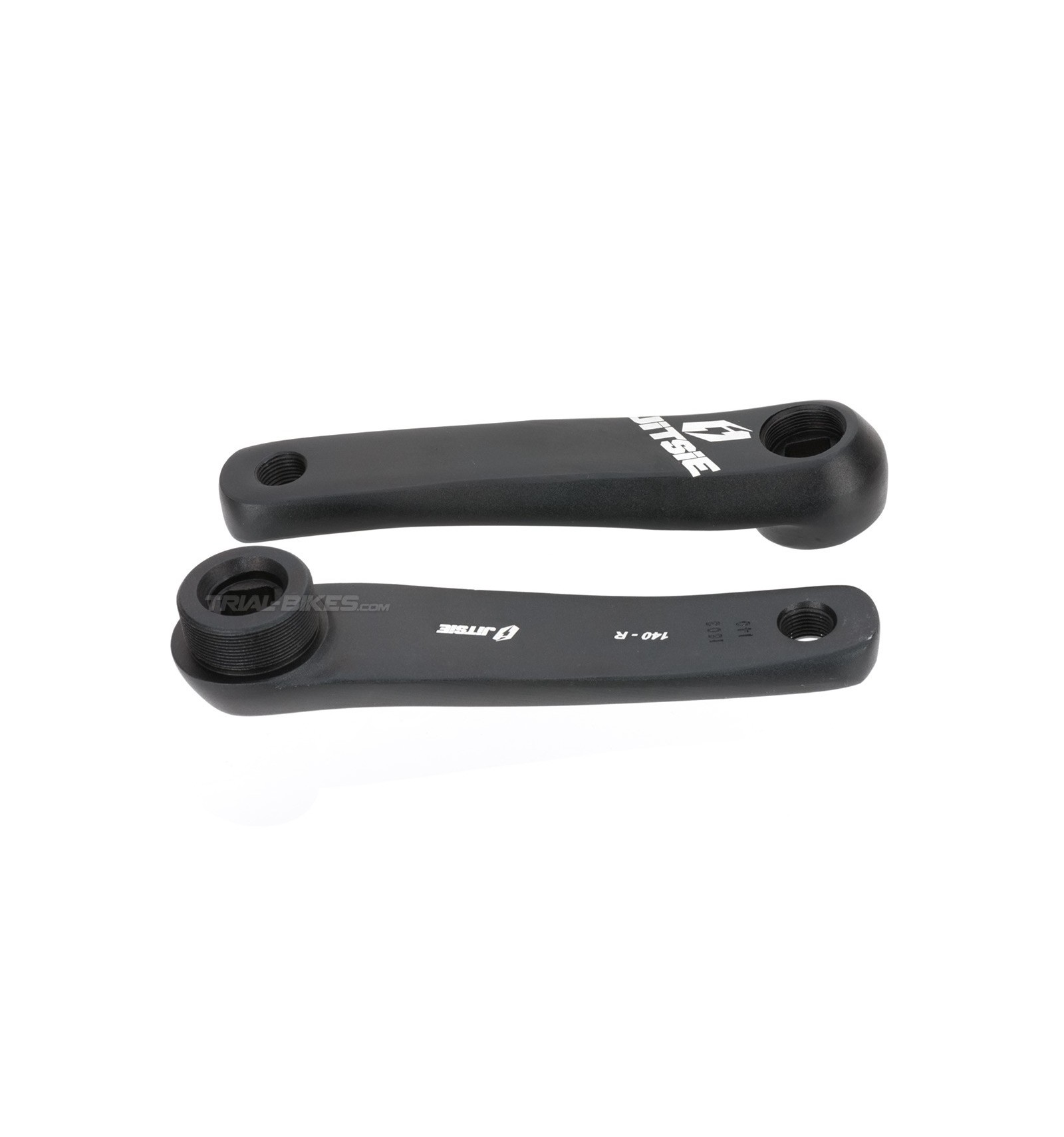

Jitsie JIS (Square taper) 7075 Cranks

JITSIE JITSIE

537799

New

Description and materials

More details

This product is no longer in stock

33,06€

Ask a question


Description and materials
- New high quality ISIS cranks from Belgian brand Jitsie.
- Its 140mm length makes them ideal for entry level bikes.
- Simple design ensures high strength and stiffness.
- Made of high quality forged 7075-T6 aerospace aluminium alloy.
- Standard 1.37”x 24tpi thread, suitable for most screw-on freewheels and sprockets.
- Wide threaded section (13mm) allows you to run a bashring together with the freewheel/sprocket.
- 33mm offset provides enough clearance to avoid rubbing the stays or brake cylinders.
- Available in 140mm version.

Compatible with:
- Square taper (JIS) bottom brackets.
- Pedals with 9/16”x20tpi (14,25mm).
- Sprockets or freewheels with standard 1.37”x24tpi threads (34.6-34.9mm).

Not compatible with:
- ISIS bottom brackets
- Pedals with 1/2" threads

Sizes
- Length: 140mm
- Offset: 33mm
- Threaded base: 34.9mm diameter and 13mm wide
- Thread: 1.37”x24tpi

Finishes
- Matt black, with white Jitsie graphics

Weight
- 472.84g

Important Note: Please bear in mind that there must be at least a 7mm thread in contact between freewheel and crank. Furthermore, a 1.37” freewheel/sprocket must be used with a maximum internal diameter of 33.8mm (and not the 1.375” ones). Not following these instructions may lead to thread damage (not covered under warranty).

WEIGHT 0.470
LENGTH 140mm
