Jitsie NGage BB24 Race Crankset + Bottom Bracket Kit

The Jitsie NGage BB24 Race is a 2-piece crankset and bottom bracket kit specifically developed for Trials Bikes. It combines 160mm Jitsie Race cranks, an integrated CrMo steel axle and a 68mm BSA bottom bracket with sealed bearings, creating a lightweight and rigid setup to replace traditional ISIS bottom bracket systems.

Description and materials
- Jitsie NGage Race 2-piece crankset and bottom bracket kit, specifically developed for Trials Bikes.

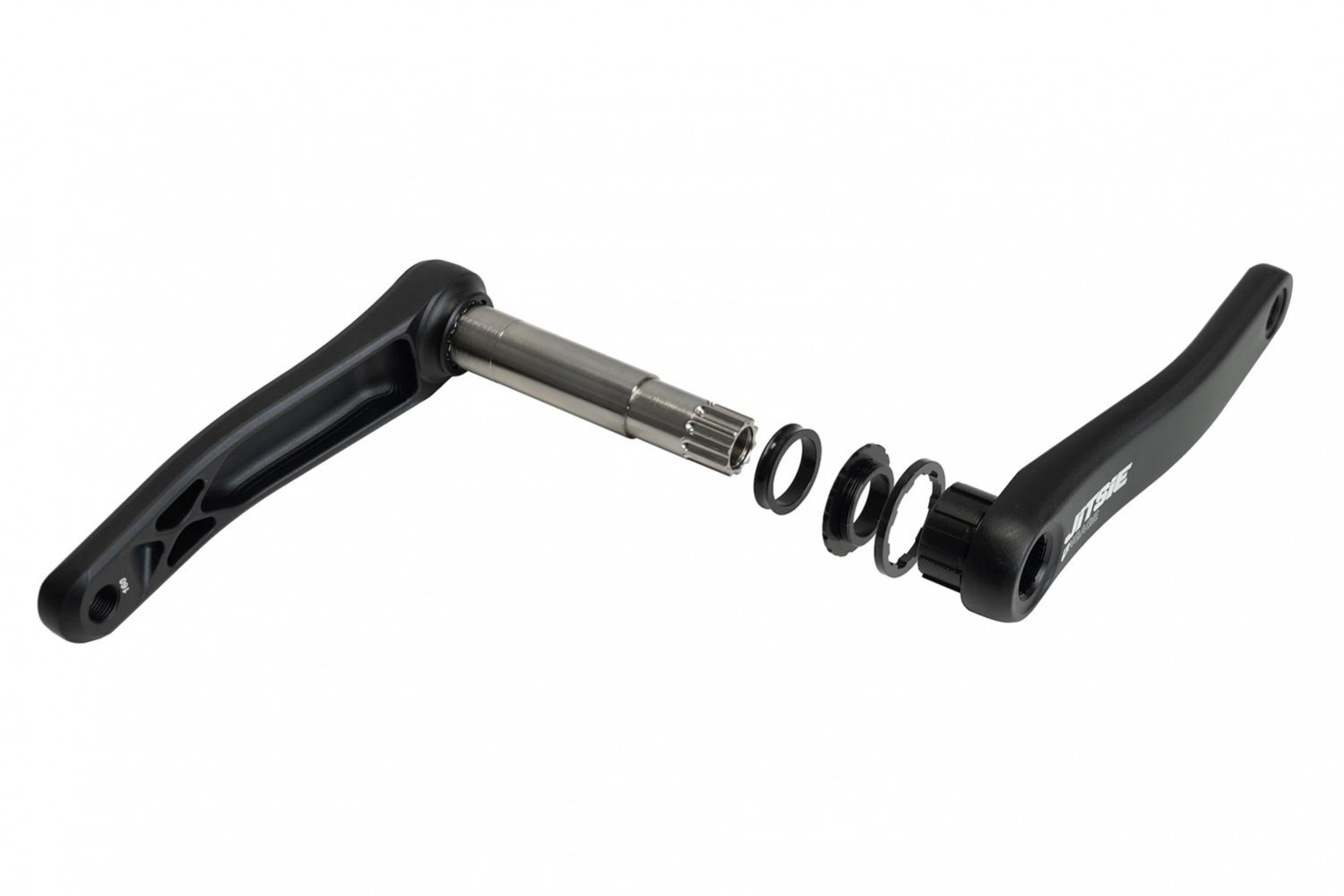

- 2-piece design with integrated axle, designed to increase overall stiffness and improve power transfer while pedalling.
- Forged 160mm Jitsie Race cranks.
- Axle manufactured from high-strength CrMo steel.

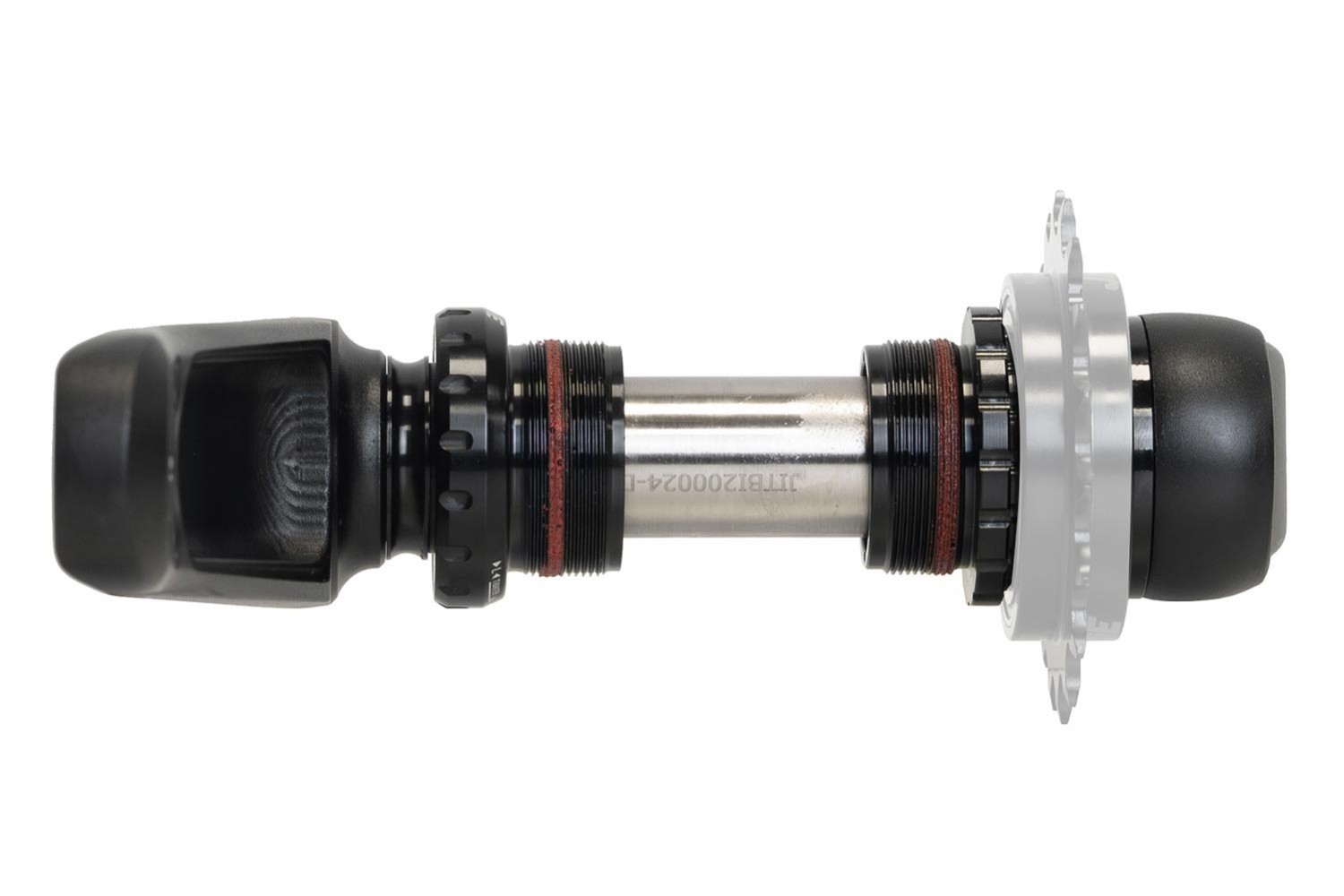

- Includes a Jitsie BSA 68mm Race bottom bracket with sealed bearings and aluminium cups.
- The left side uses an external aluminium cup with a larger than usual bearing.
- On the drive side, the bottom bracket features a semi-integrated design with two inline bearings to better distribute pedalling loads and improve durability.
- Supplied with an M15 crank bolt and M22 self-extracting cap, making it easier to remove the crank from the axle.
- Compatible with splined freewheels. The freewheel is not included, allowing riders to choose the preferred model and gearing for their bike.
- Includes a CNC-machined POM lock ring tool to securely retain the freewheel.

Compatibility
- Compatible with frames featuring a standard 68mm threaded bottom bracket shell.
- Compatible as a retrofit upgrade on all Jitsie Varial Standard and Race Trials Bikes, replacing the ISIS bottom bracket and Standard or Race crank setup.
- Compatible with cassette-style splined freewheels such as Jitsie Race, Clean, Crewkerz, etc.

Measurements
- Crank length: 160mm.
- Bottom bracket shell: 68mm.
- Crank bolt: M15.
- Self-extracting cap: M22.

Finish
- Black with white graphics.

Weight
- 710g (complete kit without freewheel).

Additional information
- The kit does not include the freewheel.
- Supplied with 160mm Jitsie NGage Race cranks, integrated CrMo axle, Jitsie BSA 68mm Race bottom bracket, M15 crank bolt, M22 self-extracting cap and CNC-machined POM freewheel lock ring tool.

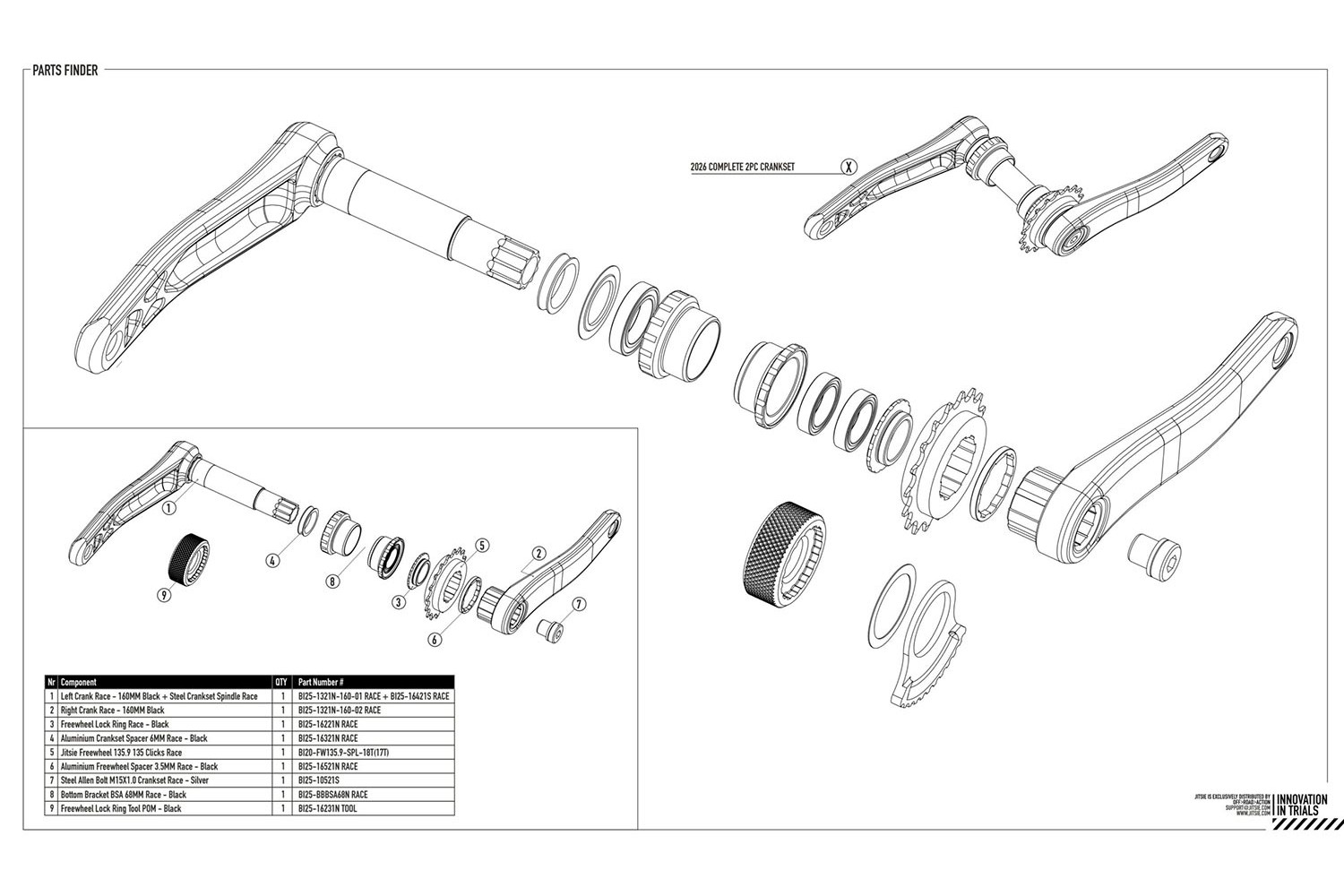

- Please check all product images for the correct position and assembly of the different components.
