Jitsie Race 20" Alejandro Montalvo Replica Bike Expand

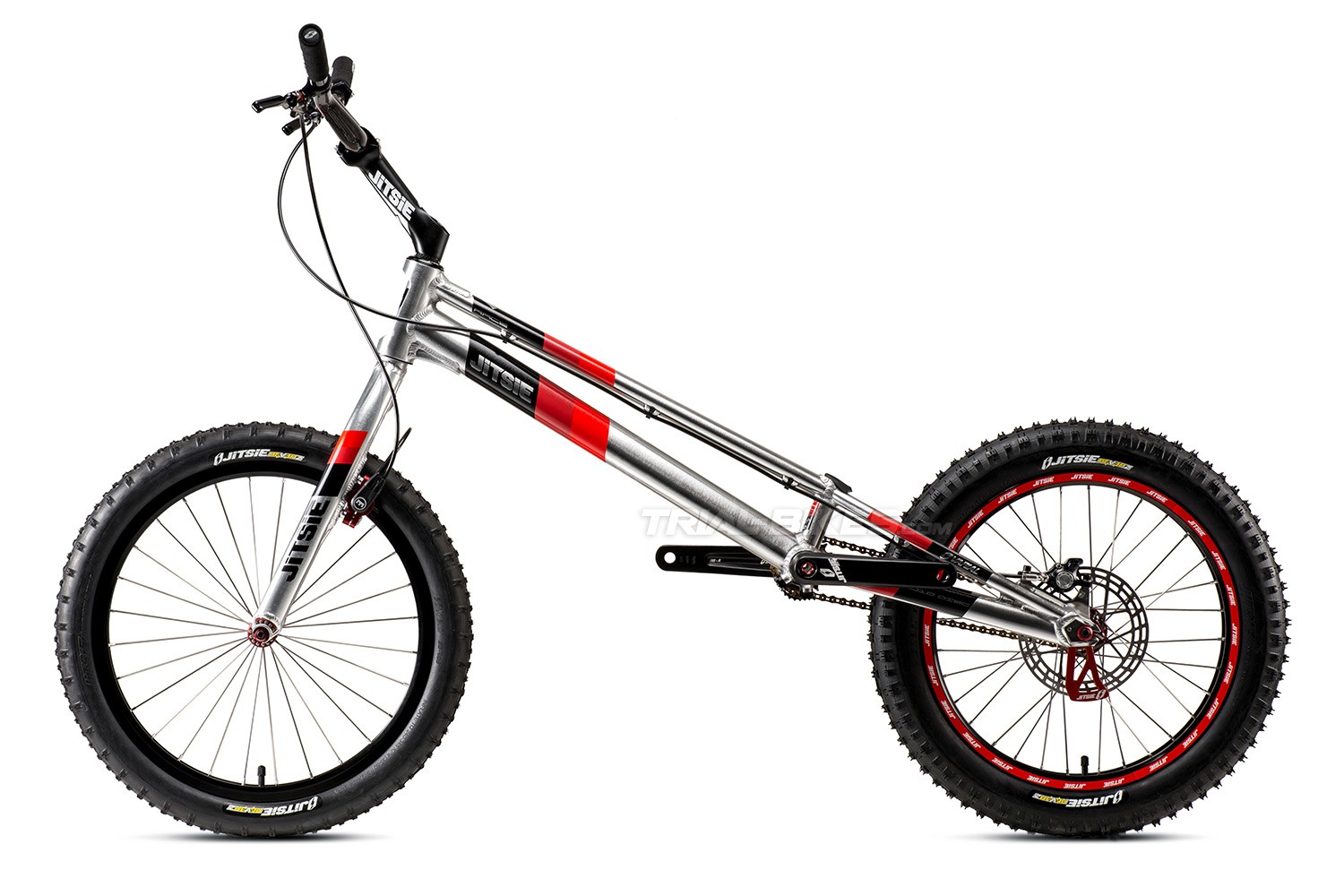

Jitsie Race 20" Alejandro Montalvo Replica Bike

JITSIE JITSIE

538170

New

Jitsie Race 20” Alejandro Montalvo’s replica trials bike. Built with the same components as Alejandro Montalvo’s bike: Hope rear disc brake, Jitsie Race HS front rim brake, Jitsie carbon handlebar, titanium Jitsie sprocket, 1.8mm spokes… And it features a special Alejandro Montalvo Replica finish!

More details

This product is no longer in stock

1 528,93€

Ask a question

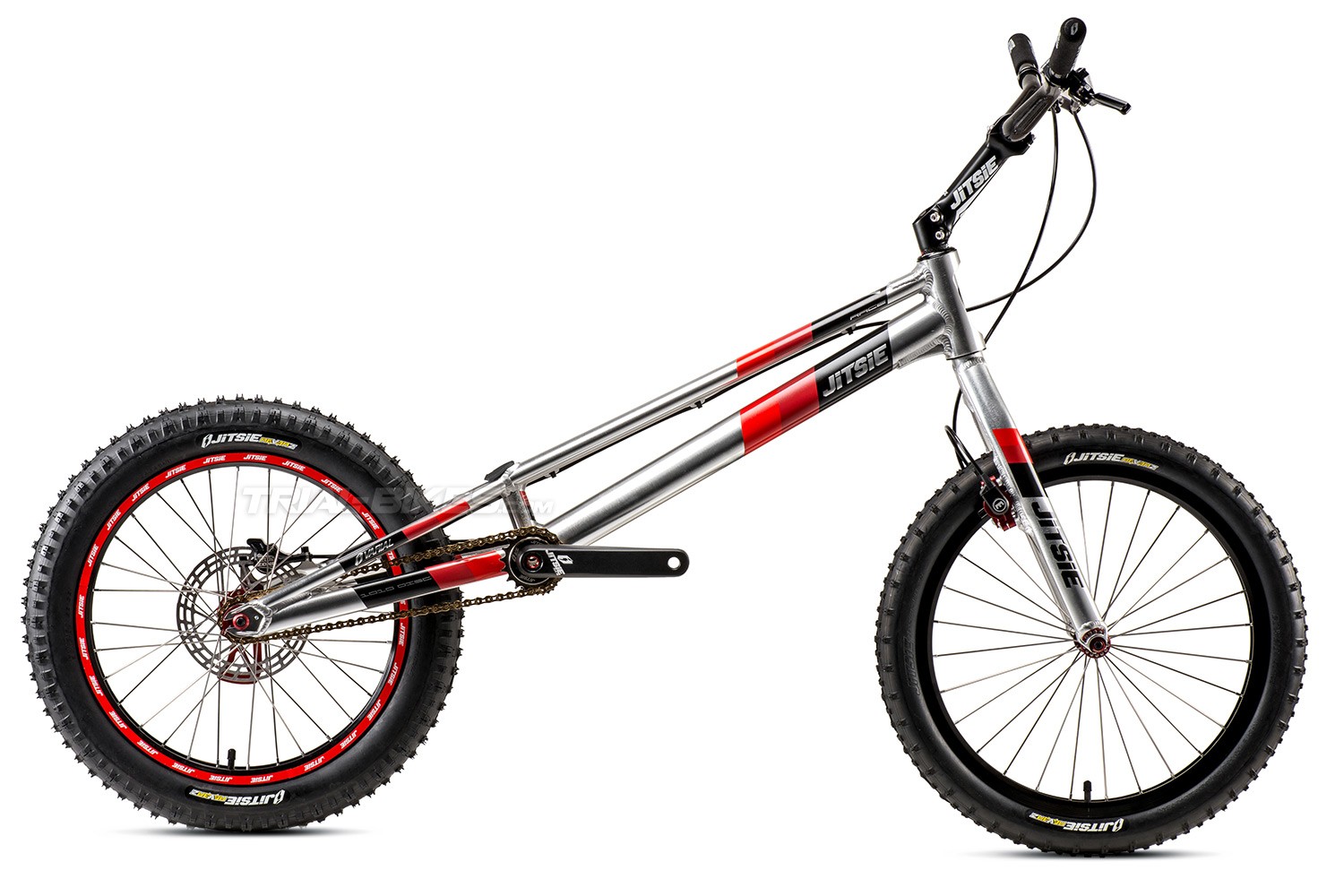

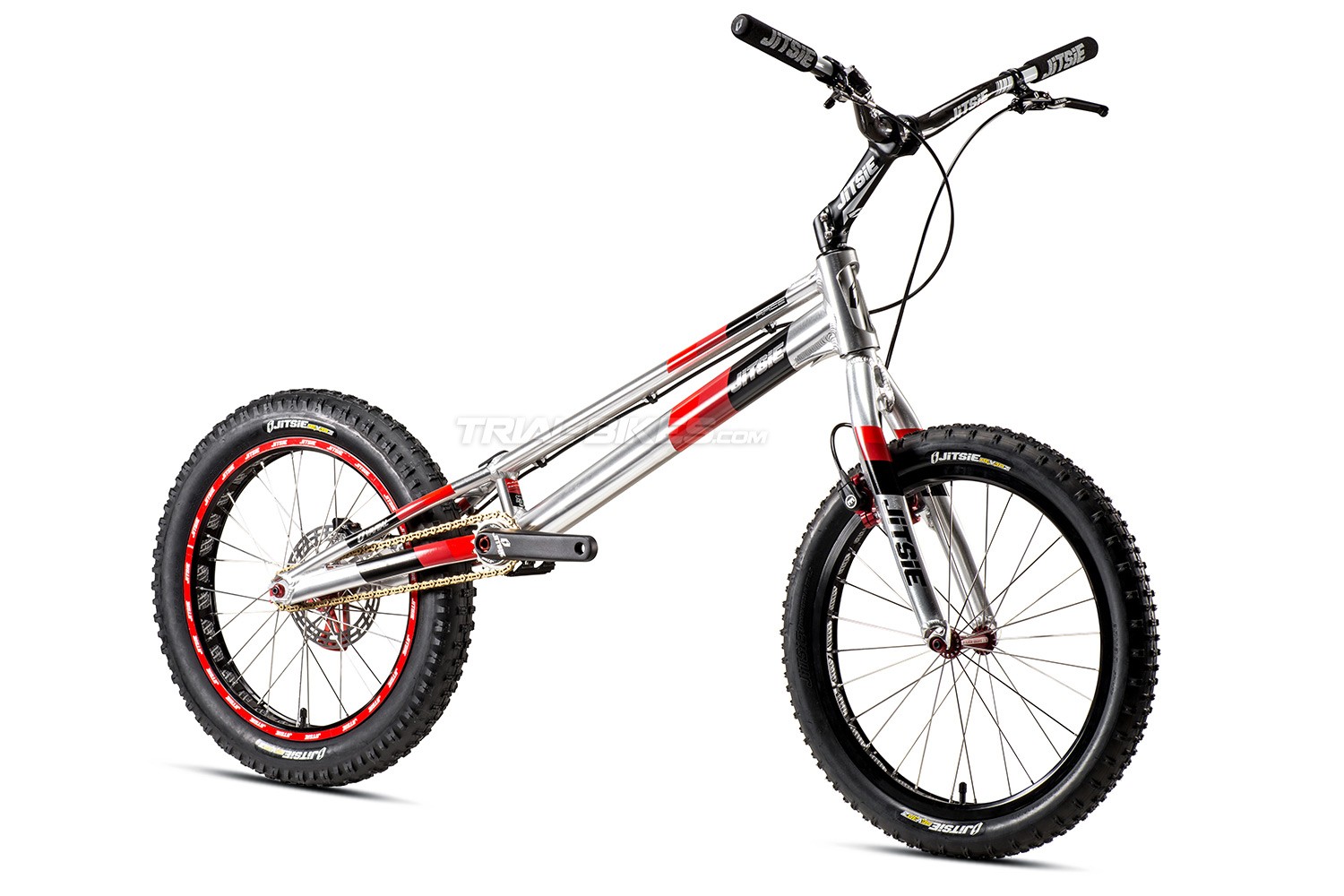

Jitsie Race 20” Alejandro Montalvo Replica Bike

Jitsie Race 20” Alejandro Montalvo’s replica trials bike. Built with the same components as Alejandro Montalvo’s bike: Hope rear disc brake, Jitsie Race HS front rim brake, Jitsie carbon handlebar, titanium Jitsie sprocket, 1.8mm spokes… And it features a special Alejandro Montalvo Replica finish!

Frame and fork
- Frame: Jitsie Varial 20” 1010mm, with Post Mount disc brake mounts, in polished silver finish with Jitsie’s Alejandro Montalvo Replica red and black stickers.
- Forks: Jitsie Varial 20” 370mm, with rim brake mounts, in polished silver finish with Jitsie’s Alejandro Montalvo Replica red and black stickers.

Wheels
- Front hub: Jitsie Race 100HS 28 spoke holes, without rotor mounts, 100mm spacing, anodized red
- Rear hub: Jitsie Race 116Disc 32 spoke holes, with rotor mounts, 116mm spacing, anodized red
- Chain tensioner: Jitsie CNC snail cams, red
- Front rim: Jitsie 20”, single wall, 32mm wide, 28 spoke holes, black
- Rear rim: Jitsie 19”, single wall, 48mm wide, 32 spoke holes, black
- Spokes: Jitsie Stainless 1.8mm, black
- Spoke nipples: Jitsie Aluminium, silver
- Rim tape: Jitsie
- Front inner tube: Jitsie Race Ultralight 20”
- Rear inner tube: Jitsie Race Ultralight 20”
- Front tyre: Jitsie Reverz 20”x2.00”
- Rear tyre: Jitsie Reverz 19”x2.60”

Brakes

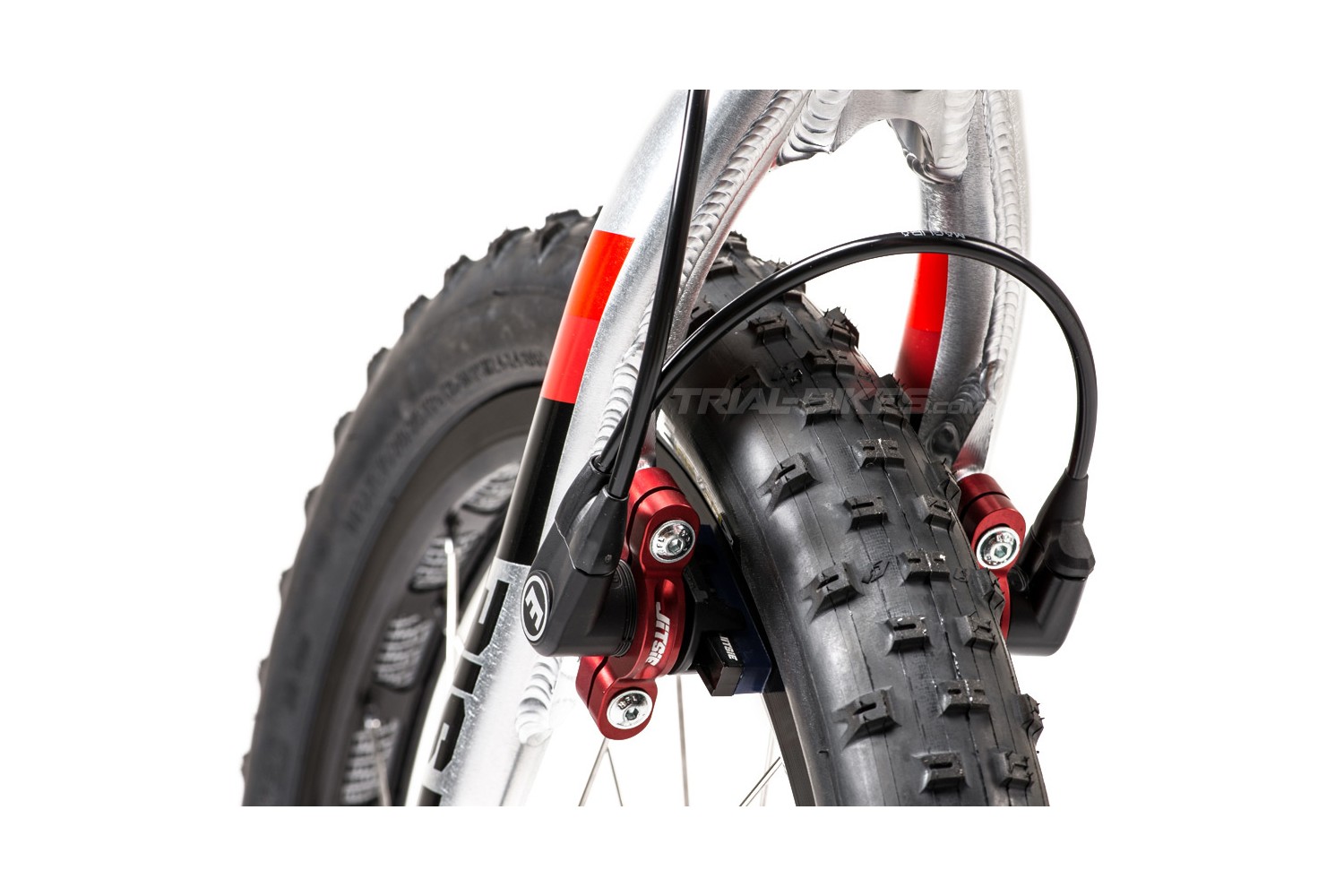

- Front brake: Jitsie Race HS

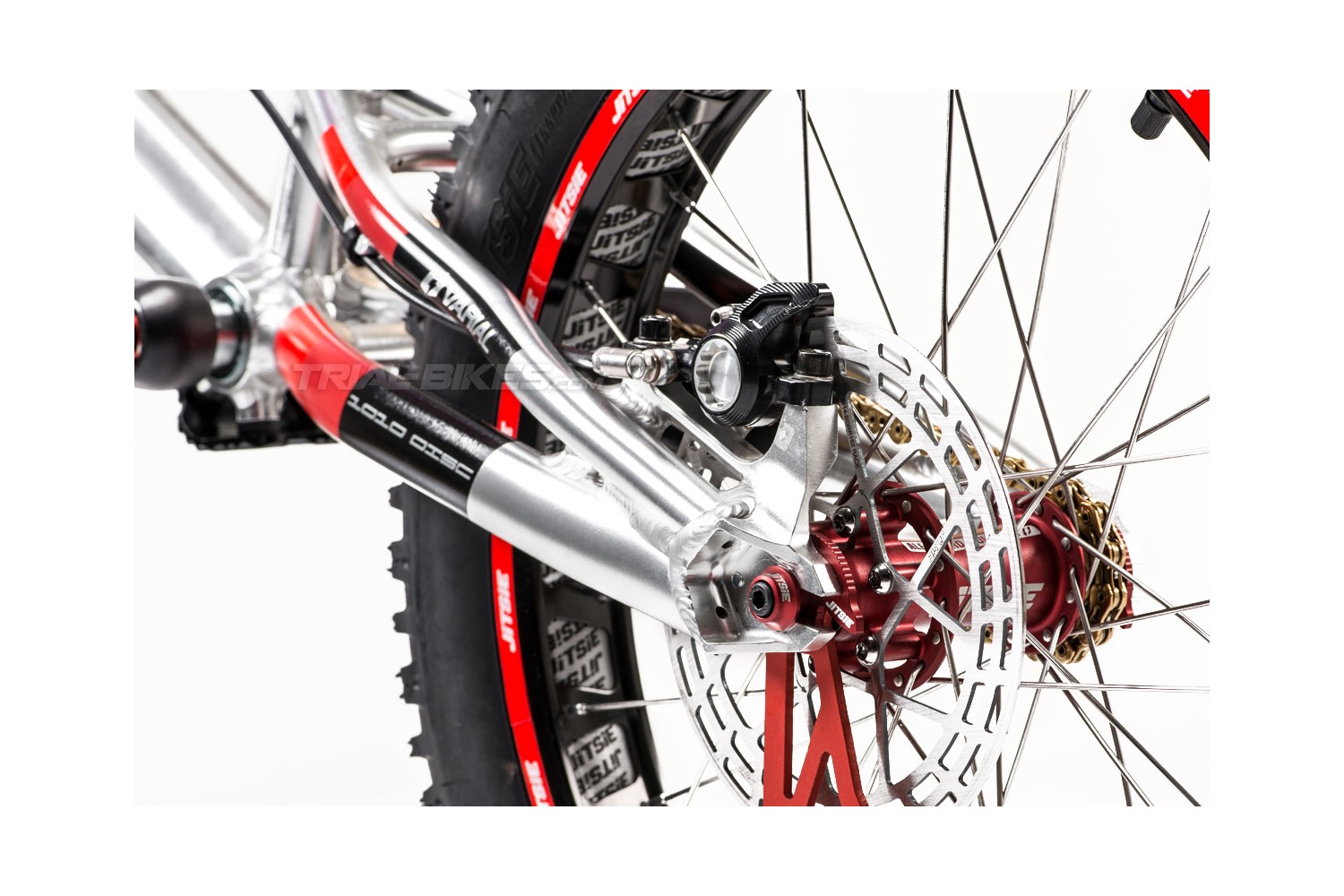

- Rear brake: Hope Trial Zone Post Mount

- Front brake pads: Jitsie Race
- Front brake clamps: Jitsie CNC, red
- Rear rotor: Jitsie Race 162mm

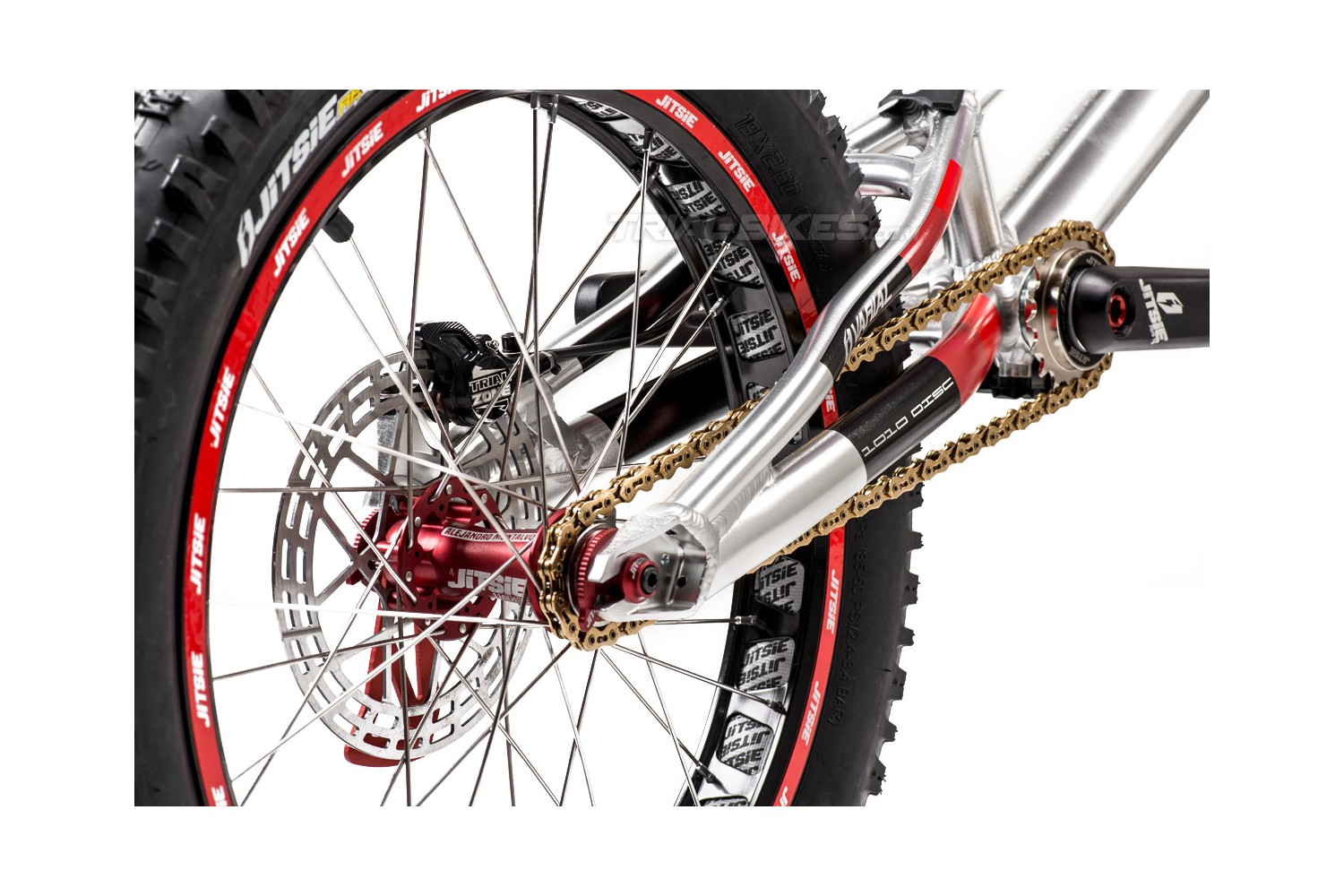

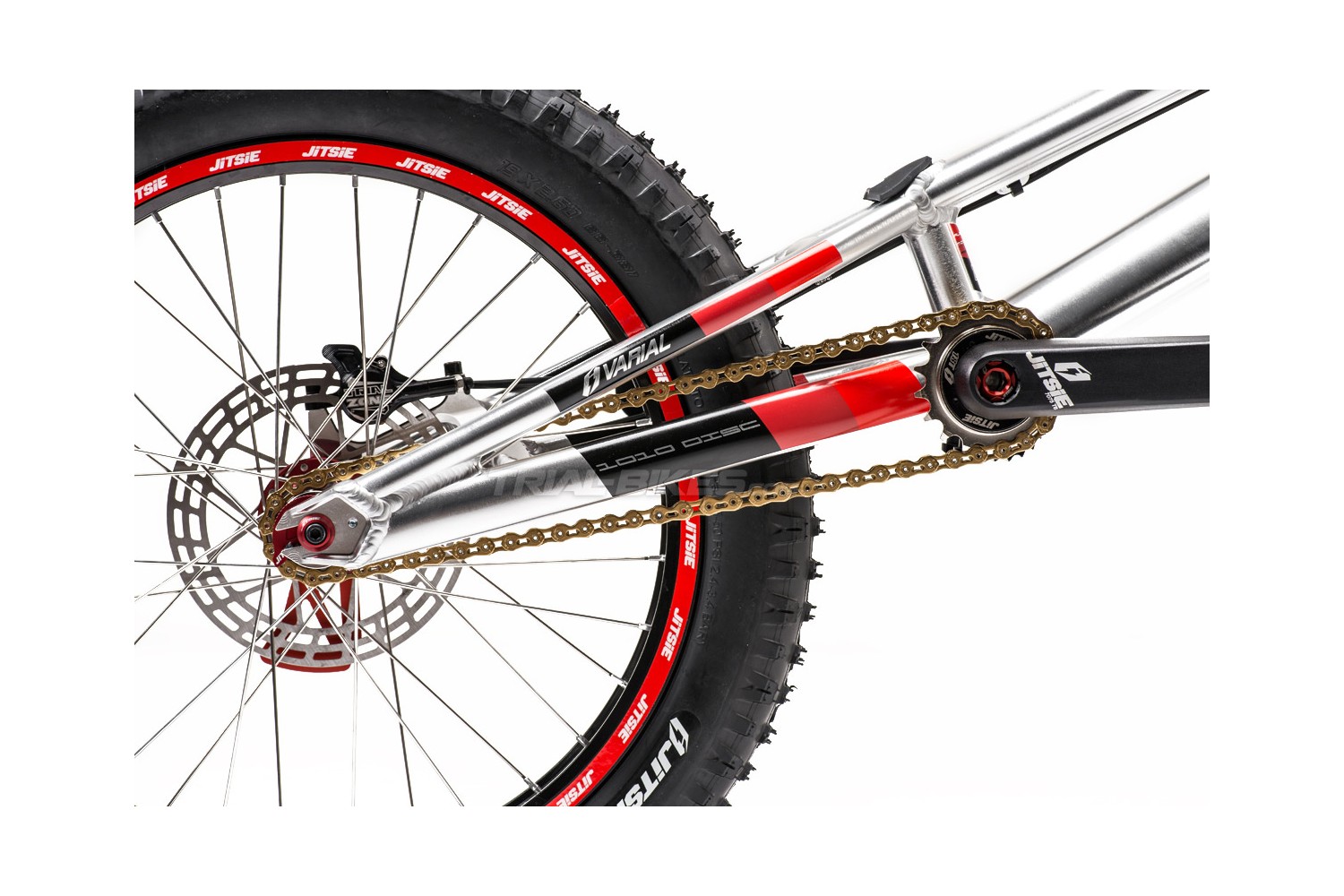

Drivetrain
- Cranks: Jitsie ISIS 7075, 160mm long, black
- Bottom bracket: Jitsie ISIS 123mm
- Freewheel: Jitsie 108.9 18T, with 108 engagement points, 9 pawls and 18 teeth, silver
- Chain: KMC K810 SL, gold
- Rear sprocket: Jitsie 12T Ti Screw-on, made of titanium, silver
- Plastic pedals (we recommend replacing them for some higher quality pedals)

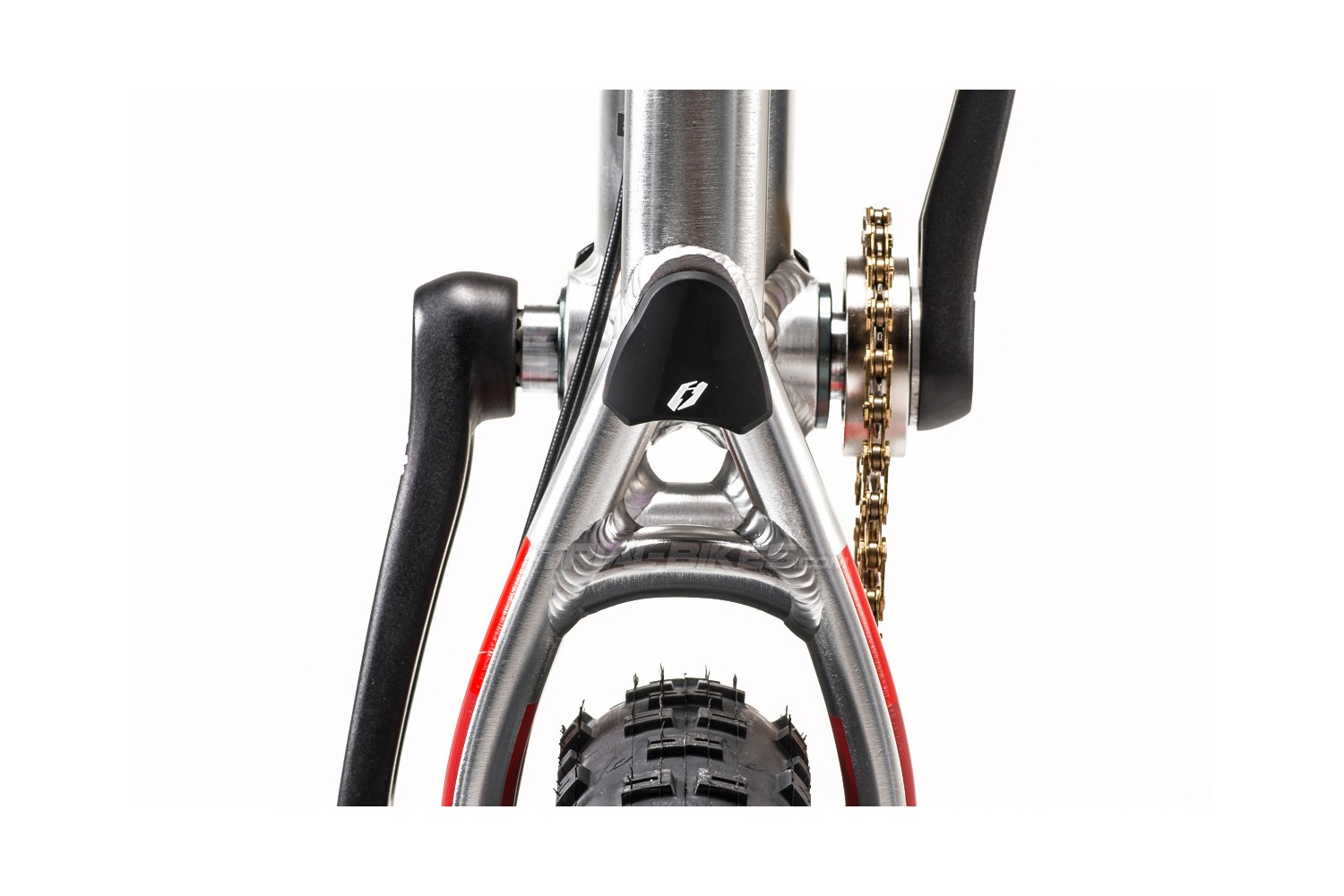

- Bashplate: Jitsie mini-bashplate, anodized black

Steering
- Headset: Jitsie 1 1/8” internal headset, sealed bearings, black

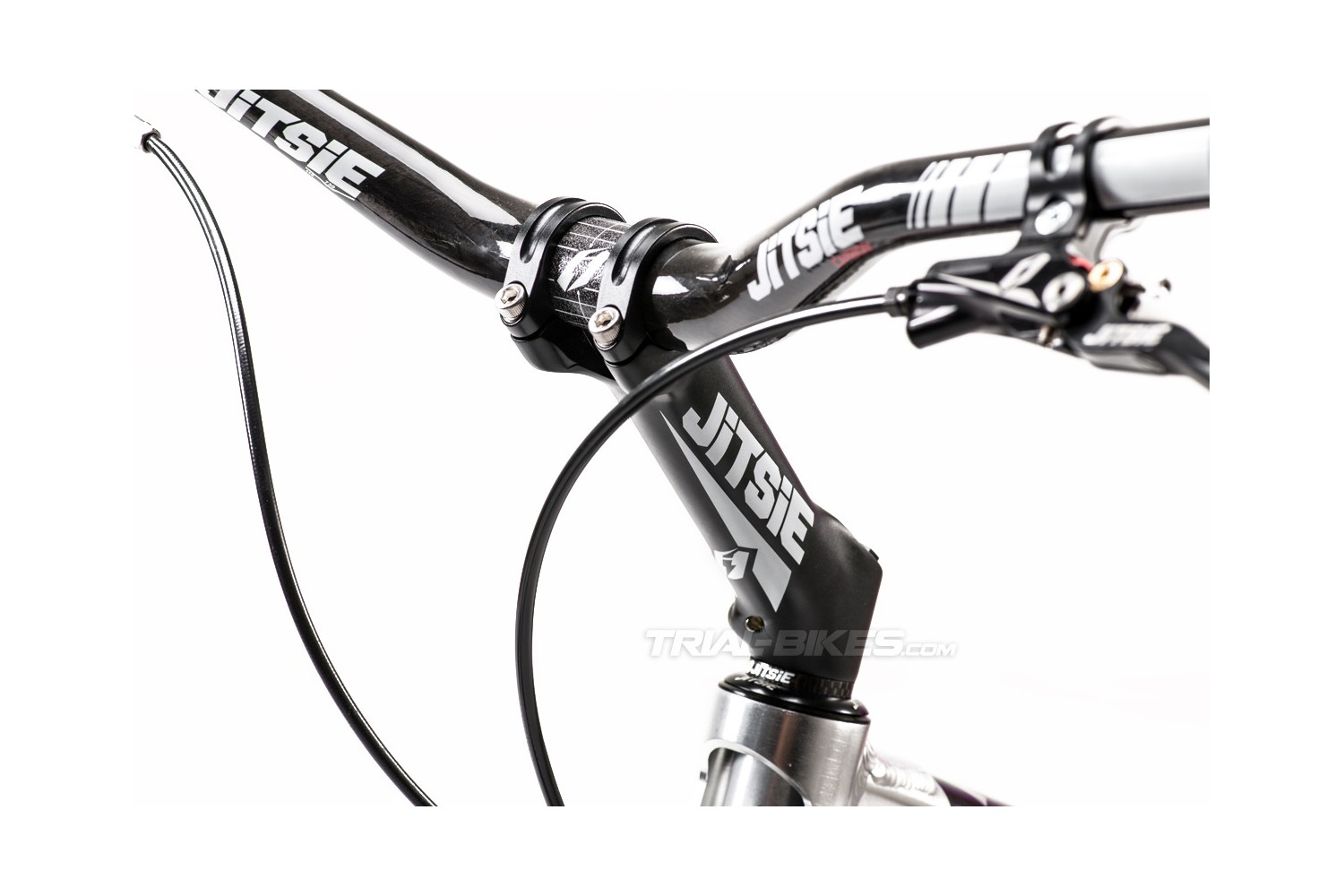

- Stem: Jitsie Race, 150mm x 35º, 31.8mm Oversized handlebar diameter, black
- Grips: Jitsie foam, black

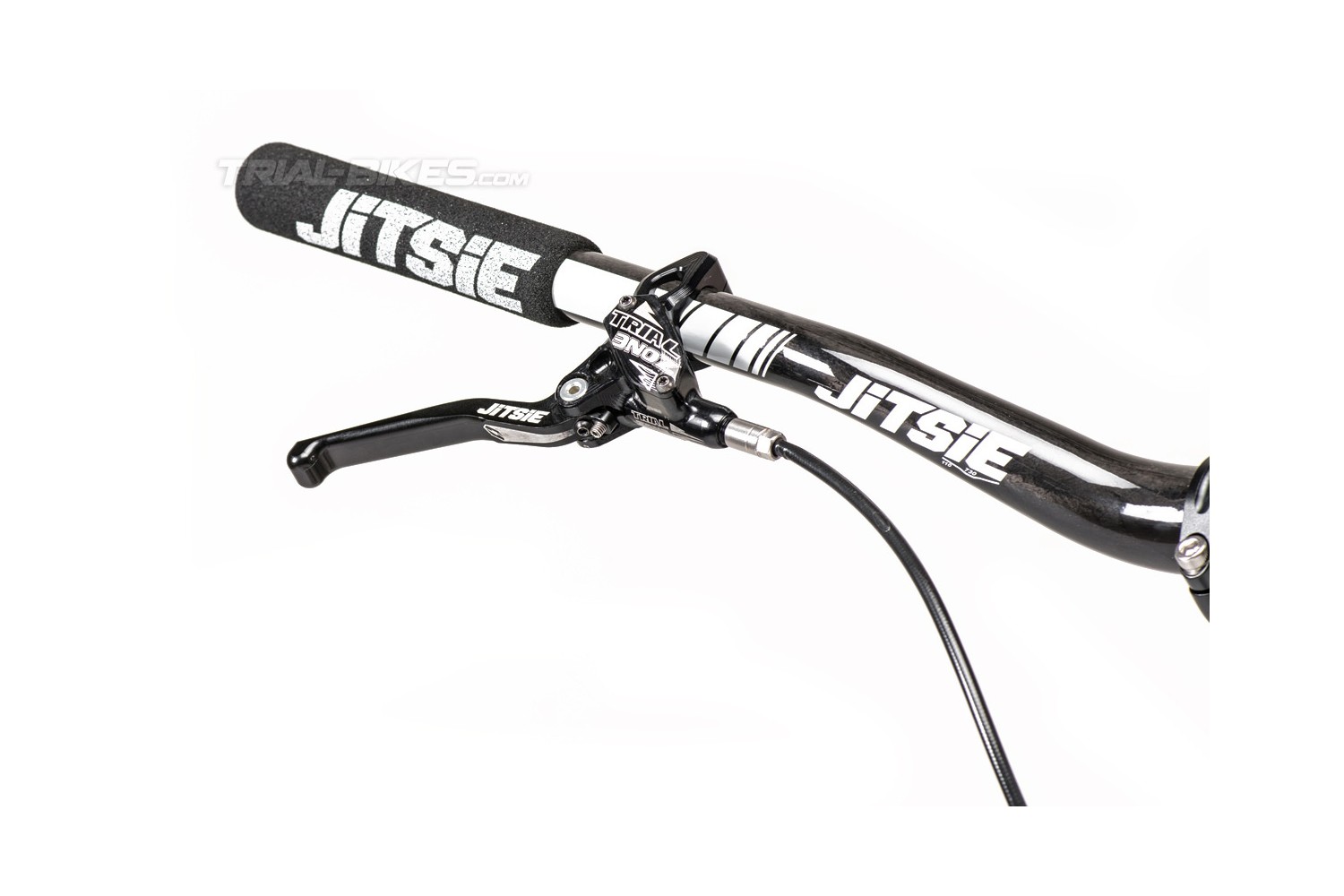

- Handlebar: Jitsie Carbon, 730mm long, 110mm rise, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics

Geometry (based on Jitsie Varial fork 370mm and +45mm offset)
- Wheelbase: 1010mm
- Chainstay length: 350mm
- Bottom bracket rise: +80mm
- Head angle: 71.5º

Weight
- 7.642Kg (with plastic pedals)

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to install the front wheel and headset.
If you have any doubts and want to get in touch, please send an email to info@trial-bikes.com .

FRONT BRAKE HS
REAR BRAKE Disc
