✅ 1 1/8" – 1.4" tapered fork head tube
✅ 10mm through-axle front hub
✅ New Jitsie Race Disc rear brake
✅ Titanium bottom bracket
Warning: Last items in stock!
Ver la opinión

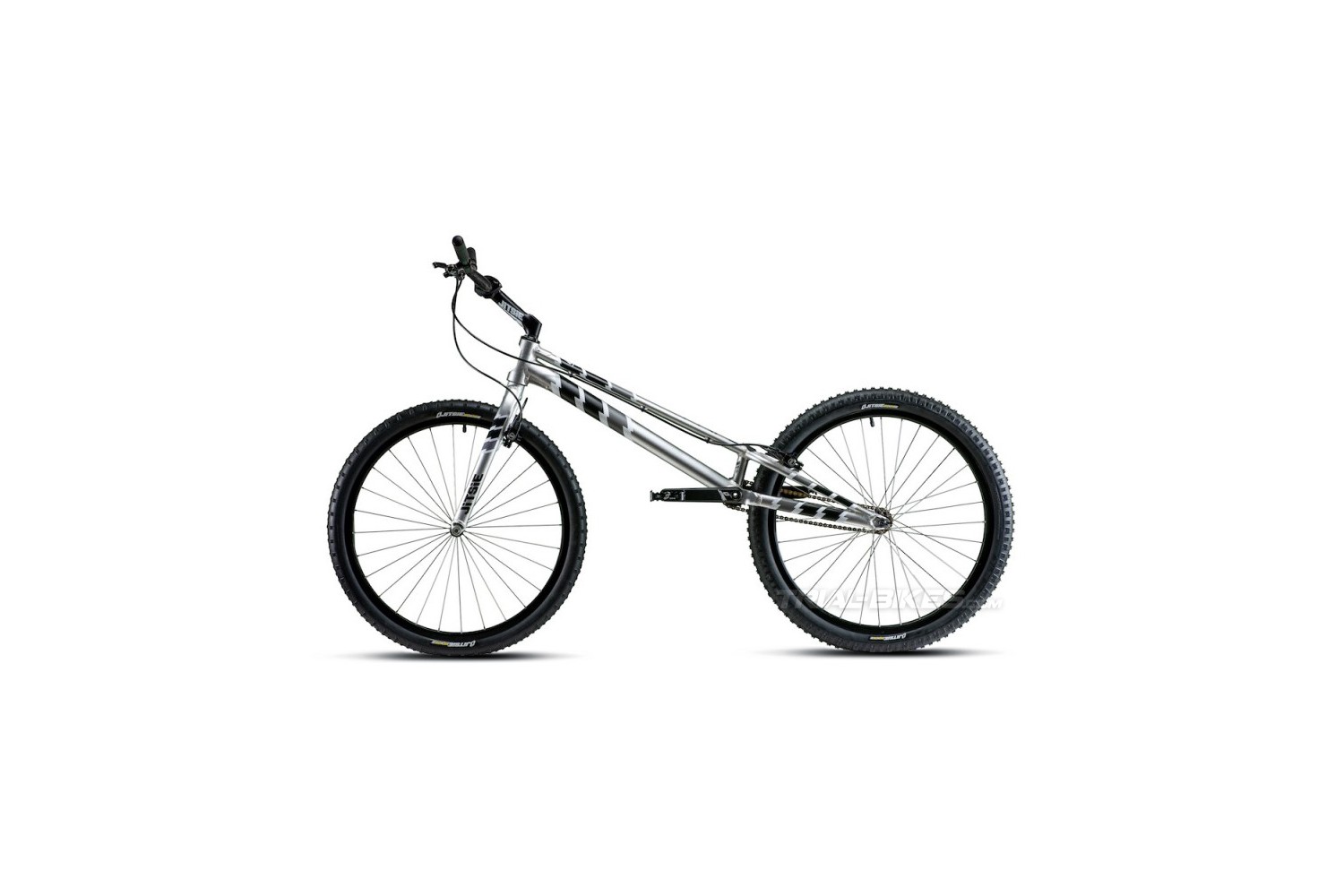

The new Jitsie Race 26" trials bike now features a tapered head tube and fork, front through-axle and titanium bottom bracket. This is a top-of-the-range bike with a lightweight, compact setup that achieves unbeatable agility for a 26’’ bike.
Frame and fork
- Frame: Jitsie Varial 26" 1085mm, made from 6061-T6 aluminium alloy, with 1 1/8" – 1.4" tapered head tube, 4-bolt rim brake mounts, silver with grey Jitsie graphics
- Forks: Jitsie Varial 400mm, 1 1/8" – 1.4" tapered steerer tube, 4-bolt rim brake mounts, silver with grey Jitsie graphics
Wheels
- Front hub: Jitsie HS100, 28 spoke holes, without rotor mounts, 100mm spacing, 10mm through-axle, anodized red.
- Rear hub: Jitsie HS116, 32 spoke holes, without rotor mounts, 116mm spacing, anodized red.
- Chain tensioner: Jitsie snail cams
- Front rim: Jitsie 26", single wall, 32mm wide, 28 spoke holes, anodized black
- Rear rim: Jitsie 19", single wall, 48mm wide, 32 spoke holes, anodized black
- Spokes: Jitsie 1.8mm, made of steel, black
- Spoke nipples: Jitsie alloy
- Rim tape: Jitsie Ultralight
- Front inner tube: Jitsie Light 0.9mm 26"
- Rear inner tube: Jitsie Light 0.9mm 26"
- Front tyre: Jitsie Reverz 26"x2.00"
- Rear tyre: Jitsie Reverz 26"x2.60"
Brakes
- Front brake: Trialtech HP, silver.
- Rear brake:Â Trialtech HP, silver.
- Rim brake pads: Jitsie Race
Drivetrain
- Cranks: Jitsie ISIS 7075, 170mm long, black with white Jitsie graphics
- Bottom bracket: Jitsie Race Titanium ISIS, 123mm axle
- Freewheel: Jitsie 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth
- Chain: KMC K1SL, gold
- Rear sprocket: Jitsie Race 15T Screw-on, made of aluminio, silver
- Pedals:Â Jitsie Single caged PedalsÂ
- Bashring: Jitsie bash ring, anodized black
Steering
- Headset: Jitsie 1 1/8" – 1.4" tapered internal headset, with sealed bearings, 5mm carbon spacer
- Stem: Jitsie Race 150mm x 25º, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics
- Grips: Jitsie foam, black with white Jitsie graphics
- Handlebar: Jitsie race Carbon, 730mm long, 110mm rise, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics
Geometry: (based on a fork of 400mm and +35mm offset)
(1) Wheelbase: 1085 mm
-----------------------------------------------
(2) Rear End: 380 mm
-----------------------------------------------
(3) Bottom Bracket Height: +70 mm.
-----------------------------------------------
(4) Head Angle: 71.5°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube: 660 mm
-----------------------------------------------
(6)Â Reach: 500 mm
-----------------------------------------------
(7)Â Stack: 417 mm
-----------------------------------------------
Weight
-Â 8.6kg
Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com .Â
| FRONT BRAKE | HS |
| REAR BRAKE | HS |
