Jitsie Race 26" Frame Kit (headset included)

Jitsie Race 26” Frame Kit (headset included)

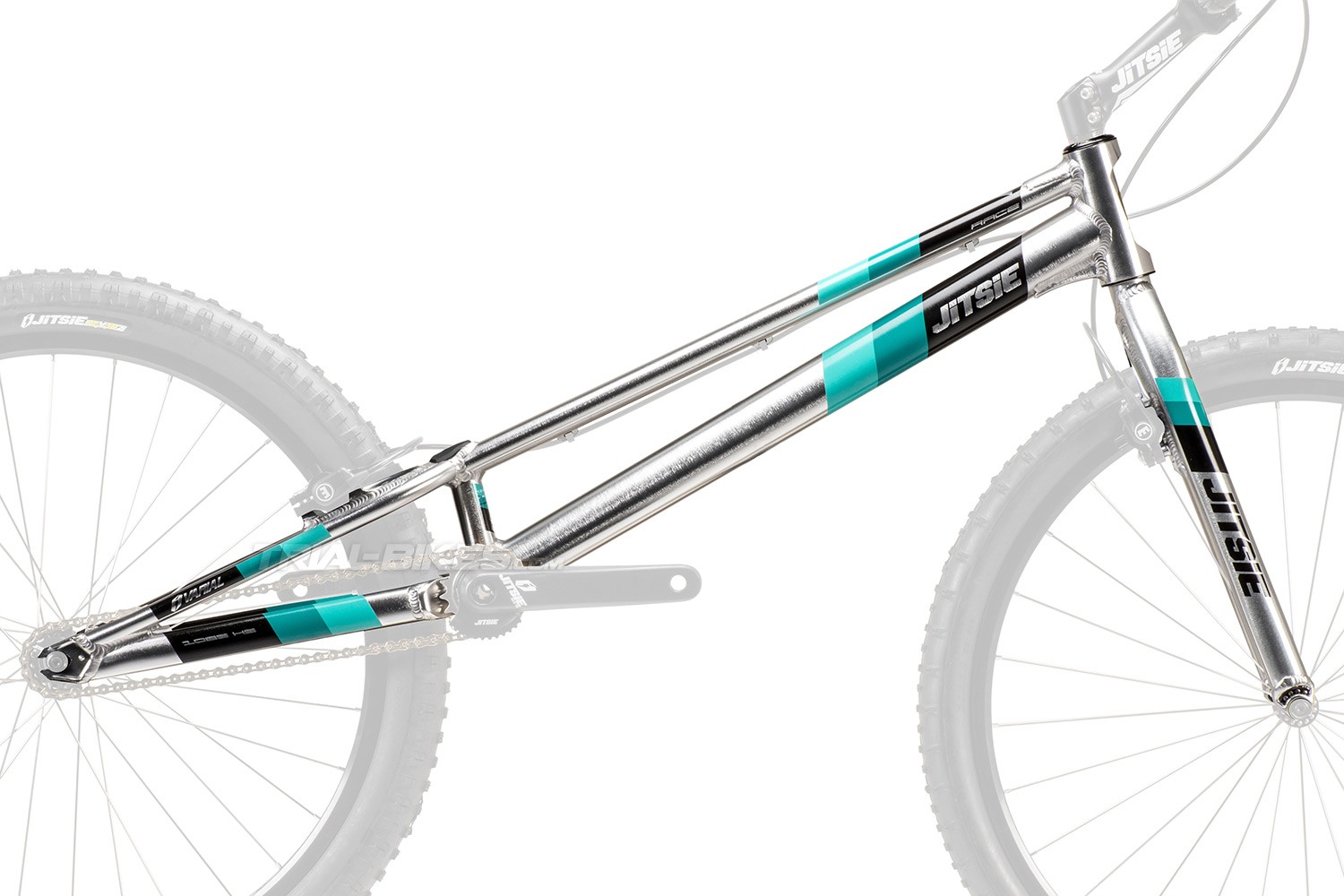

Jitsie Race 26” Nicolas Vallée’s replica trials frame and fork. Featuring a special Nicolas Vallée Replica silver finish and graphics!

Overall description
- Jitsie Race Nicolas Vallée Replica frame, fork and headset kit.
- These are the Jitsie Race frame, fork and headset used by Nicolas Vallée, with the new Nicolas Vallée Replica colour and graphics.
- This kit includes:
· 1x Jitsie Race Nicolas Vallée Replica frame.
· 1x Jitsie Race Nicolas Vallée Replica fork.
· 1x Jitsie 1 1/8 internal headset, with sealed bearings.

Main features of Jitsie’s Nicolas Vallée Replica frame
- Based around Jitsie’s 26” Varial 1085mm frame.
- Made of high quality, ultralight 6061-T6 aluminium alloy.
- 120mm long steerer tube, designed for a 1 1/8” internal headset (already included).
- 68mm bottom bracket shell, for traditional 1.37”x24tpi screw-on bottom brackets.
- Dropouts are spaced at 116mm and are designed to use snail cams.
- Features 4-bolt rim brake mounts, spaced at 100mm.
- More info here.

Main features of Jitsie’s Nicolas Vallée Replica fork
- Based around Jitsie’s 26” Varial HS fork.
- Made of high quality, ultralight 7005-T6 aluminium alloy.
- 200mm long steerer tube, designed for a 1 1/8” internal headset.
- Dropouts are spaced at 100mm, so they’re compatible with most trials hubs.
- Features 4-bolt rim brake mounts, spaced at 100mm at the back of the legs.
- Does not include a star nut (requires the large, 23mm (1”) version, available here).
- More info here.

Main features of Jitsie’s 1 1/8” headset
- Jitsie’s 1 1/8” internal headset.
- Super light aluminium cups and sealed bearings.
- More info here.

Colour
- Polished silver finish, with Jitsie’s Nicolas Vallée Replica black and aquamarine stickers.

Geometry
Fork:
- Offset: +35mm
- Steerer tube length: 200mm
- Total height: 400mm

Frame:
- Wheelbase: 1085mm
- Chainstays: 380mm
- BB rise: +70mm
- Head angle: 71.5º

Weight
- 2.47Kg (total weight of frame + fork + headset)
