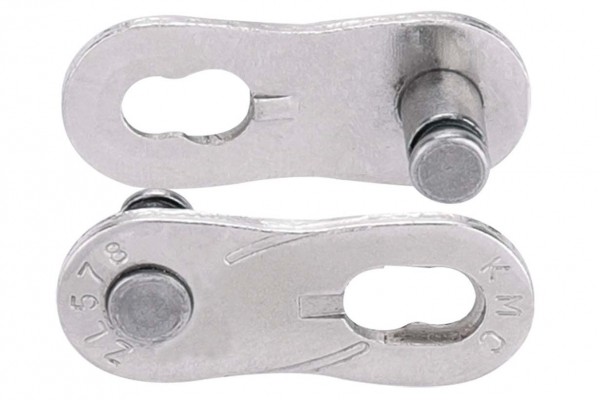

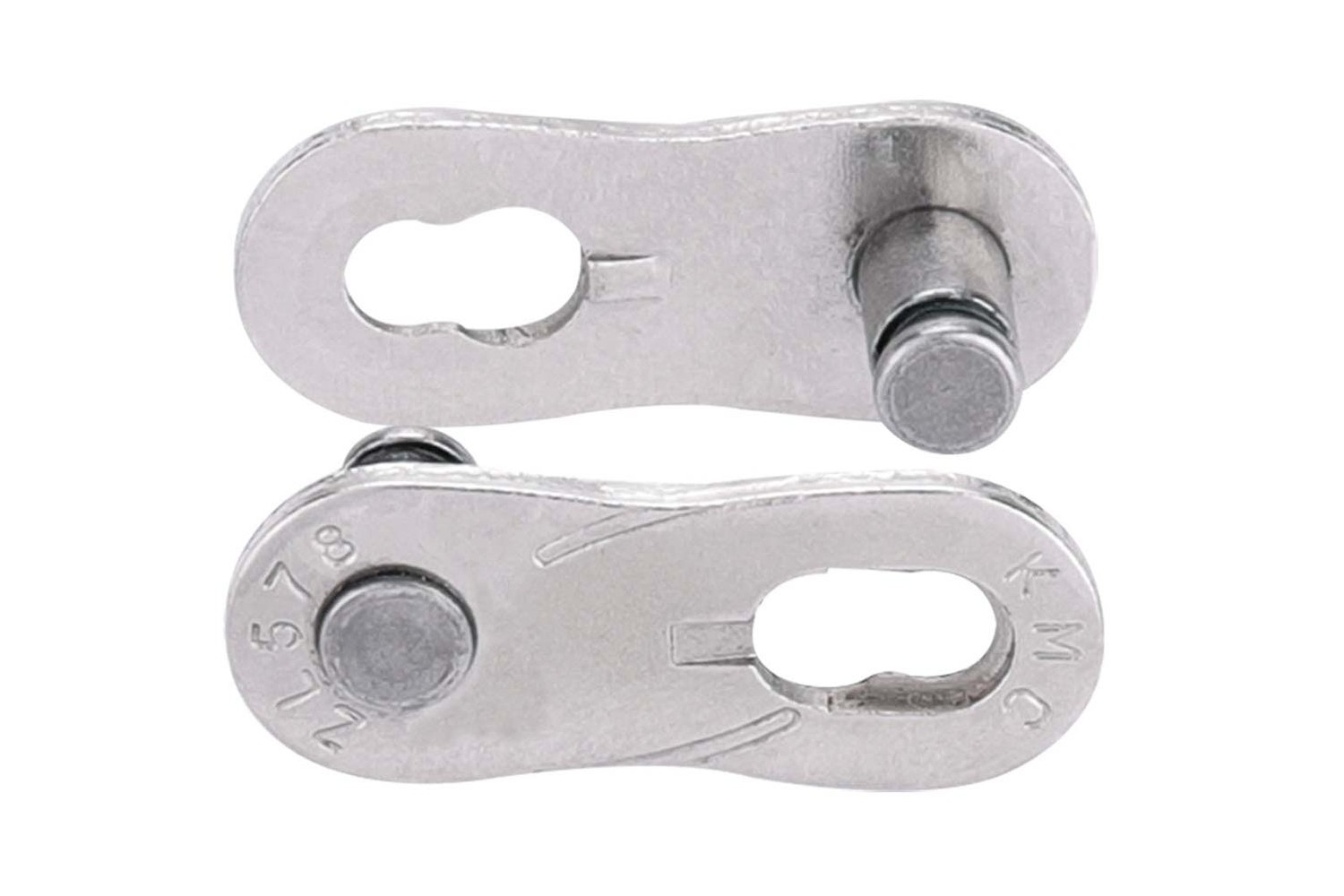

KMC Z1eHX Narrow EPT Missing Link

KMC Z1eHX Narrow EPT Missing Link

The KMC Z1eHX Narrow NR EPT Missing Link is the original replacement for KMC Z1eHX Narrow EPT single speed chains. Designed for narrow 3/32” chains, it allows a fast and secure chain connection.

Description and materials
- Original KMC Z1eHX Narrow EPT Missing Link.
- Compatible with KMC Z1eHX Narrow EPT chains.
- Designed for single speed chains with 1/2'' x 3/32'' size.
- EPT (EcoProTeQ) coating for improved corrosion resistance.
- Ideal spare part for Trial bikes with narrow drivetrains.

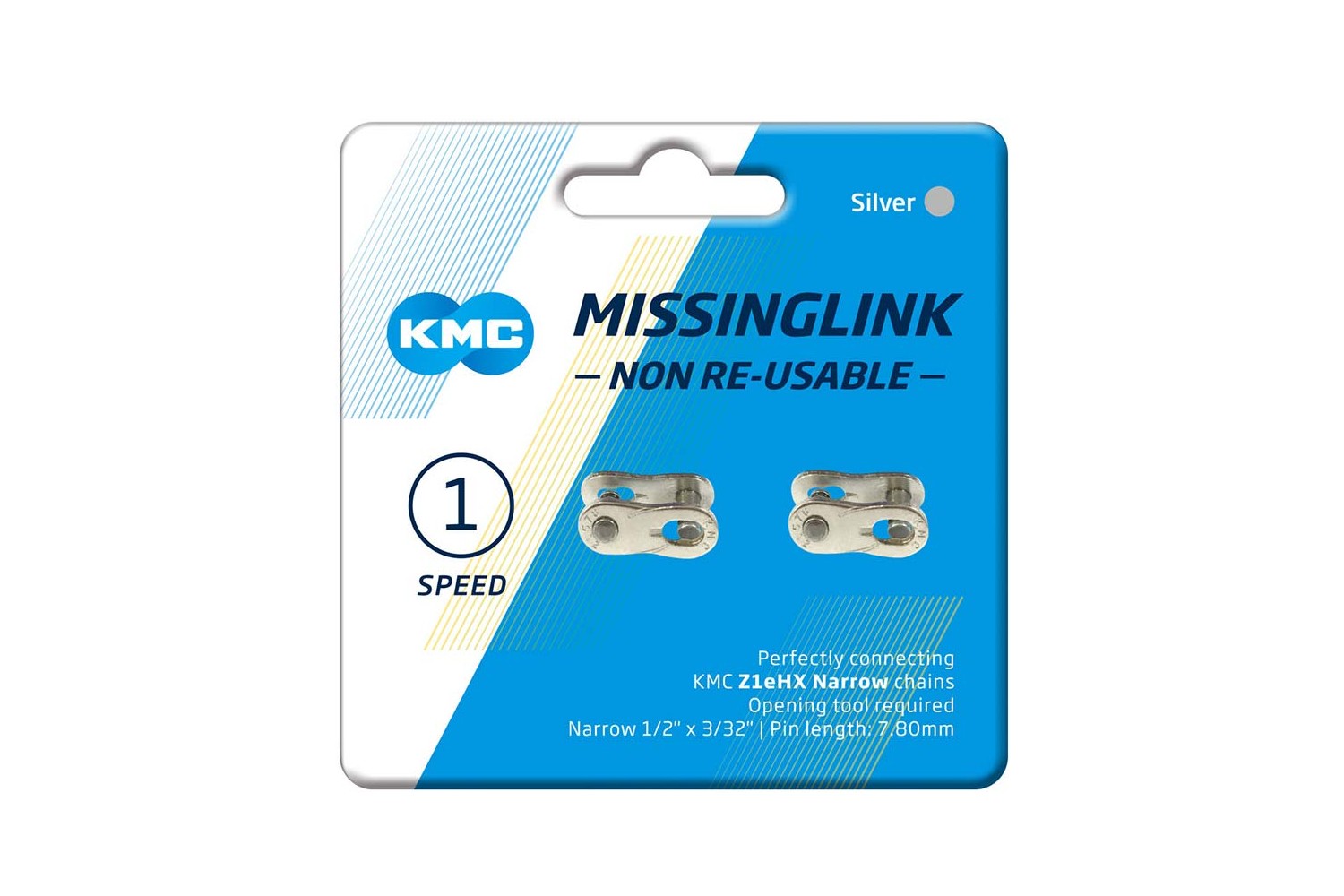

- Supplied as 1 unit.

Compatible with
- KMC Z1eHX Narrow EPT chains.
- 1/2'' x 3/32'' narrow chains.


Installation instructions:
Follow these steps for a safe and easy installation:
1. Insert the two halves of the Missing Link into each side of the chain ends.
2. Fit each pin into the elongated slot of the opposite side.
3. Use a specific tool (Link here ) to lock the Missing Link and fully close the chain.
4. If you need to open the Missing Link, apply force in the opposite direction with the tool until the link is released.

Dimensions
- Size: Narrow 1/2'' x 3/32''.
- Pin length: 7.80 mm

- Paso: Narrow 1/2'' x 3/32''.
- Anchura pin: 7.80 mm.
Finish
- Grey EPT.

Weight
- 3.40 g.
