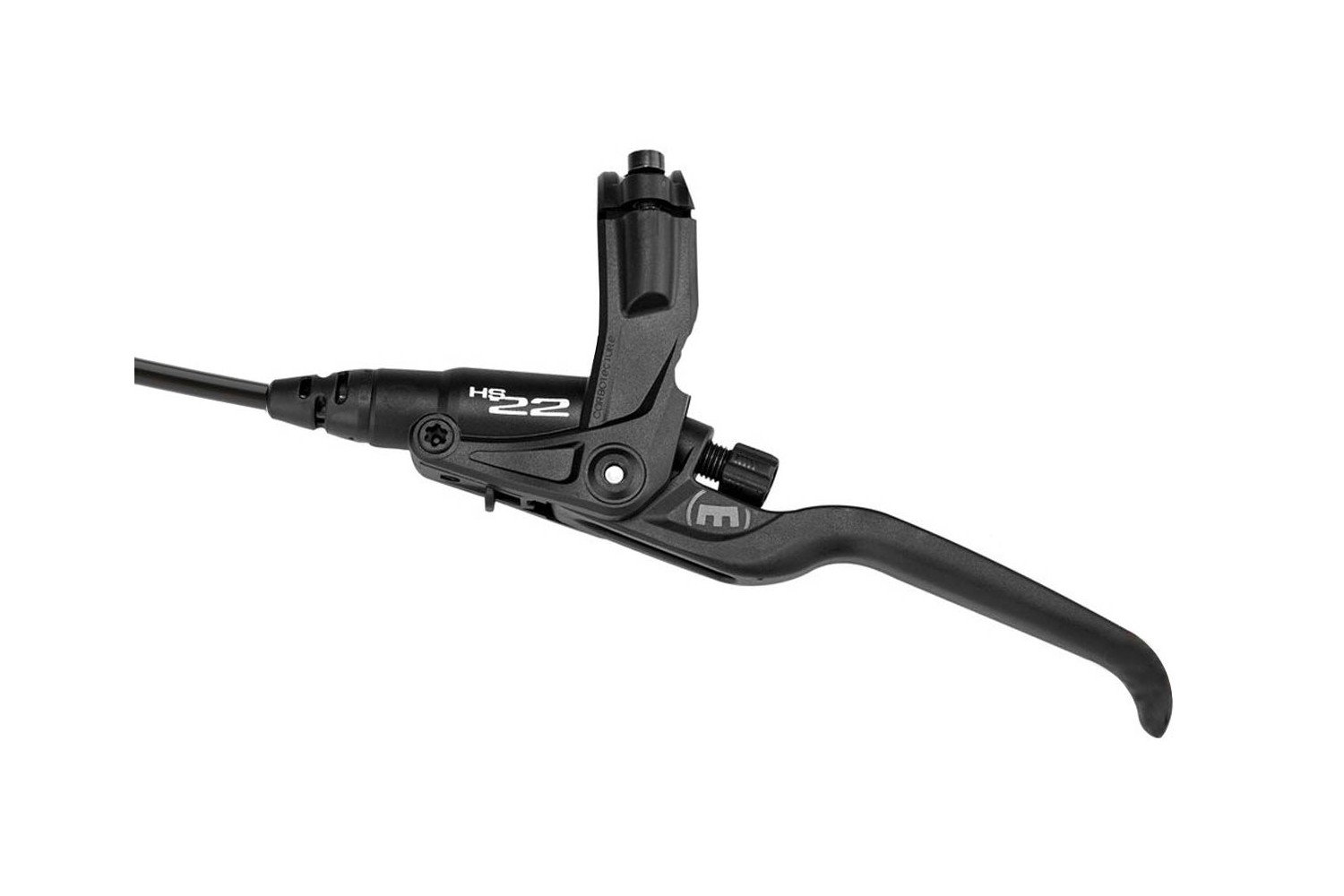

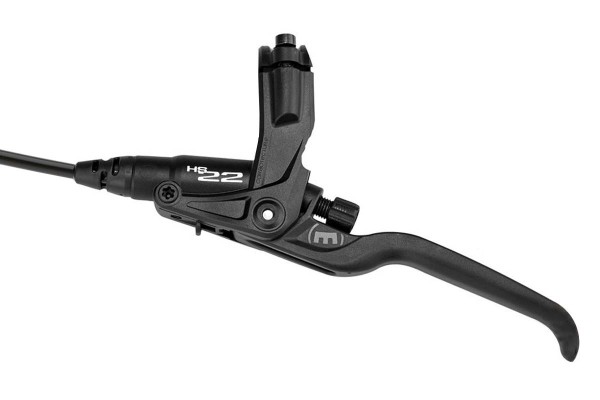

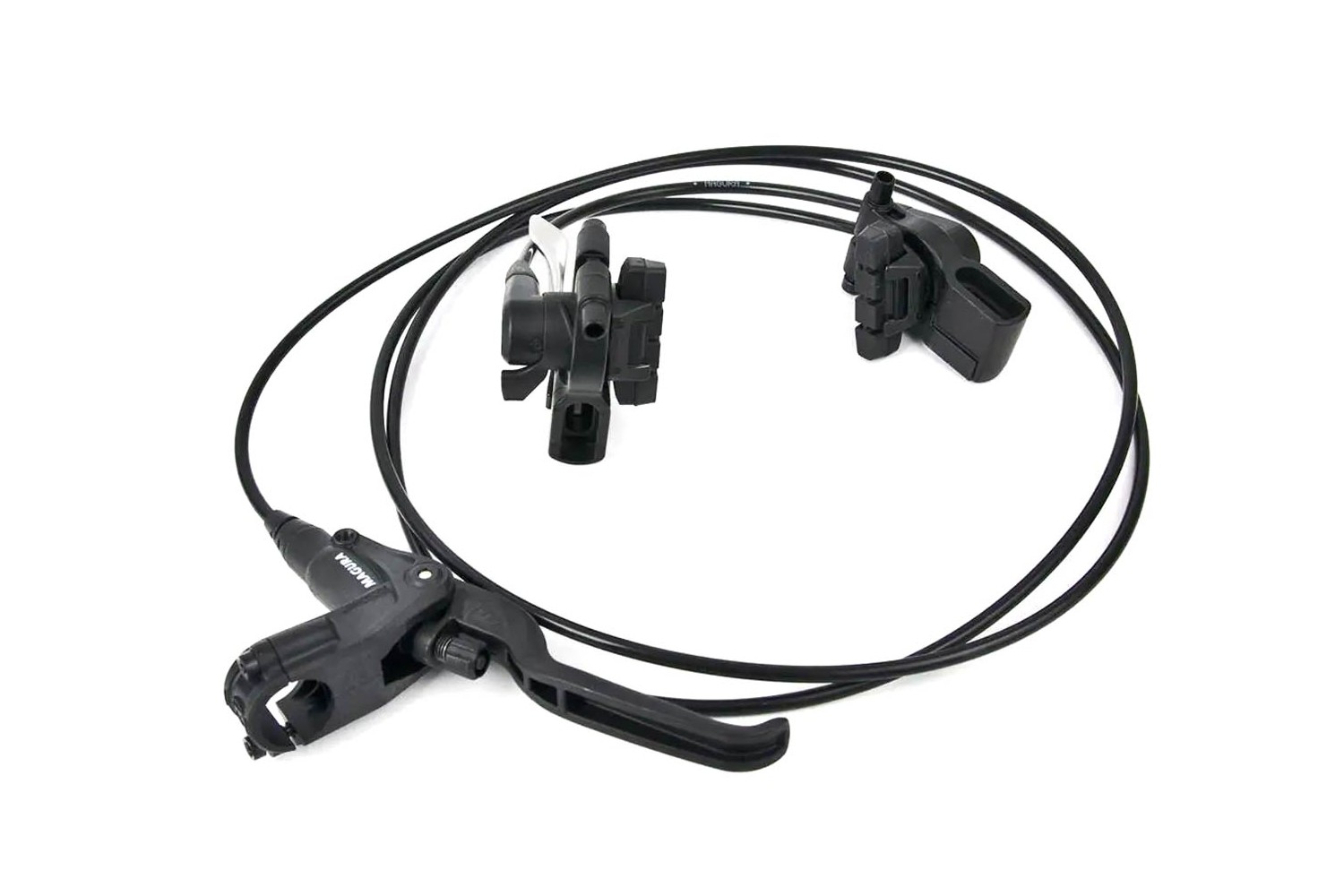

Magura HS22 hydraulic rim brake, equipped with the proven closed hydraulic system used throughout the Magura HS range.
- Reversible brake lever body made from Carbotecture, a lightweight and durable material developed by Magura.
- 3-finger brake lever designed to provide progressive and powerful braking.
- Features tool-free Reach Adjust, allowing the lever position to be easily adapted to the rider's hand.
- TPA system for adjusting the pressure point and compensating for brake pad wear.
- Reversible lever, suitable for installation on either the right or left side of the handlebar.
- Available in a front version with 840mm hose and a rear version with 1970mm hose.
- Supplied fully assembled and factory-bled with Magura Royal Blood mineral oil.
- Includes an M8 hose fitting and olive for shortening the hose to the required length. When cut and fitted correctly, the brake does not need to be bled again.

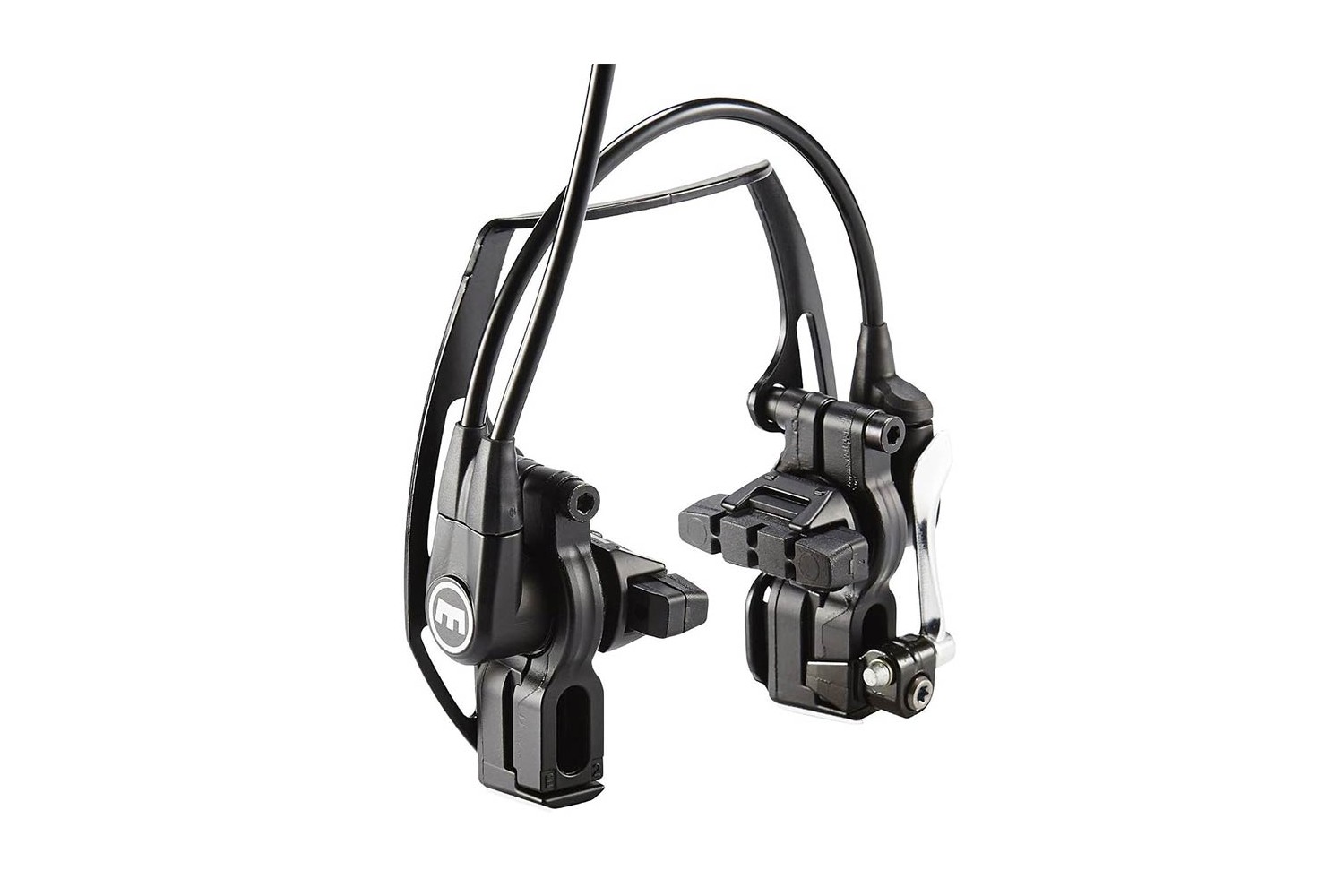

- Features Magura hydraulic slave cylinders and rim brake pads.
- Compatible with Magura EVO2 / Easy Mount mounting systems using the supplied brackets.
- Sold singly (1 brake), with front or rear version available.
Differences compared with the Magura HS11
- The HS22 sits above the HS11 within Magura's hydraulic rim brake range.
- Both models use a 3-finger lever, Carbotecture lever body, closed hydraulic system and Magura Royal Blood mineral oil.
- The main difference is that the HS22 features tool-free lever Reach Adjust, making it easier to adapt the lever position to the rider's hand.
- The HS22 also features the TPA system to compensate for brake pad wear and adjust the pressure point.
- As a result, the HS22 offers greater adjustment possibilities than the HS11 while retaining the proven operation and reliability of the Magura HS range.
Includes
- 1x Complete reversible Magura HS22 brake
- 2x Magura brake pads
- Magura EVO2 Easy Mount brackets / adaptors
- 1x M8 hose fitting for shortening the hose
- 1x Olive for shortening the hose
Finishes
- Black
Weight
- Front: 250.02g
- Rear: 271.02g
- Mounting brackets and accessories: additional 311.04g
Additional information
If you want us to shorten the brake hose to a specific length, simply write the required measurement in the order comments when placing your order and we will do it for you. Please note that dispatch may be delayed by 24/48 hours.
