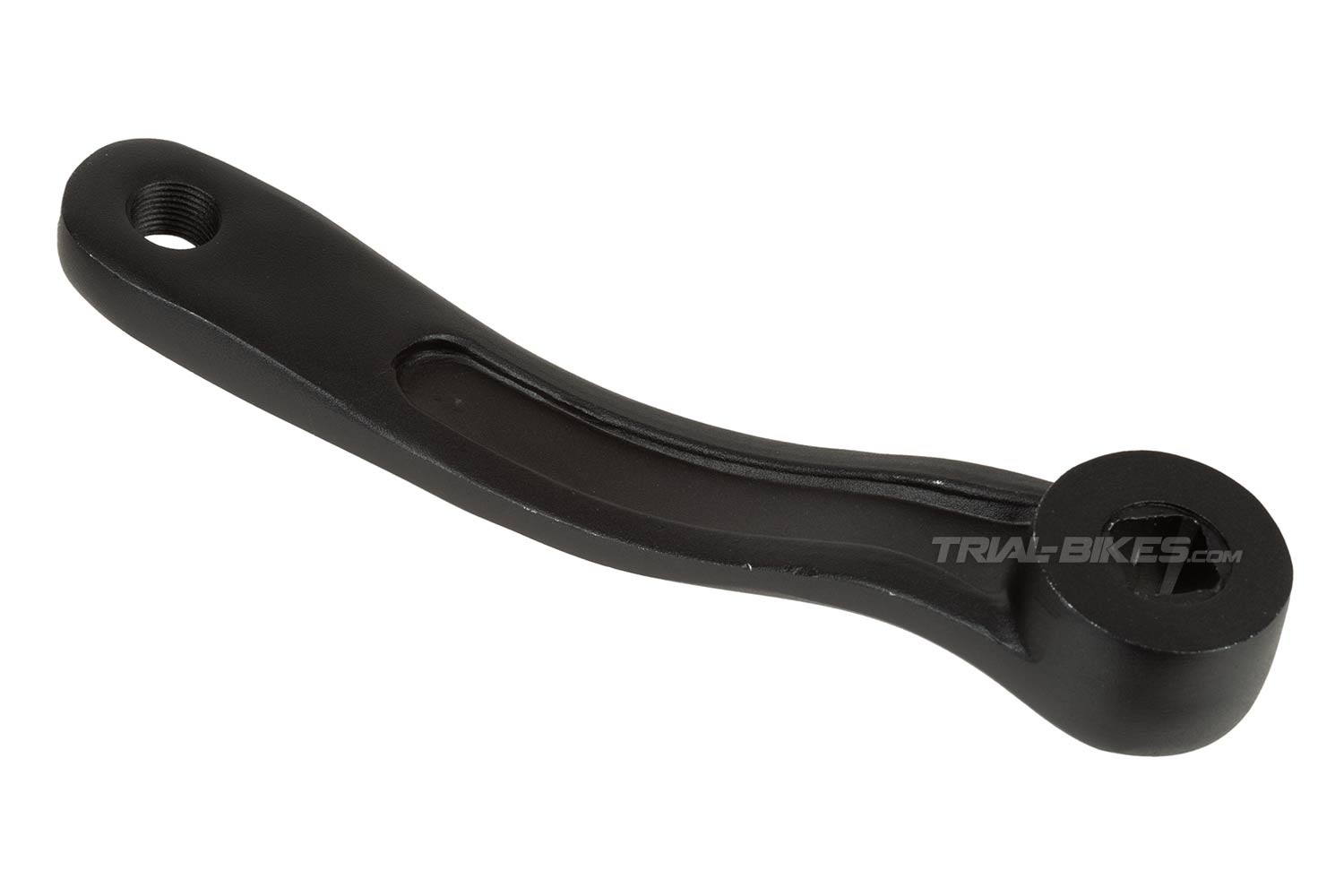

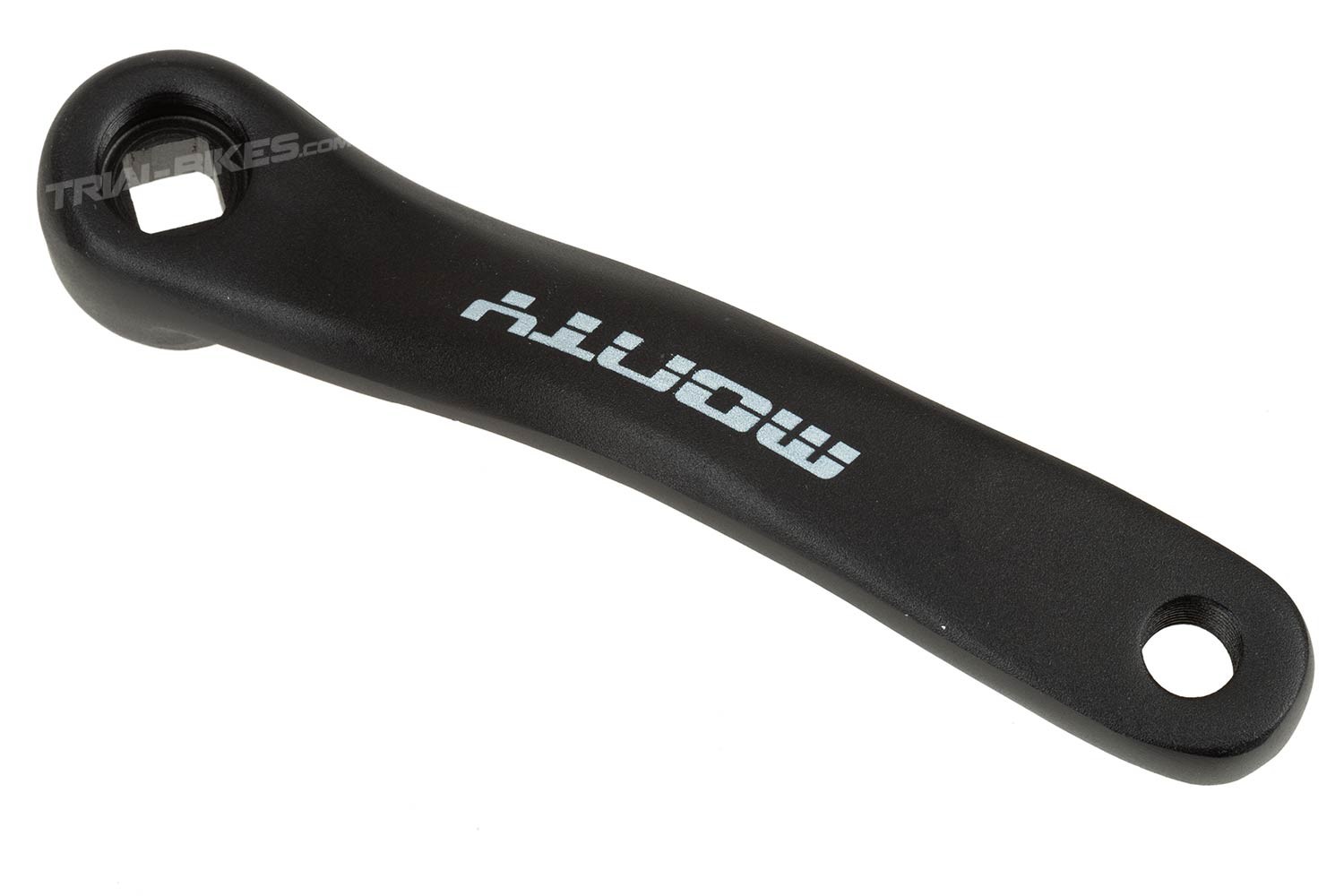

Monty Kaizen JIS Left Crank

Monty Kaizen JIS Left Crank

- Square taper (JIS) crank manufactured by Spanish brand Monty.
- These are the left crank installed on all Monty 218 and 219 Kaizen bikes.
- Each crank has been forged from 6061-T6 aluminium alloy.
- The pedals and BB threads are made on a high-accuracy CNC machine, in order to ensure a high quality standard.
- Each crank features a recess on the inside in order to remove any excess material.
- Standard JIS (square taper) BB interface.
- These cranks have a 35 mm offset, which helps prevent them from rubbing against the seat stays or rim brake cylinders.
- Only available in 158 mm size.

Compatible with:
- Pedals with standard 9/16” thread.
- JIS bottom brackets.

Dimensions
- Length: 158 mm.
- Offset: 35 mm.

Finishes
- Black, with white Monty logo.

Weight
- 190.38 g.
