Monty M5  Carbon Tapered 20" Fork Expand

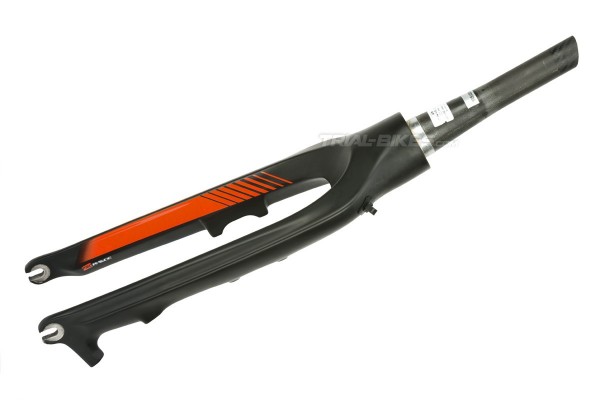

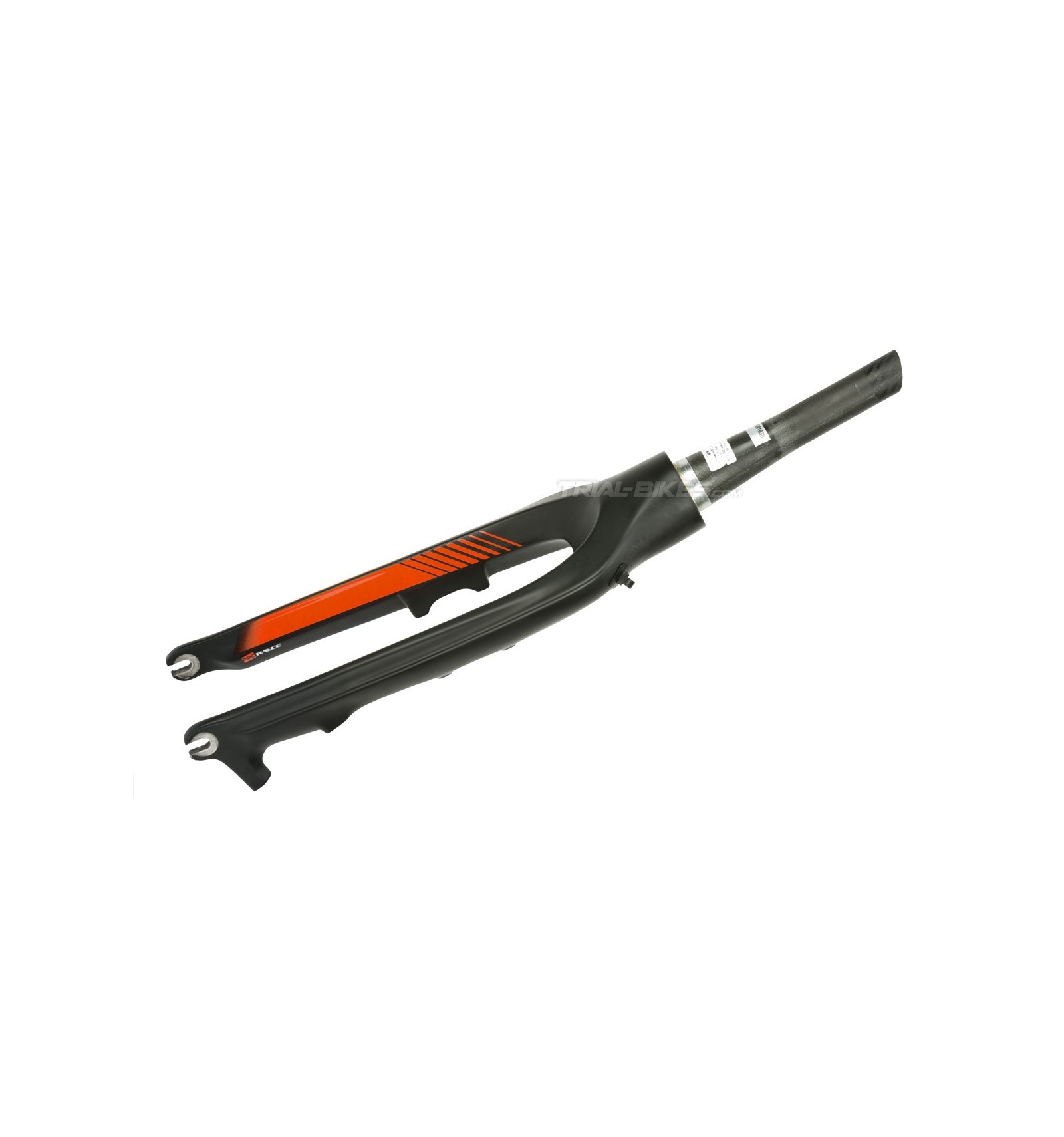

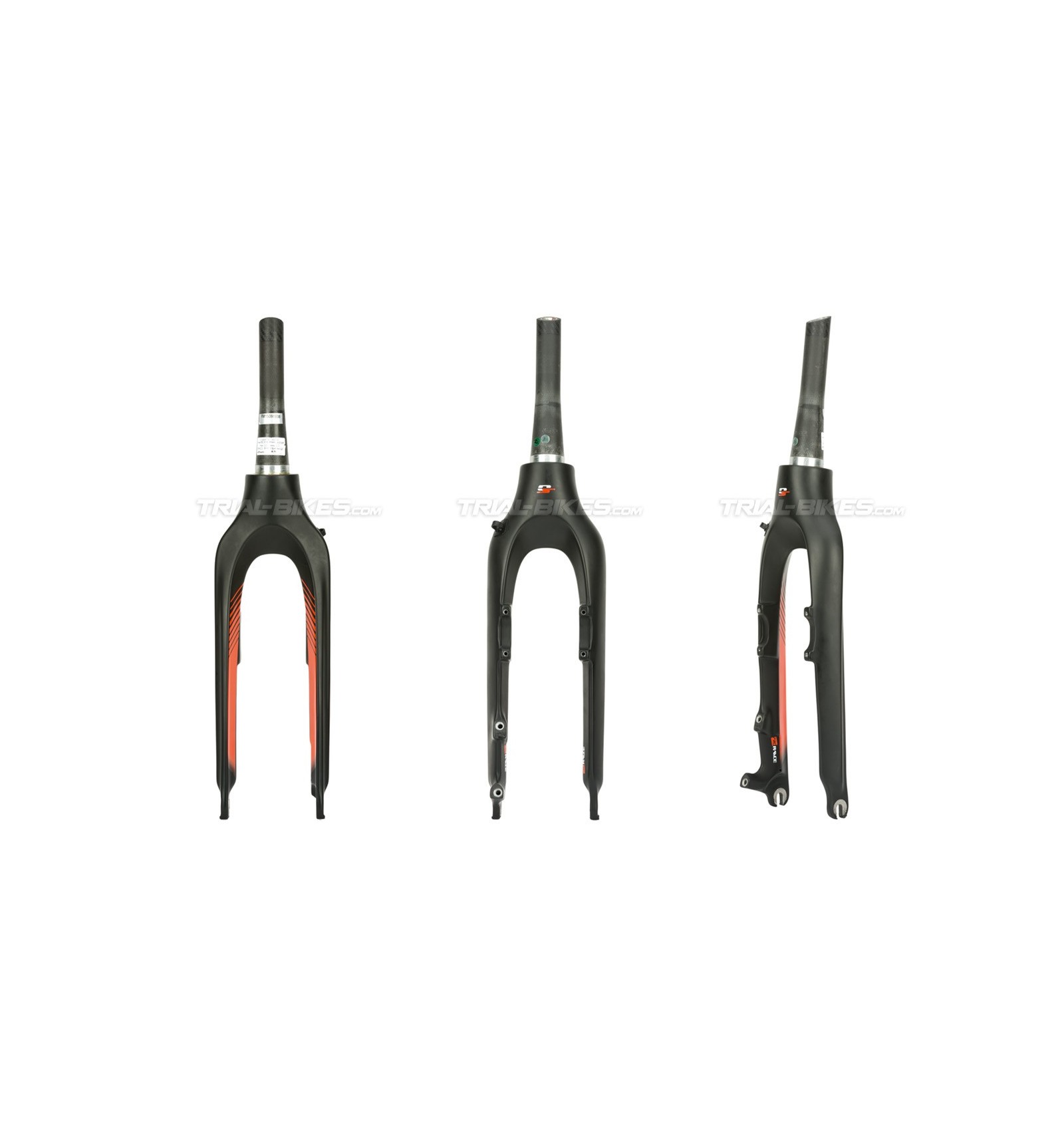

Monty M5 Carbon Tapered 20" Fork

MONTY MONTY

537843

New

 Description and materials

More details

This product is no longer in stock

329,75€

Ask a question


 Description and materials
- New high quality Monty M5 Carbon 20” fork.
- Developed and tested for months by Monty team riders Ion Areitio, Vasek Kolar and Lucien Leiser.
- This is the fork supplied with the Monty M5 OS 20” Carbon bike.
- Manufactured from ultralight unidirectional (UD) carbon fibre, which allows for high strength and stiffness.

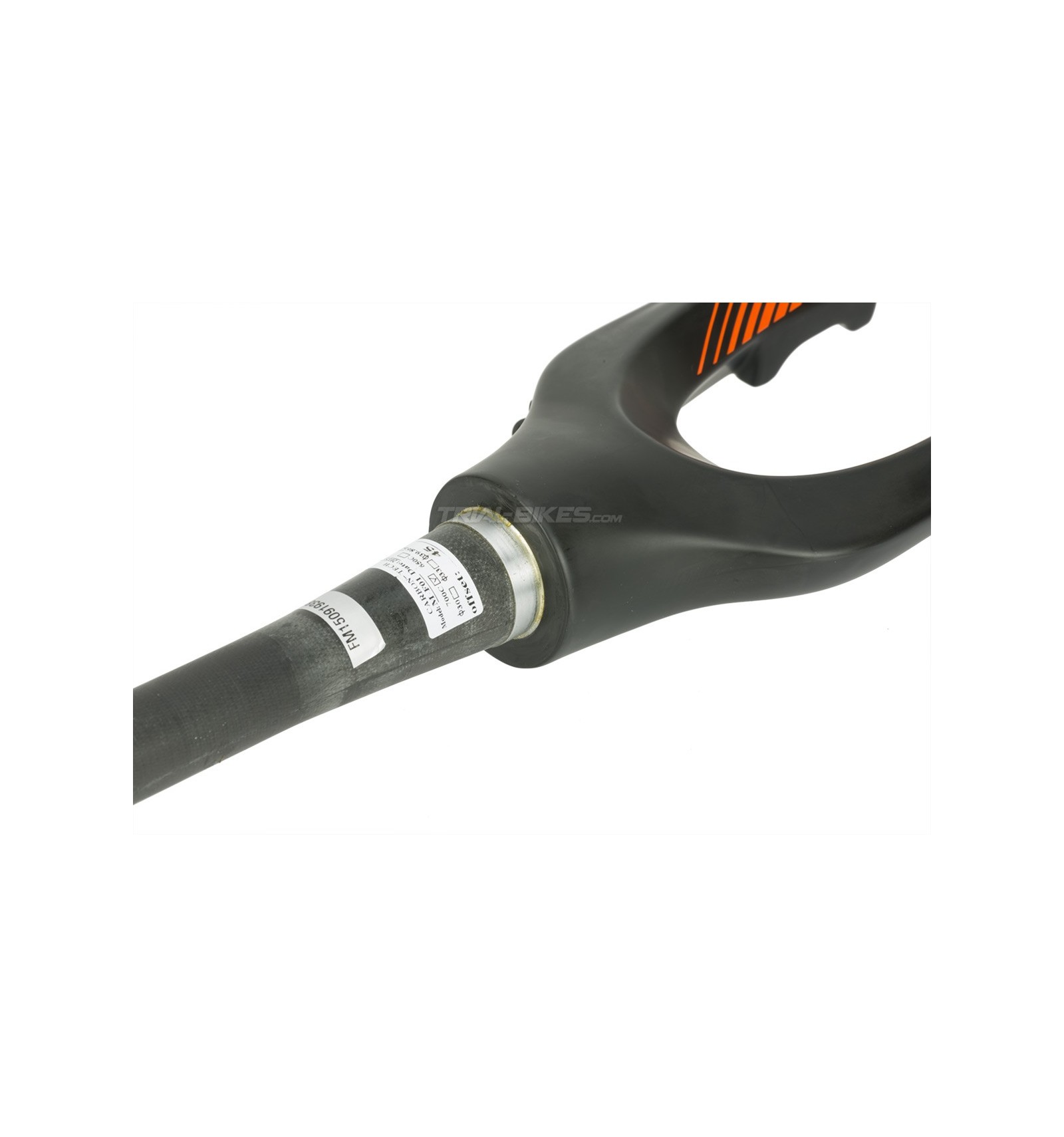

- Features a tapered steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom, for use with tapered headsets of said diameters.
- Features aluminium inserts on critical areas like the crown race area, brake mounts threads and at the dropouts.
- The steerer tube is made in one piece, and has a threaded insert that acts as a star nut.
- A crown race must be installed to ensure the headset stays tight.
- Only available with 4-bolt and Post Mount brake mounts.

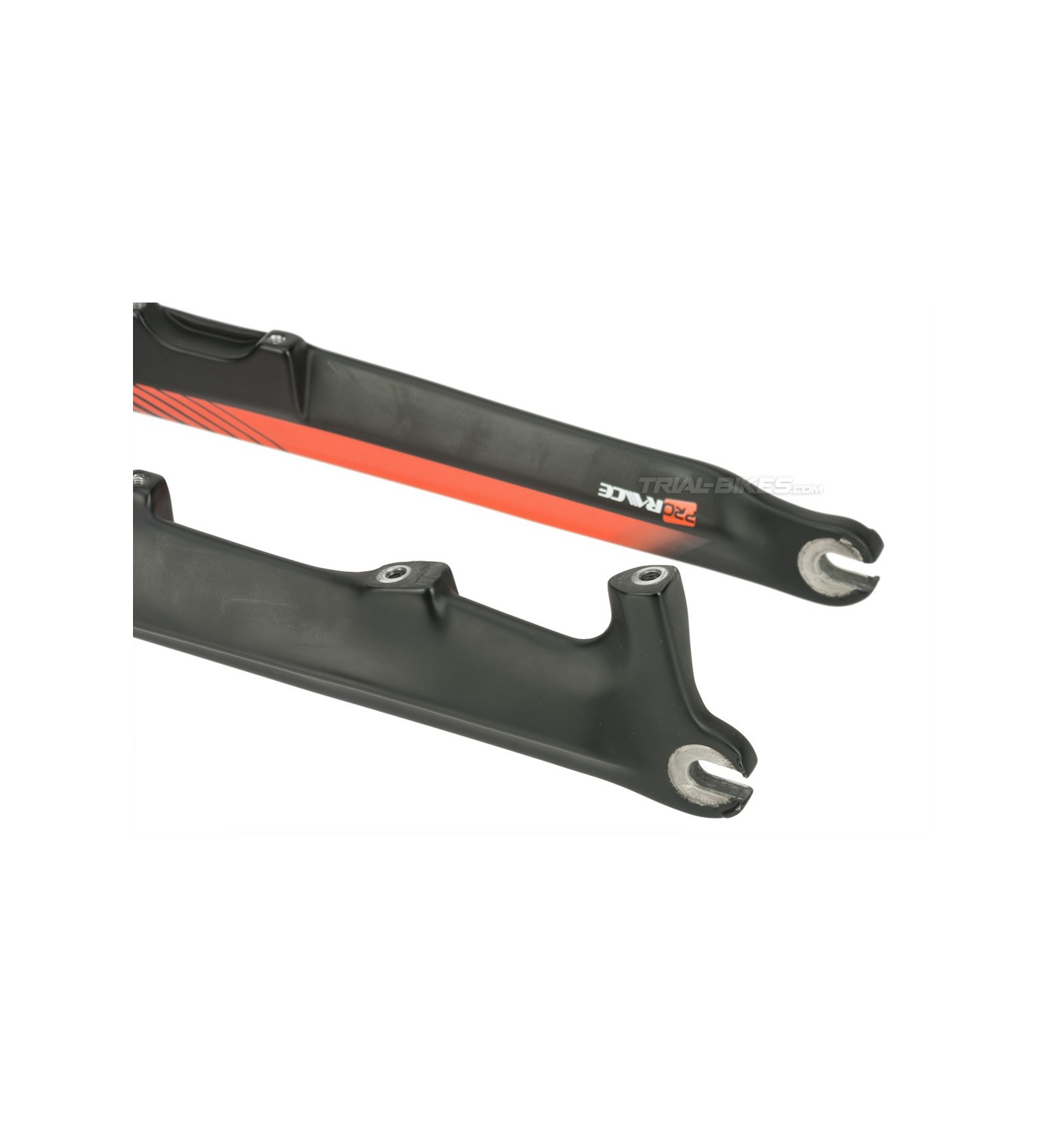

- The 4-bolt rim brake mounts are integrated at the back of the legs, spaced at 87mm, and reinforced with aluminium thread inserts.
- The Post Mount brake mounts are also reinforced with aluminium inserts for the threads, and they are designed to use a 160mm rotor.
- Furthermore, it features a hose guide on the left leg.

Compatible with:
- Front hubs with 100mm spacing.
- Not compatible with those frames that have a standard 1 1/8” steerer tube. A tapered 1 1/8” – 1.5” headset or a headset adaptor must be used to install this fork.

Dimensions
- Length: 380mm
- Offset: +45mm
- Steerer tube length: 165mm (lowest point) and 176mm (tallest point)
- Steerer tube thickness: 6.3mm

- 4-bolt mounts spacing: 87mm
- Hub spacing: 100mm

Finish
- Matt black, with classy Monty Pro Race OS orange graphics.

Weight
- 603.28g
WEIGHT 0.603
WEIGHT 0.603
WEIGHT 0.603
WEIGHT 0.603
MATERIAL Carbon
BRAKE MOUNTS HS
BRAKE MOUNTS Post Mount Disc
STEERER TUBE Tapered 1 1/8” - 1.5”
