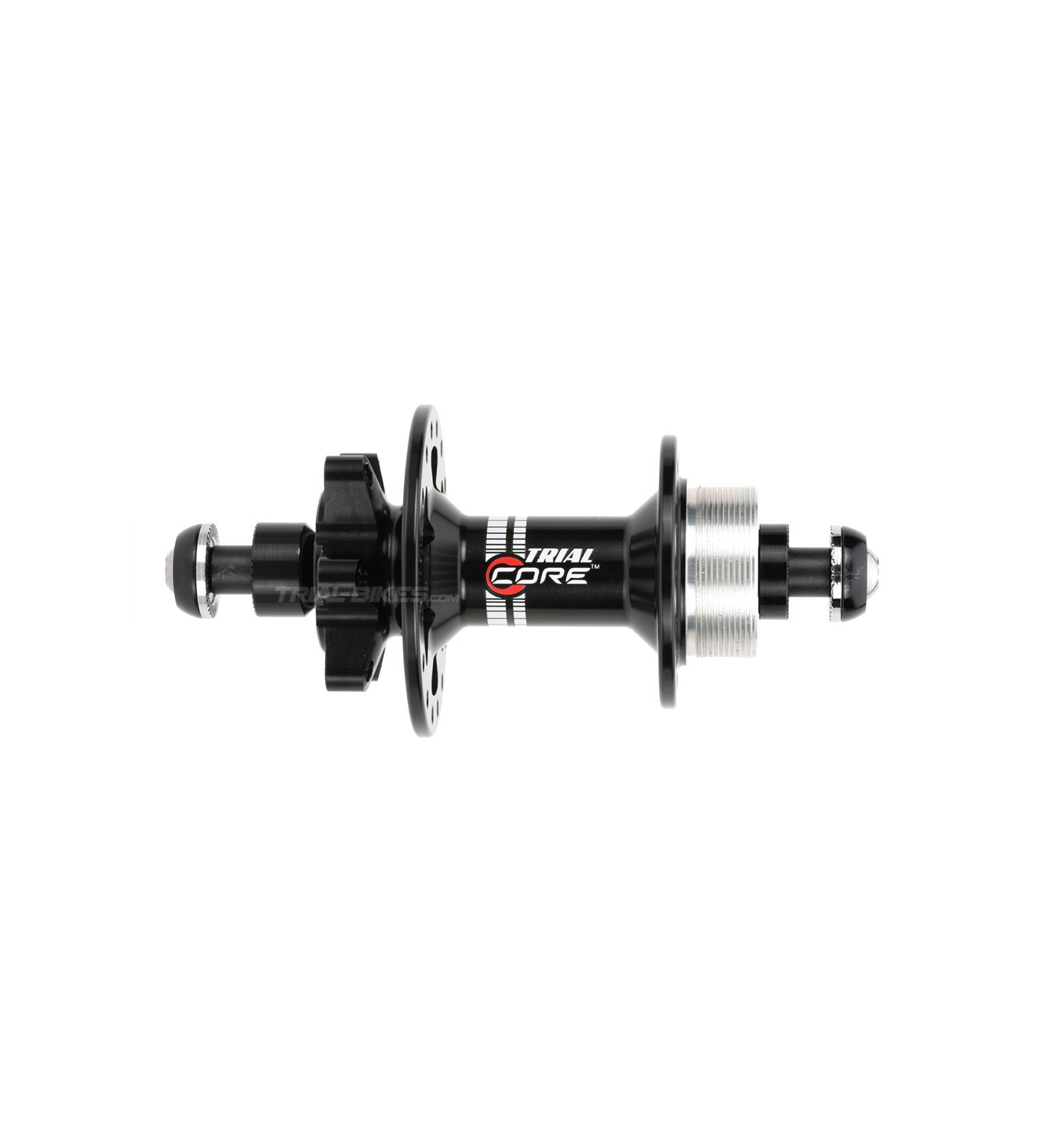

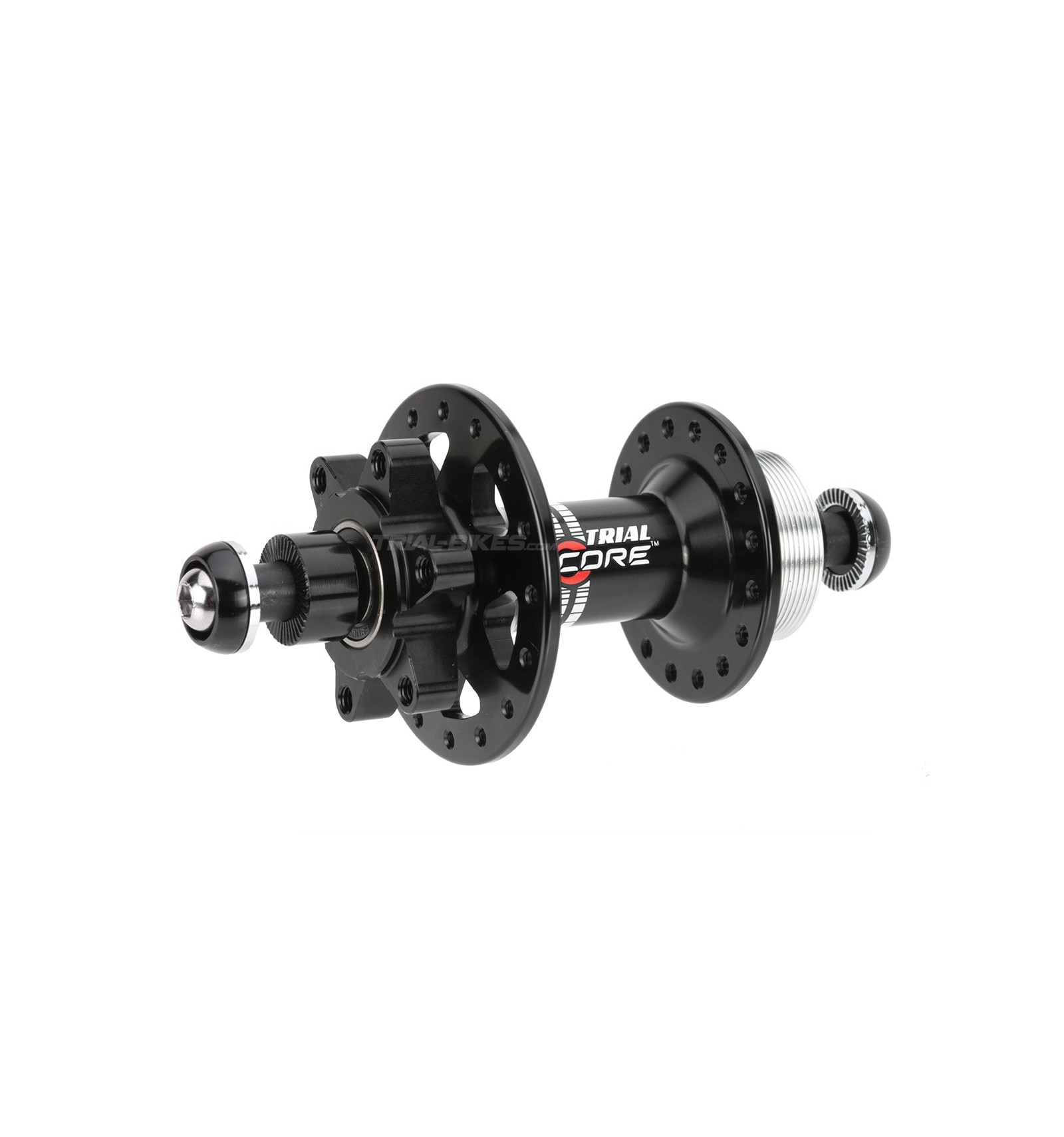

Monty TrialCore 32H 105mm Rear Disc Hub

Description and materials
- New rear hub from Spanish brand Monty’s new TrialCore range.
- Developed and tested by Monty team riders Ion Areitio, Vasek Kolar and Lucien Leiser.
- The hub shell is made from 7075-T6 aluminium alloy, which is strong and lightweight.
- The axle is hollow, it’s made of steel and has a 9mm diameter and M6 inner thread.
- 105mm width, ideal to combine with 3mm-thick snail cams to get the common 110/111mm spacing required for Monty frames.
- Features high quality S6900 sealed bearings and 32 spoke holes.
- International standard 6-bolt rotor mounts.
- Includes M6x20mm steel bolts and serrated conical washers that help keep the wheel in place.

Compatibility with:
- Monty frames, but only those models with 110mm dropout spacing (not compatible with 218/219 Kamel frames).
- Rims with 32 spoke holes.
- Disc brake rotors with standard 6-bolt fittings.

- Bearings reference: S6900.

Not compatible with:
- Frames from other brands (most frames use 116mm or 135mm rear hubs, so this one won’t fit).

Dimensions
- Axle length: 105mm
- Axle diameter: 9mm

- Number of spoke holes: 32 (32H)
- M6x20mm Allen bolts

Finishes
- Black, with white and red Monty TrialCore graphics.

Weight
- 260.58g! (+21.40g of bolts and washers)
