Play KII Mini Bashplate Expand

Play KII Mini Bashplate

PLAY PLAY

537782

New

Description and materials

More details

This product is no longer in stock

20,66€

Ask a question

Description and materials

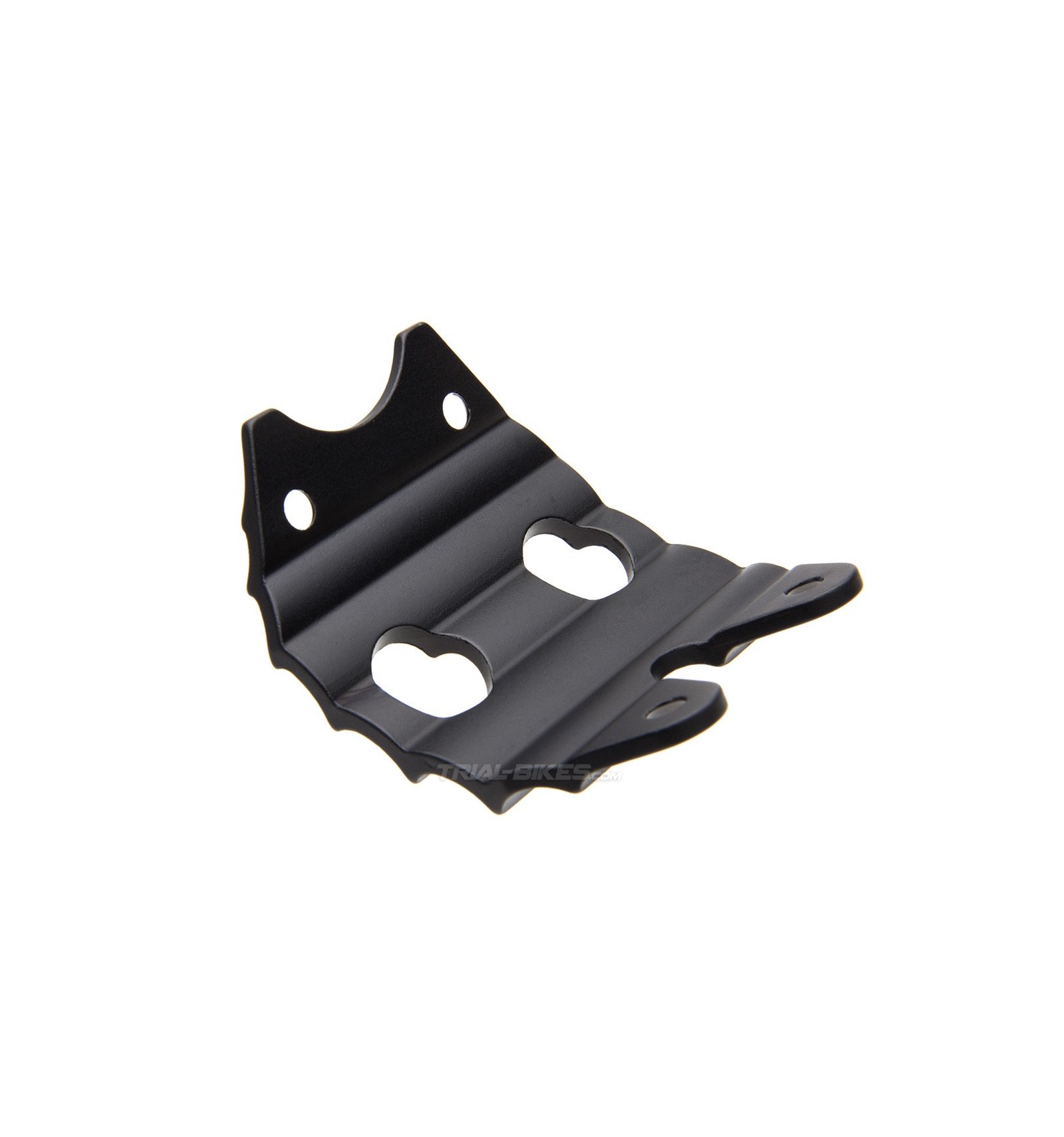

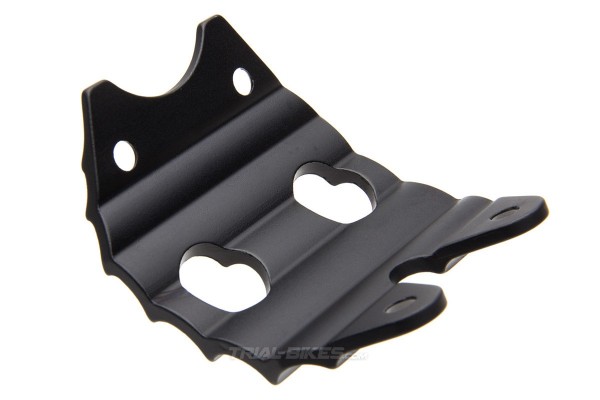

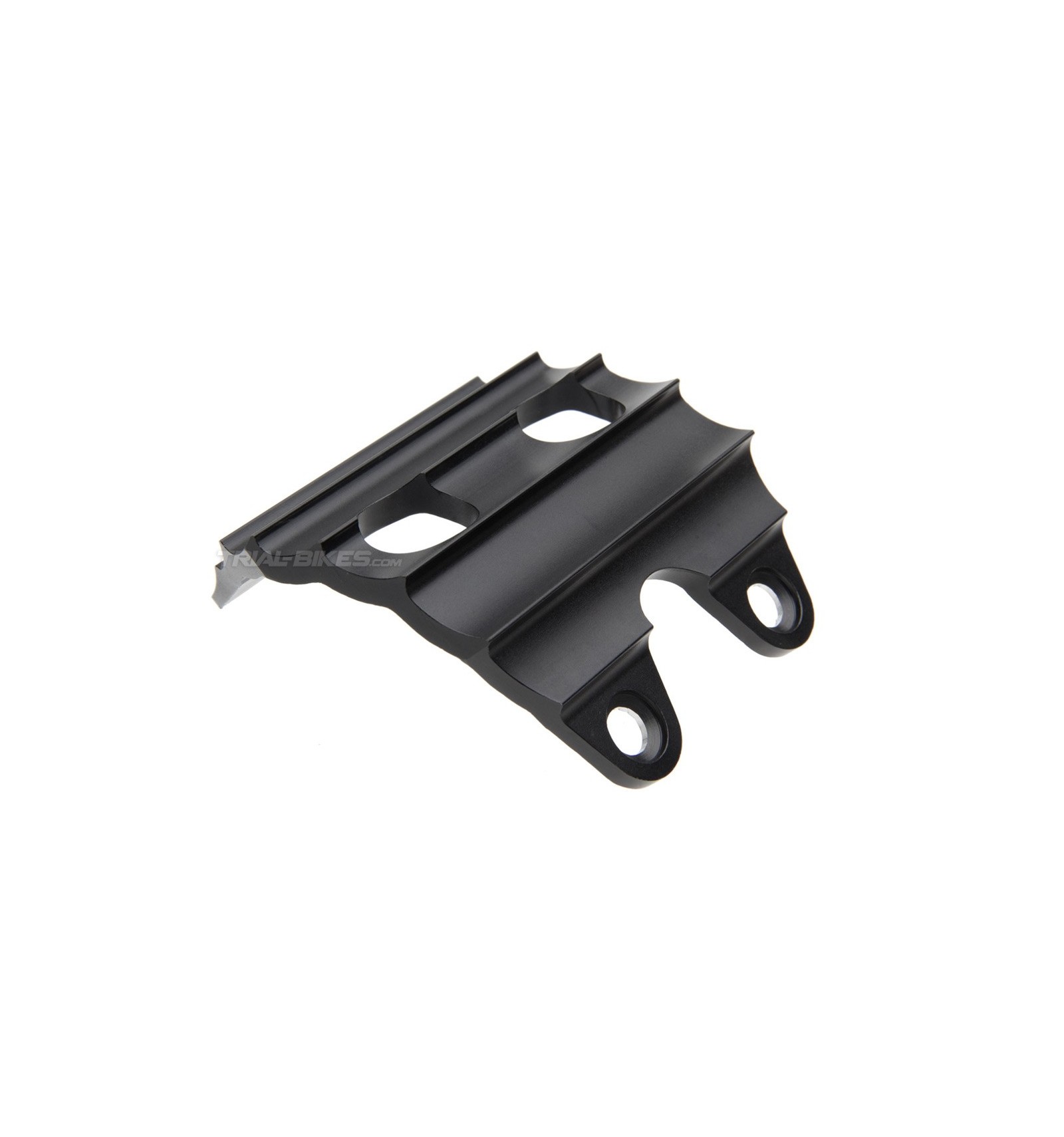

- New ultralight mini-bashplate from young Asian manufacturer Play.
- Features the original “mini” design recently introduced by Koxx, which is catching on in the Trials market.
- With this design, the bashplate goes attached to the bottom bracket tube instead of the down tube, which avoids damage transmission to the down tube, one of the main breakage problems seen historically in trials frames.
- Furthermore, it’s a much more compact design, thereby reducing the weight by almost half of a traditional plate.
- Made from high quality 6061-T6 aluminium.
- Its particular design is only suitable for “mini” bashplate 4-bolt mounts, as the ones in recent Neon, Play, Koxx, Breath, Hashtagg and other frames. Some thicker washers might be needed (get in touch if you have any doubts!).
- Two CNC mechanized holes help reduce unnecessary weight without compromising overall strength.
- The external profile is saw-shaped, with deep teeth that ensure maximum grip on any surface when on the bashplate.

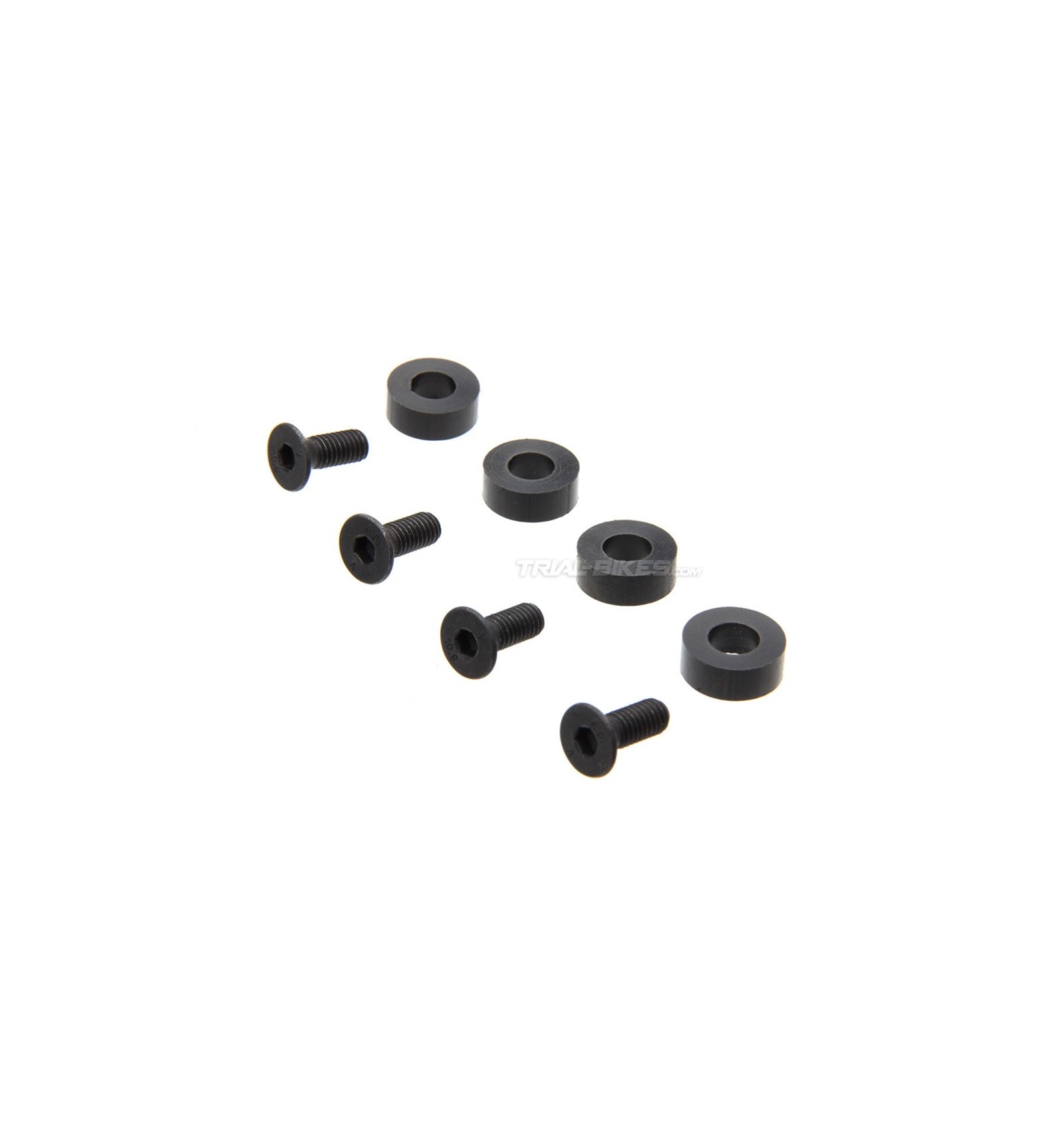

- Supplied with 4 bolts and 4 washers (6mm).
- Only available in anodized black finish.
- Please note: check the compatibility section below to make sure this bashplate fits your frame.

Dimensions
- Length: 68mm (from the front bolts to the rear holes)
- Width: 80mm
- Thickness: 4mm

Compatibility
This bashplate requires the use of some washers for fitting these frames:
· Play K2 and K2.5 20”: 6mm washers
- Kabra 2015: 6mm washers
· Breath Yes 20”: 3mm washers
· Koxx Sky 20”: 3mm washers

Finishes
- Anodized black finish

Weight
- 73.5g

Additional Information
In case you need any help, get in touch!
