Racing Line Hub Axle Expand

Racing Line Hub Axle

RACING LINE RACING LINE

New

Description and materials

More details

10,66€

Model .
 Front

 Rear

Ask a question

Description and materials

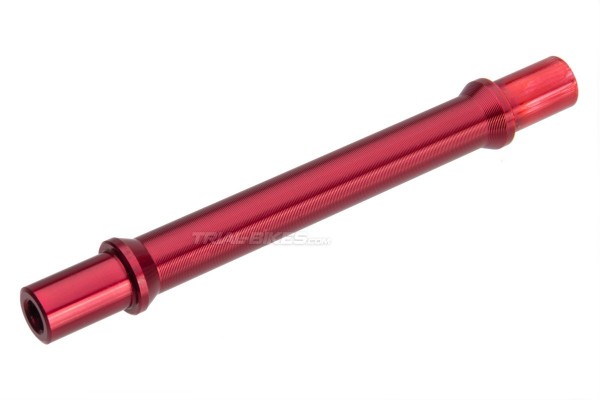

- Replacement hub axle from Asian brand Racing Line.
- Each axle is CNC-machined from a single piece of high quality 7075-T6 aluminium alloy.

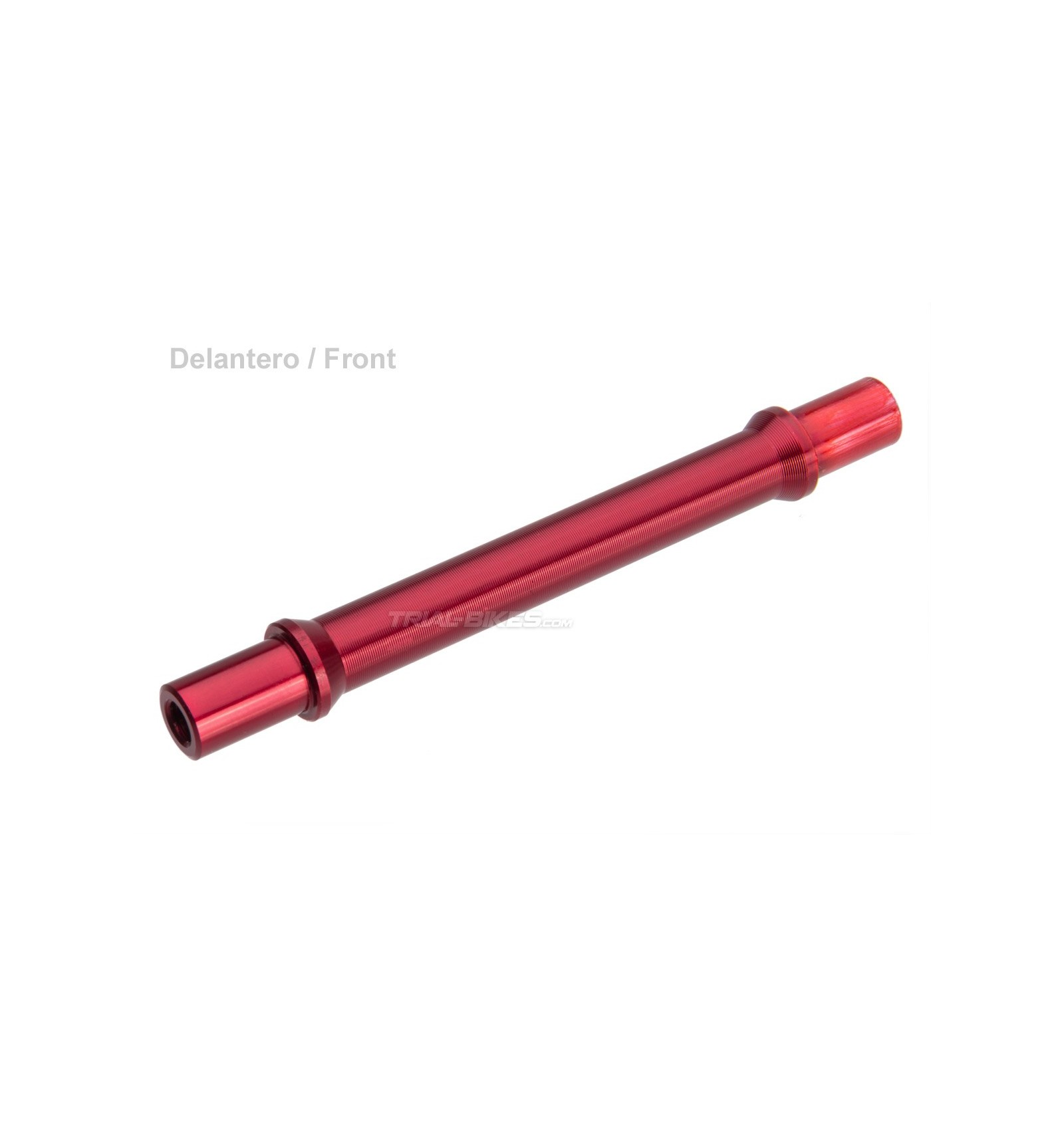

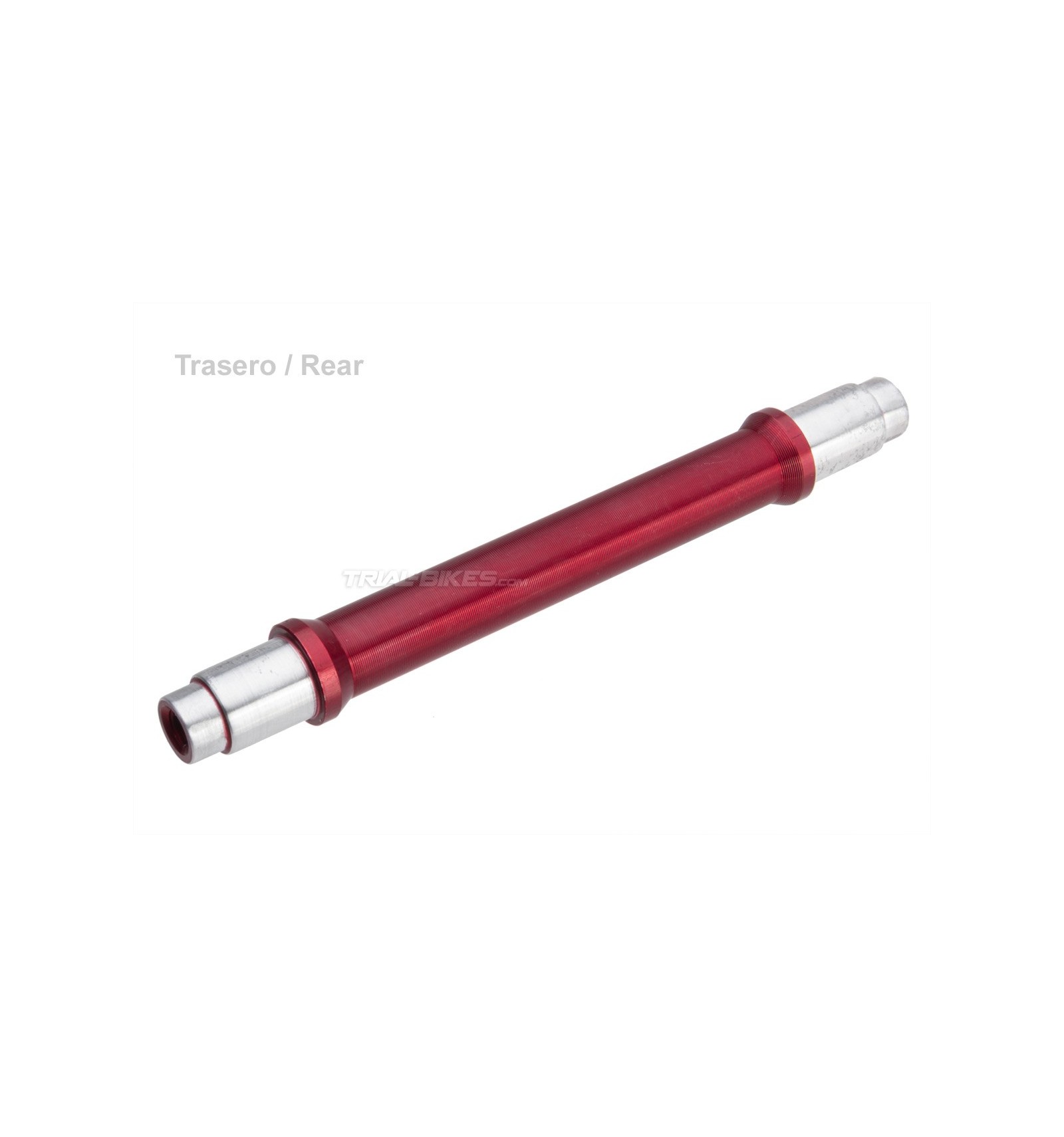

- This is the axle of the Racing Line Carbon non-disc hubs, available in two versions: for the front hub or rear hub.
- The front hub version has a 10mm diameter and a 78mm distance between bearing stops, whereas the rear hub version has a 12mm diameter (10mm at the ends) and a 86mm distance between bearing stops.
- Therefore, this axle might suit other hubs that require the diameter and lengths described (get in touch if you have any doubts!).
- Anodized red finish.
- Sold singly.

Dimensions
- Distance between bearing stops: 78mm (front), 86mm (rear)
- Spacing: 100mm (front), 106mm (rear)
- Axle diameter: 10mm (front), 12mm (rear, 10mm at the ends)

Finishes
- Anodized red finish

Weight
- 18g (front), 32g (rear)

Additional information
If you have any doubts regarding this axle, please get in touch!

WEIGHT 0.018
