Reduced price! Rockman Radix 24'' Frame Expand

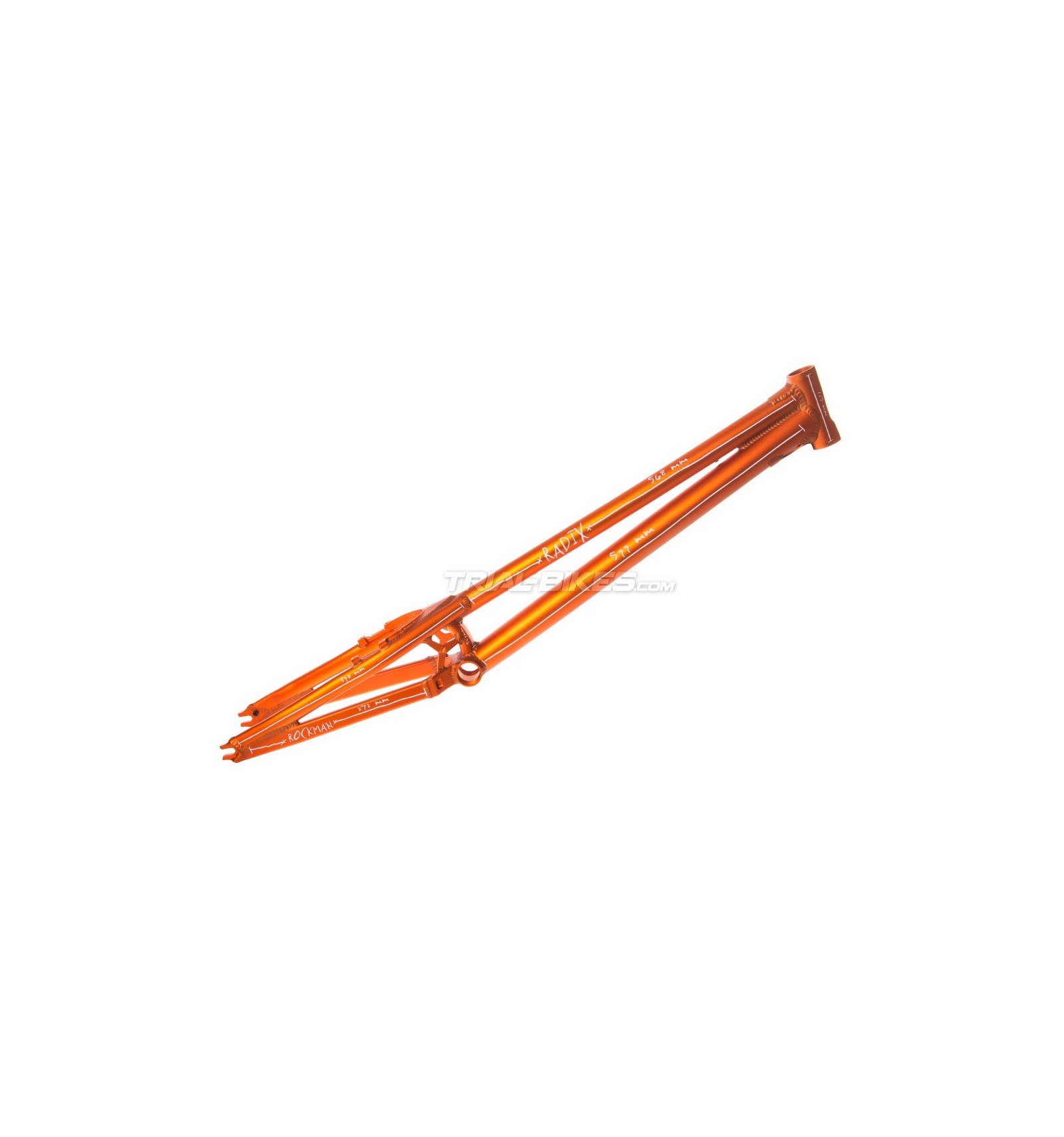

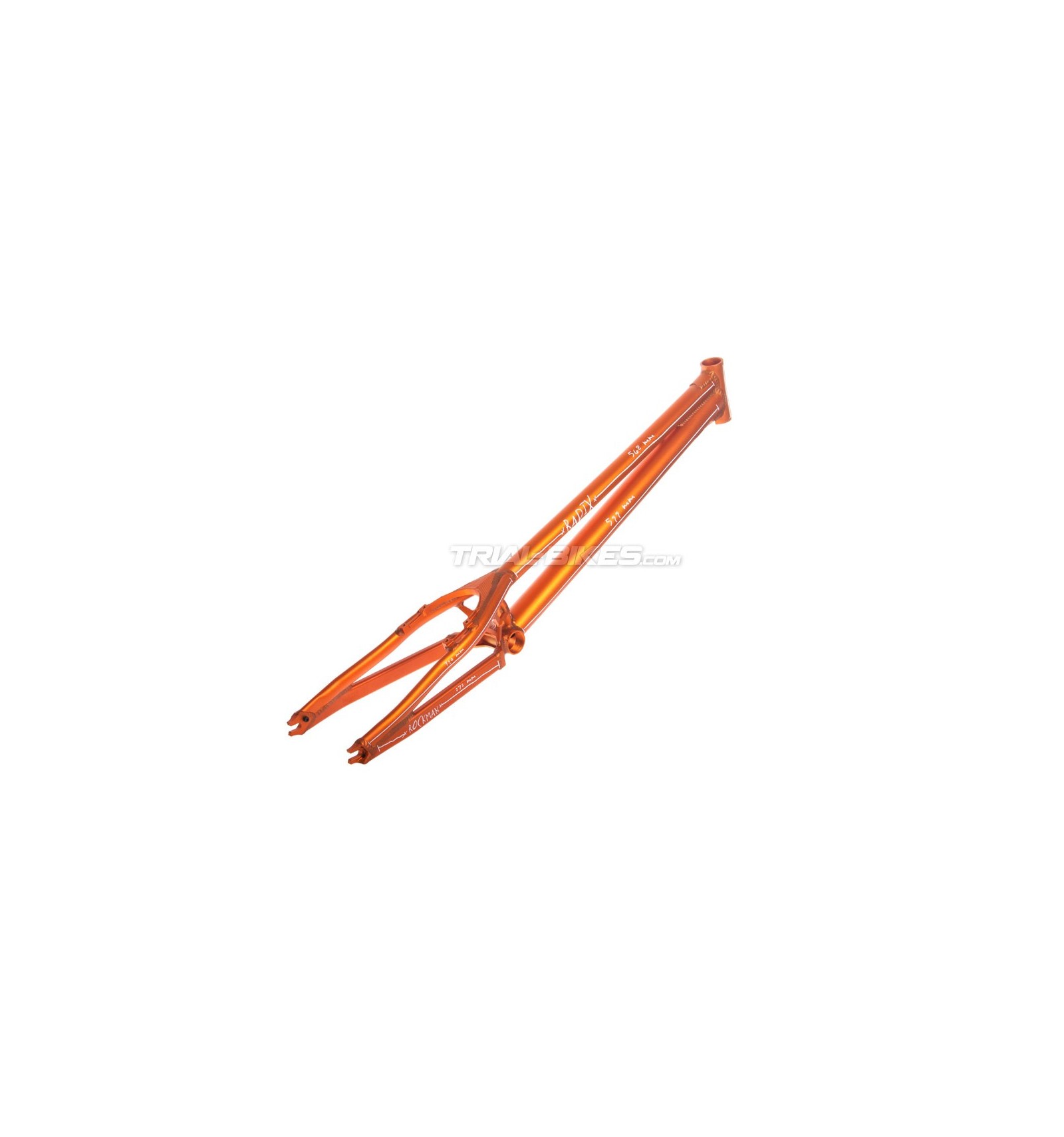

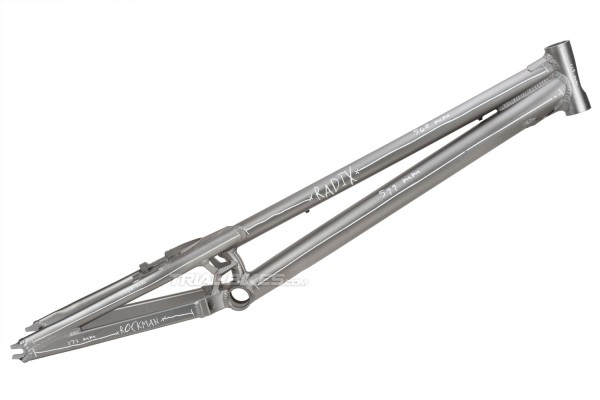

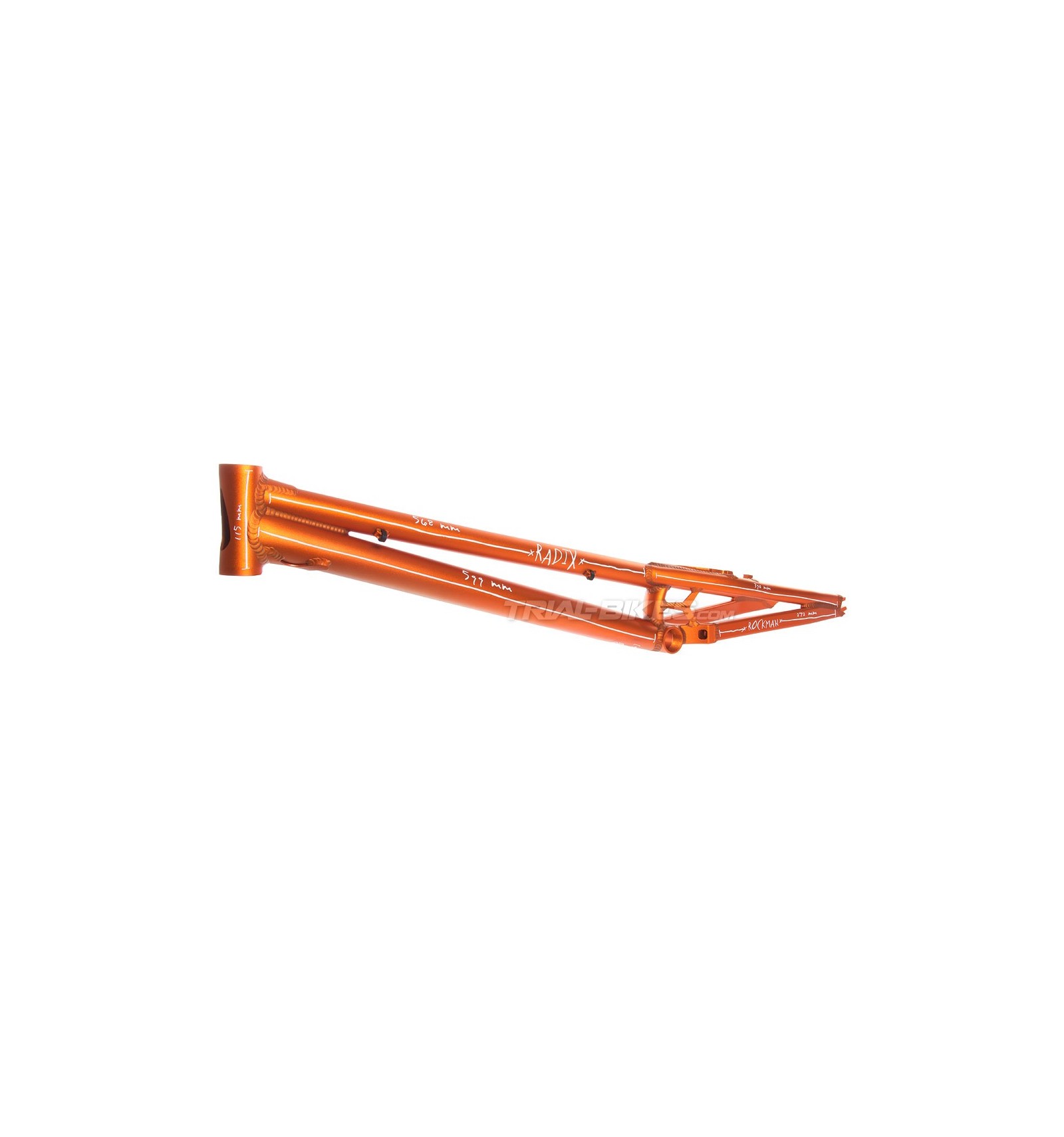

Rockman Radix 24'' Frame

ROCKMAN ROCKMAN

New

Description and materials

More details

This product is no longer in stock

173,55€

487,60€

-64.4068%

Color .

 Orange


 Gray

Ask a question
rating Ver la opinión
Valoración media: 10/10 - Nº valoraciones: 1

Description and materials
- New Rockman Radix 24" frame for 2013.
- This new frame has been designed with a completely new geometry, slightly competition-inspired.
- Made from high quality U6 aluminium.
- 4-bolt mounts spaced at 99mm, with built-in brake booster for a stiffer braking performance.
- A unique reinforcement gusset joins the seat tube to the chain and seat stays.
- 68mm bottom bracket shell is joined to the chain stays with a CNC-machined yoke, which provides more stiffness, strength and tyre clearance.
- Neat, clean-design dropouts spaced at 135mm (includes snail cam bolts).
- Anodized orange version, with cool graphics showing the frame tubes’ lengths.

Geometry
- Space between dropouts: 135mm
- Bottom bracket shell: 68mm

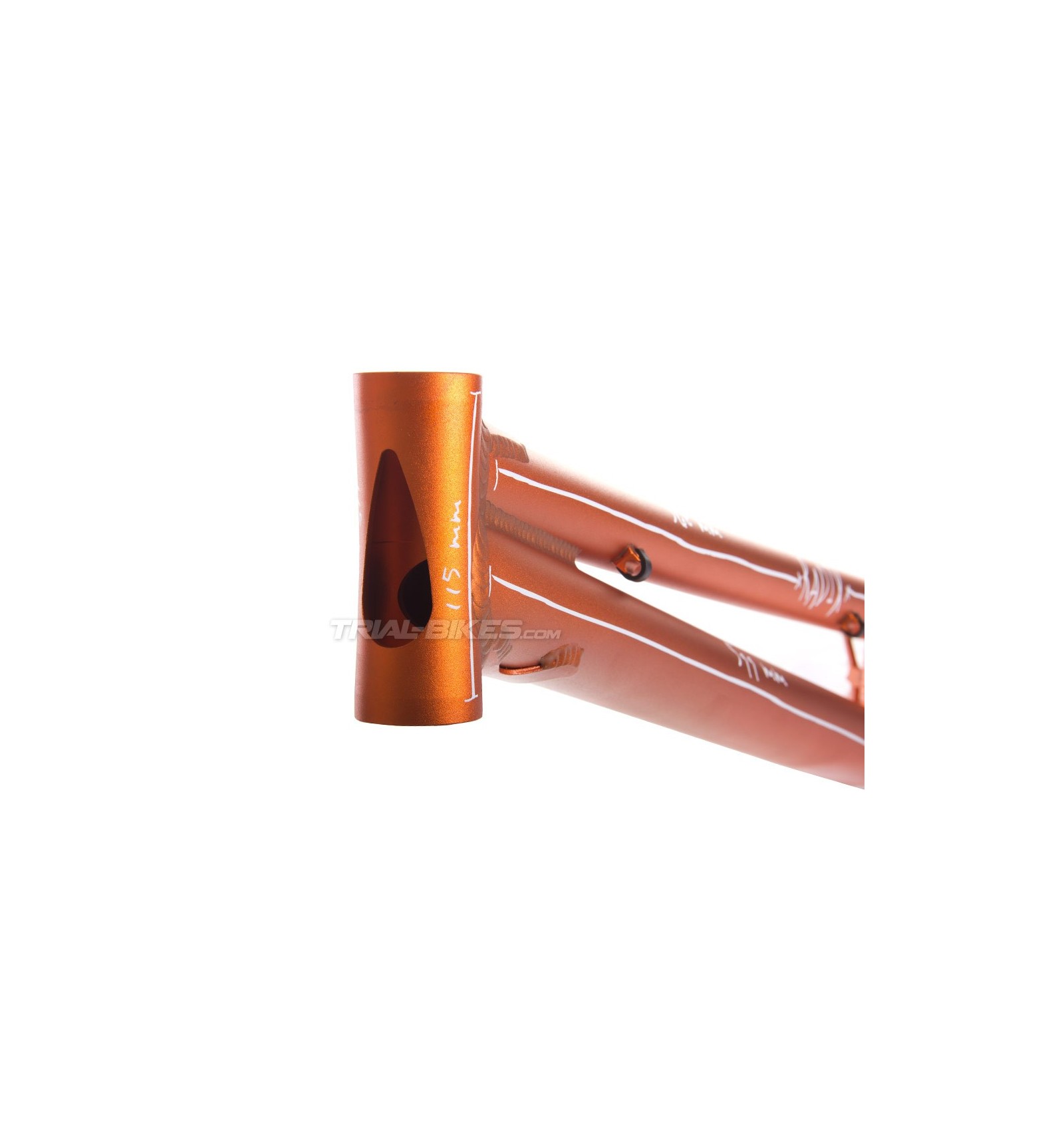

- Head tube: 115mm

- Wheelbase: 1075mm
- Chainstay Length: 368mm
- BB Rise: 88mm
- Head Angle: 71º

Finishes
- Anodized orange
- White Rockman logo with cool graphics showing the frame tubes’ lengths.

Weight
- 1430g

Additional information
 This frame comes with 6 months warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles will immediately void any guarantee claim.
 If you have any doubts, please contact us on info@trial-bikes.com


WEIGHT 1.430
BRAKE MOUNTS HS
TYPE OF HEADSET Standard 1 1/8"
