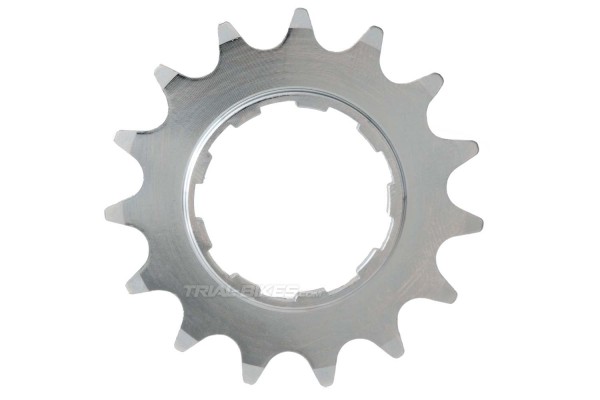

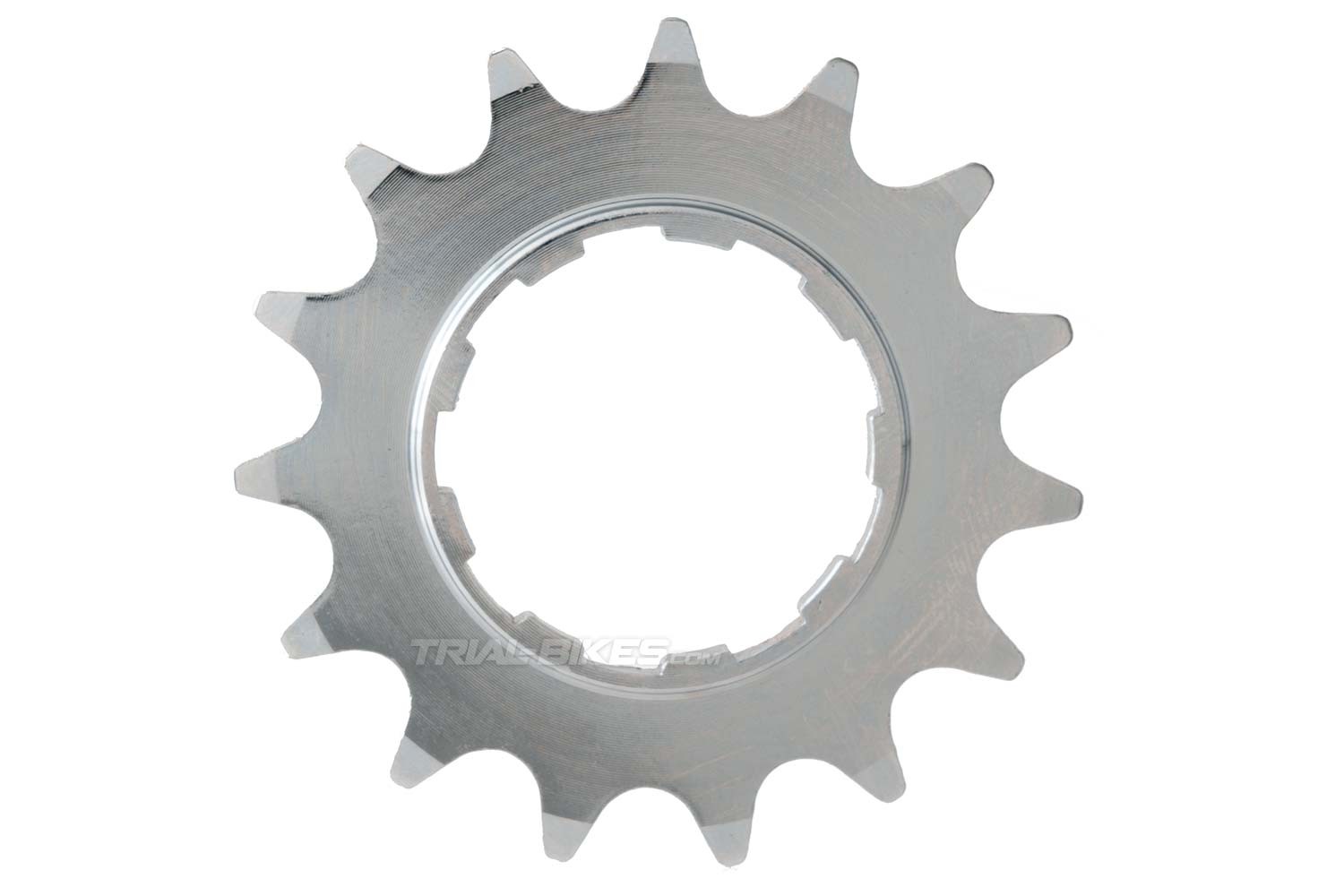

TMS 5mm Splined Sprocket

TMS 5mm Splined Sprocket

- The TMS splined sprocket cassette is designed to offer maximum durability and resistance, thanks to its high-quality steel construction.
- Its mounting system uses Shimano HG splines, allowing for a precise and secure fit on the hub or crankset without the need for threading.
- Features a 5 mm base with strategically positioned teeth on the edges.

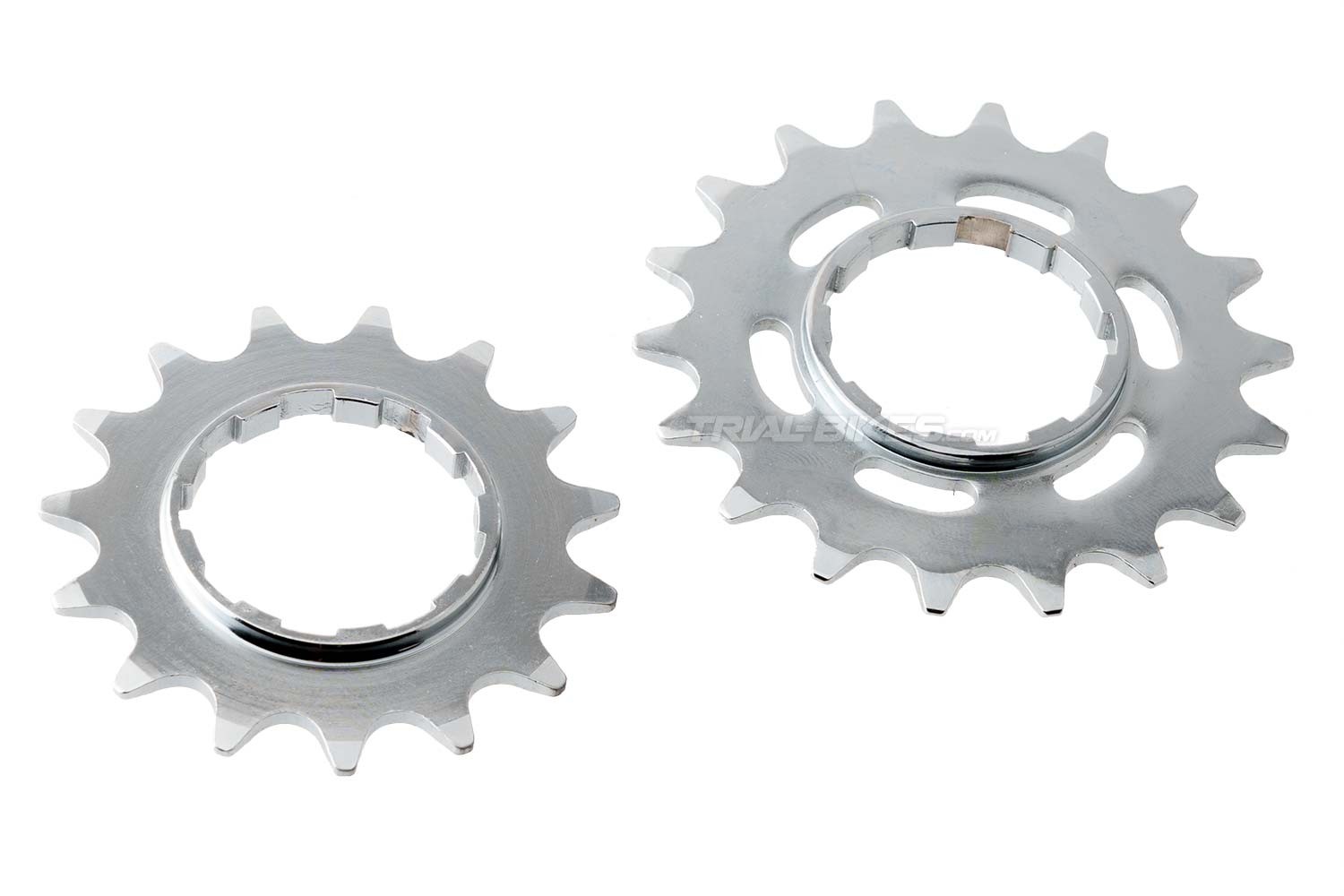

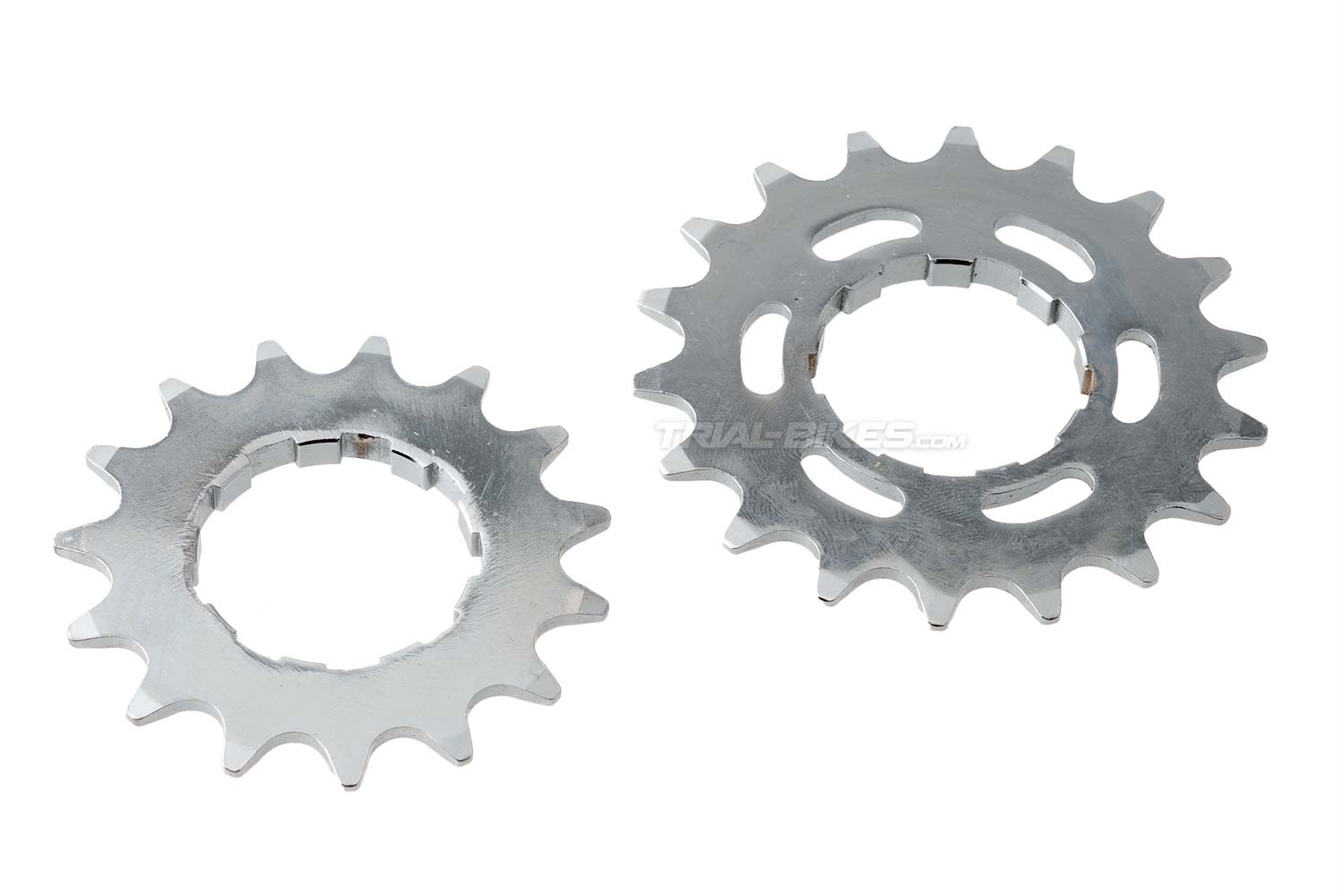

- The 18-teeth version includes 6 holes in its design to reduce unnecessary weight, optimising its lightness.
- Two sizes available:

• 14 teeth (14 T, usual choice for 24” bikes).
• 15 teeth (15 T, usual choice for 26” bikes).
• 18 teeth (18 T, ideal choice for the front sprocket when using a rear freehub).


Compatibility with:
- TMS and Comas Rear Disc Freehub.
- Hubs or cranks with Shimano HG-type spline mounting systems.
- 1/8”, 3/32” and 11/128'' wide chain.

Dimensions
- Number of teeth: 14 (4T), 15 (15T) or 18 (18T).
- Base width: 5 mm. Tooth position at the edge.

Colour
- Finished in silver.

Weight
- 31.02 g (14T), 38.82g (15T) and 53.02g (18T).
