TMS EVO6 20R Race 20" Bike Blue Expand

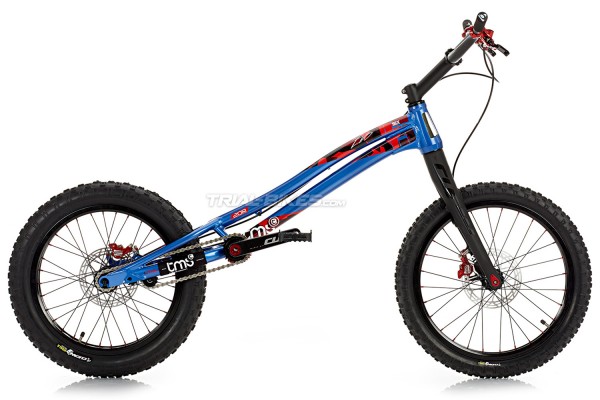

TMS EVO6 20R Race 20" Bike Blue

TMS TMS

New

 ✅ Option 1: Hope Tech 3 || Clean CNC ISIS Cranks
 ✅ Option 2: Hope Tech 3 || Clean X2 BB30 Crankset
 ✅ Option 3: Hope Tech 3 and Hashtagg H20 HS || Clean CNC ISIS Cranks
 ✅ Option 4: Hope Tech 3 and Hashtagg H20 HS || Clean X2 BB30 Crankset

 SPECIAL ORDER

More details

This product is no longer in stock

1 866,94€

Option / Cranks .
 Clean CNC ISIS Cranks  Clean X2 BB30 Crankset
 Hope Tech 3 / Hope Tech 3


 Hope Tech 3 // Hashtagg HS


Ask a question

TMS EVO6 20R Race 20" Bike Blue

  •  Option 1: Hope Tech 3 || Clean CNC ISIS Cranks
  •  Option 2: Hope Tech 3 || Clean X2 BB30 Crankset
  •  Option 3: Hope Tech 3 and Hashtagg H20 HS || Clean CNC ISIS Cranks
  •  Option 4: Hope Tech 3 and Hashtagg H20 HS || Clean X2 BB30 Crankset

Check the following list to see the components of each setup option.

Frame and fork
- Frame: TMS Evo6 20”, Aloy 6065 T6 aluminium alloy, 1 1/8” – 1.5” tapered, with Post Mount disc brake mounts, dark blue finish.
- Forks: Clean K1.2 20” Carbon tapered 1 1/8” – 1.5”, made of carbon fibre, with Post Mount disc brake mounts, 4-bolt rim brake mounts.

Wheels
- Front hub: Clean X3 28 spoke holes, 12mm through-axle, 104mm spacing.
- Rear hub: Clean X2 32 spoke holes.
- Chain tensioner: Clean X2 integrated, with two 12T jockey wheels made of plastic.
- Front rim: Clean X2 High Profile 20”, single wall, 34mm wide, 28 spoke holes, anodized black.
- Rear rim: Clean X2 High Profile 19”, single wall, 48mm wide, 32 spoke holes, anodized black.
- Spokes: 1.8mm spokes, black.
- Nipples: 15G Aluminium, Red.
- Rim tape: Clean, grey.
- Front inner tube: Maxxis.
- Rear inner tube: Maxxis.
- Front tyre: Clean Koala 20” x 2.00”.
- Rear tyre: Clean Koala 19” x 2.60”.

Brakes
- Front brake: Hope Tech 3 Trial Zone or Hashtagg H2O rim brake (depending on brakes choice).

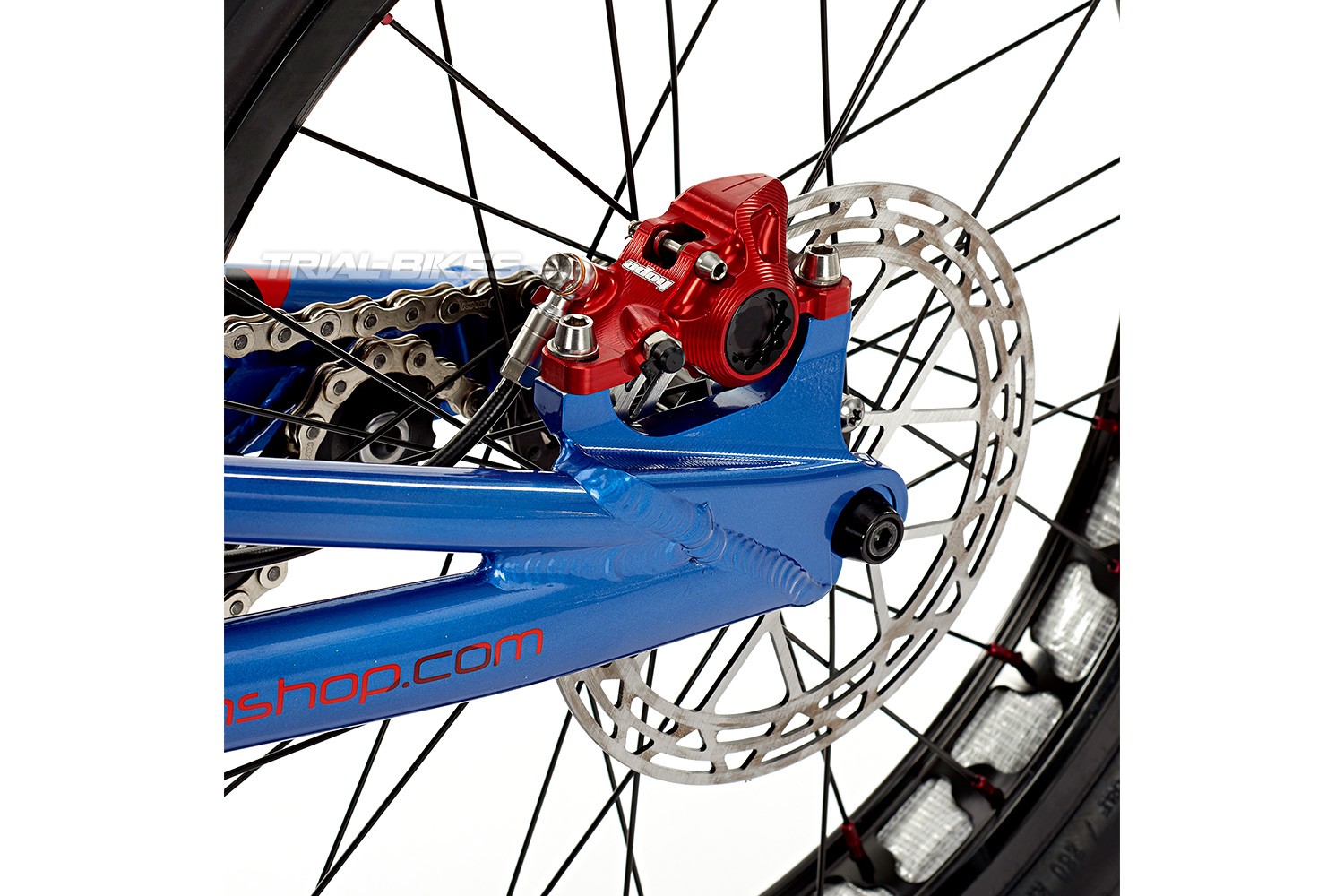

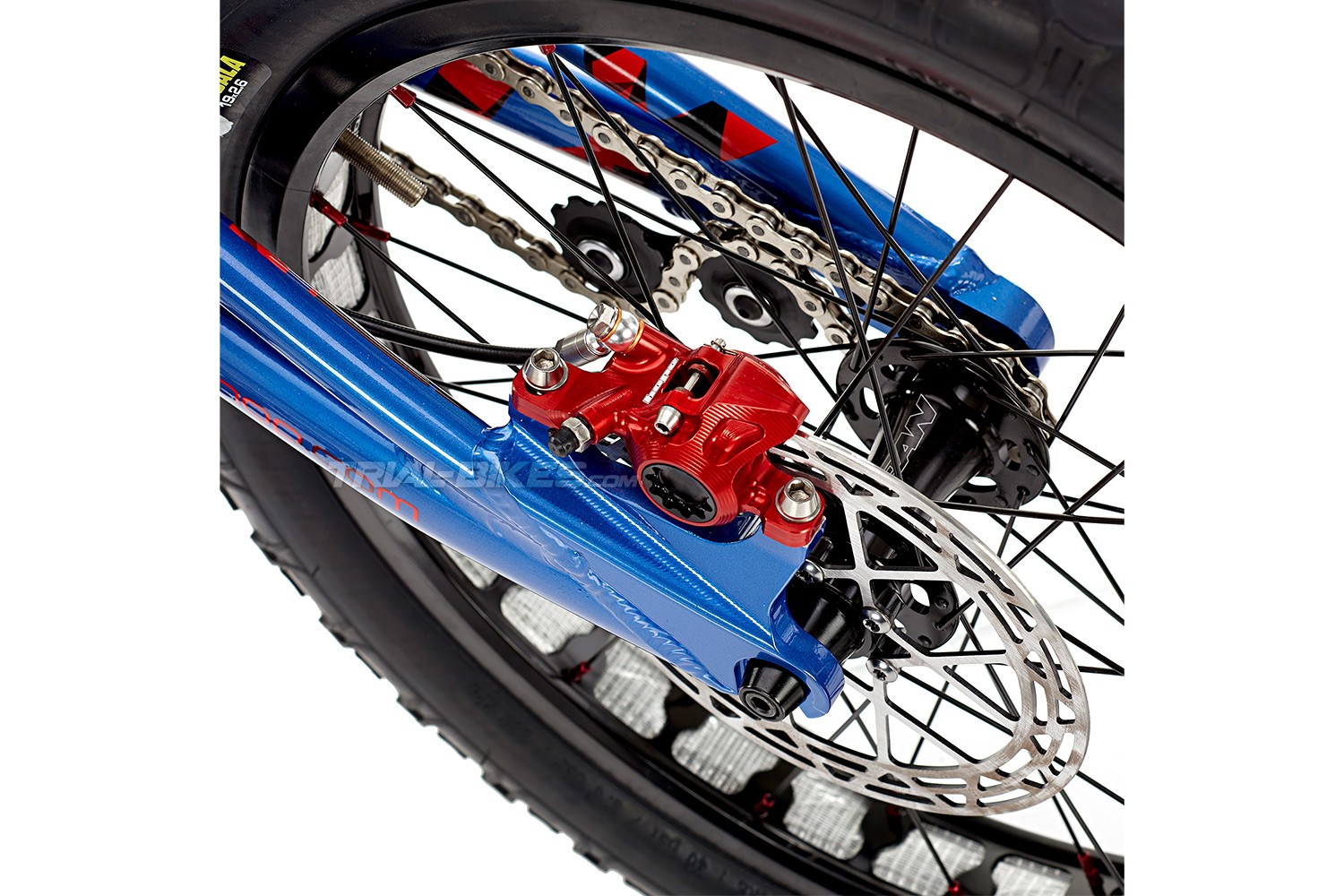

- Rear brake: Hope Tech 3 Trial Zone.
- Rotors: TMS, 160mm.
- Rim brake pads: TMS, Green.
- Brake clamps: Clean X2 Washerless.

Drivetrain

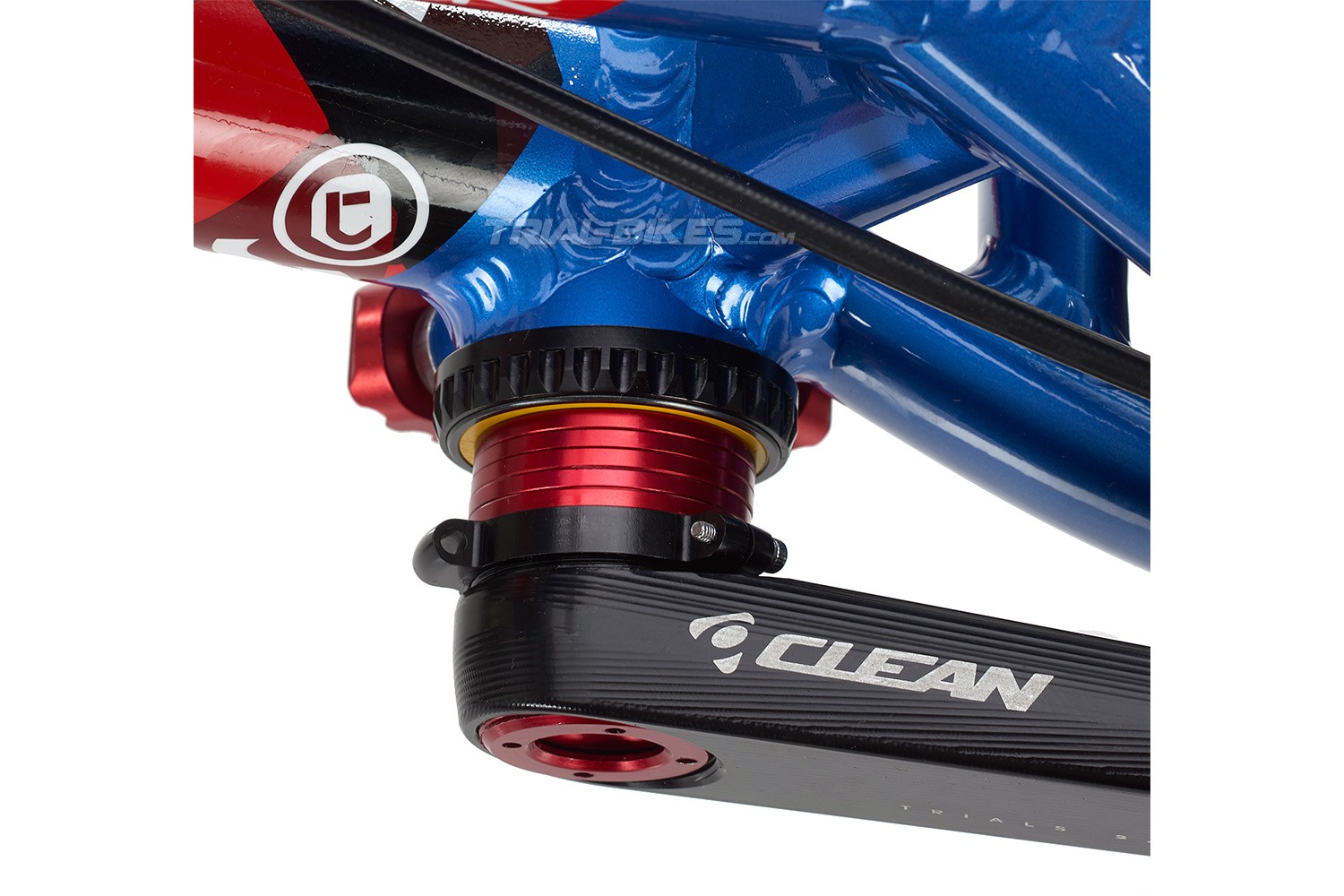

- Crankset: Clean X1 CNC ISIS 160mm or Clean X2 3-piece set, with Press Fit BB30 30mm diameter BB axle, CNC machined, with a new adjustment system. 160mm long cranks, for Shimano HG-splined freewheel (depending on cranks / crankset choice).
- Freewheel: Clean X2 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth.
- Chain: KMC, silver.
- Rear sprocket: TMS 12T Screw-on.
- Pedals: Clean single cage, 7075-T6 aluminium alloy, anodized black.
- Bashplate: TMS, CNC, anodized red.

Steering
- Headset: TMS Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized black.
- Stem: Clean Trials Pro, 141.6mm x 27.6º or Clean 145mm x 25º 31.8mm Oversized handlebar diameter (depending on availability).
- Grips: Extra-thin TMS foam, black
- Handlebar: Clean X3 103mm carbon fibre, 720mm long, 31.8mm Oversized handlebar diameter, black finish with 12K carbon top layer.

Geometry:
- Wheelbase: 1004mm
- Chainstay length: 350mm
- Bottom bracket rise: +87mm
- Head angle: 72º

Weight
- 7,3Kg (Hope Tech3 disc brakes)

Additional information:
The list of components may change. Any changes on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.

Some pictures may not match the item described, so please read the description carefully.

Dispatch time for this bike might be delayed up to 5 days: it is partially set up at our workshop, so the customer will only have to install the front wheel and setup the headset.

If you have any doubts, please contact us on info@trial-bikes.com.
