Chorrillas RR-02 Pedals

Chorrillas RR-02 Pedals

Biketrials pedals from the Spanish brand Chorrillas, developed in collaboration with UCI 26” World Champion Jack Carthy.

Their single-cage design and sealed bearings ensure smooth rotation and outstanding durability, while preventing the ingress of dirt and moisture.

- Exclusive model created with Jack Carthy, optimised for maximum performance in competition.
- Smooth outer cage design, without teeth, to provide greater comfort for the foot and allow easier movement while riding.
- Steel axle, compatible with installation using a 15 mm spanner or a 6 mm Allen key.
- 7075-T6 aluminium cage, 2,5 mm thick, impact-resistant and weight-reduced through strategic perforations.
- One-piece forged aluminium body with reinforcing ribs for increased stiffness.
- Sealed bearings for smooth, friction-free operation.
- Rubber seal between the axle and pedal body to prevent the entry of mud, dust and debris.
- Each pedal features 4 steel M5 x 7 mm bi-conical head bolts, for 3 mm Allen key.
- Standard 9/16” thread, compatible with most trials cranks.
- Can be installed using a 6 mm Allen key or a 15 mm spanner.
- Sold as a pair.

Compatible with
- Cranks with 9/16” thread (standard on most trials bikes).
- Chorrillas RR, RR-01, RR-02 replacement cages and others compatible with the dimensions listed below.

Cage dimensions
- Total length: 95 mm.
- Outer width: 85,4 mm.
- Thickness: 2,5 mm.
- Bolt hole spacing: 65 mm.
- Smooth outer side without teeth.
- Distance from crank to outer edge of cage: 106,5 mm.

Finish
- Black.

Weight

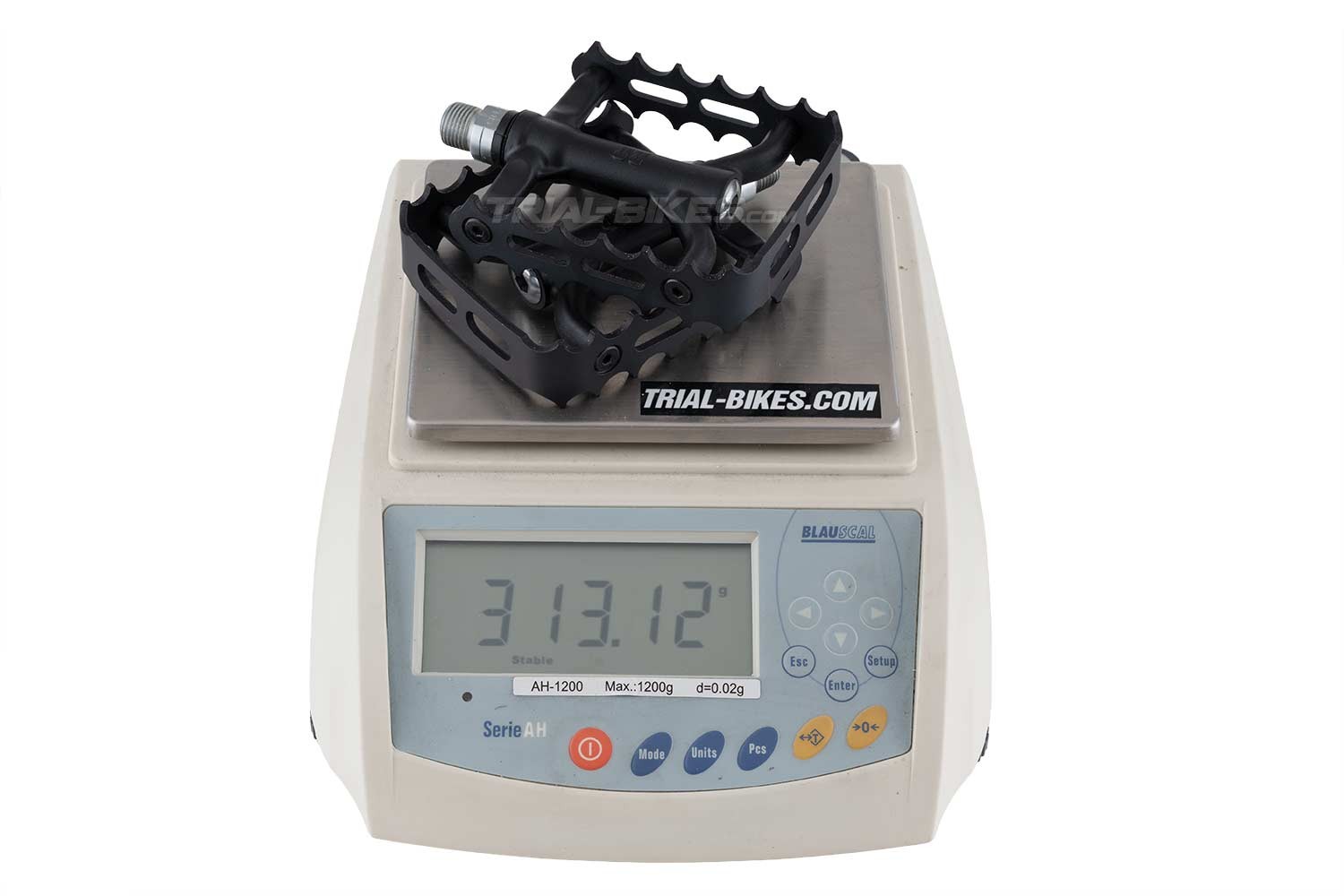

- 313,12 g (pair).

Additional information
When installing, both pedals must be threaded towards the front of the bike.
Each pedal is marked with R and L to indicate its position (R: right pedal, L: left pedal).
