Chorrillas RR-01 Pedals

Chorrillas RR-01 Pedals

Trials bikes pedals from the Spanish brand Chorrillas, featuring a single-cage design and sealed bearings for smooth operation and superior durability, preventing the ingress of dirt and moisture.

- High-end model developed by Chorrillas, designed specifically for trials and biketrials bikes.
- Axle made from steel, compatible with installation using a 15 mm spanner or a 6 mm Allen key.
- 7075-T6 aluminium cage, 2,5 mm thick, highly impact-resistant and weight-reduced through strategic perforations.
- One-piece forged aluminium body with structural reinforcements for increased strength without adding weight.
- Sealed bearings ensuring smooth, friction-free rotation.
- Rubber seal between the axle and the pedal body to block mud, dust and debris.
- Each pedal features 4 steel M5 x 7 mm bi-conical head bolts, for 3 mm Allen key.
- Standard 9/16” thread, compatible with most trials cranks.
- Can be installed using either a 6 mm Allen key or a 15 mm spanner.

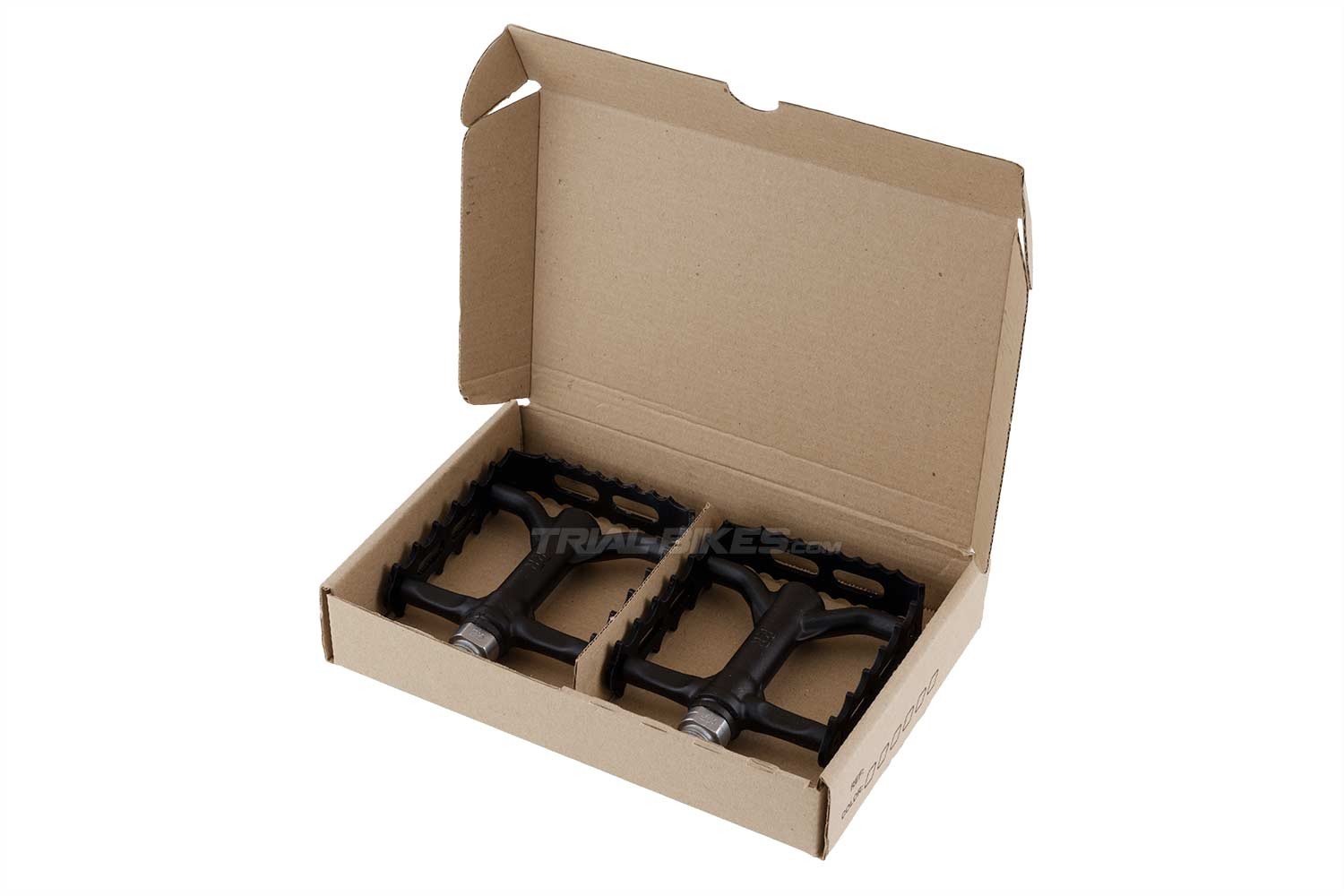

- Sold as a pair.

Compatible with
- Cranks with 9/16” thread (standard on most trials bikes).
- Chorrillas RR, RR-01, RR-02 replacement cages and others compatible with the dimensions specified below.

Cage dimensions
- Total length: 95 mm.
- Outer width: 85,4 mm.
- Thickness: 2,5 mm.
- Bolt hole spacing: 64 mm.
- Maximum cage tooth height: 24.8 mm (inner side).
- Minimum cage tooth height: 15.4 mm (inner side).
- Outer side: smooth (no teeth).
- Distance from crank to outer edge of cage: 106.5 mm.

Finish
- Black.

Weight

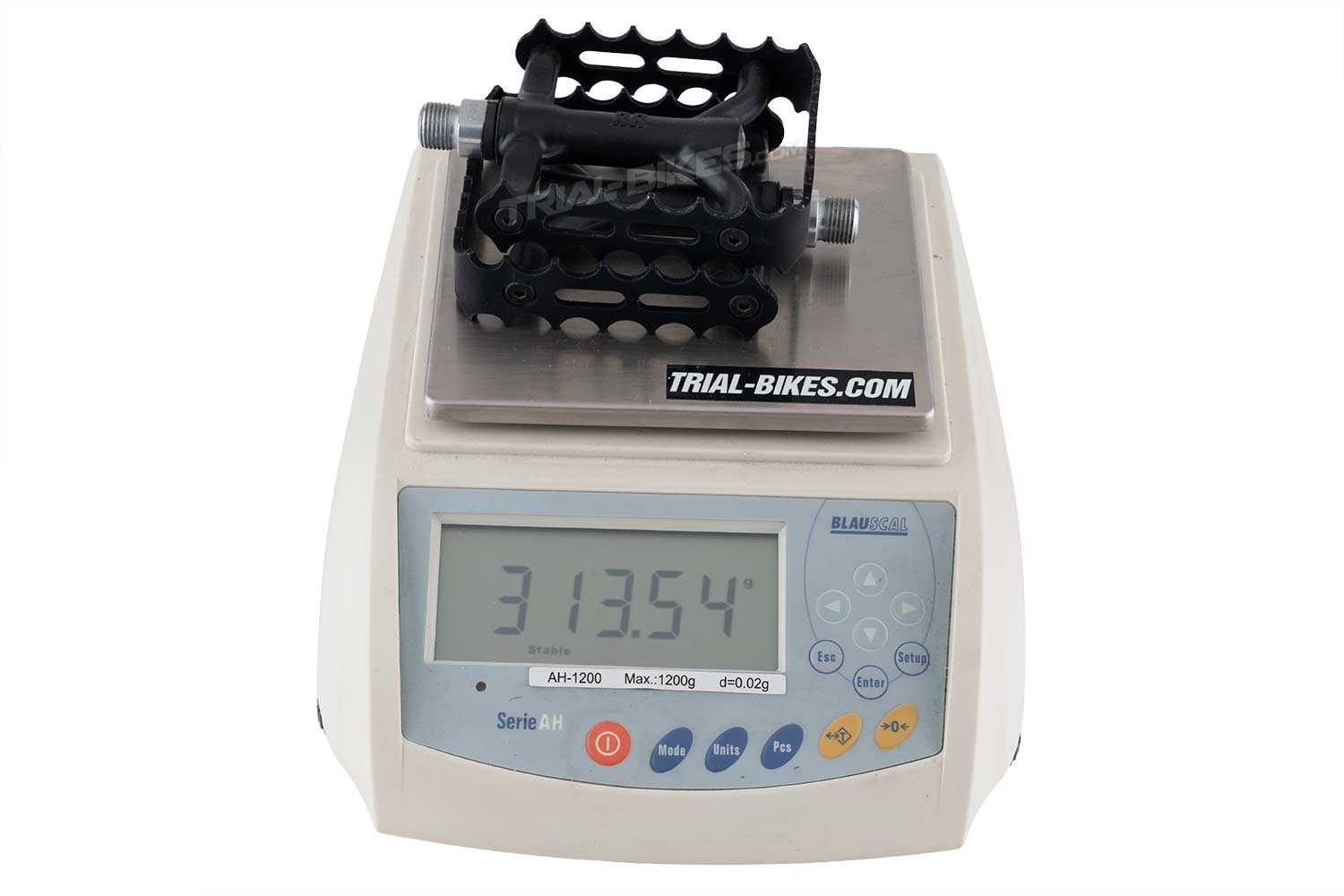

- 313,54 g (pair).

Additional information
When installing, both pedals must be threaded towards the front of the bike.
Each pedal is marked with R and L to indicate its position (R: right pedal, L: left pedal).
