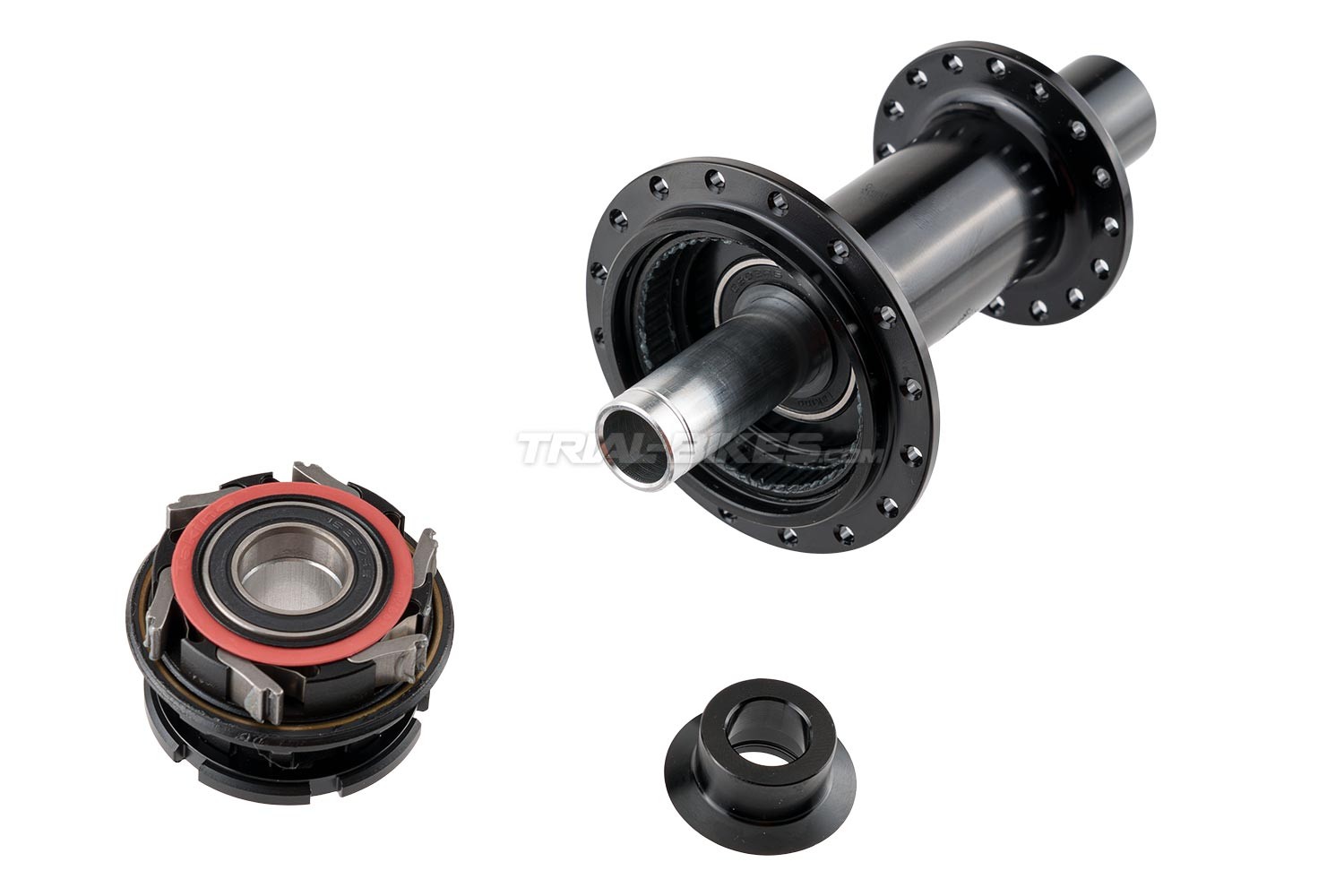

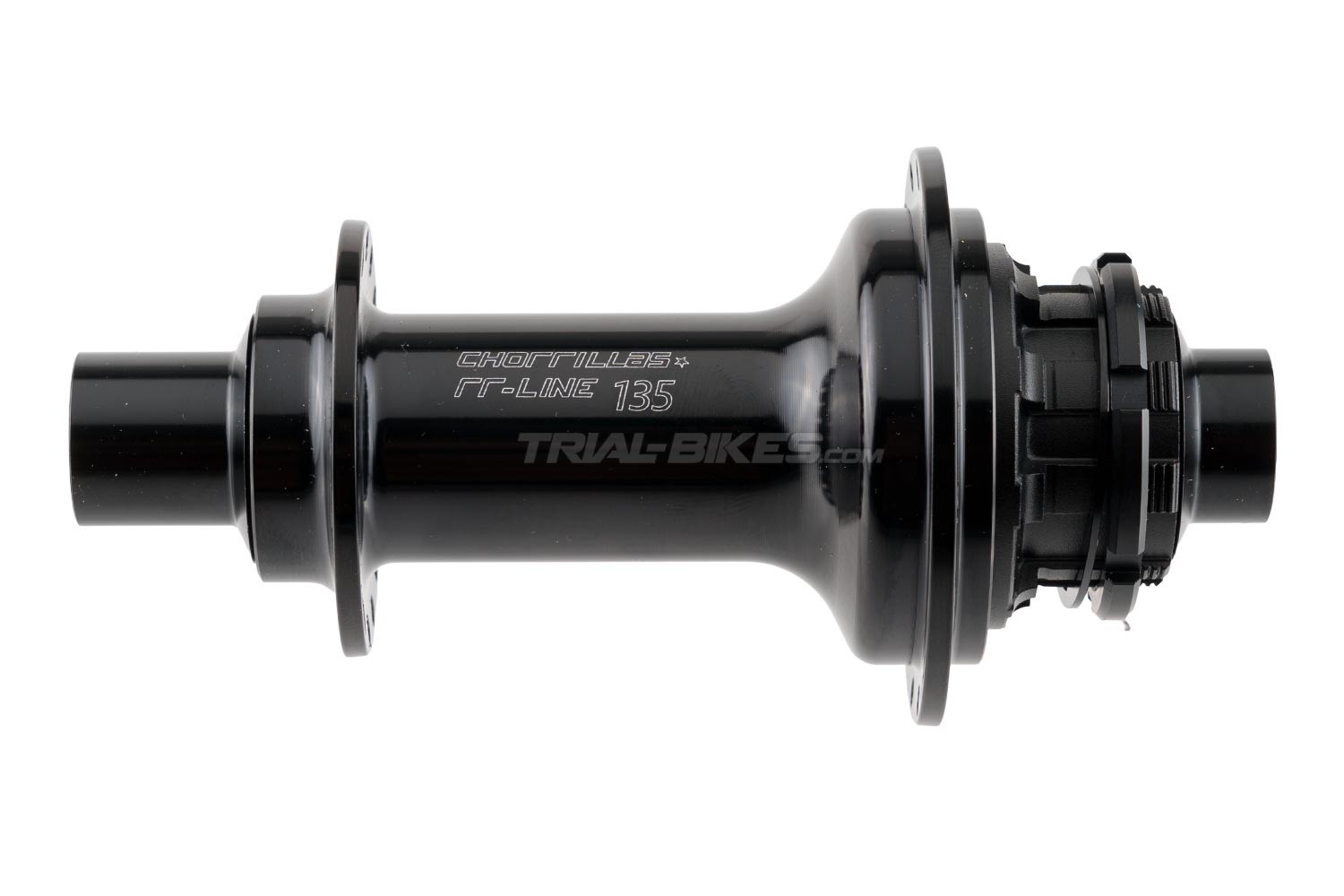

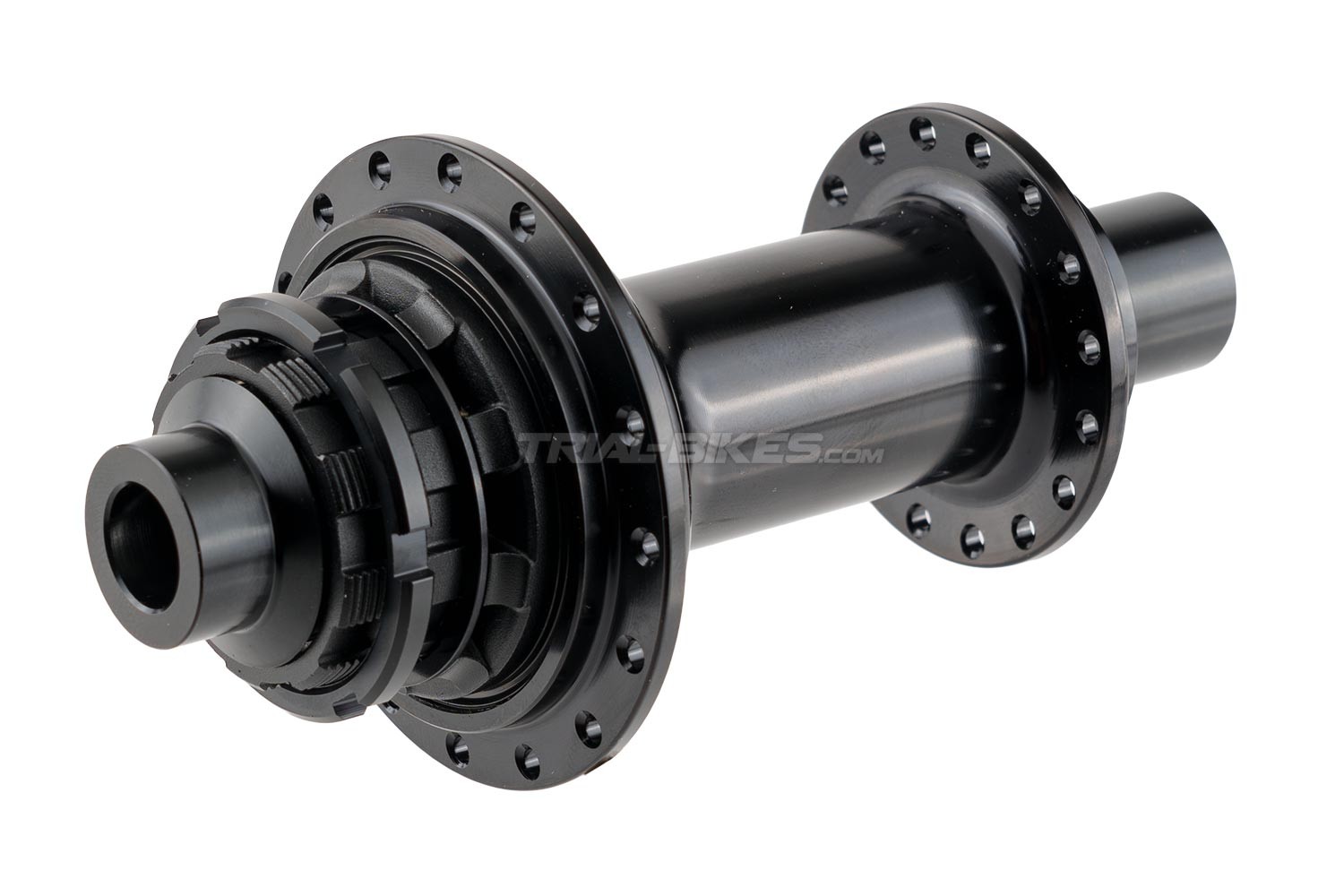

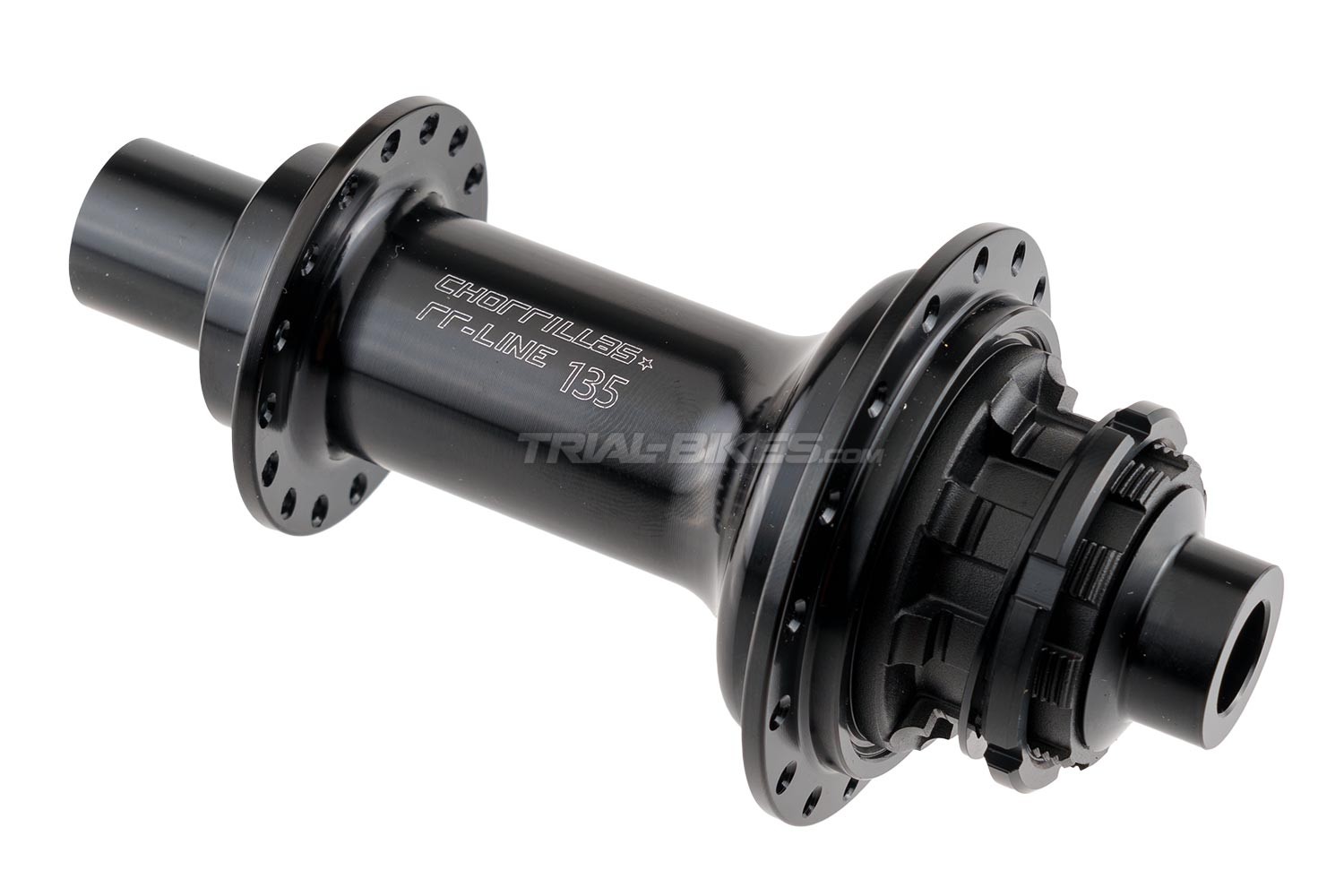

Chorrillas RR-135 HS rear freehub, specifically designed for Trial bikes with 135 mm rear frame spacing and a 12 mm thru-axle.
- Chorrillas RR-135 rear freehub for Trials bikes equipped with an HS rear brake.
- Designed for frames with 135 mm rear spacing and a 12 mm thru-axle.
- Compatible with Crewkerz, TMS and other Trial frames with matching dimensions.
- Includes one 1 mm spacer and a Lock-Ring nut for sprocket installation.
- Thru-axle not included. Use the axle compatible with your frame.
162 Engagement Points Technology
- Equipped with a 54-tooth ratchet and a dual-pawl system, providing 6 simultaneous contact points with each engagement.
- Provides 108 engagement points per revolution, resulting in an immediate response when pedalling.
Depending on the gear ratio, the number of engagement points varies to suit the rider's setup:
- 18:12 gearing → 162 e.p. (2 groups × 54 teeth × 1.5)
- 18:15 gearing → 130 e.p. (2 groups × 54 teeth × 1.2)
Compatibility
- Frames with 135 mm rear spacing and a 12 mm thru-axle.
- Crewkerz and TMS frames with these dimensions.
- Rims with 32 spoke holes (32H).
- HG-type fixed sprockets from 8 to 10 mm wide, such as Chorrillas, Crewkerz or Clean.
Dimensions and Specifications
- Total hub spacing: 135 mm.
- Thru-axle diameter: 12 mm.
- Number of spoke holes: 32 (32H).
- Flange diameter: 42 mm on the non-sprocket side and 65 mm on the sprocket side.
- Flange spacing: 65 mm.
- Cassette thread diameter: 35 mm.
- Cassette thread width: 14.5 mm.
- Bearings: 4 units, model 6902 2RS.
Included
- 1x 1 mm spacer.
- Lock-Ring nut.
Colour
- Gloss black, with white laser-etched Chorrillas logo.
Weight
- 263.46 g (including one 1 mm spacer and Lock-Ring nut).

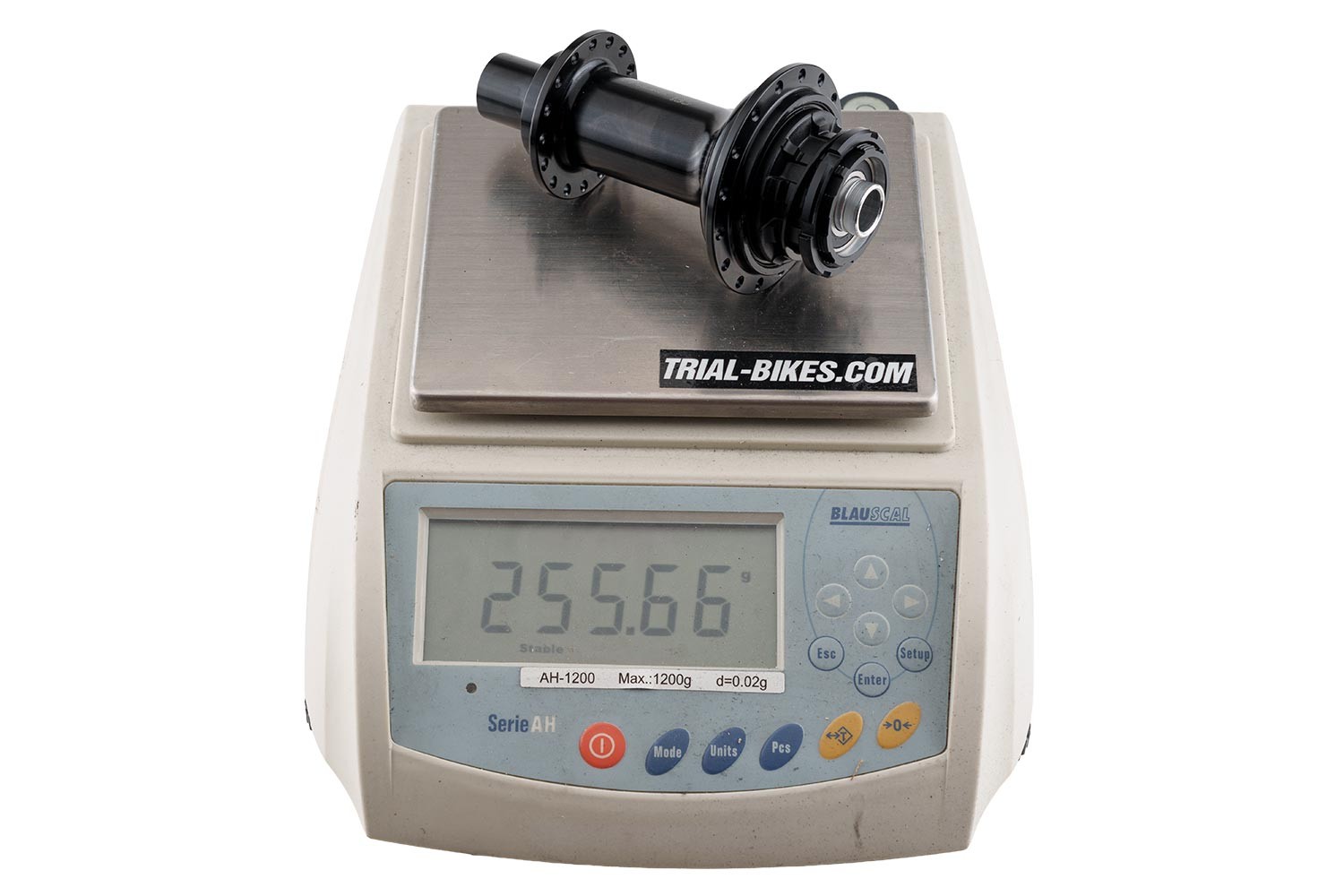

* This is the correct weight of the complete assembly. The weight shown in the photo below is different because the hub is pictured without the spacer.
| COLOR | Black |
| SPOKE HOLES | 32 spokes |
| BRAKE MOUNTS | Non disc |
