Clean T13 HS Rim Brake




New Clean T13 HS hydraulic rim brake for bike trials, built using a Clean T13 brake lever and Magura HS33 slave cylinders. Upgrade your trials bike with the high quality Clean T13 HS trials brake, used by Clean Trials team riders Abel Mustieles, Benito Ros, Sebas Ruiz…

More details

This product is no longer in stock


Ask a question

Pack content

Overall Description
- High quality Clean T13 HS hydraulic rim brake.
- This brake features a Clean T13 rim brake lever and Magura slave cylinders, and it’s been attached and professionally bled by our TrialBikes team.
- 1200mm long PVC hose (standard rear hose length for 20”, 24” and 26” bikes).
- Includes an additional olive, so that you don’t have to re-bleed the brake when cutting down the hose (the standard front hose length for 20”, 24” and 26” bikes is 750mm).
- If you’d prefer us to shorten the hose to a specific length, please write it down in the Comments box when placing the order (the order might be delayed 24/48 hours).
- Sold individually: 1 complete brake (does not include brake pads, clamps or cylinder washers), and it’s already bled with hydraulic rim brake fluid, ready for use.
- You can find the best bike trials brake pads available here.

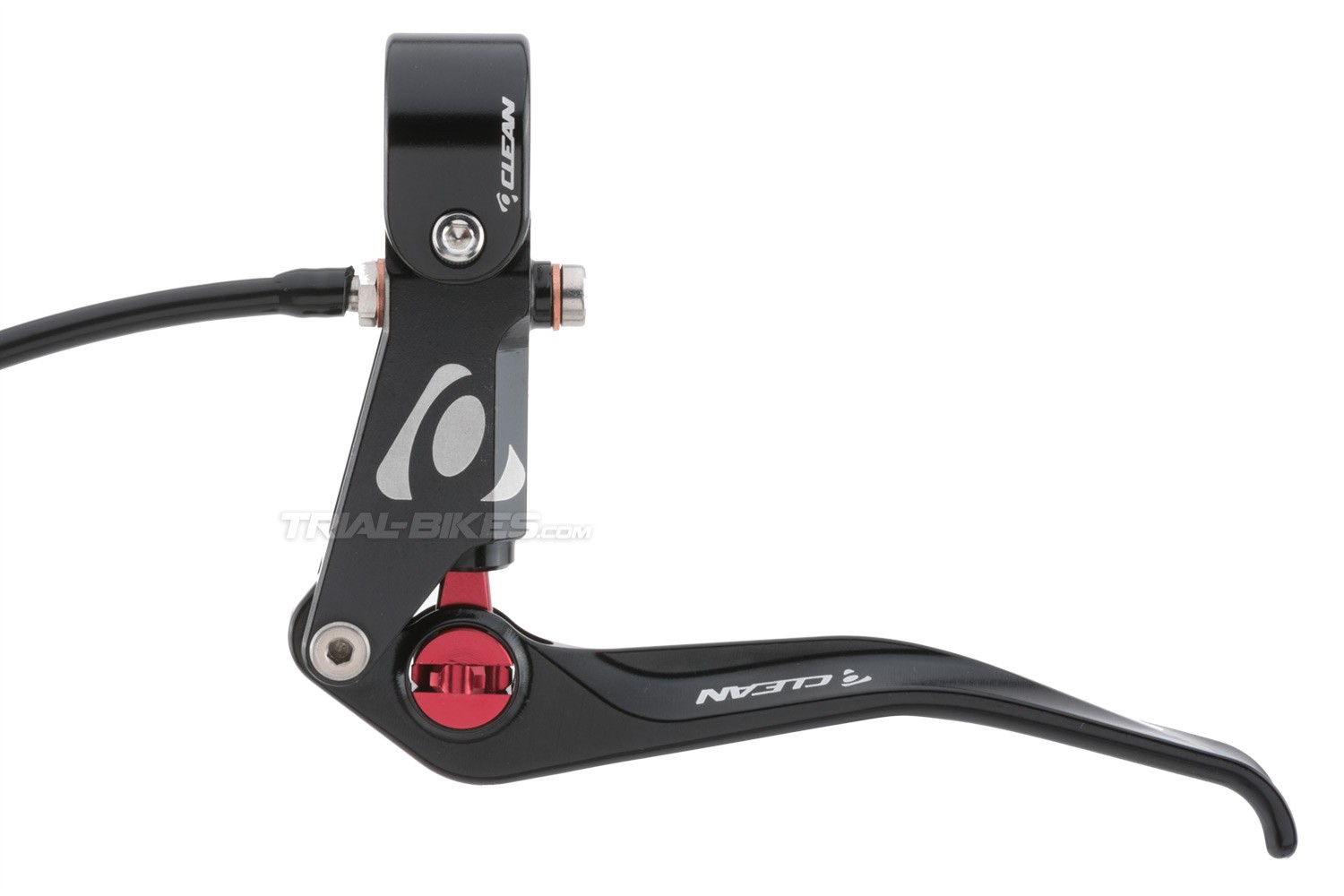

Main features of Clean’s T13 lever
- CNC-machined from a single billet of high quality 6061-T6 aluminium alloy.
- 13mm diameter piston allows for 16% more braking power than 14mm pistons.
- CNC-machined, 6061-T6 aluminium TPA wheel and pin.
- Reversible design.
- 125mm long, CNC-machined Clean lever blade.
- Lever reach can be adjusted thanks to a bolt located at the front of the lever blade, using an Allen key.
- Removable, 2-bolt clamp design, which prevents any leg damage and also allows you to remove the lever without needing to remove the grips.
- Stainless steel bolts and connectors.
- More details here.

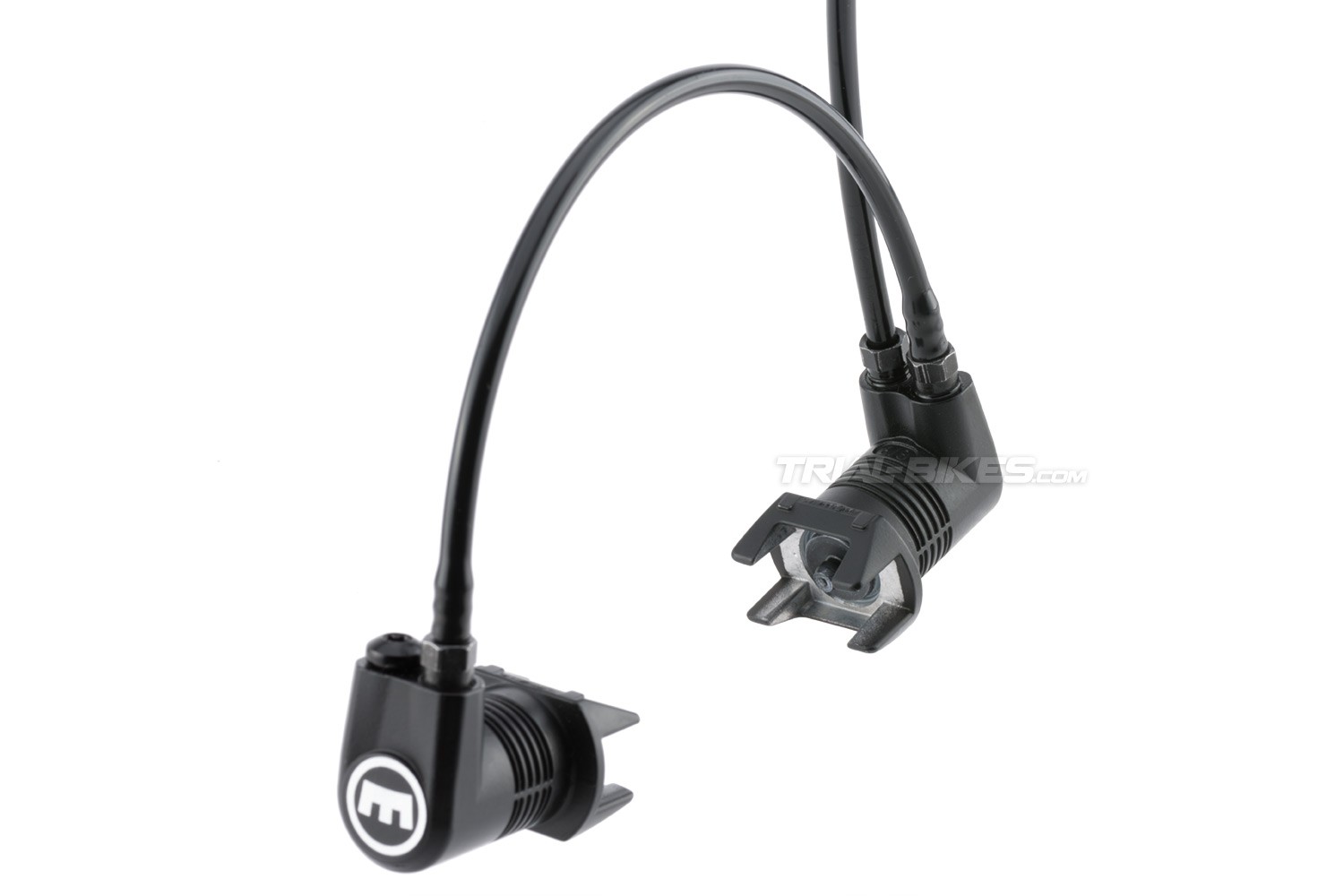

Main features of Magura’s HS33 slave cylinders
- Manufactured from high-strength aluminium alloy.
- Each cylinder has an M6 port and an M8 port (M6/M8).
- Official Magura connectors, made of super-strong steel.
- More details here.

- The brake can be bled with mineral brake fluid (do not use DOT fluids!).
- Compatible with most rim brake pads: PowerPad, TNN, Heatsink, Racing Line and those with similar backings.
- Compatible with most brake clamps.

- Black lever body, black lever blade and white laser etched Clean graphics.
- Black slave cylinders, with white Magura graphics.

- 214g (with 1200mm long hose)

wich kind of screw do I have to use for the bleeding? I have a Magura Bleeding Kit but there is no screw that sims compatible. Neither the trialtech one.Thank you in advance for you attention,Best regards,Riccardo
