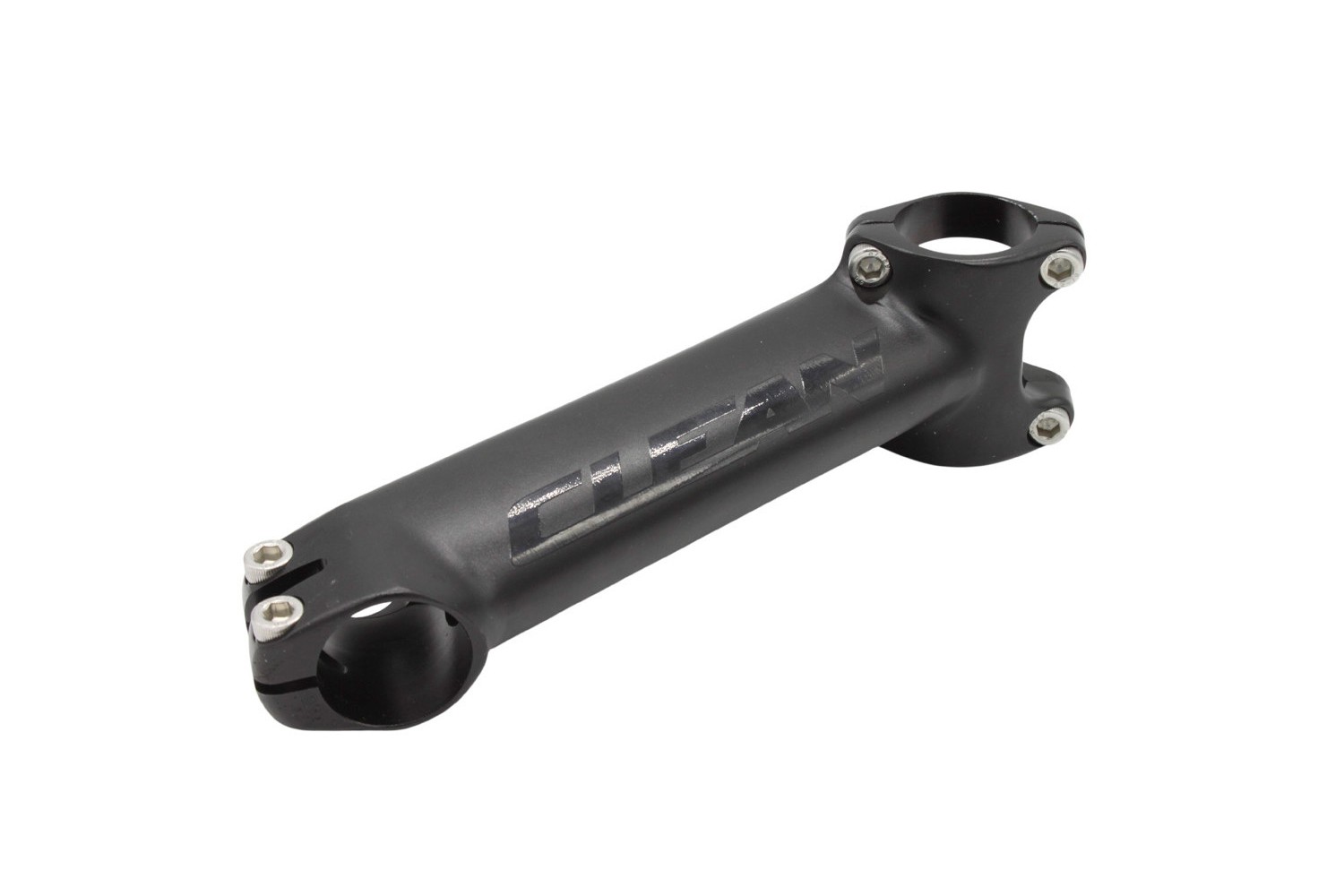

New version of the Clean Trials Pro stem, now featuring a 20º angle to suit the latest trends and geometries in bike trials.
New design with an included separate top cap, replacing the closed-top design of the previous 24º version.
Available in 3 different lengths, all with a 20º angle: 135 mm x 20º, 145 mm x 20º and 155 mm x 20º.
Description and materials
- New edition of the top-of-the-range Clean Trials Pro stem, now featuring a 20º angle instead of the 24º used in the previous version.
- Retains the exclusive Clean design and technical features of the Pro range, incorporating updated geometry and a redesigned top cap system.

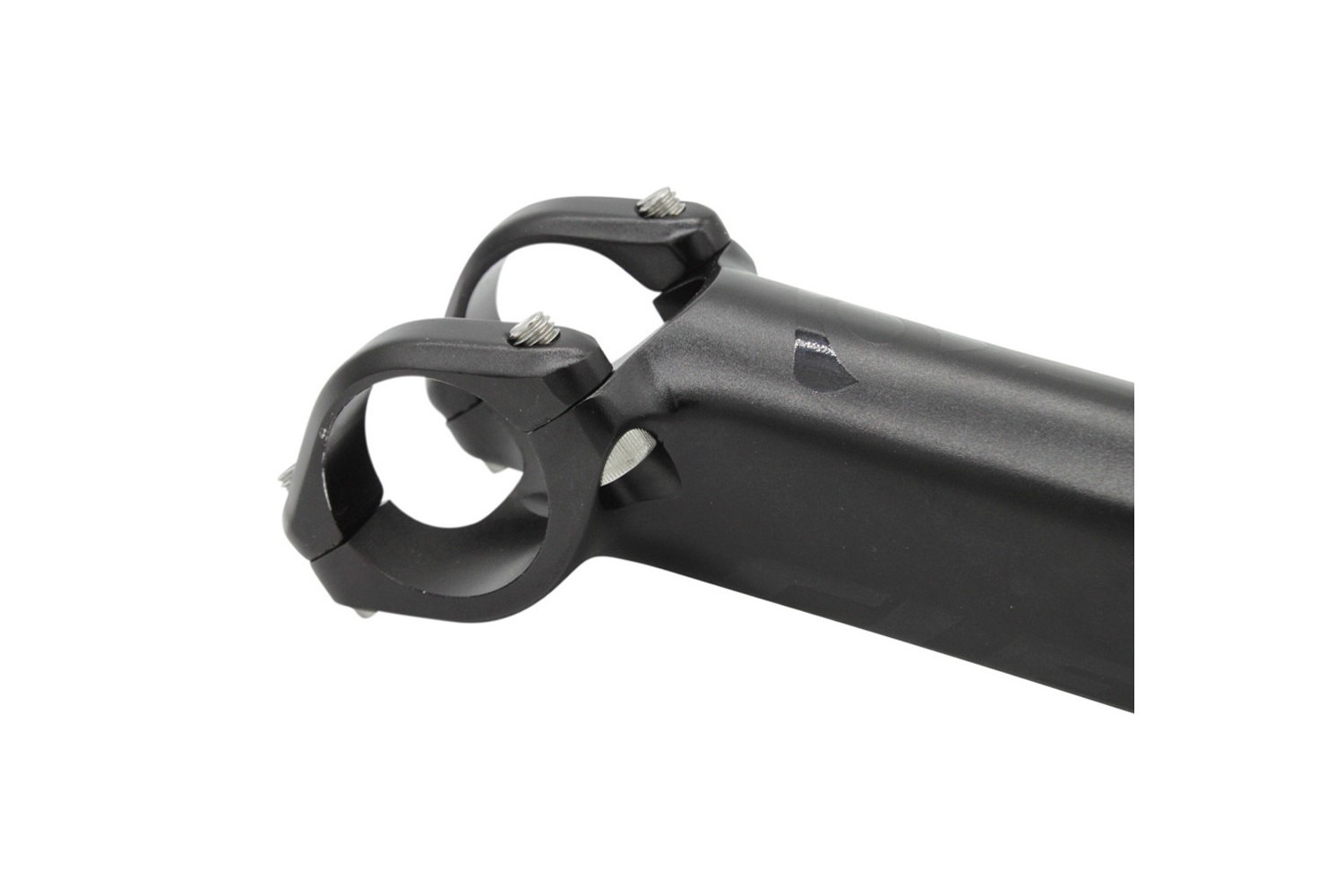

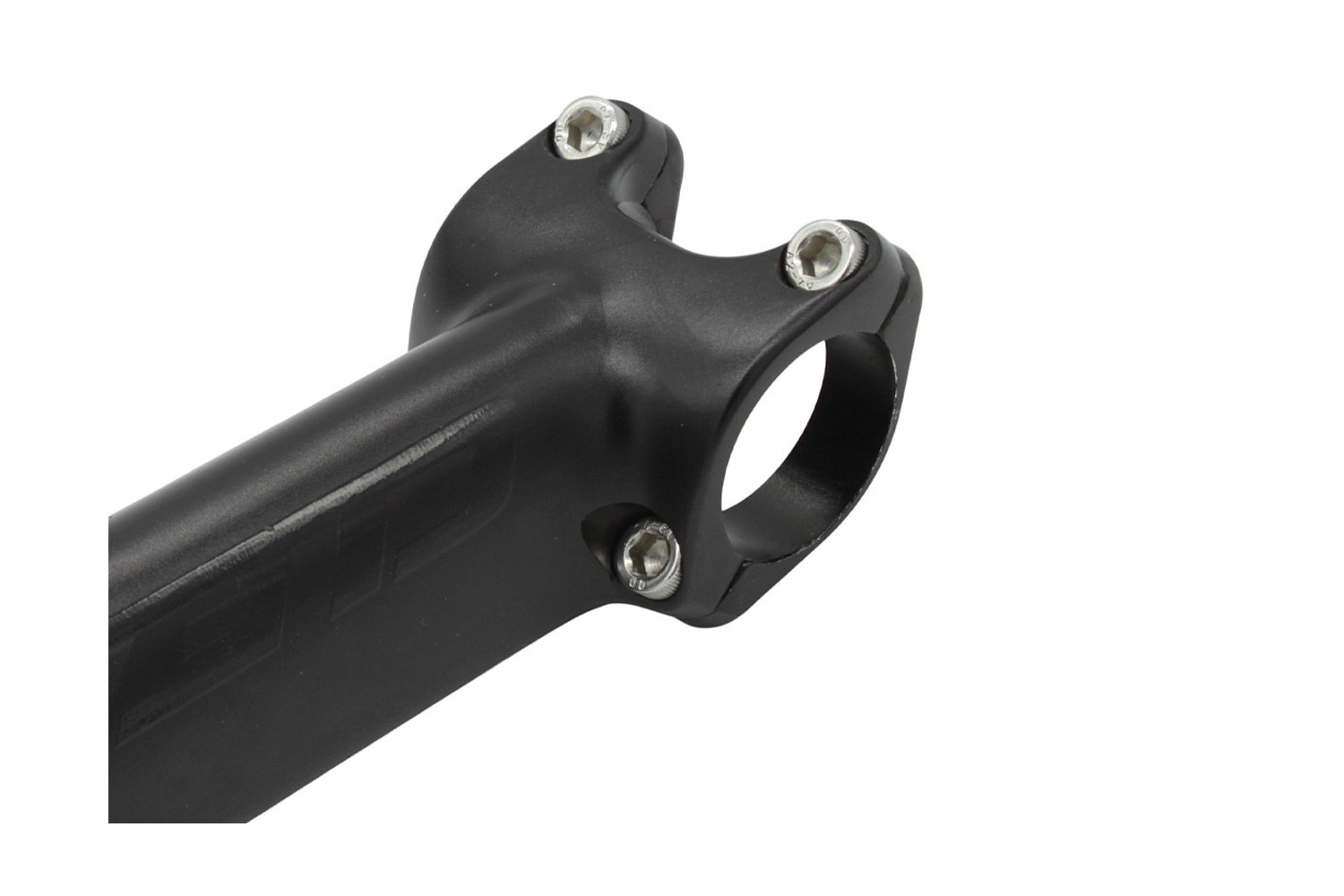

- The handlebar clamp features two independent plates and 4 M6x16 mm bolts, fitted from the bottom upwards to prevent chest injuries. This design makes handlebar installation easier and ensures secure clamping during use.
- New system with a separate top cap, included with the stem, which rests on a flat surface at the top of the stem base.

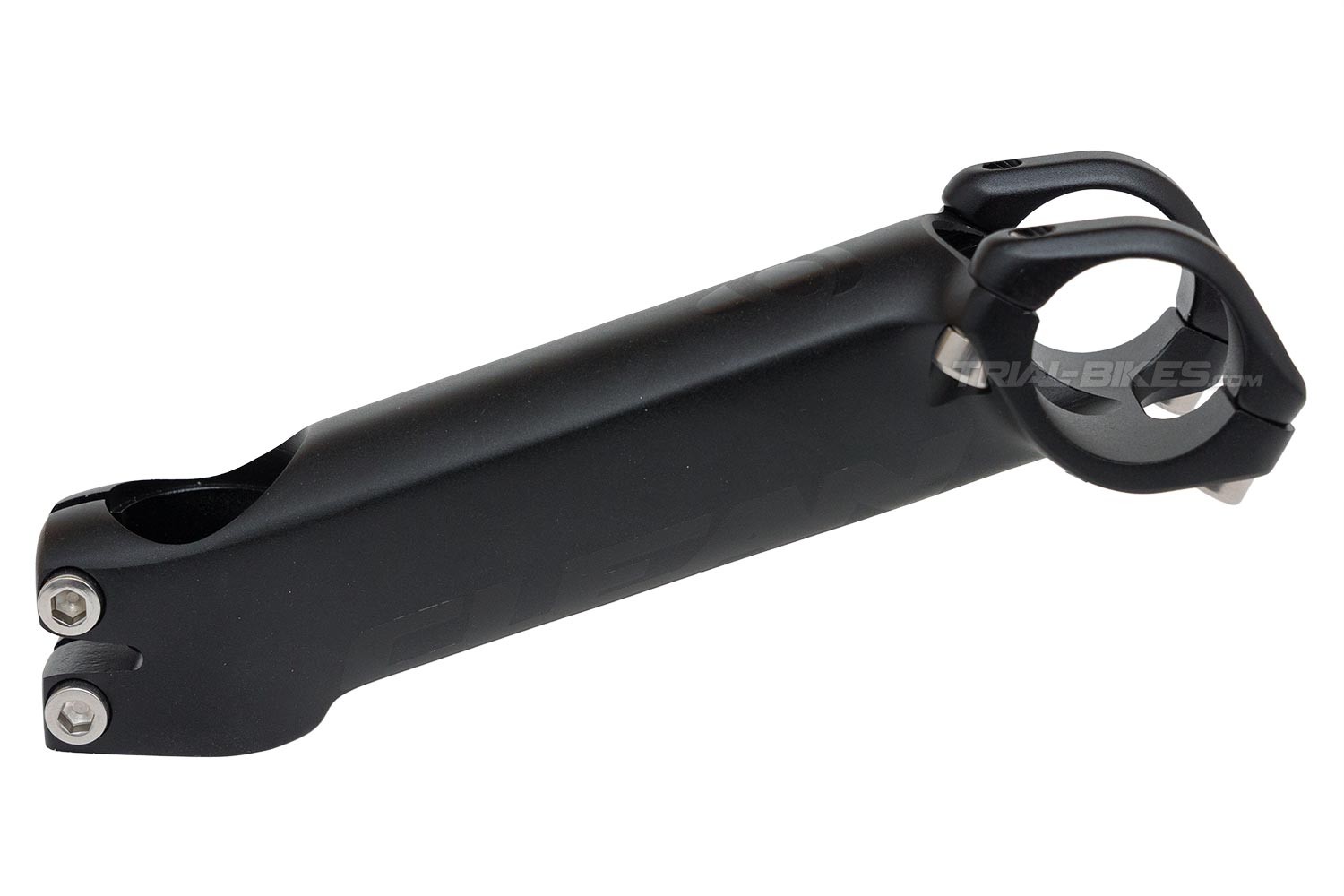

- The stem body is manufactured from a single piece of moulded 6061-T6 aluminium with high dimensional precision, optimising strength and stiffness.
- Exclusive Clean design, specifically developed for the demands of bike trials.
- The steerer tube clamp retains its angled design, with a base height of 34 mm up to the top cap contact surface.
- For correct installation, approximately 29-30 mm of the fork steerer tube must extend into the stem base.
- The centre of the upper stem clamp bolt is positioned at a height of 25 mm, so using a fork steerer tube shorter than this measurement is not recommended.
- Available in 3 different lengths, all with a 20º angle: 135 mm x 20º, 145 mm x 20º and 155 mm x 20º.

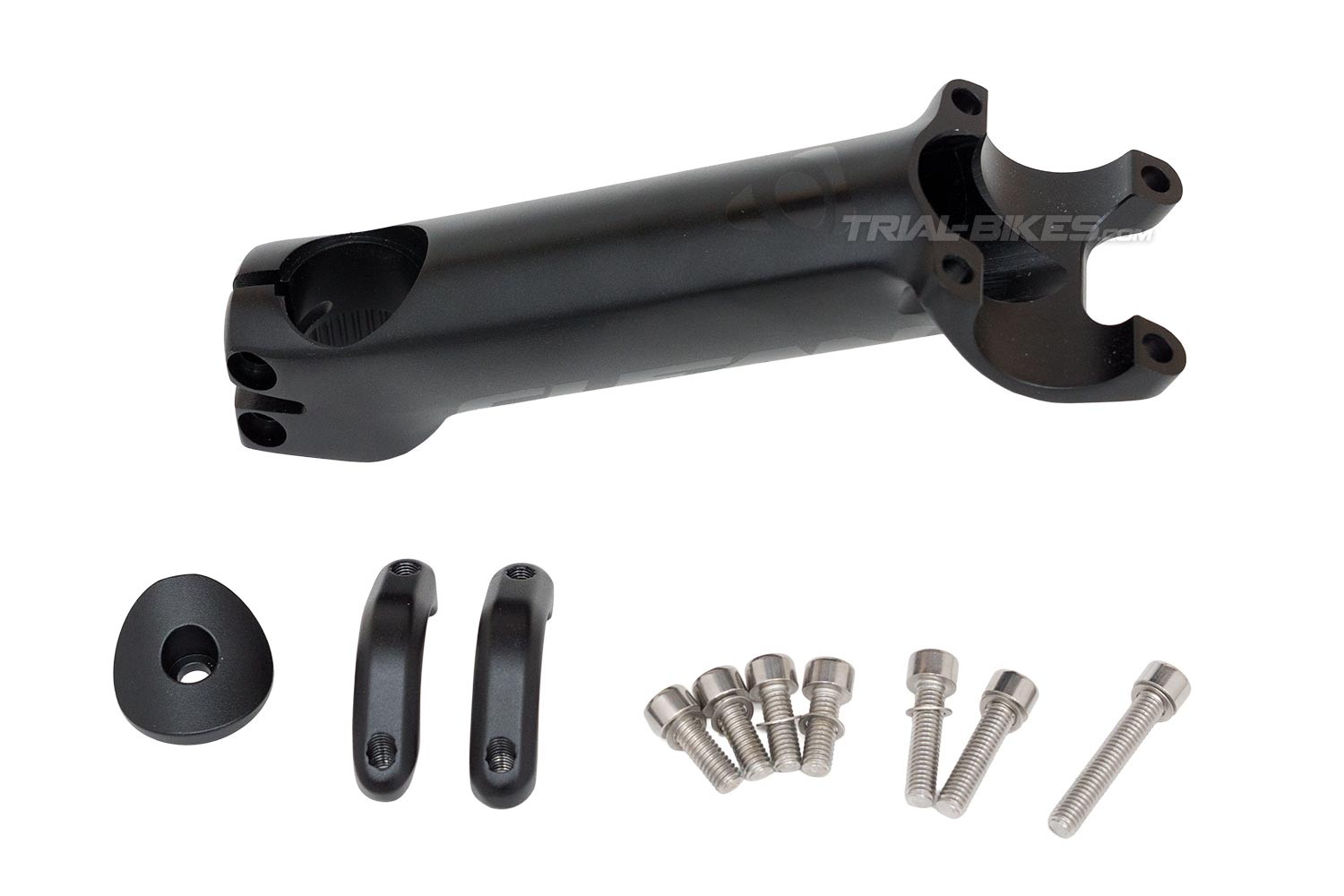

- Supplied with the top cap and 7 M6 steel bolts: 4 M6x16 mm bolts for the handlebar clamps, 2 M6x25 mm bolts for the steerer tube clamp and 1 M6x35 mm bolt for the top cap.
Dimensions
- 135 mm x 20º
- 145 mm x 20º
- 155 mm x 20º
- Handlebar diameter: Ø31.8 mm
- Stem base height: 34 mm up to the top cap contact surface.
- Recommended fork steerer tube insertion length inside the stem: 29-30 mm.
- Height to the centre of the upper stem clamp bolt: 25 mm.
Compatible with:
- Forks with a flat-cut steerer tube of sufficient length for the clamping system.
- Oversized handlebars with a 31.8 mm diameter (most models).
Colour
- Anodised black, with a black Clean logo.
Weight
- 282.80g (135 mm x 20º), 264.20g (145 mm x 20º) and 278.20g (155 mm x 20º).
- Additional weight of the top cap and its bolt: 20.20g.
| LENGTH | 120mm - 160mm |
| RISE | Less than 25º |
