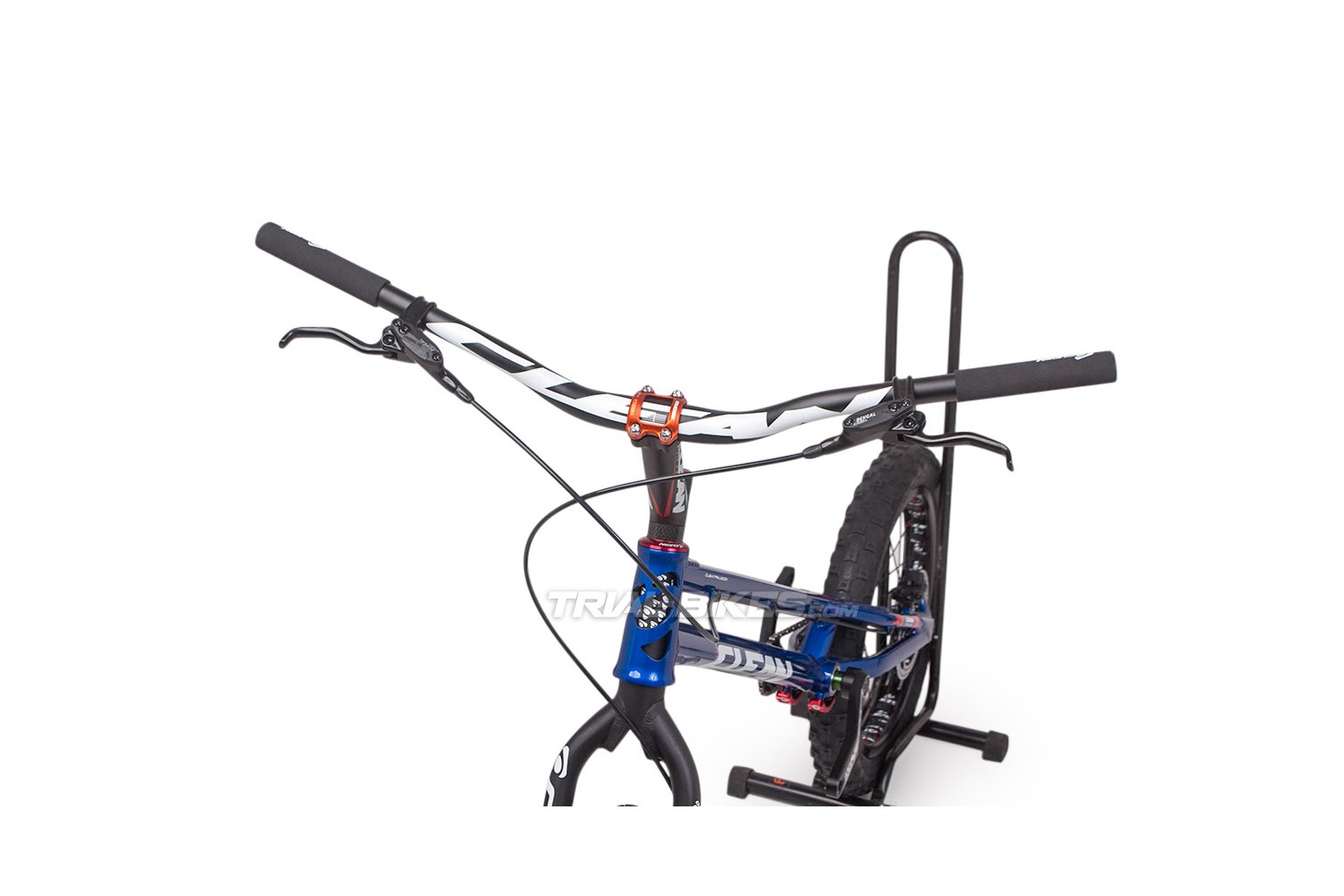

Clean X1 20" 1010 mm Trials Bike 2022

The new Clean X1 20" 1010 mm 2022 is the benchmark 20" aluminium trials bike. Thanks to its reliable design, proven geometry and quality parts, it is the perfect bike to start riding trials and make progress towards a higher riding level. If you also ride moto trials, enduro or MTB, this bike will help you improve your balance and skills.

✅ New geometry with 1010 mm length.
✅ New 2022 finish, in anodized blue colour.
✅ 3 versions: ECO (Magura MT Sport disc brakes, Clean S1 Wheels), Standard (Bengal Ares 3 Hydraulics brakes, Clean X2 Wheels) or PRO (Hope Tech3 Trialzone brakes, Clean X2 Wheels).

Frame and fork
- Frame: Clean X1 20" 1010 mm, made from 6061-T6 + 7075-T6 aluminium alloys, with Post Mount disc brake mounts.
- Forks: Clean X2 20" tapered 1 1/8" – 1.5" frame, made from 7005-T6 aluminium alloy, with Post Mount disc brake mounts.

Wheels
- Front hub: Clean S1 (ECO Version) 32 spoke holes or Clean X2 (Standard and PRO Versions), 28 spoke holes, with rotor mounts.
- Rear hub: Clean S1 (ECO Version) or Clean X2 (Standard and PRO Versions), 32 spoke holes, with rotor mounts.
- Chain tensioner: Clean X2 integrated, with two 10T jockey wheels made of plastic, black.
- Front rim: Clean S1 20" double wall (Eco version) 32 spokes holes or Clean V2 20" single wall (Standard and PRO Versions), 34 mm wide, 28 spoke holes, anodized black.
- Rear rim: Clean S1 19" double wall (Eco version) or Clean 19" single wall (Standard and PRO Versions), 48 mm wide, 32 spoke holes, anodized black.
- Spokes: 2 mm (ECO version) and 1.8 mm spokes (Standard and PRO Versions), black.
- Rim tape: Clean, grey.
- Front inner tube: Clean 20".
- Rear inner tube: Clean 20".
- Front tyre: Clean Koala 20"x2.00".
- Rear tyre: Clean Koala 19"x2.60".

Brakes .
- Front brake: Magura MT Sport disc brakes (ECO Version), Bengal Ares 3 Hydraulics disc brakes (Standard Version) or Hope Tech3 Trialzone brakes (PRO Version).
- Rear brake: Magura MT Sport disc brakes (ECO Version), Bengal Ares 3 Hydraulics disc brakes (Standard Version) or Hope Tech3 Trialzone brakes (PRO Version).

- Rotors: Clean 160 mm.

Drivetrain
- Cranks: Clean ISIS 7075-T6 160 mm, black with silver Clean graphics.
- Bottom Bracket: Clean 128 mm, BSA 68 mm, 1.37"x24tpi, thread.
- Freewheel: Clean X2 108.9 18T screw-on, with 108 engagement points, 9 pawls and 18 teeth.
- Chain: KMC Z1 eHX Narrow, silver.
- Rear sprocket: Clean 12T Screw-on, made steel, black.
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black.
- Bashplate: Clean Light 2-piece mini-bashplate, anodized red.

Steering
- Headset: Clean Internal Tapered 1 1/8" - 1.5", sealed bearings, cup anodized red.
- Stem: Clean 150 mm x 35º, 31.8 mm Oversized handlebar diameter, black with silver Clean graphics.
- Grips: Clean foam, black.
- Handlebar: Clean 7075 103 mm, 31.8 mm Oversized handlebar diameter, black finish with white and red Clean graphics.

Geometry

(1) Wheelbase: 1010 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +87 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube: 580 mm
-----------------------------------------------
Geometrias en bicicletas de Trial

Weight
- 8.200 Kg (Standard version), 8.240 Kg (PRO version) y 8.320 kg (ECO version). Verified at TrialBikes!

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.

If you have any doubts, please contact to info@trial-bikes.com .

FRONT BRAKE Disc
REAR BRAKE Disc
