Inspired Flow 20" Bike 2022

Specially developed for riders up to 1.5m (4.92ft) tall.
The new Inspired Flow 20" street trials bike combines the great features of 24" and 26" Inspired Street bikes, with the agility and lightness of a 20" bike. Thanks to its compact geometry, it’s ideal for riders between 1.10m (3.60ft) and 1.55m (4.92ft) tall, approximately.

Frame and Forks
- Frame: Inspired Flow 20", Gloss Acid Green
- Forks: Inspired Flow 20", Steel, Gloss Acid Green

Wheels
- Front hub: Trialtech, 32h, Sealed Bearing, Black
- Rear hub: Trialtech, 32h, 135mm, Sealed Bearing, Black
- Chain tensioner: Flow Chain Tug
- Front rim: Inspired Single Wall, 20", Black
- Rear rim: Inspired Single Wall, 20", Black
- Spokes: Stainless PG
- Inner tube (front): Kenda
- Inner tube (rear): Kenda
- Front tyre: Kenda K-Rad 20" x 2.125"
- Rear tyre: Kenda K-Rad 20" x 2.125"

Brakes

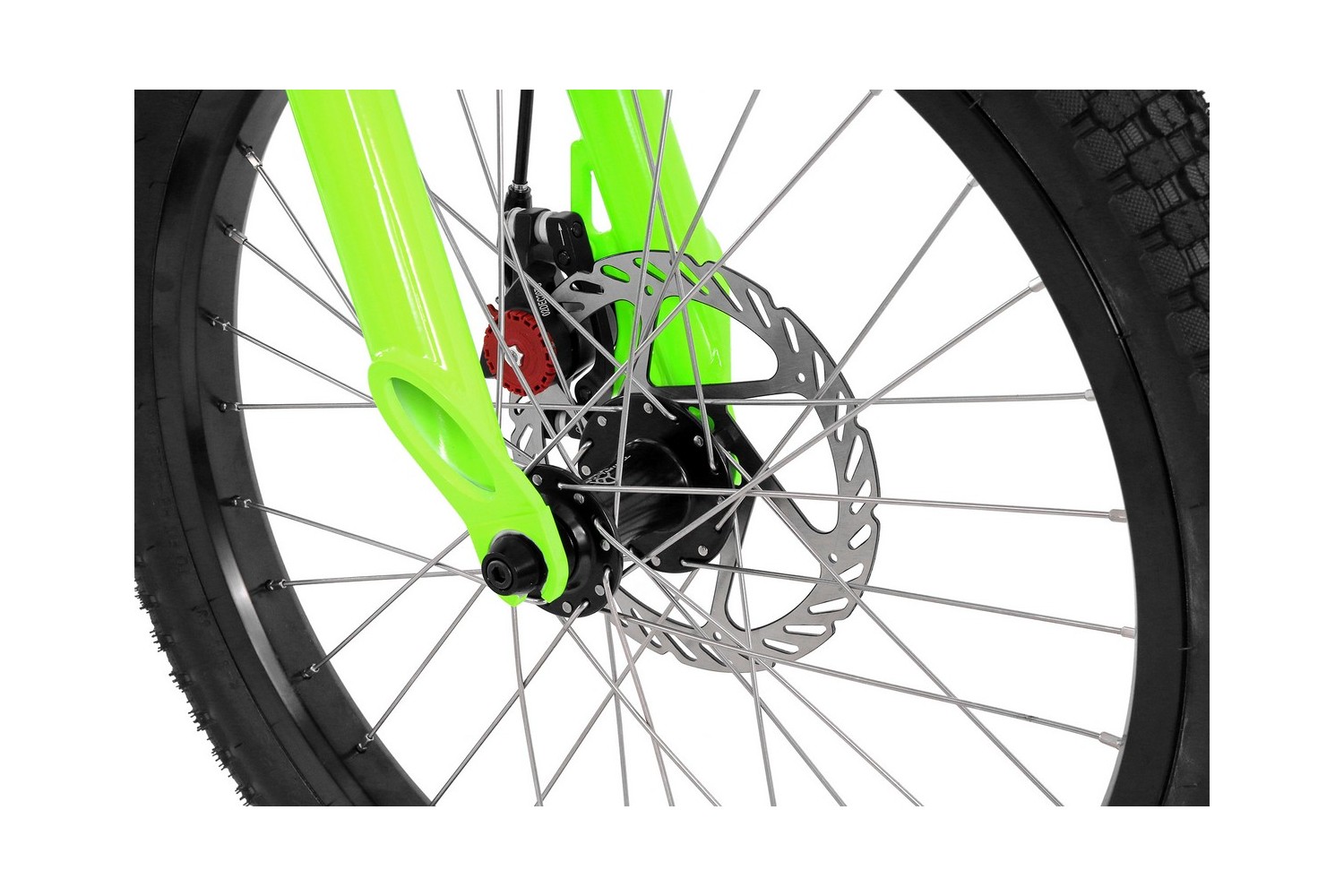

- Front brake: Avid, with Avid FR5 lever, Avid BB5 caliper, 160mm rotor

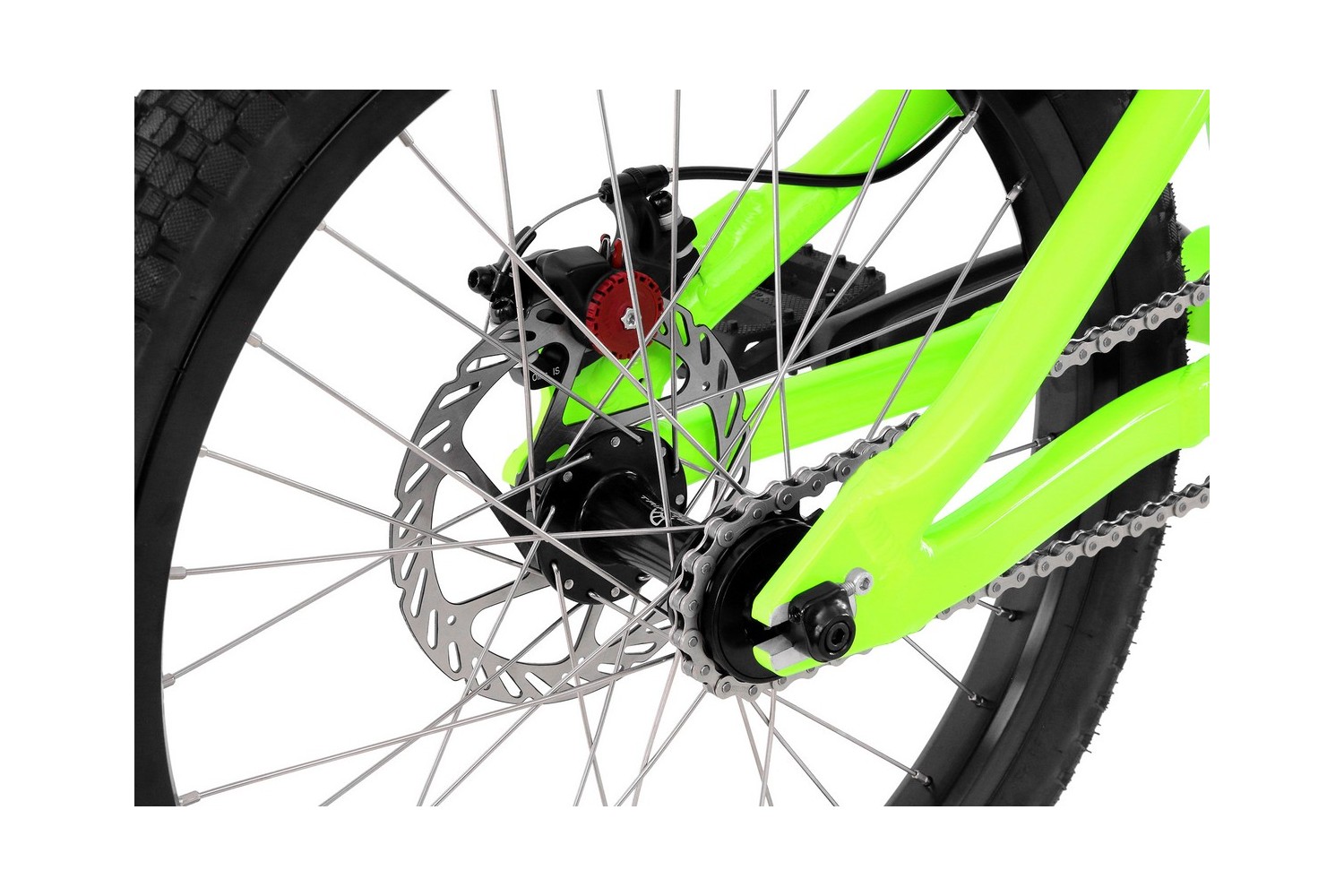

- Rear brake: Avid, with Avid FR5 lever, Avid BB5 caliper, 160mm rotor

Drivetrain
- Cranks: Trialtech, 162mm, Black
- Front Sprocket: Trialtech 24T
- Chain: KMC S1
- Freewheel: Trialtech 16T, 36 engagement points
- Pedals: Wellgo Nylon Platform, Black
- Bottom bracket: Sealed Square Taper
- Bashring: 24T Trials

Seating
- Saddle: Inspired Integrated, Black
- Seatpost: Inspired Integrated Alloy
- Seat clamp: Inspired, 28.6mm, Black

Steering
- Headset: Trialtech, 44mm internal, 1-1/8", Black
- Stem: Trialtech Forged, 90mm x 35˚, Black
- Grips: Inspired Rubber, Black
- Handlebars: Inspired Flow Medium Riser, Black

Geometry

(1) Wheelbase: 850 mm
-----------------------------------------------
(2) Rear End: 320 mm
-----------------------------------------------
(3) Bottom Bracket Height: +15 mm.
-----------------------------------------------
(4) Head Angle: 73°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube: 565 mm
-----------------------------------------------
(6) Reach: 354 mm
-----------------------------------------------
(7) Stack: 424 mm
-----------------------------------------------
Geometrias en bicicletas de Trial

Weight
- 10.15kg (including pedals)

Additional information:
Some pictures may not match the item described, so please read the description carefully.

This bike is partially set up by our workshop.

If you have any doubts, please contact us on info@trial-bikes.com.

SIZE 20"
RIDER HEIGHT 140cm-160cm
FRONT BRAKE Disc
REAR BRAKE Disc
