Clean X2 Disc Protector Expand

Clean X2 Disc Protector

CLEAN CLEAN

537731

New

Clean X2 Disc Protector for Bike Trials

More details

12,40€

Ask a question

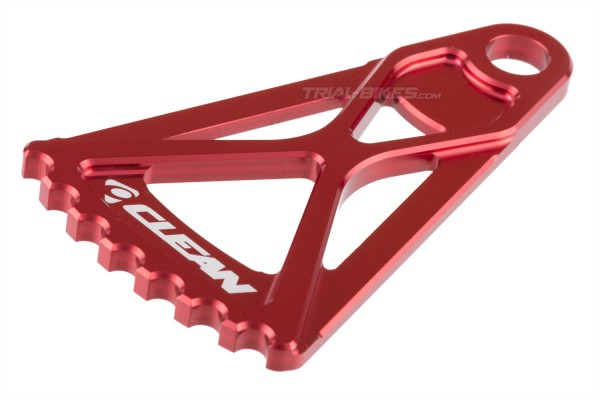

Clean X2 Disc Protector

Description and materials
- Clean X2 disc protector from Spanish trials brand Clean, owned by Abel Mustieles.
- Developed and used by Clean team riders Benito Ros, Ion Areitio and Sebas Ruiz.
- New version comes with a reinforced axle section, now 4mm thick to increase impact resistance.
- The protector prevents the rotor from being hit when riding.
- CNC machined from high-quality, ultra-light 7075-T6 aluminium.
- Features a central X-shaped nerve that multiplies impact resistance.
- It can be directly installed against the hub’s bearing, no need to add a washer.
- Provides protection for rotors up to 165mm diameter.

Installation guide
1. Remove the rear wheel.
2. Measure the total thickness of the hub spacer.
3. Replace the hub spacer with the protector and add some washers (as many as needed) between frame and protector so that the total thickness is the same as before. There is no need to add washers between protector and hub.
4. Install your wheel back.

Compatible with:
- Rear hubs with a 10mm axle.
- Not compatible with different diameter thru-axle rear hubs.

Dimensions
- Length: 84mm (from axle hole to end)
- Outer edge thickness: 5mm
- Axle thickness: 5mm
- Axle diameter: 10mm

Colour
- Anodized red, with white laser etched Clean logo.

Weight
- 26.26g

WEIGHT0.017
