Comas 3D 20º Stem Expand

Comas 3D 20º Stem

COMAS COMAS

New

New Comas 3D 20º bike trials stem, completely forged and available in three exclusive Comas geometries, with lower rise than standard stems.

More details

33,47€

Length .
 130mm

 140mm

 150mm

Ask a question
rating Ver las 2 opiniones
Valoración media: 10/10 - Nº valoraciones: 2

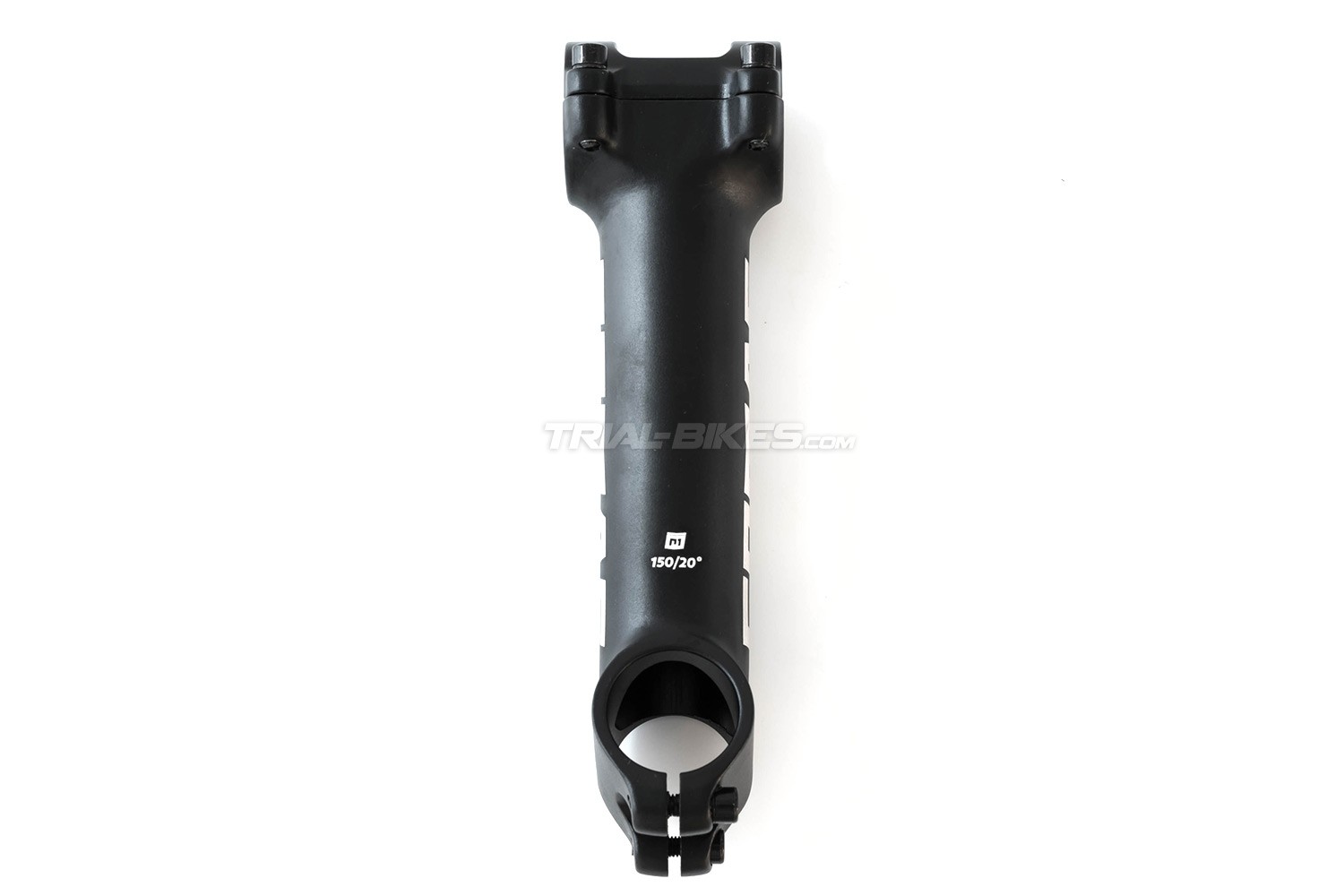

Comas 3D 20º Stem

Description and materials
- Bike trials flat stem from young brand Comas, created by Biketrial World Champion Dani Comas.
- Developed and tested by Comas team riders Sergi Llongueras, Vincent Hermance and Eloi Palau.
- This stem is a pioneer for introducing the 20º rise instead of the common 25º or 30º.
- This allows for a riding position that best suits current frames and handlebars’ geometries.
- The stem body is 3D forged in one piece of 7050-T6 aluminium, without welds, which increases strength, stiffness and overall reliability.
- The front clamp is made in one piece and uses 4 bolts, for even and dependable clamping.
- Compatible with Ø31.8mm Oversized handlebars (most trials handlebars).
- Flat steerer clamp, with each bolt at the very end of it for uniform tightening.
- Two sizes available:
· 130mm long and 20º rise (130mm x 20º).
· 140mm long and 20º rise (140mm x 20º).
· 150mm long and 20º rise (150mm x 20º).
- Supplied with all 6 steel bolts: 4x M5x18mm for the handlebar clamp and 2x M5x16mm for the steerer tube clamp.

Sizes
- Two sizes available:
· 130mm long and 20º rise (130mm x 20º).
· 140mm long and 20º rise (140mm x 20º).
· 150mm long and 20º rise (150mm x 20º).
- Handlebar diameter: Ø 31.8mm
- Steerer clamp height: 40mm

Recommended use
- 130mm x 20º: ideal for kids bikes (high position) and 26” bikes (low position).
- 140mm x 20º: ideal for 20” bikes (low position) and 26” bikes (mid position).
- 150mm x 20º: ideal for 20” bikes (mid position) and 26” bikes (high position).

Colour
- Anodized black, with white laser etched Comas graphics.

Weight
- 196g (130mm x 20º), 200g (140mm x 20º), 206g (150mm x 20º) including all 6 steel bolts

Additional Information
Maximum torque for the bolts is 4Nm. Any damage to the handlebar clamp or threads because of excessive tightening won’t be covered under warranty.

COLOR Black
LENGTH 120mm - 160mm
RISE Less than 25º

We have no question. What are you waiting for? Send us yours!

Ask a question
Tu pregunta ha sido envia para moderar. Gracias por preguntar!
Ask a question
Ocultar
Nombre:
Email:
Pregunta:
Idioma:
Código de validación
¿Puede leer la imagen? Click aquí para cambiar
  Ask a question

Haz clic aquí para dar tu opinión


satisfecho
jakson j. el día 2023-09-05 10/10
Highly recommend
Saveliy D. el día 2021-10-30 Wanted to buy this stem during 6 month. And now it's on my bike. For this money quality is on the high level. Easy handlebar installation due to 4 bolt clamp.I am 185 height, and for me such geometry very comfortable. It is made for learning technics using front whell. Riding on rear wheel become easier to.
